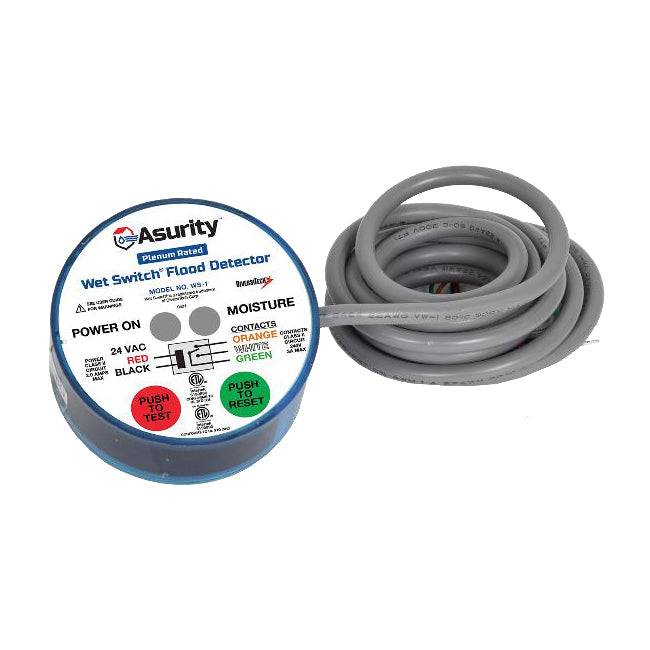

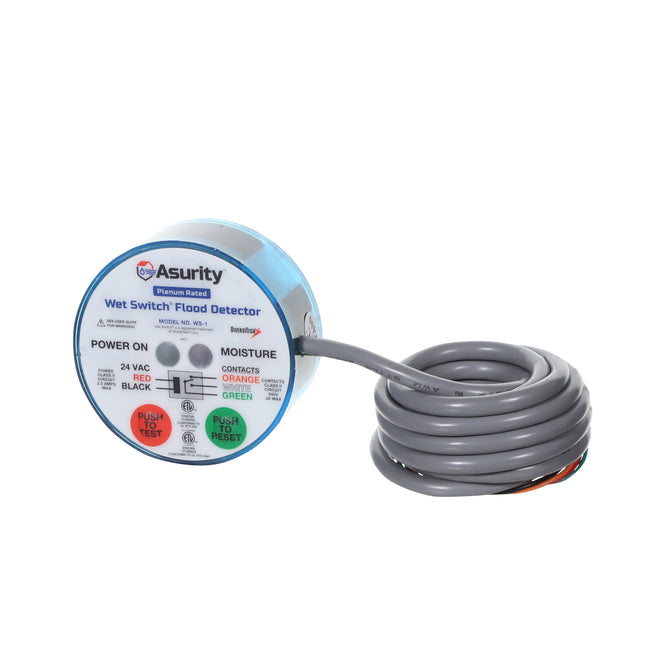

Diversitech WS-1 - Wet Switch Flood Detector

The Asurity WS-1 Wet Switch Flood Detector is designed to prevent flooding, damage to carpets, walls, furniture, and ceilings. Turns system off when detecting moisture due to condensate or drain leaks.Includes a built-in test and reset button. One or two drops is all it takes to turn system off, alerting homeowner or service person to potential moisture problems.

A solid state control designed to help prevent flooding, damage to carpets, walls, furniture, ceilings, etc. Now has a built-in test and reset button for easier installation. Turns system off when detecting moisture due to condensate or drain leaks. One or two drops will cause Wet Switch to turn off a unit, alerting a serviceman to a moisture problem. A lit LED indicates the Wet Switch is activated and has turned the unit off. Reset simply by drying the absorbent pad with a paper towel and pressing the reset switch. Connects to 24 VAC. More than one unit may be connected to a system. 2 amp contact rating. Simple 5 wire installation. Sales displays available. ETL Listed File Number 3146992

Features

Shuts down unit with the detection of as little as 1 to 2 drops of water
Connects to a 24VAC power supply, the standard power available on most air handler units
Easily check that the Wet Switch is working normally with the push to test and push to reset buttons
LED indicators confirm system status
Flexible placement options
Easy 4 wire connection
Switch installation notification label

General Specifications

Test / reset buttons
250V rated voltage
Actuates at greater than 18V to prevent any false alarms due to low voltage
Includes 5 wire nuts for convenient installation
Plenum rated
ETL Listed for UL508 standard

HAZ1300305
