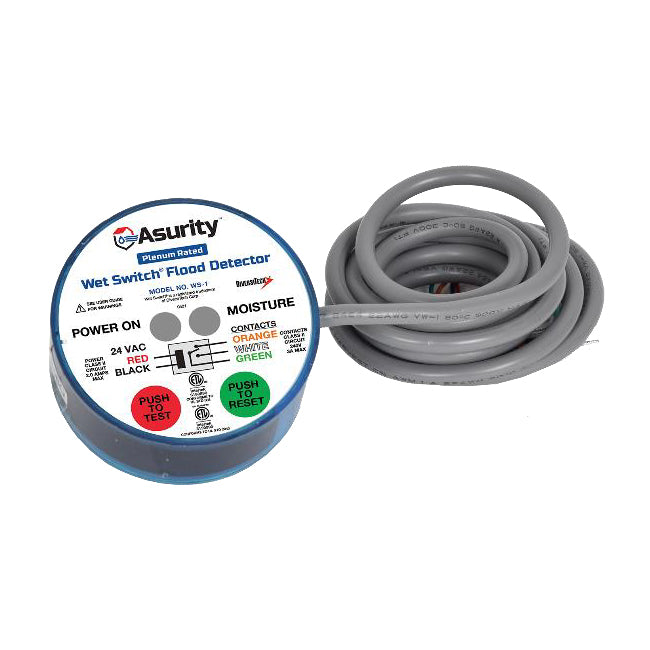

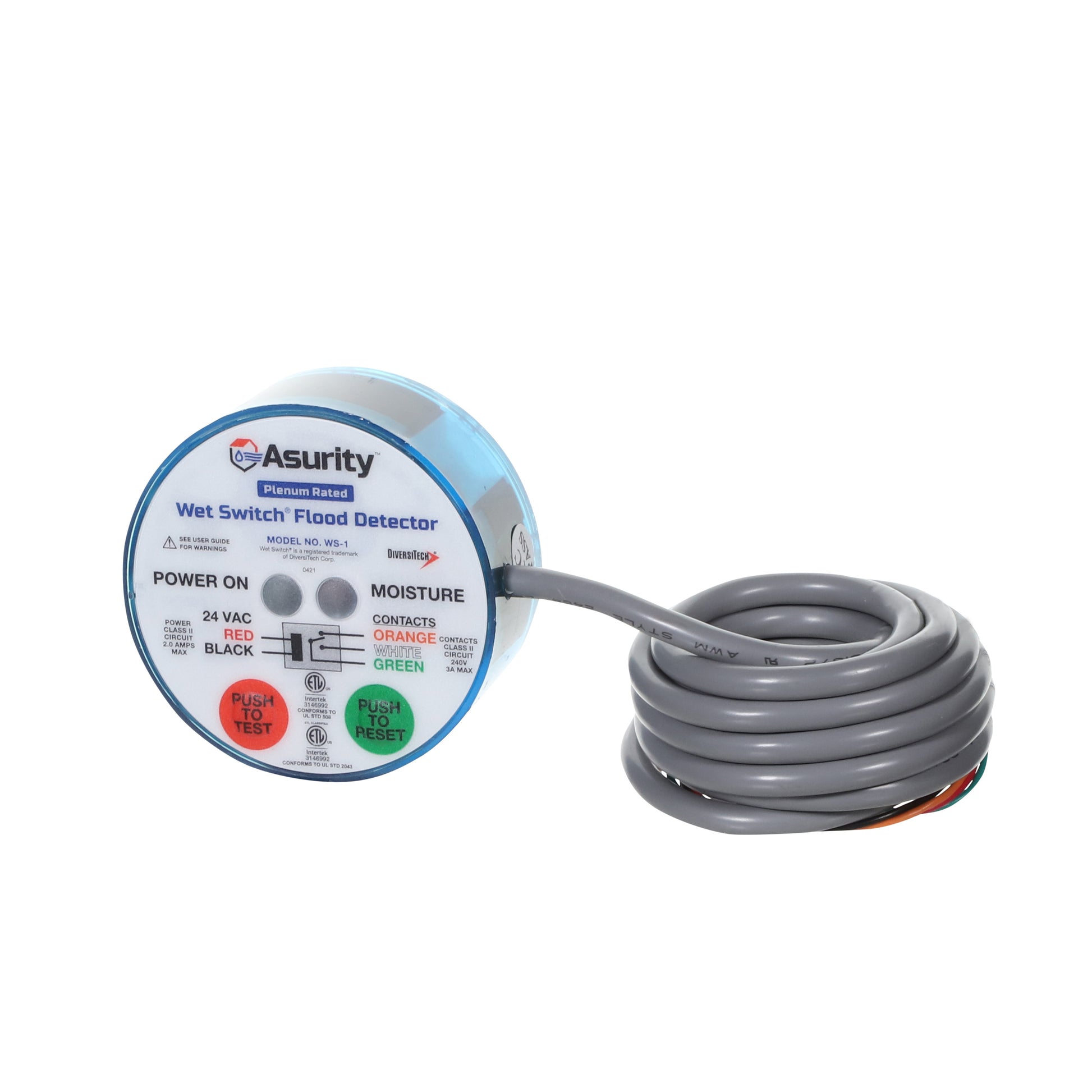

Diversitech WS-1 - Wet Switch Flood Detector

The Asurity WS-1 Wet Switch Flood Detector is designed to prevent flooding, damage to carpets, walls, furniture, and ceilings. Turns system off when detecting moisture due to condensate or drain leaks.Includes a built-in test and reset button. One or two drops is all it takes to turn system off, alerting homeowner or service person to potential moisture problems.

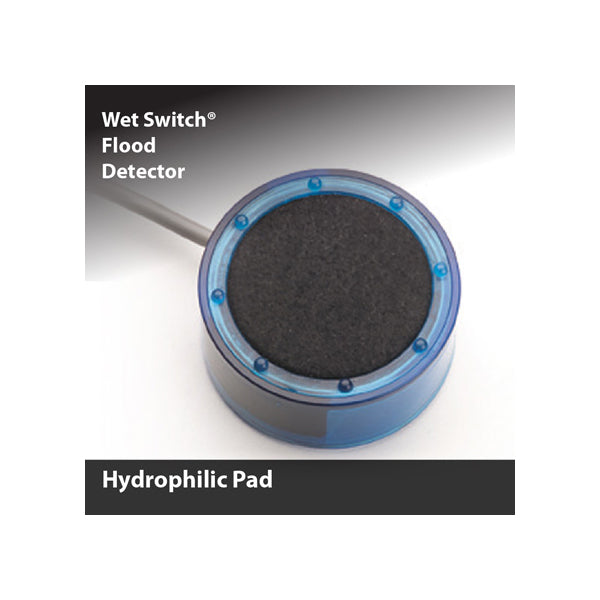

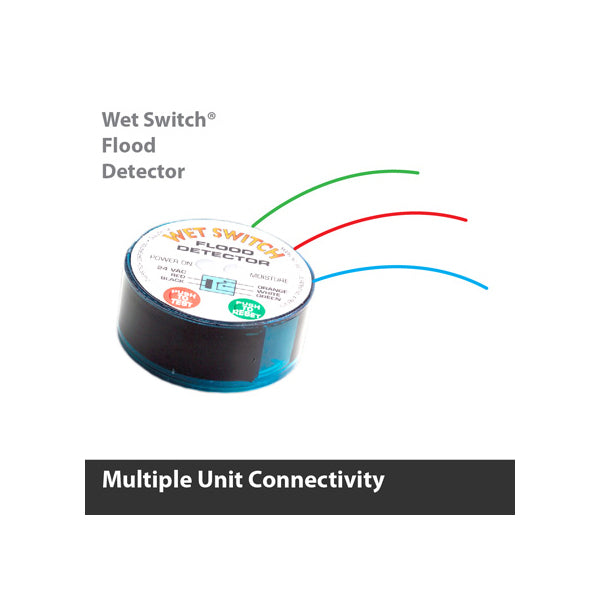

A solid state control designed to help prevent flooding, damage to carpets, walls, furniture, ceilings, etc. Now has a built-in test and reset button for easier installation. Turns system off when detecting moisture due to condensate or drain leaks. One or two drops will cause Wet Switch to turn off a unit, alerting a serviceman to a moisture problem. A lit LED indicates the Wet Switch is activated and has turned the unit off. Reset simply by drying the absorbent pad with a paper towel and pressing the reset switch. Connects to 24 VAC. More than one unit may be connected to a system. 2 amp contact rating. Simple 5 wire installation. Sales displays available. ETL Listed File Number 3146992

Features

• Shuts down unit with the detection of as little as 1 to 2 drops of water
• Connects to a 24VAC power supply, the standard power available on most air handler units
• Easily check that the Wet Switch is working normally with the push to test and push to reset buttons
• LED indicators confirm system status

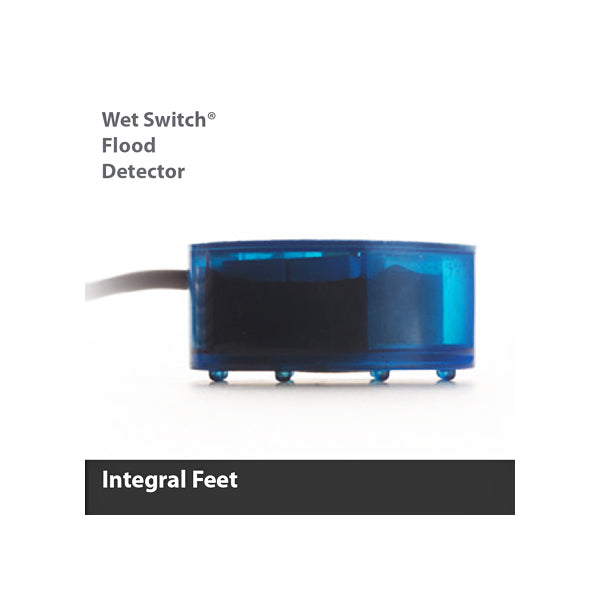

• Flexible placement options
• Easy 4 wire connection
• Switch installation notification label

General Specifications

• Test / reset buttons
• 250V rated voltage
• Actuates at greater than 18V to prevent any false alarms due to low voltage
• Includes 5 wire nuts for convenient installation
• Plenum rated
• ETL Listed for UL508 standard

HAZ1300305
