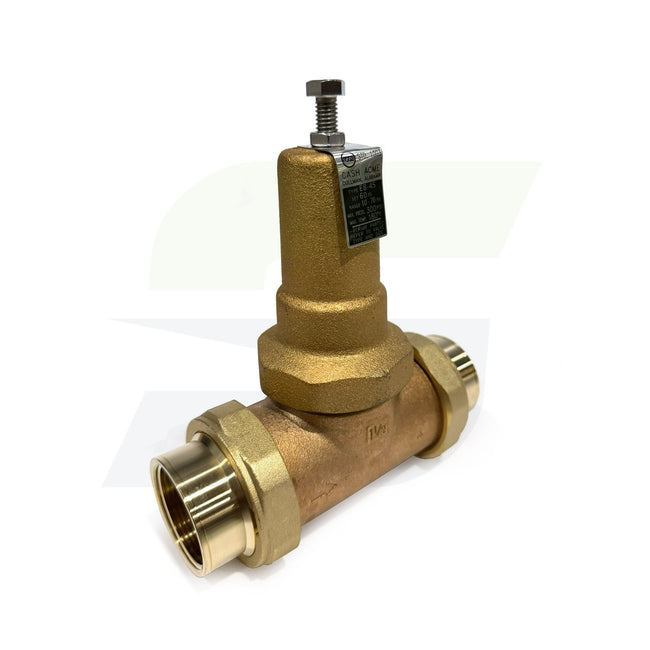

Cash Acme 23906-0045 - 1-1/2" EB45 Double Union Threaded Pressure Regulating Valve

The EB-45 Series is a lead-free1 half-cartridge based pressure reducing and regulating valve with a bronze body. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge based valve. The EB-45 is assembled using modular construction methods and features end connections threaded for both FIP and union in 1” through 2” sizes. A connection for a pressure gauge is also available for 3” and 1" models.

The EB-45 is intended for use where supply line pressure does not exceed 300 psi (400 psi 1/2", 3/4", and 1"). The EB-45 pressure regulators are supplied by the factory with a standard delivery setting of 45 psi. The outlet pressure can be adjusted from 10-70 psi without changing the spring. This regulator is suited for either cold or hot (to 180°F) water service.

Specifications

Type: Pressure Regulator
Connection Type: Double Union NPT
Size: 1-1/2"
Operating Temperature [Min]: 33 Degrees F
Operating Temperature [Max]: 180 Degrees F
Operating Pressure [Max]: 300 psi
Body Material of Valve: Lead Free Bronze
Spring Chamfer Material of Valve: Iron
Adjusting Spring Material of Valve: Steel (zinc plated)
Hex Handle Material: Metal - Cash Acme - Steel
Diaphragm Material of Valve: Reinforced EPDM
Body Seat Material of Valve: Polysulfone
Seat Disc Material of Valve: EPDM
Piston Material of Valve: Stainless Steel/Brass
Strainer Screen Material of Valve: Stainless steel
O-Ring Material of Valve: EP

^PAZCA00190
