Fantech FG8 - 8" Inline Centrifugal Duct Fan

A multi-purpose inline duct fan for exhaust or supply air; ideal for commercial and residential ventilation applications. With the motor in the airstream, the FG 8 series fan provides constant dissipation of heat build-up that gives the fan first-in-class longevity and reliability backed by an industry leading warranty. The fan’s motor bearings are permanently sealed and self-lubricating for maintenance-free life.

The housing is manufactured from a two-piece stamped, galvanized construction. The unique, folded seam procedure by Fantech joins the two halves to give the fan a first-in-class, airtight seal. The airtight casing allows installation in duct connections and in wet room applications to be possible. Easy installation and reduced maintenance requirements ensure you stay within your budget and you finish your project on your time.

Features

410 CFM of airflow at Pst 0.20” Wg
Durable, leak-free, low noise operation
Suitable for indoor installations
Mount the fan at any angle/direction within the ductwork
Built-in thermal overload protection with automatic reset
Operable in air stream temperatures up to 140°F
Mounting bracket and hardware included
Five-year factory warranty

Specifications

Voltage: 120 V
Frequency: 60 Hz
Phase(s): 1~
Input Power: 116 W
Input Current: 0.99 A
Impeller Speed: 2,618 RPM
Air Flow: Max 462 CFM
Temperature of Transported Air: Max 140 Degrees F
Enclosure Class, Motor: IP44
Insulation Class: B
Duct Dimension: 8" Circular
Weight: 8.2 lbs

^HEZ2200010

Collection: Fantech

Filter products

Brand

Price

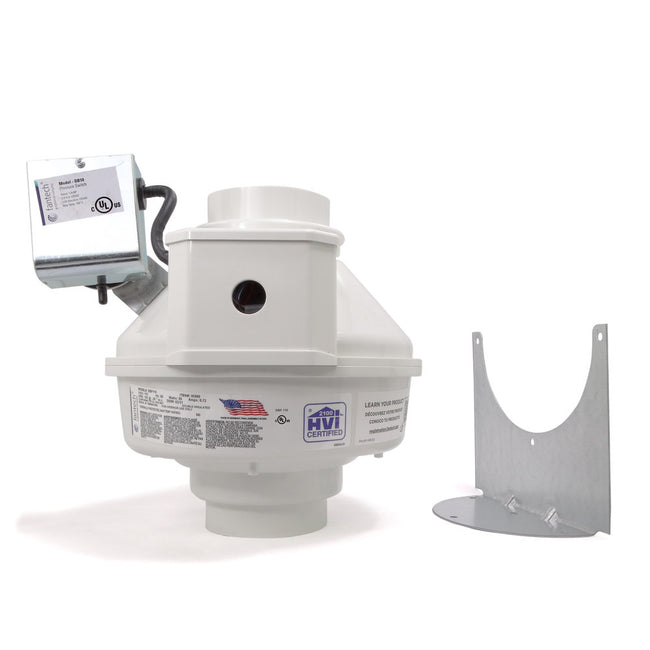

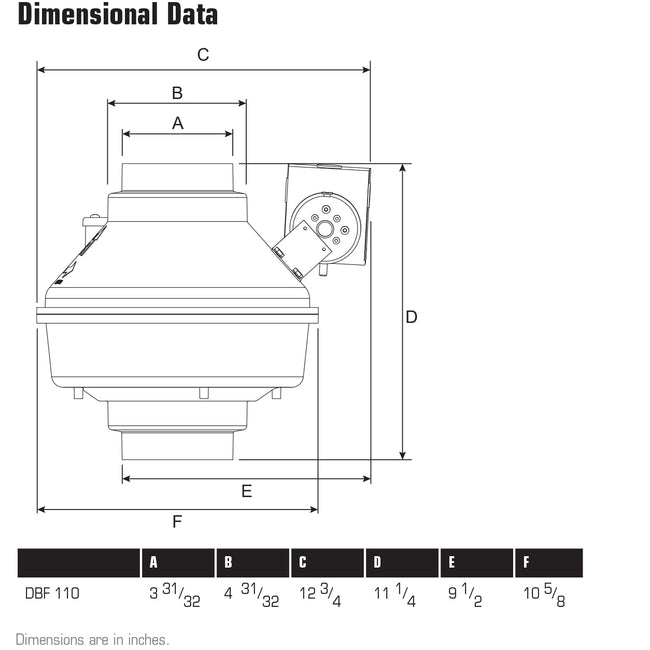

Fantech DBF 110 - 4" Duct Booster Fan
