Panasonic FV-1115VKL2 - WhisperGreen Select Ventilation Fan with Light - 0.8 Sones - 110-130-150 CFM

Reintroducing WhisperGreen Select, our whole house IAQ solution with enhancements. First, our redesigned elegant grille incorporates a 10W dimmable LED chip panel with <1W LED night light for energy efficient illumination. Another new feature is our single-hinged Flex-Z Fast bracket for more flexible and easy installation. Other enhancements includes an environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design and dual access junction box that helps simplify wiring in tight spaces.

Features

Customizable, all-in-one whole house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage
Pick-A-Flow Airflow Selector; features a built-in speed selector (130-150 CFM model) combined with SmartFlow technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
New! Elegant grille with integrated 10W dimmable LED chip panel with <1W LED night light; JA-8 compliant for CA Tittle 24
New! Environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design
New! Improved Flex-Z Fast; single-hinge bracket with added flexibility; fast and easy installation
Air Volume Supply: 110, 130, 150 CFM
Sound Levels: 0.3, 0.5, 0.8 Sones

Specifications

Model number: FV-1115VKL2
Fan Type: Fan/Light -LED
Advanced Features:
- Pick-A-Flow Airflow Selector
- ECM motor with SmartFlow technology
- Dimmable LED Light
Air Volume Supply (CFM): @0.1= 110, 130, 150 @0.25= 110, 130, 150 @0.375= 107, 131, 127
Noise (Sones): @0.1"SP (110, 130CFM) = <0.3 , 0.4 @ 150CFM @0.25"SP(110,130,150 CFM) = 0.3, 0.5, 0.8
Power Consumption (Watts): 110 CFM=7.5, 130=10.4, 150=14.9
Energy Efficiency (CFM/Watt): 110 CFM=14.6, 130=12.5, 150=10.1
Current (Amps): 110 CFM=0.08, 130=0.11, 150=0.15
Power Rating (V/Hz): 120/60
Motor Type (AC/DC): DC (ECM)
ENERGY STAR Certified: Yes
Other Approved Codes and Standards: ASHRAE 62.2, LEED, CA T-24, CALGreen
Duct Diameter: 6 inch
Mounting Options: Horizontal
Ventilation Design Approach: Bathroom Exhaust Fan
Warranty: 6 years ECM Motor, 3 years all other parts
Industry: Residential, Light Commercial
Radiation Damper Available: Yes, PC-RD05C5
Master Carton Gross Weight (lbs.): 12.55 (1 unit)
Master Carton Dimensions (HxWxD): 11.85 x 14.17 x 16.73
UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes

HEZ2110470

Collection: Fan & Light

Filter products

Brand

Features

Price

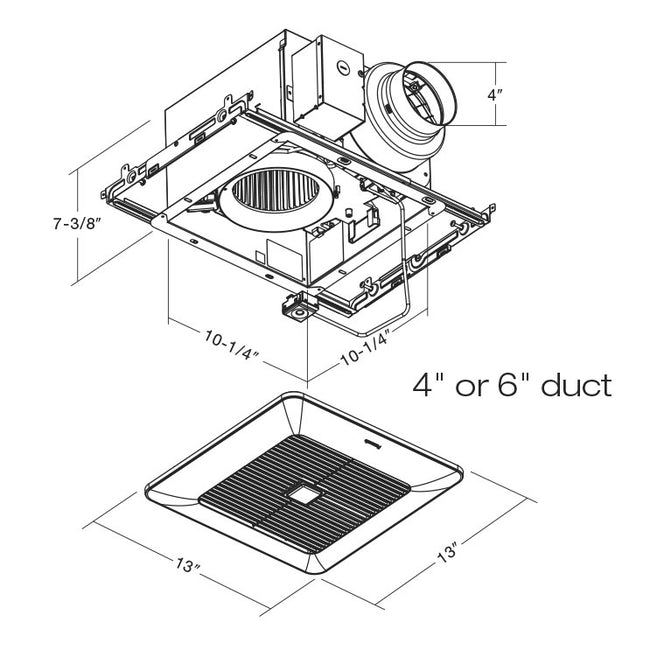

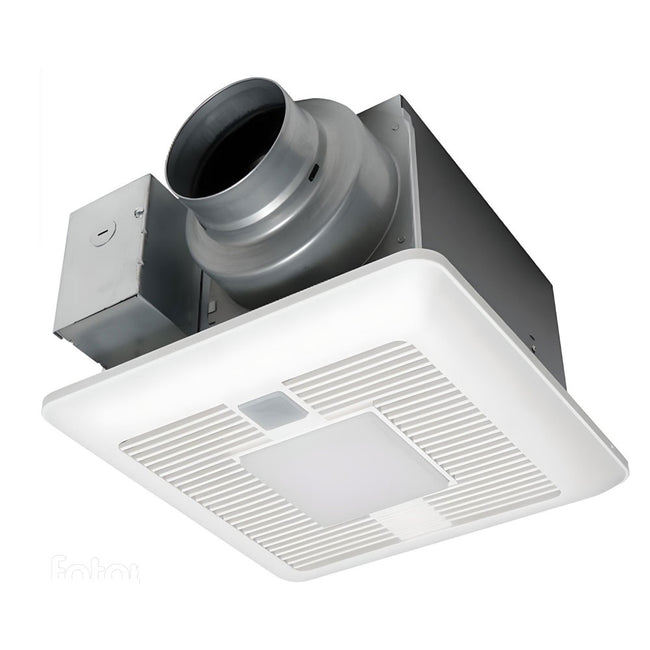

Panasonic FV-0511VQCL1 - WhisperSense DC Fan/LED Light, 50-80-110 CFM
