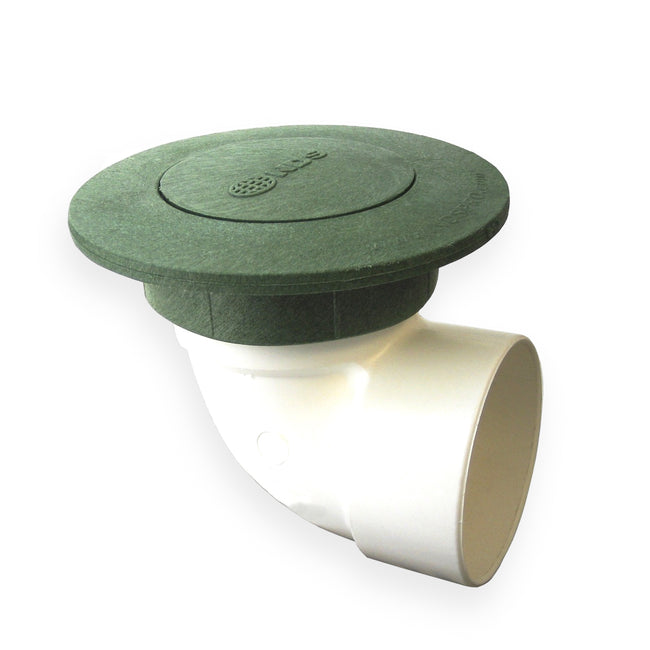

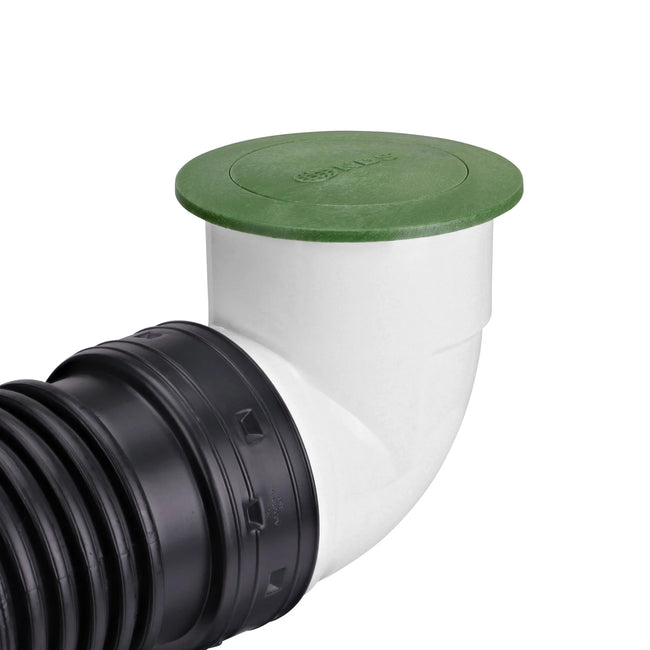

NDS 321 - 3" Pop-up Drainage Emitter with Elbow

NDS Pop-Up drainage emitters act as the discharge point of a drainage system, opening easily when needed to allow water to flow freely from the pipe and away from structural foundations. The patented spring-loaded cap opens with the hydrostatic pressure of water flowing through the drain pipe, then closes as the flow diminishes. It allows water to be diverted and released to water-safe areas away from structures, erosion-prone landscapes, and poor drainage areas. The NDS pop-up drainage emitter with elbow is an easy, safe, and efficient solution to any drainage needs.

Features

Pop-up emitter cover consists of a spring-loaded cap and wide flange to prevents turf overgrowth
Engineered crossbar design underneath helps maximize flow while flushing out debris
Molded-in crossbar geometry along with internal ribs provide exceptional durability; supports pedestrian traffic including lawn tractors when properly installed
Use with an elbow and weephole to drain residual water and help prevent stagnation and potential freezing of residual water
Manufactured from 100% recycled HDPE
Reduces trip hazard posed by open drain
Pop-up top keeps rodents and debris out of system
Low-rise to avoid interfering with mowers
Color can be matched to surrounding landscape
Material: Polypropylene
Color: Green
Height: 6-1/4"
Fits 3" sewer and drain pipe
Ideal for discharging excess water from stormwater management system.

How do pop-up drainage emitters work?

Pop-up Drainage Emitters allow water captured by grates, catch basins, channel drains, Flo-Well, EZflow, downspouts and roof gutter systems to flow through drainage pipe and away from structural foundations to safe or useful areas. For example, water can be routed from a low area next to a foundation to a water-safe area in the landscape, or a curbside drainage system where allowed. The emitter opens under minimal hydrostatic pressure from water through upstream drainage pipes; the emitter closes as flow diminishes. The special patented design allows the Emitter to open with even the smallest flows. Since the Emitter is closed during dry weather, debris and rodents cannot enter the drain pipes. Spring automatically retracts – closes and prevents damage from lawn mowers. It's flat profile blends discreetly into the surrounding landscapes.
