Surface-mounted hand dryer shall a one-piece, fire-retardant molded ABS plastic cover with high-gloss white finish.

Features:

Molded plastic cover
Grey only
115 Volts, 1725 Watts, 60 hz.
cULus Listed
Not designed for vandal-prone washrooms

Materials:

Cover — One-piece, 3/32'' (2.6mm) thick fi re-retardant, molded , high-quality, high-impact, pale grey (Bobrick color #889) ABS plastic, 5-V rated. Cover is secured to mounting base with three fl at-head stainless steel screws.
Mounting Base and Fan Housing — 5-64" (2.0mm) thick fi re-retardant molded grey plastic with high-gloss fi nish. Air-inlet grille fits into bottom of mounting base. Air-outlet grille is secured between fan housing and mounting base.
Motor — 115V AC, 90 W, 60 Hz, 2500 rpm. Brushless, external rotor motor. Sealed ball bearings at both ends of drive shaft; maintenance free. Equipped with an automatic thermal-overload switch.
Fan — Dynamically balanced 5-15/64" (133mm) diameter centrifugal fan with multiple metallic vanes. Directs air flow from heating element at 90 cfm, mixes air to provide uniform temperature.
Heating Element — Coiled nickel-chrome heating element is protected by an automatic thermal-overload switch. Heating element, which is located on inlet side of fan, heats air without hot spots — inaccessible to vandals.
Electronic Control — Infrared sensor automatically turns dryer on when hands are held under air-outlet opening and across path of sensor. Remove hands from path of sensor and dryer stops. Electronic sensor has automatic shutoff approximately two minutes after dryer turns on if an inanimate object, such as tape or chewing gum, is placed across sensor lens. After inanimate object is removed, electronic sensor automatically resets itself and dryer operates normally

Operation:

No-touch operation. Electronic sensor automatically turns dryer on when hands are held under air-outlet opening and across path of sensor.
Remove hands from path of sensor and dryer stops.
Dryer will not stop by itself before user is satisfied hands are dry.
Dryer operates only when actually drying hands, which saves energy and operating costs.
Electronic sensor will automatically shut dryer off two minutes after dryer turns on if an inanimate object is placed across sensor lens.
After inanimate object is removed, electronic sensor automatically resets itself and dryer operates normally.

Collection: $650 to $700

Filter products

Type

Price

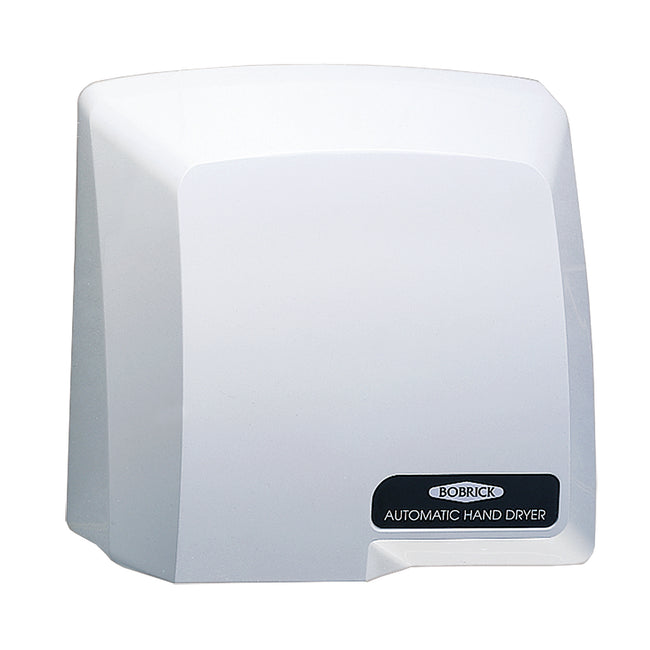

Bobrick 710 115V - CompacDryer Surface Mounted Hand Dryer
