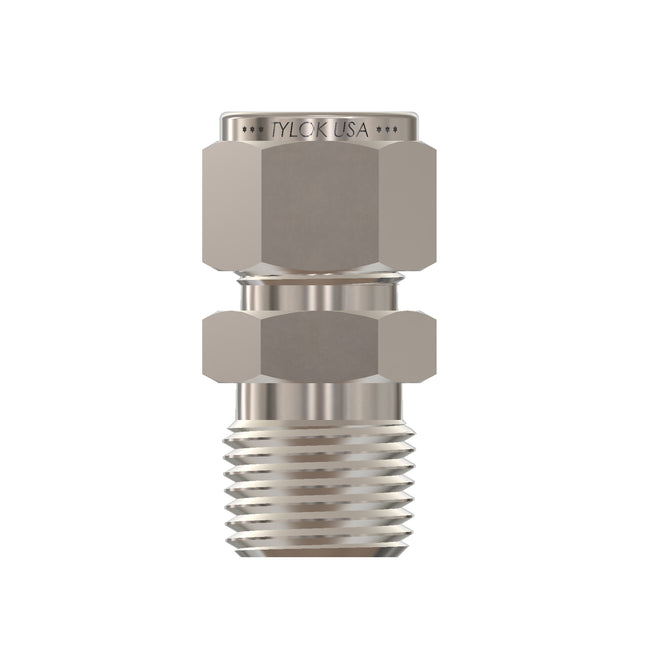

Tylok SS-16-DMC-8 - Stainless 1" CBC Tube x 1/2" MNPT Straight Connector

CBC-Lok Tube Fittings are comprised of four components: Body, Front Ferrule, Rear Ferrule & Nut. A leak-proof seal is obtained through proper ferrule action as the ferrules are tightened onto the tubing via axial thrust provided by the nut. The front ferrule provides the leak-proof seal, when the nut & ferrules are properly drawn up the specified number of turns. The rear ferrule grips the tubing preventing pull-off. The stainless steel nuts are silver plated and dry film lubricant is applied, reducing torque and ensuring proper sealing

Features

Double ferrule swaging action
Total component interchangeability
Heat Code traceable
ASTM material construction

About Tylok CBC-Lock Fittings

CBC-Lok Tube Fittings are fully interchangeable with Swagelok & Parker A-Lok and CS-Lok Tube Fittings are fully interchangeable with Parker CPI. Although it is always recommended to use all Tylok components intermixing Tylok bodies and/or components parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok Tube Fittings are made to strict quality control standards. Tylok Fittings are proudly made in the U.S.A.

DTYLO00442

Collection: $50 to $75

Filter products

Size

Type

Brand

Price

SS-16-DMC-8 - Stainless 1" CBC Tube x 1/2" MNPT Straight Connector
