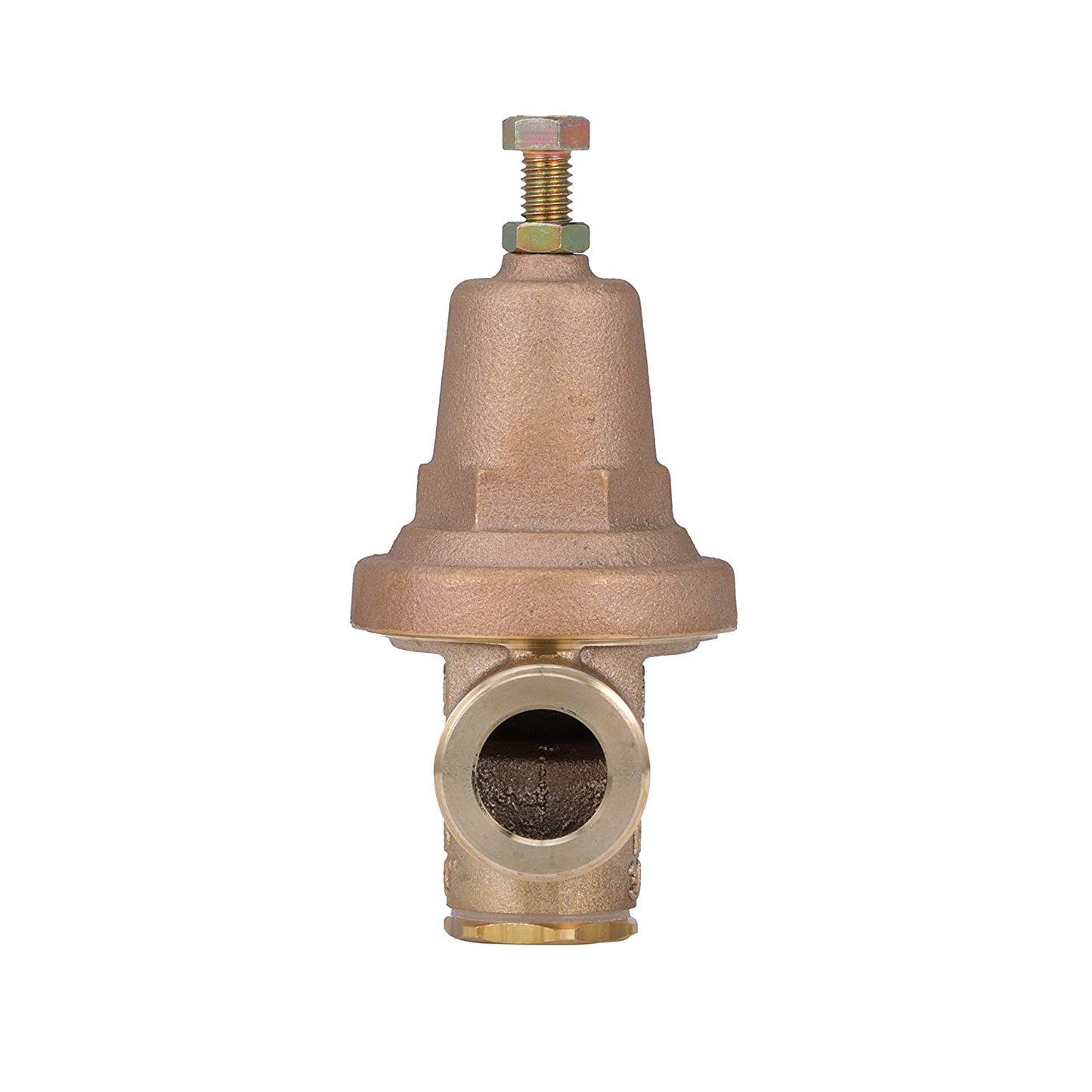

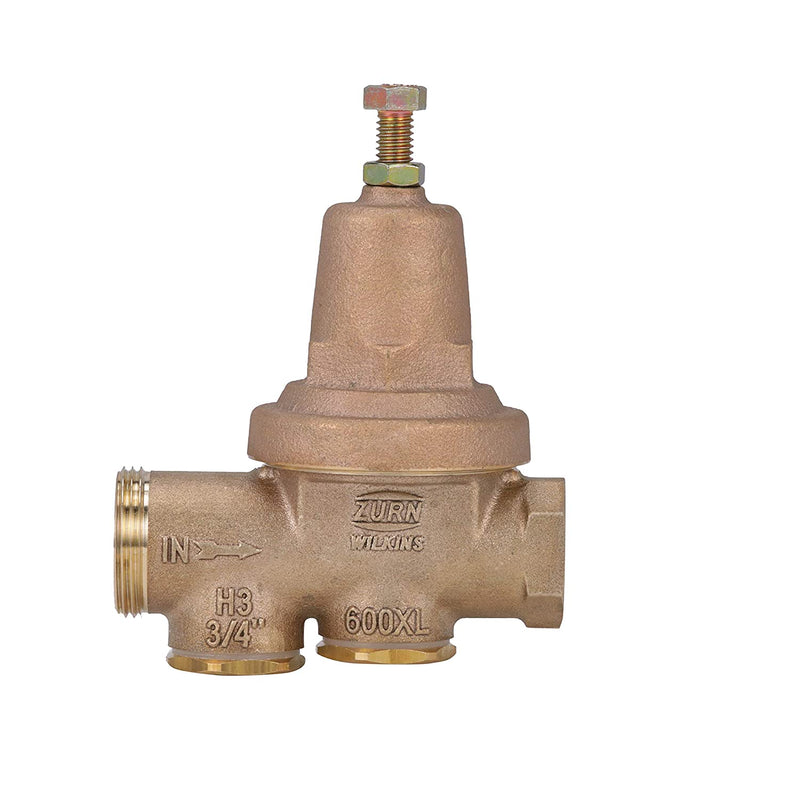

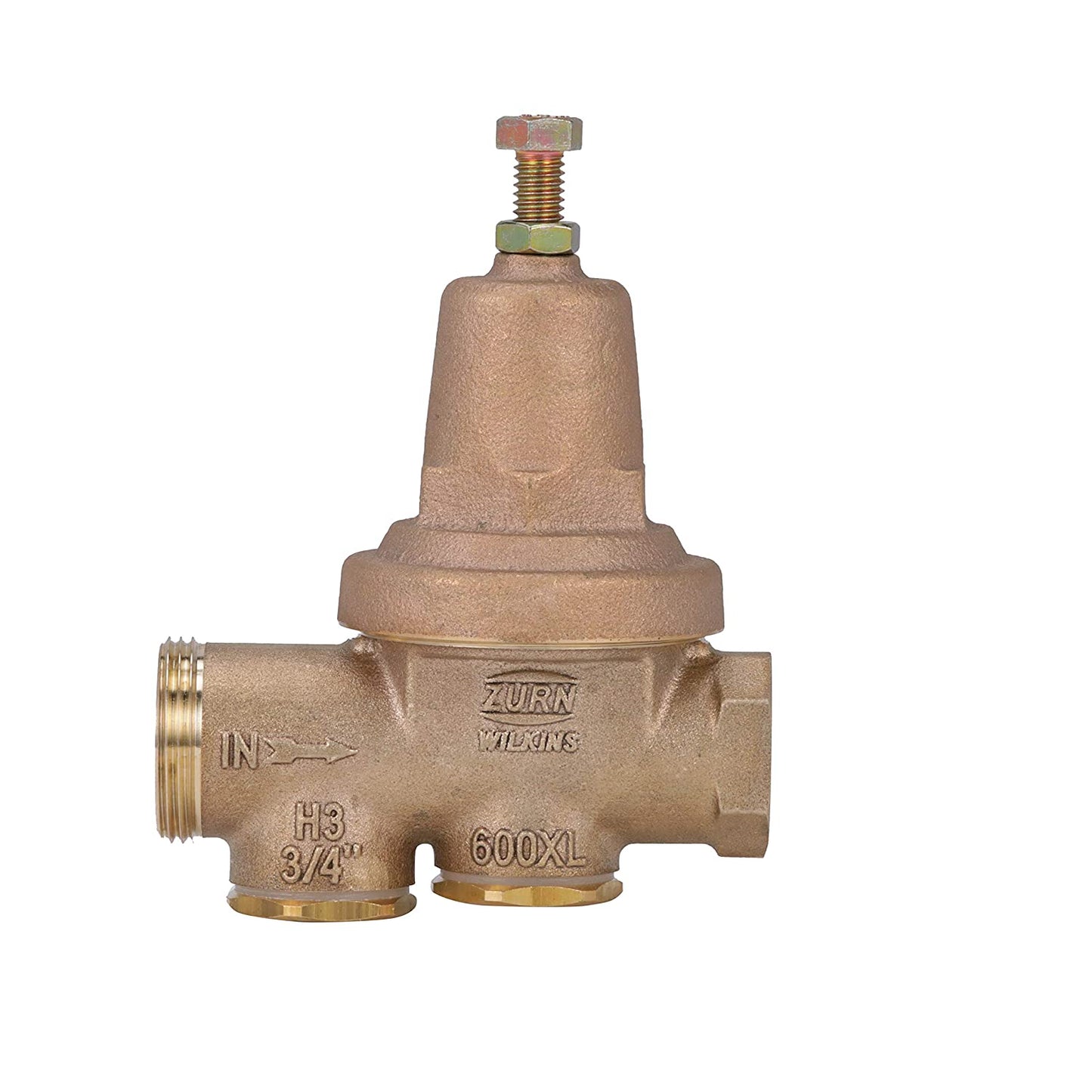

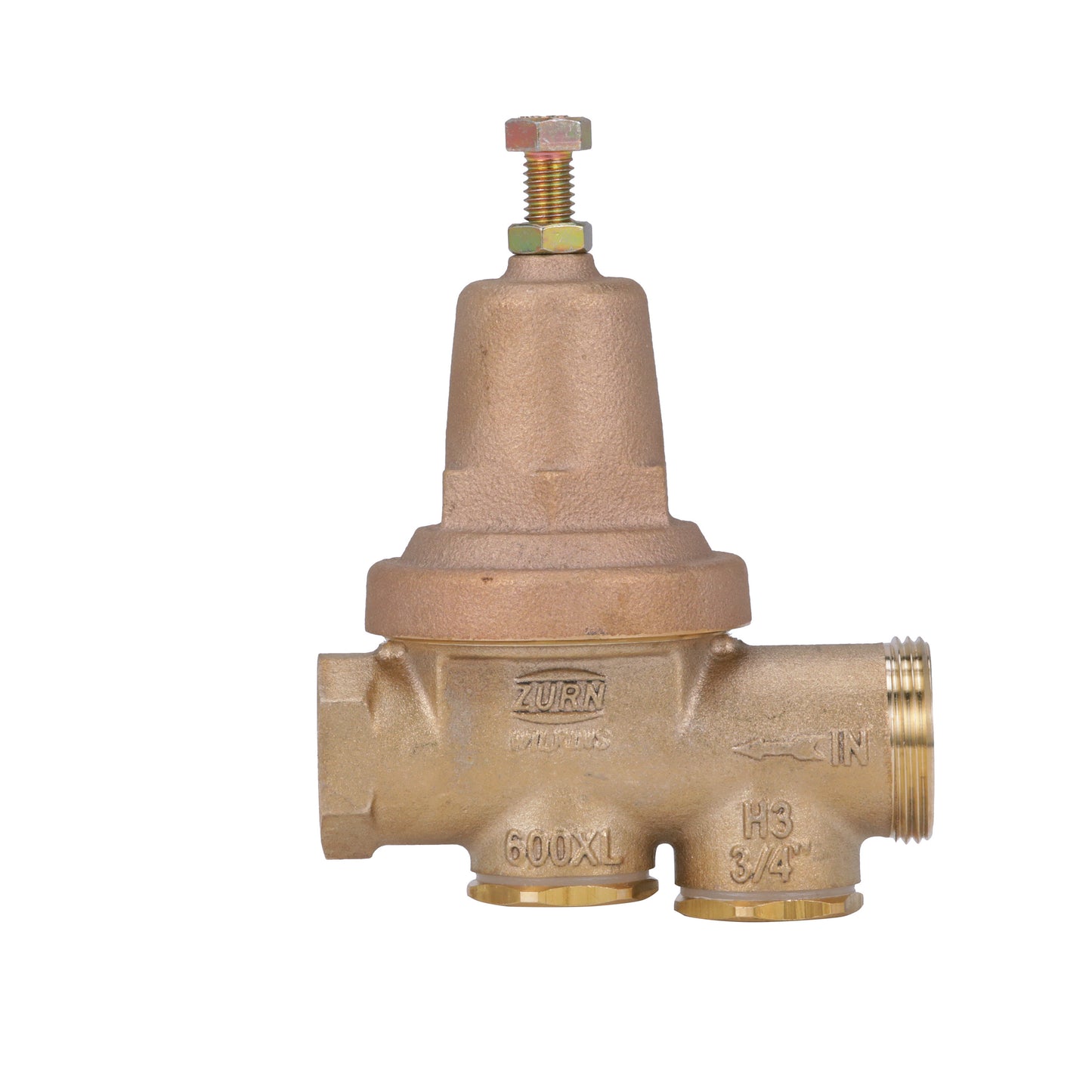

Sandy, debris laden water systems result in frequent PRV strainer cleanings. The Zurn Wilkins 3/4" 600XL Water Pressure Reducing Valve, with its separate strainer cap, allows this task to be completed rapidly, and is utilized in residential and commercial applications.

The 3/4" 600XL Pressure Reducing Valve handles sandy, debris-laden water systems for high-flow capacity in residential, commercial, and new construction applications. It meets compliance with universal plumbing code. The stainless steel strainer includes a standard 20 mesh configuration and separate-access cover for simplified cleaning, while the bronze threaded bell provides superior corrosion-resistance and speeds access to the internals together, cutting labor time up to 50%. Internal components of the 600XL utilize a balanced design, providing accurate downstream pressure without consideration of the incoming pressure.

• Fiber union gasket ensures fast installation
• Durable construction ensures low maintenance and lifecycle costs
• Inlet pressure changes with balanced design features to protect the system
• Stainless steel strainer screen features single-cap removal
• Threaded bell provides easier access than bolted on bells
• Low-lead law compliant
• ASSE Listed 1003
• IAPMO Listed
• City of Los Angeles Approved
• Meets the requirements of NSF/ANSI 61
• Valve Type: Standard
• Strainer: Yes
• Material: Bronze
• Pipe Size: 3/4"
• Preset Pressure Setting: 50 psi
• Pressure Adjustment Range: 25 to 75 psi
• Connection Type: FNPT Union x FNPT
• Height: 5-1/2"
• Length: 5-5/16"
• Max Temp: 140F
• Max Pressure: 300 psi

IEZFCA0083
