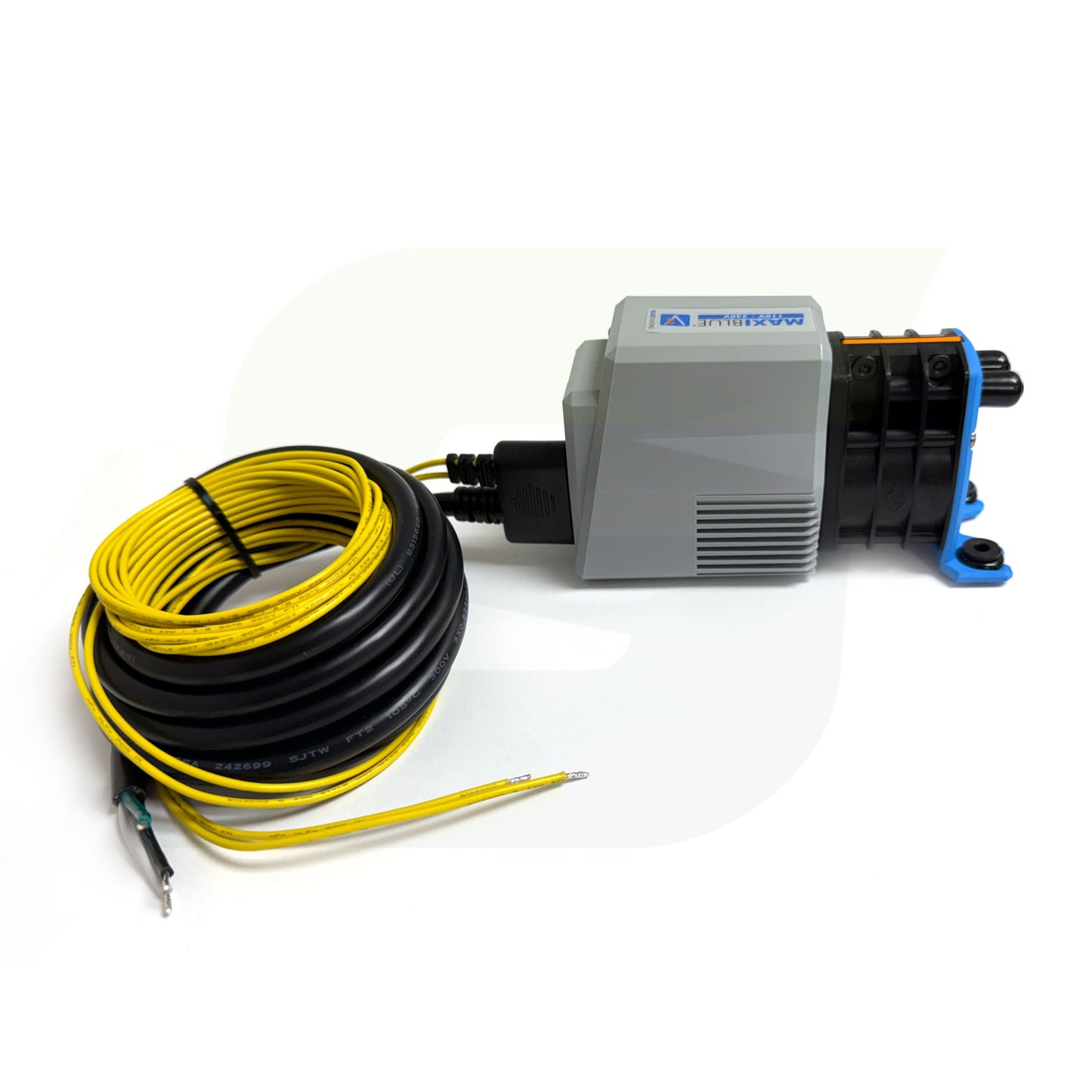

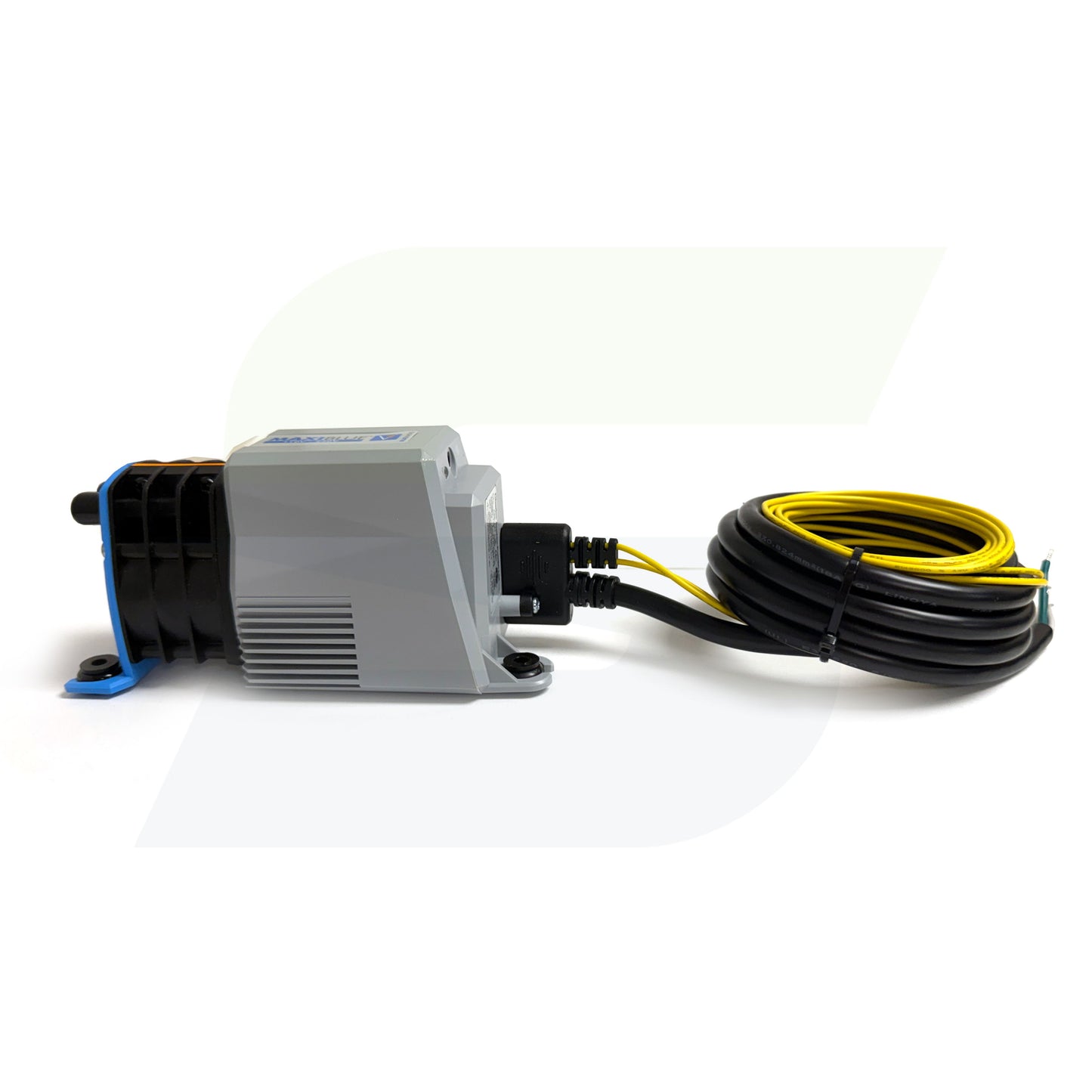

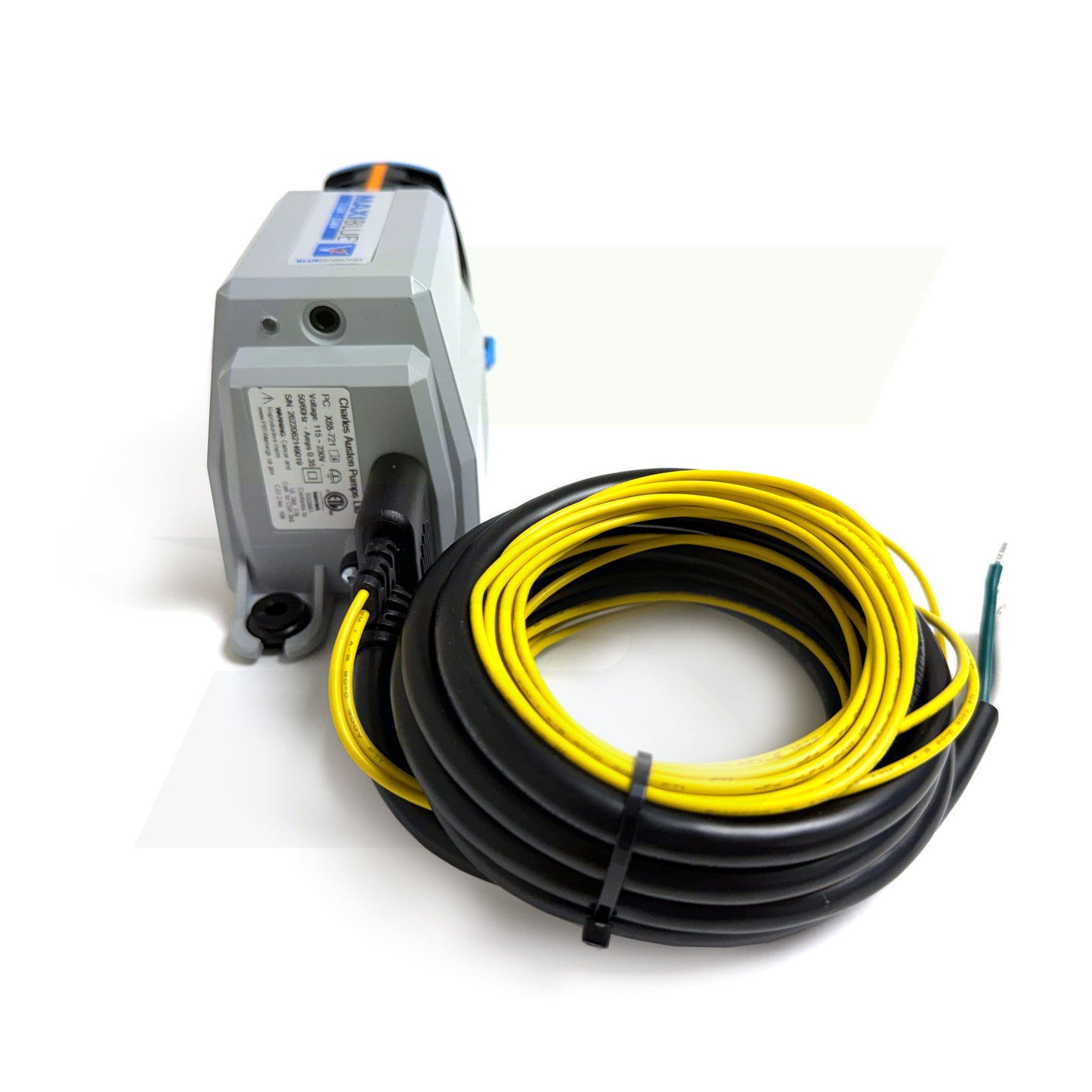

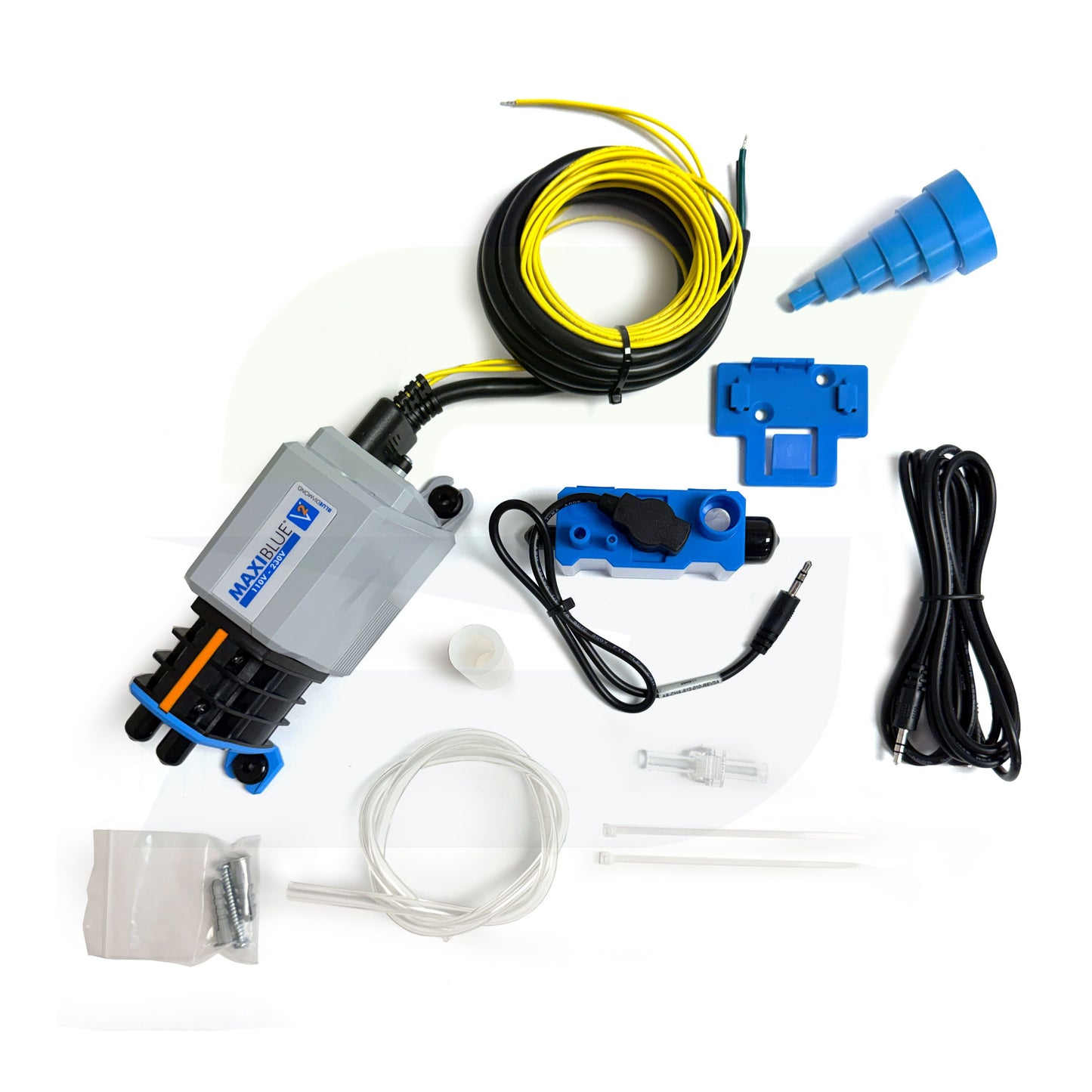

Blue Diamond X88-721 - MaxiBlue V2 Advanced Mini Condensate Pump with Reservoir & Sensor - 208-230V

The Blue Diamond X88-721 MaxiBlue V2 is a high-performance mini condensate pump designed for ductless mini-split systems, fan coils, and other HVAC equipment up to 48,000 BTU/h. Operating on 208-230V, the MaxiBlue V2 utilizes Blue Diamond's patented rotary diaphragm technology to deliver exceptionally quiet, reliable condensate removal while tolerating debris without the need for screens or filters. The included reservoir and float sensor provide automatic pump operation and overflow protection, making it an excellent choice for both new installations and replacement applications. The pump is self-priming, capable of dry running, and backed by a 3-year manufacturer's warranty.

Features

• Designed for mini-split, ducted mini-split, fan coil, and air conditioning systems up to 48,000 BTU/h
• Operates on 208-230V single-phase power
• Patented rotary diaphragm technology delivers quiet, reliable performance
• Self-priming positive displacement pump
• Handles air, debris, and biofilm without requiring screens or filters
• Dry-run capable without pump damage
• Includes reservoir and float sensor with overflow alarm
• Compact design simplifies installation in tight spaces
• Energy-efficient operation with low power consumption
• Backed by a 3-year manufacturer's warranty

Specifications

• Manufacturer: Blue Diamond
• Part Number: X88-721
• Series: MaxiBlue V2
• Product Type: Mini Condensate Pump with Reservoir & Sensor
• Voltage: 208-230V AC
• Phase: Single Phase
• Maximum Equipment Capacity: Up to 48,000 BTU/h
• Maximum Flow Rate: 3.7 GPH
• Maximum Lift (Head): 16.5 ft
• Power Consumption: 4.7 Watts
• Cord Length: 6 ft
• Pump Technology: Rotary Diaphragm / Positive Displacement
• Self-Priming: Yes
• Dry Running Capable: Yes
• UL Listed: Yes
• Warranty: 3 Years
