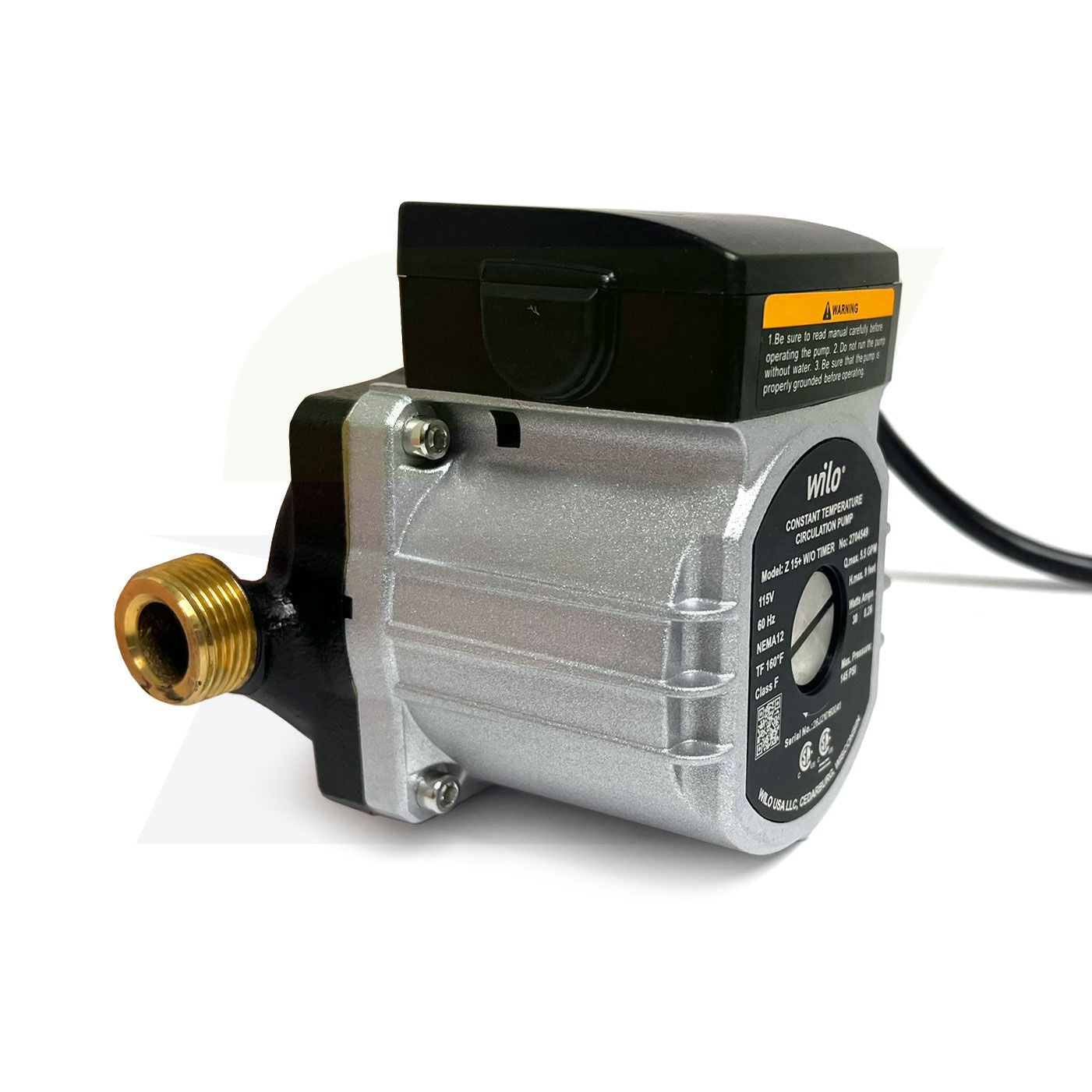

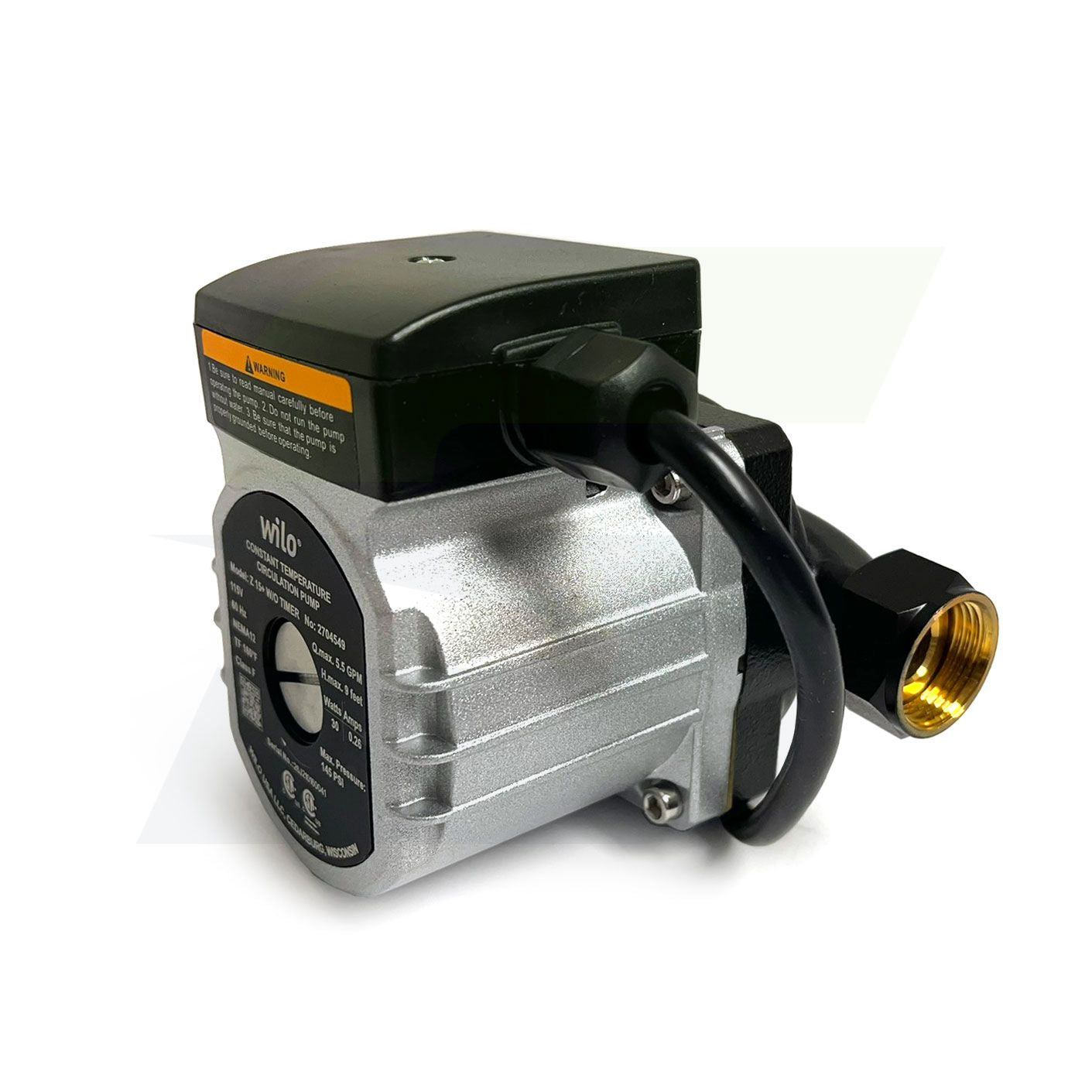

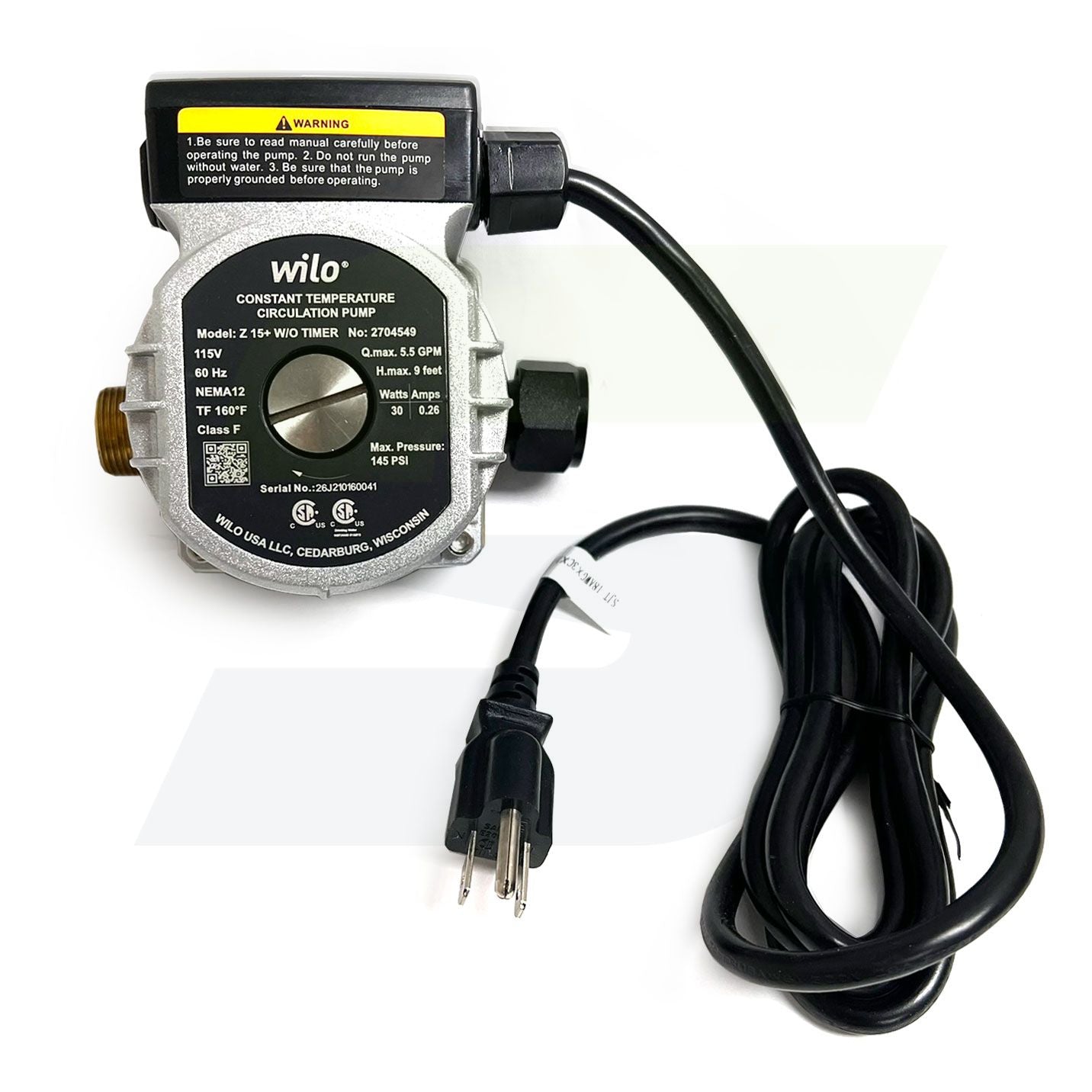

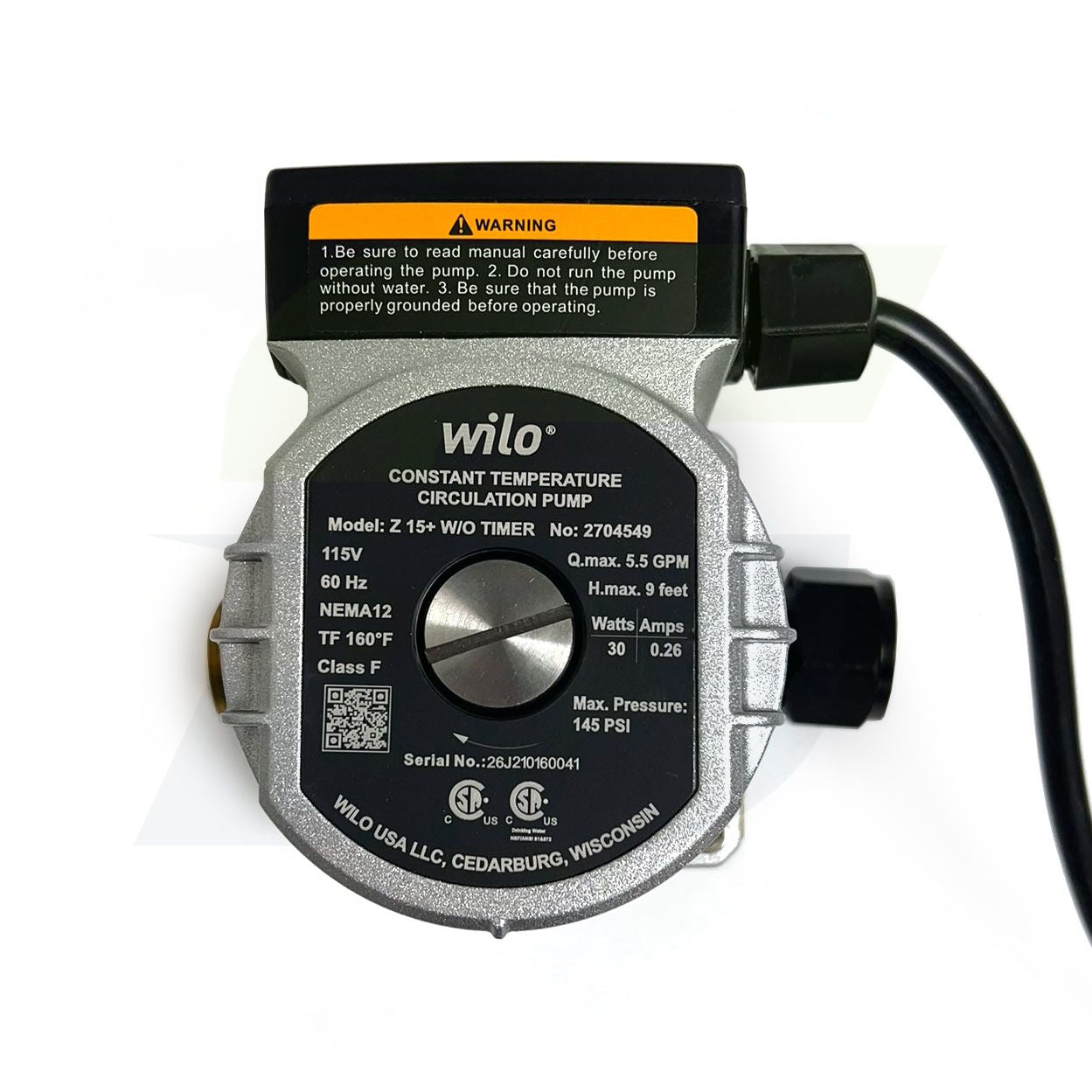

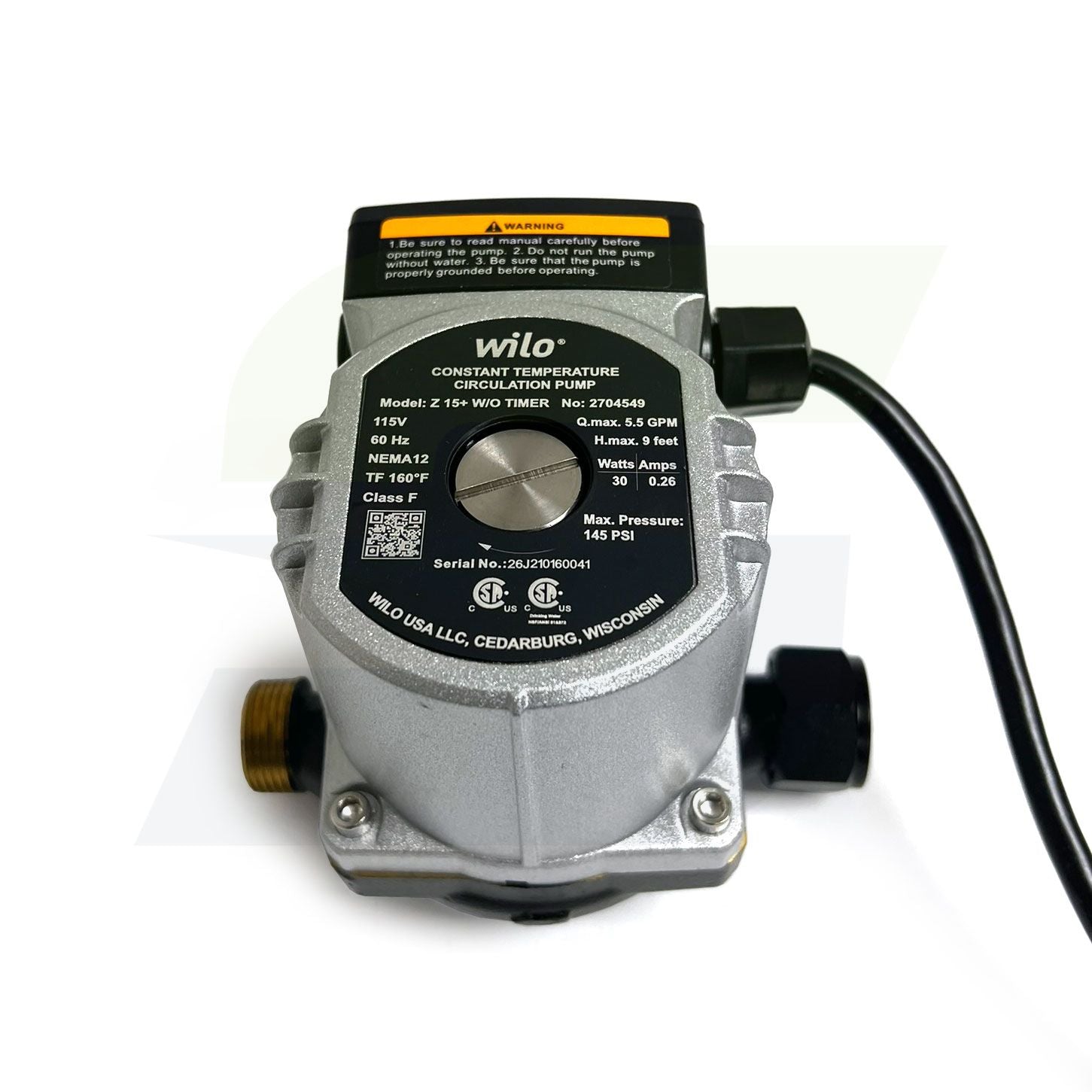

Wilo Z 15+ Constant Speed Hot Water Circulation Pump - 3/4" NPT 115 Volt

In stock
SKU: 2704549
$249.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Wilo-Z 15+ Brochure

Installation Instructions

Submittal Data Sheet

Instruction Sheet

Wilo Z 15+ DHW Constant Speed Circulating Pump

Features

  • Compact design
  • Conserves energy and power
  • CSA compliant to NSF-372 & NSF-61
  • Digital timer version available (2704550)
  • Quick installation
  • 115V power cord included

Specifications

  • Water Temperature Range: 32 to 160 degrees F
  • Maximum Working Pressure: 145 PSI (10 Bar)
  • Electrical Connections: 1~115V, 60Hz
  • Protection Class: NEMA 12
  • Impeller: Composite /40% Glass filled (PA66G40)
  • Shaft: Ceramics
  • Rotor core: Silicone steel sheet + copper strip
  • Max Head: 9 feet
  • Max. Flow: 5.5 gpm
