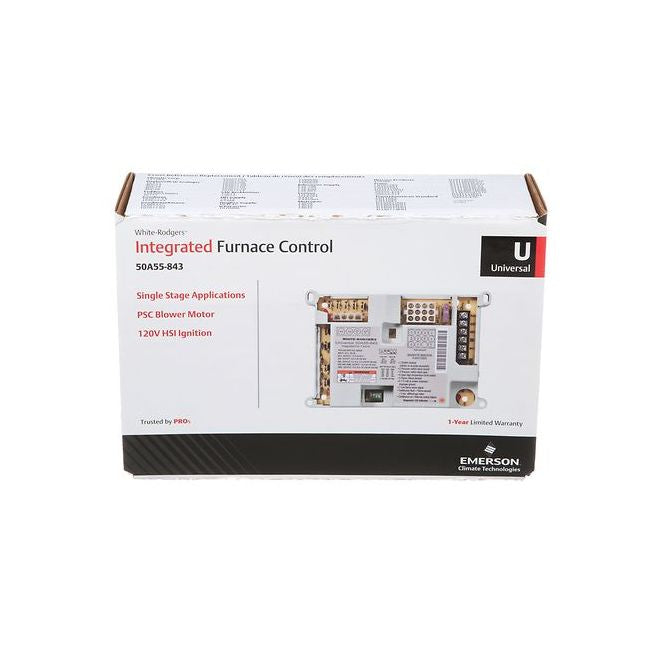

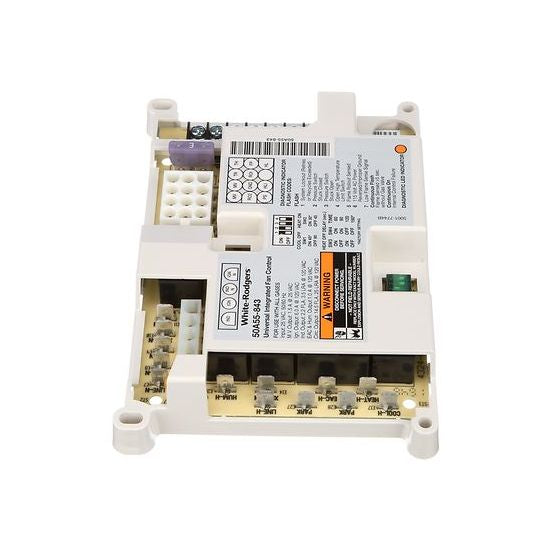

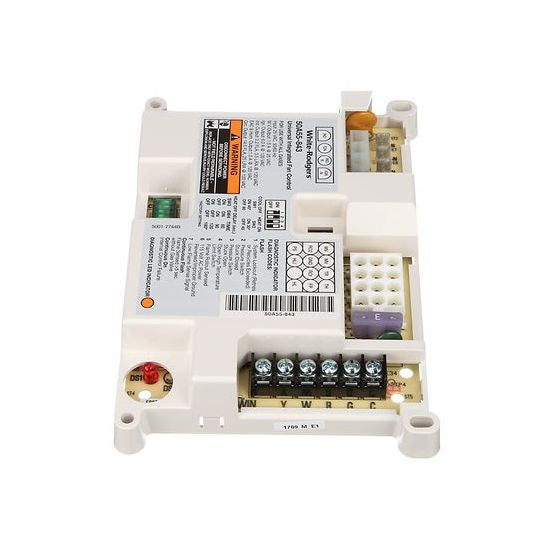

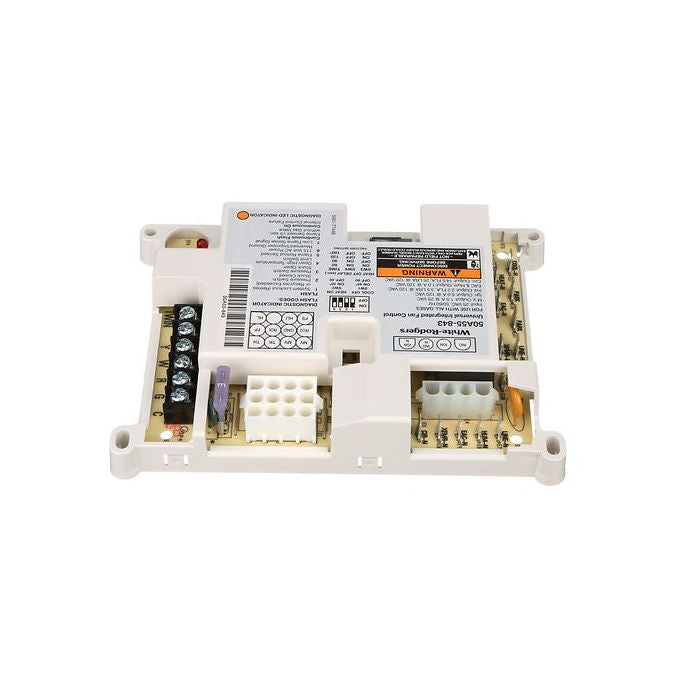

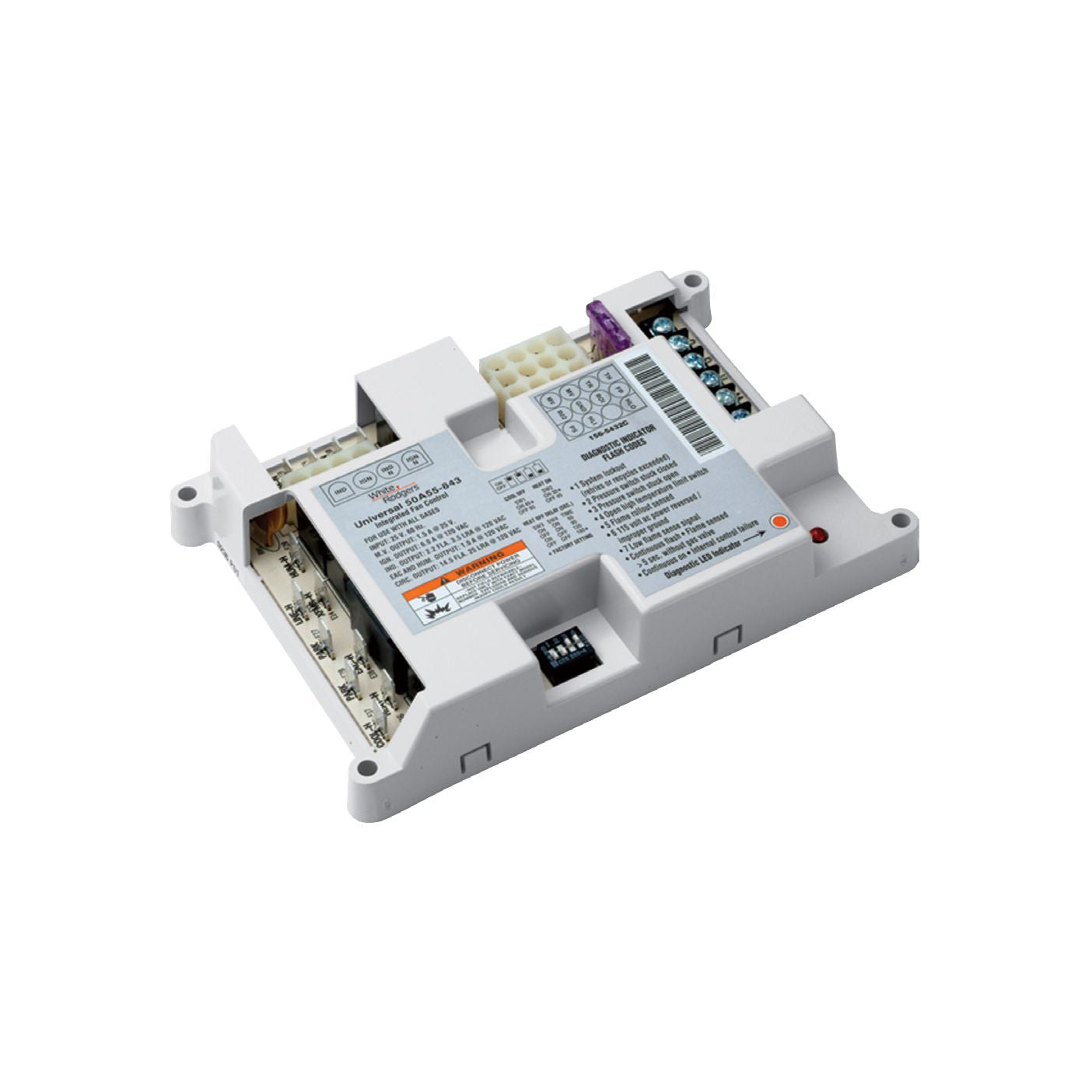

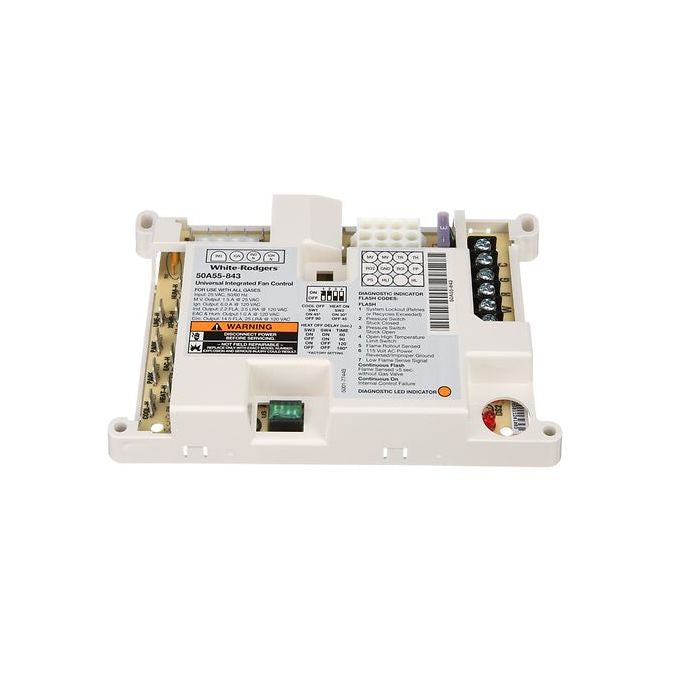

White Rodgers 50A55-843 - Universal Single Stage HSI Integrated Furnace Control
Replaces high volume White-Rodgers and OEM Integrated furnace controls without requiring ignitor replacement.
Features
- Reduces inventory by providing maximum control replacement coverage
- Diagnostic LED indicators streamline installation and system troubleshooting
- 120V air cleaner output and 120V humidifier output up to 1 Amp max
- Factory standard safety timings and adjustable fan delay options
- Replaceable automotive style fuse
- Additional jumpers to extend the length of the connections
Specifications
- Low Voltage Circuit: 24 Vac, 50/60 Hz
- Line Voltage Circuit: 120 Vac, 50/60HZ
- Circulator Relay: 14.5 FLA - 25.0 LRA @ 120 Vac
- Operating Temperature Range: -40 to 175 degrees F (-40 to 79 degrees C)
- Humidity Range: 5% to 93% relative humidity (non-condensing)
- Agency Approvals: c-CSA-us
