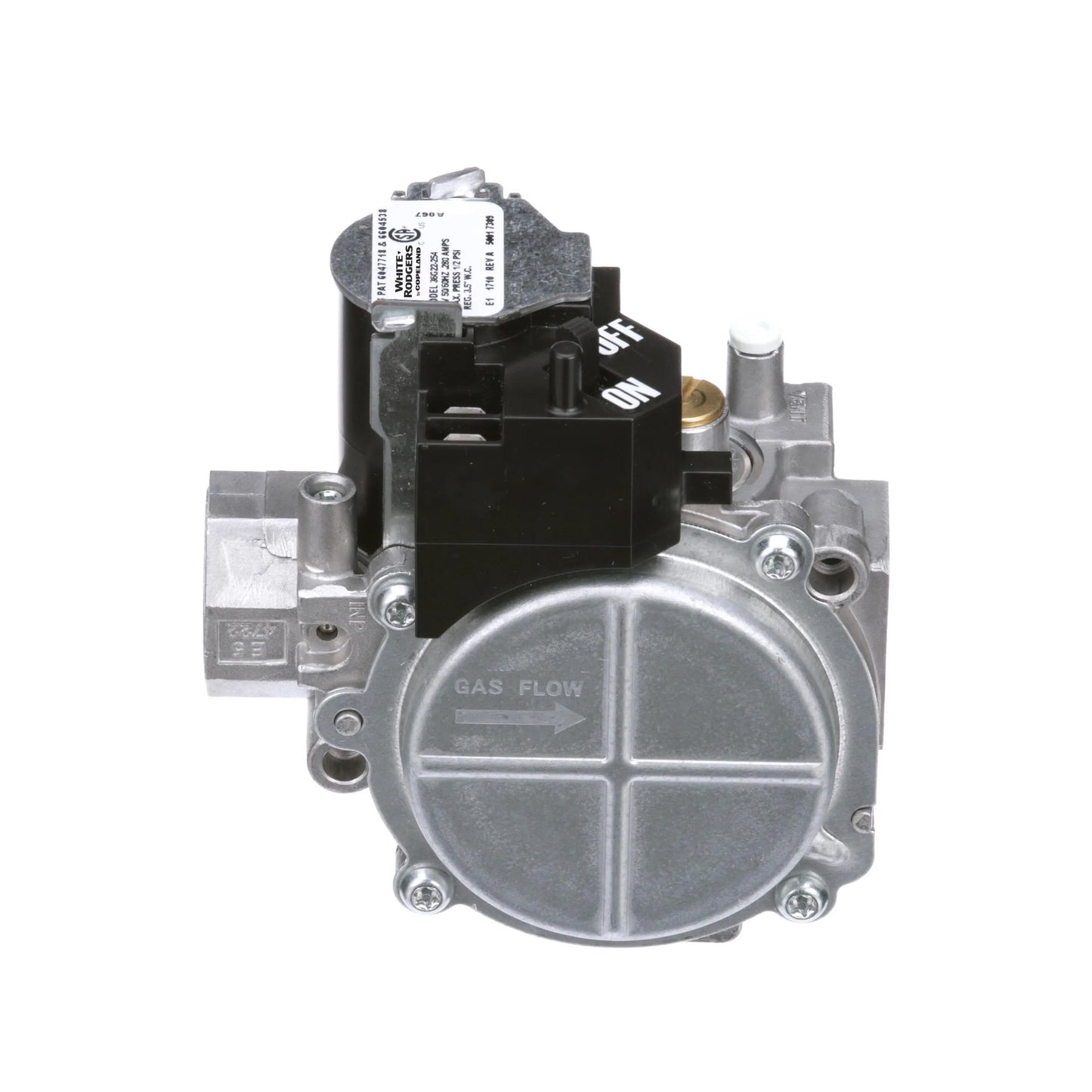

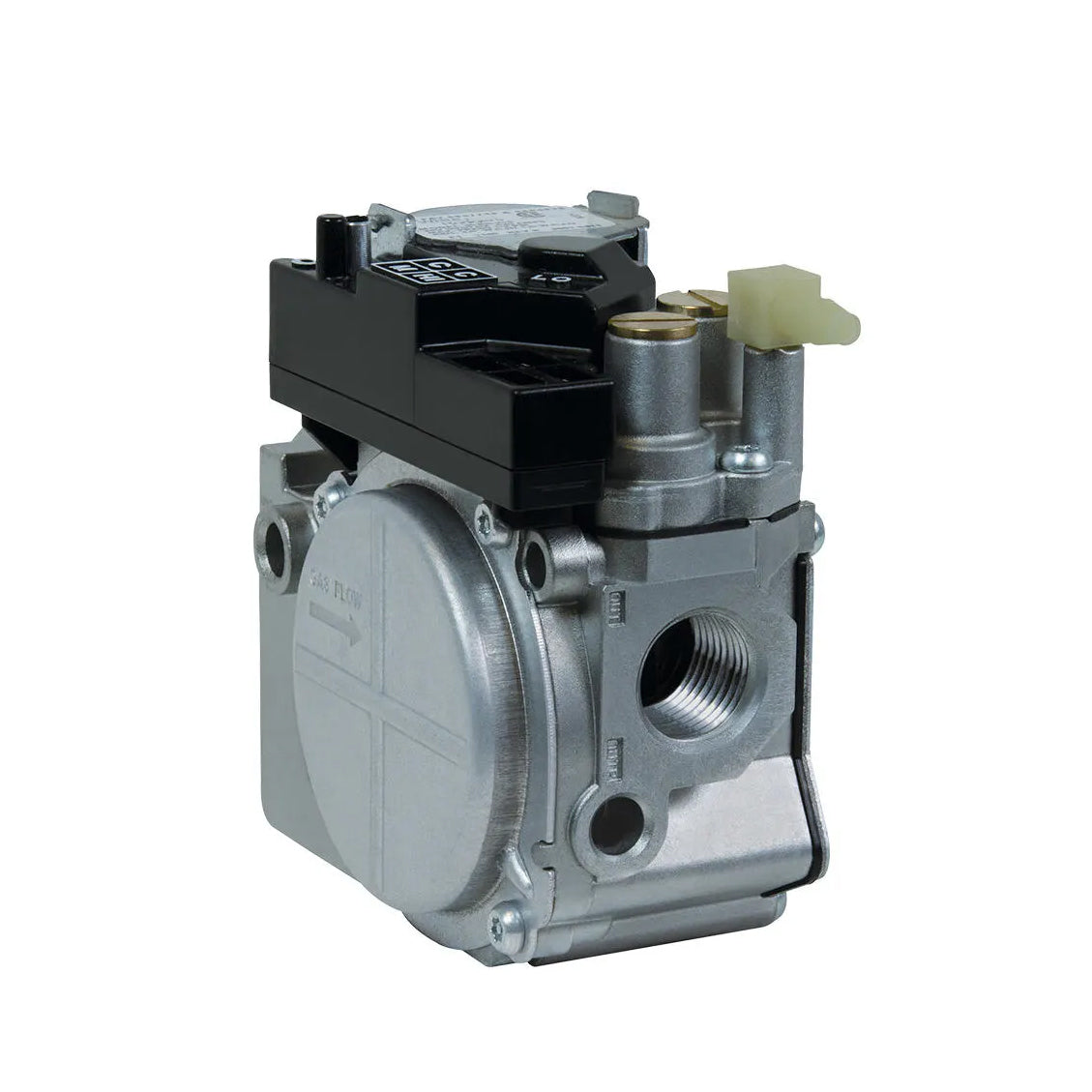

White Rodgers 36J24-214 - Universal 24V Gas Valve

The White-Rodgers 36J24-214 Universal 24V Gas Valve is a single-stage, slow-opening combination gas valve designed for hot surface ignition (HSI) and direct spark ignition (DSI) heating systems. Compatible with both natural gas and LP gas applications using the included conversion kit, this universal replacement valve features 1/2" NPT inlet and outlet connections, built-in pressure taps, and a compact design for residential furnaces and other gas-fired equipment. Engineered for reliable performance and easy installation, the 36J24-214 replaces the earlier 36G24-214 and includes the hardware needed for a wide range of service applications.

Features

Universal replacement gas valve for HSI and DSI ignition systems
Compatible with natural gas or LP gas applications (LP conversion kit included)
Single-stage, slow-opening operation for smooth ignition
24 VAC operation
1/2" NPT inlet and outlet connections
Built-in inlet and outlet pressure taps for simplified diagnostics
Includes reducer bushings and plastic hose barb
Internal filter screens help protect the valve from debris
Compact design fits many residential furnace applications
Replaces White-Rodgers 36G24-214 and numerous OEM gas valves
Genuine White-Rodgers / Copeland replacement part

Specifications

Manufacturer: White-Rodgers (Copeland)
Part Number: 36J24-214
Series: 36J
Product Type: Universal Combination Gas Valve
Voltage: 24 VAC, 50/60 Hz
Ignition Type: Hot Surface Ignition (HSI), Direct Spark Ignition (DSI)
Stages: Single Stage
Valve Type: Slow Opening
Gas Type: Natural Gas or LP Gas (Convertible)
Connection Size: 1/2" NPT Inlet × 1/2" NPT Outlet
Nominal Capacity: 140,000 BTU/hr (Natural Gas)
Pressure Rating: 0.5 PSI Maximum
Electrical Connection: 1/4" Quick-Connect Terminals
Mounting: Any Position
Includes: LP Conversion Kit, 1/2" × 3/8" Reducer Bushings, Plastic Hose Barb
