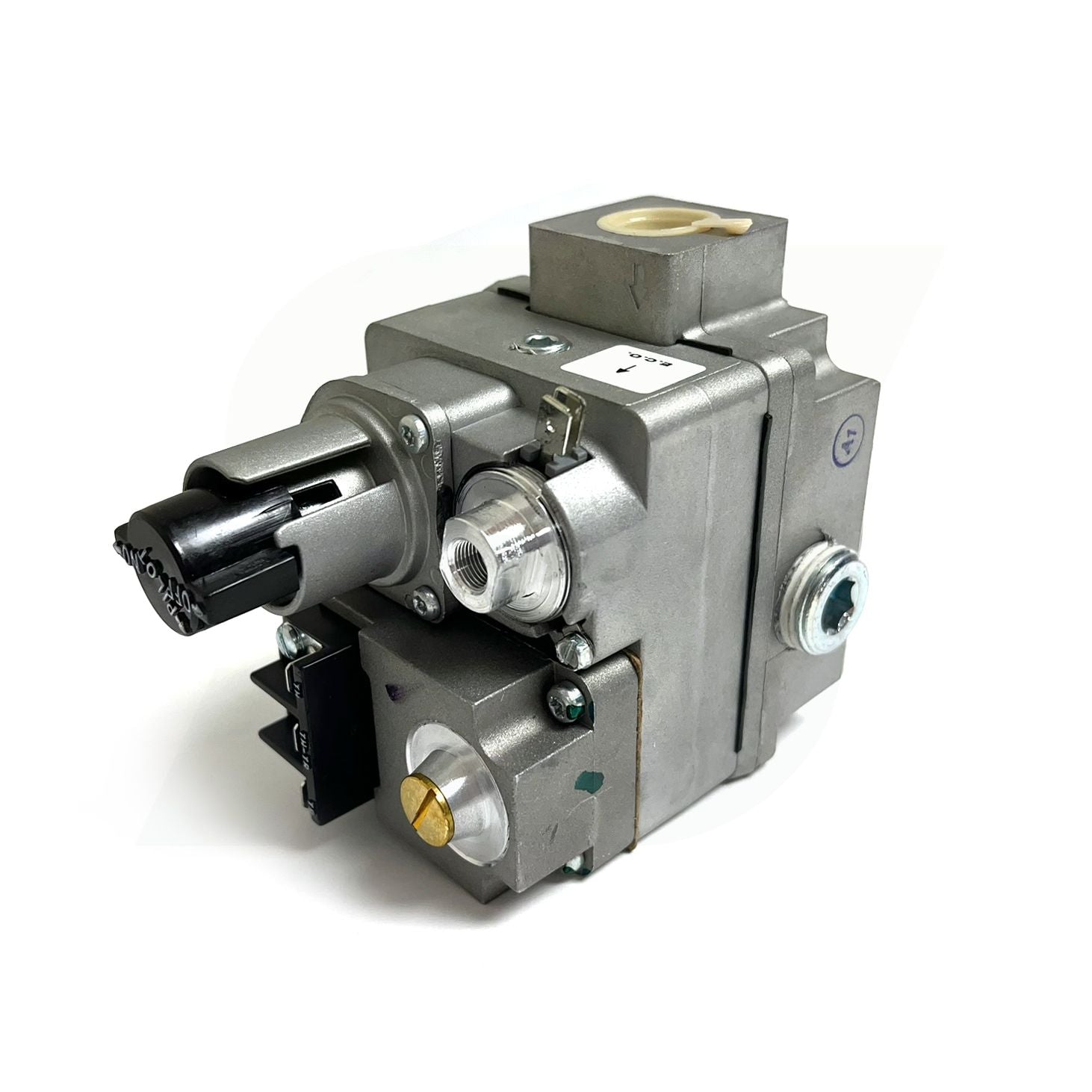

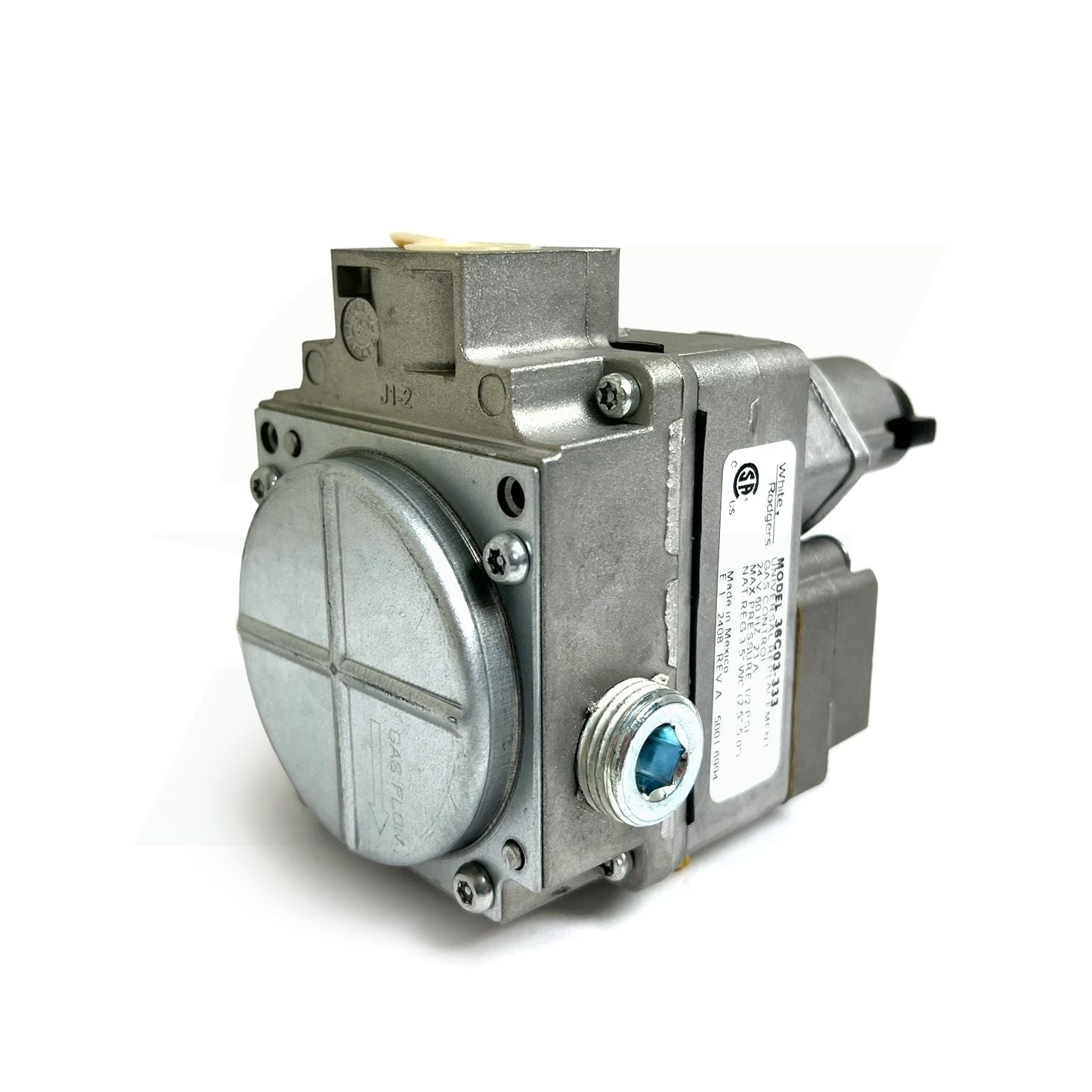

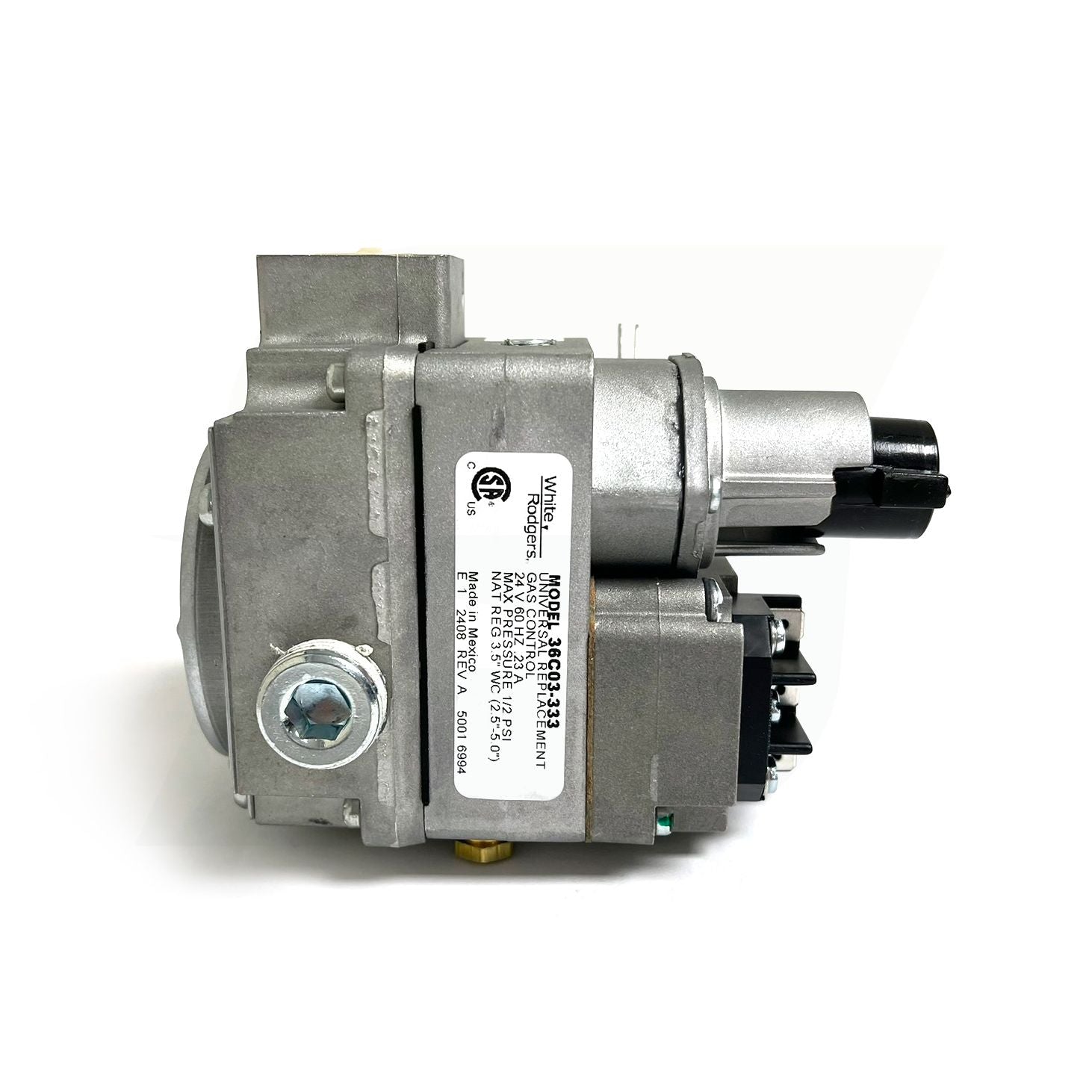

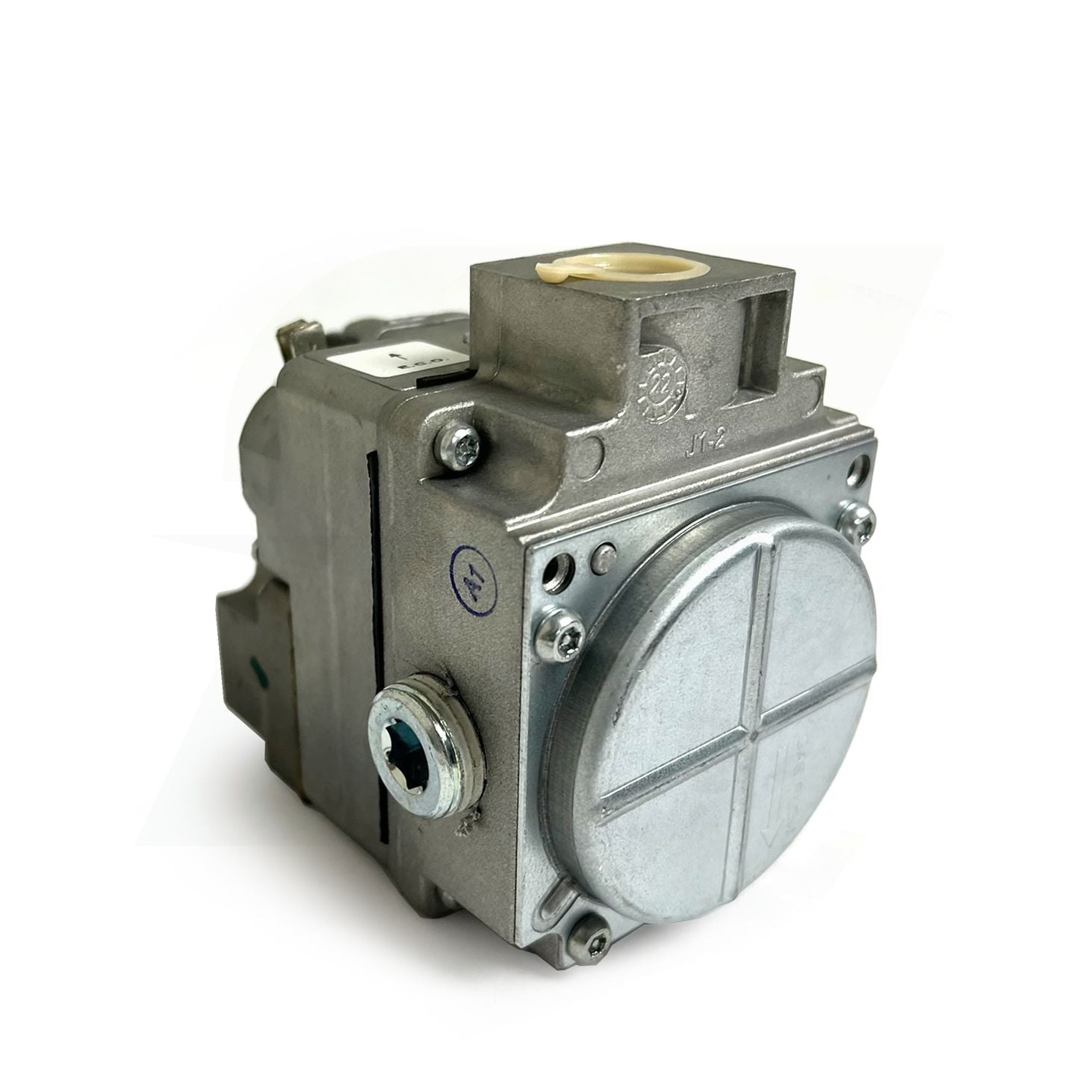

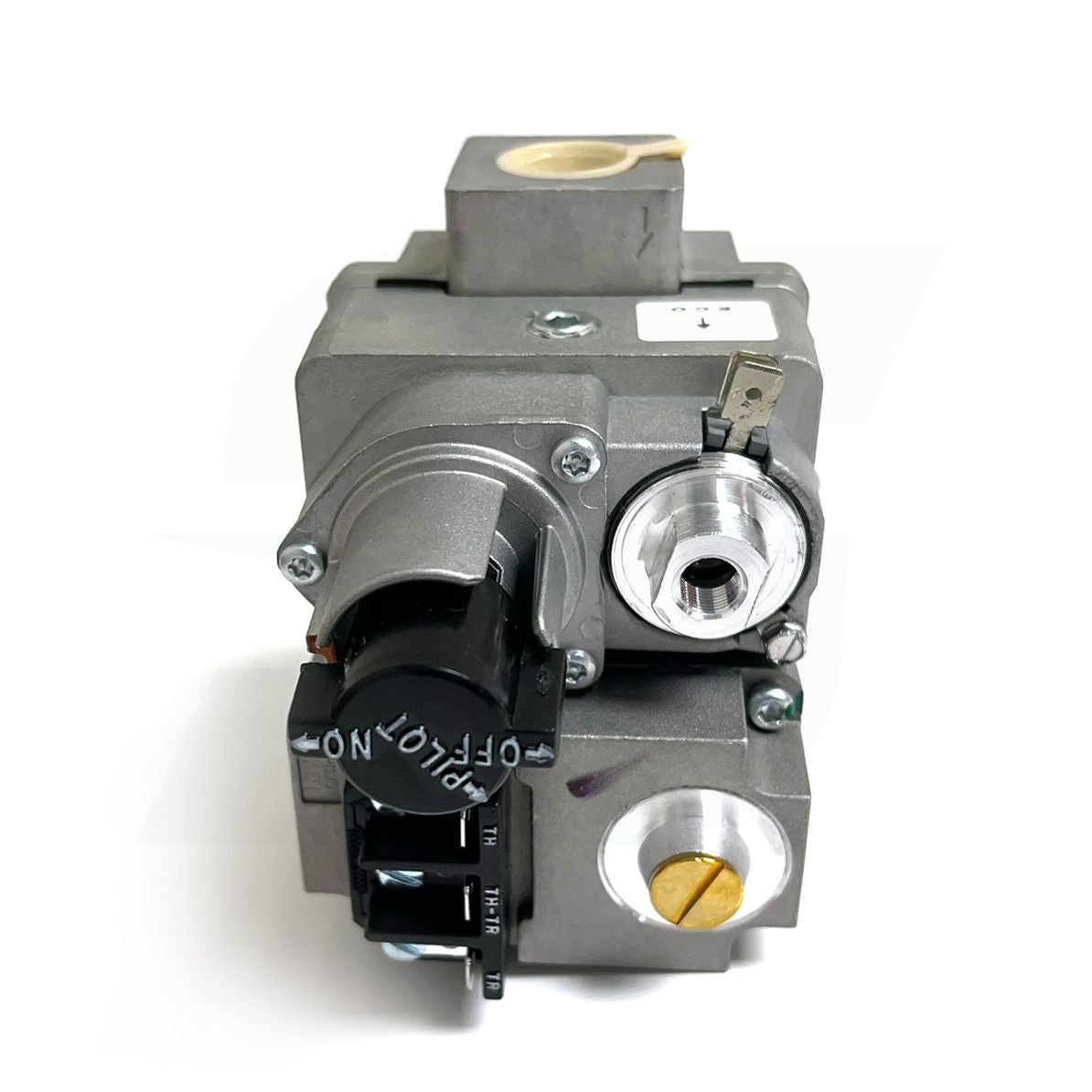

White Rodgers 36C03-333, 36C Series Gas Valves

Features

• Line Interrupter styles use standard 30 mV Thermocouples.
• Straight through design with side taps
• Inlet/outlet reducer bushings
• Mounting position upright, or 0° to 90°From upright in any direction.
• CSA approved

Specifications

• Voltage: 24 Vac 60 Hz
• Opening Style: 1 - Stage Fast Opening
• Pipe Size: 1/2 in. x 3/4 in. NPT
• Regulator Setting: 3.5"
• Regulator Adjustment Range: 2.5"-5.0", Nat. Gas
• Regulator Adjustment Range: 7.5"-12.0", LP Gas
• LP Conversion Kit Included: Yes
• Reducer Bushing Kit: Yes
• Flow Direction: Straight Through
• Side Taps: Yes
• Inlet/Outlet Pressure Tap: Yes/Yes
• Standing Pilot with Line Interrupter: Yes
• HSI/DSI: No
• Intermittent/Proven Pilot: No

HKZ1510020
