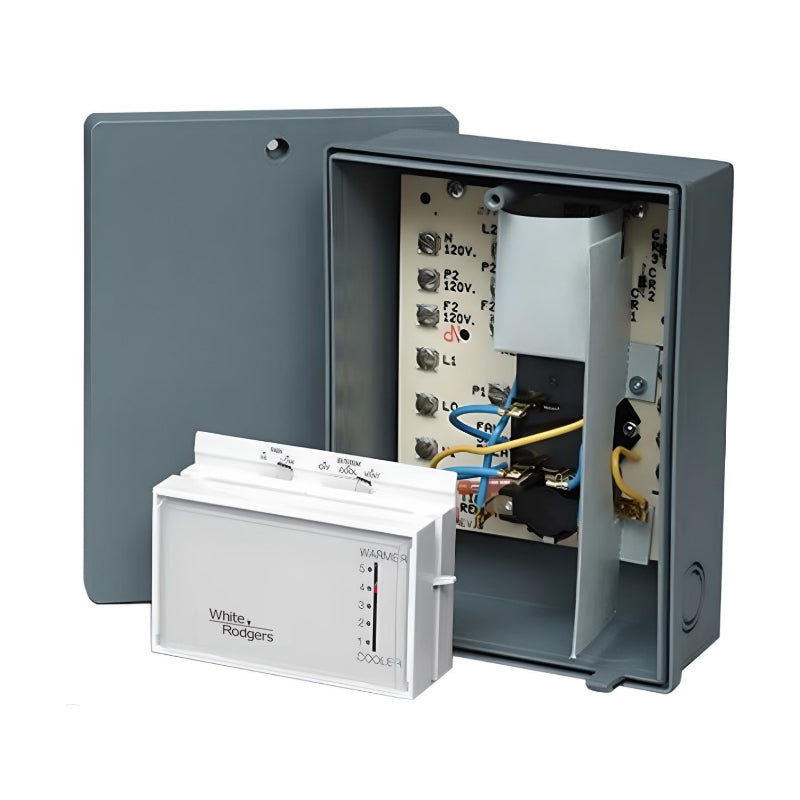

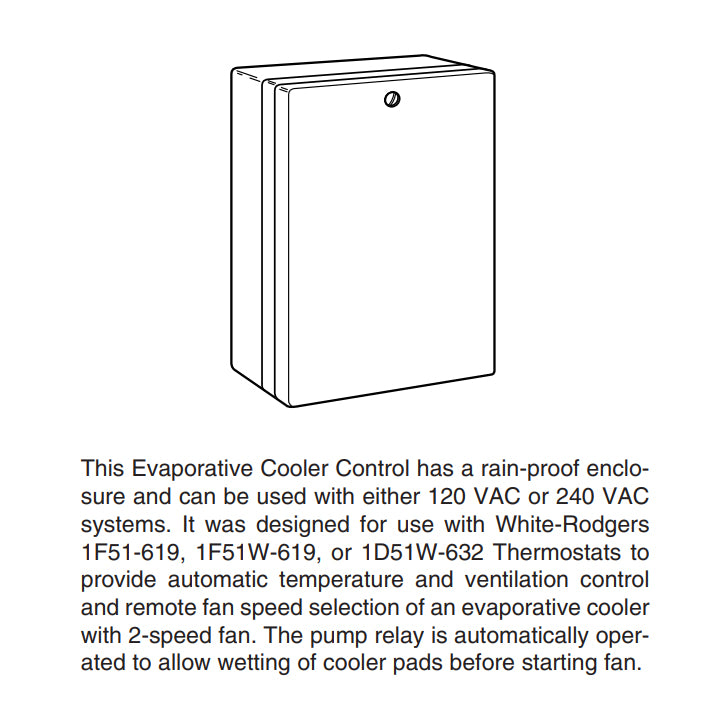

White Rodgers 21D28-6 - Evaporative Cooling Thermostat & Control Box

Functions as a switching device for the thermostat to provide an even level of cooling plus a choice of high and low speed control of the fan on evaporative coolers.

Features

• Grey plastic case is lightweight, weather-resistant and meets all code requirements
• Fully automatic, system designed with a fan delay (approximately 60 seconds) to prewet the cooler pads before the fan start
• Separate fan and pump relays. High or low fan speed selection
• Relay panel is removable from enclosure to facilitate field wiring
• Integral transformer 120/240 VAC to 24 VAC 60 Hz
• Package consists of: 1F51N-619 / 8A18Z-2
• 1F51N-619 Electrical Rating: 24 VAC (30 VAC maximum) fixed anticipator
• 1F51N-619 Dimensions: 3.25"H X 4.50"W X 1.63"D
• 8A18Z-2 Dimensions: 8.00"H X 6.00"W X 3.00"D
