1C20-101 - Heat Only Mechanical Thermostat
Regular price
$26.00
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

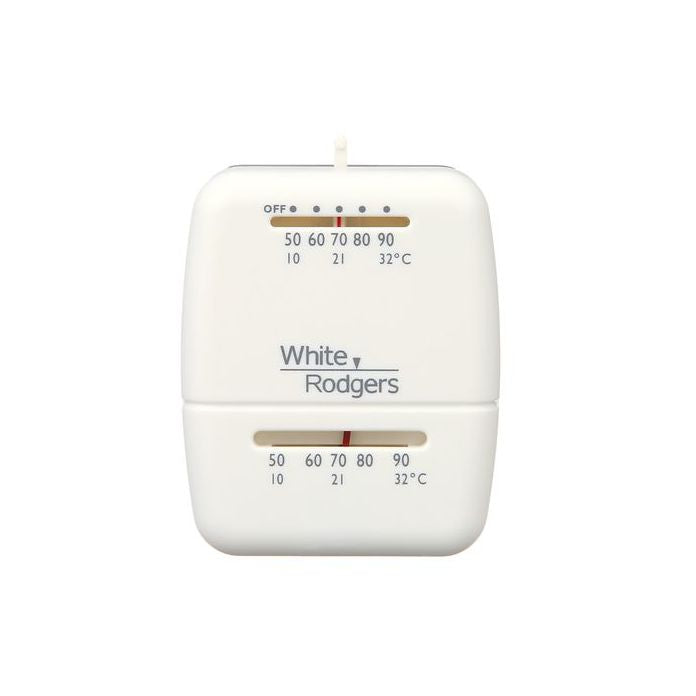

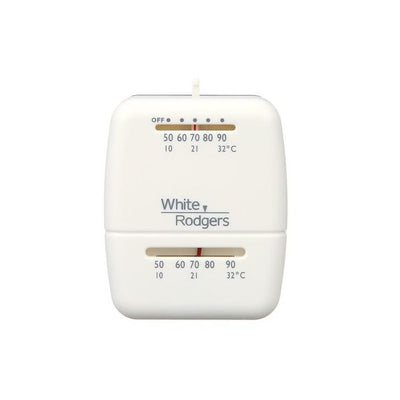

White 1C20-101 - Heat Only Mechanical Thermostat
Mercury free reliable performance in an attractive design.
Features
- Rugged snap-action contacts
- Adjustable heat anticipator
- Built in bimetal thermometer
- Heat / cool model includes switching subbase
- Heat / cool model compatible with electric heat systems
Specifications
- Stages Heat/Cool: Single Stage - 1H/0C
- System Switch: None (Lowest setting is off)
- FanSwitch: None
- Contacts: Snap-Action
- Typical Applications: Gas/Oil/Electric, but does not control fan on a call for heat
- Millivolt Compatible: Yes
- Electric Heat Strip: Yes
- OFF Position: Yes-Lowest Temperature Setting is OFF
- Accessories: Includes F61-2499 Wall mounting plate
- Range: 50-90 degrees F (10-32 degrees C)
- Style: Vertical
- Terminals: R, W
- Voltage: mV to 30 Vac 50/60 Hz or DC
- Amperage: Anticipation Adjustable from 0.15 to 1.2 Amps
- Overall Dimensions: 3.75"H X 2.88"W X 1.50"D
HKZ1700040
