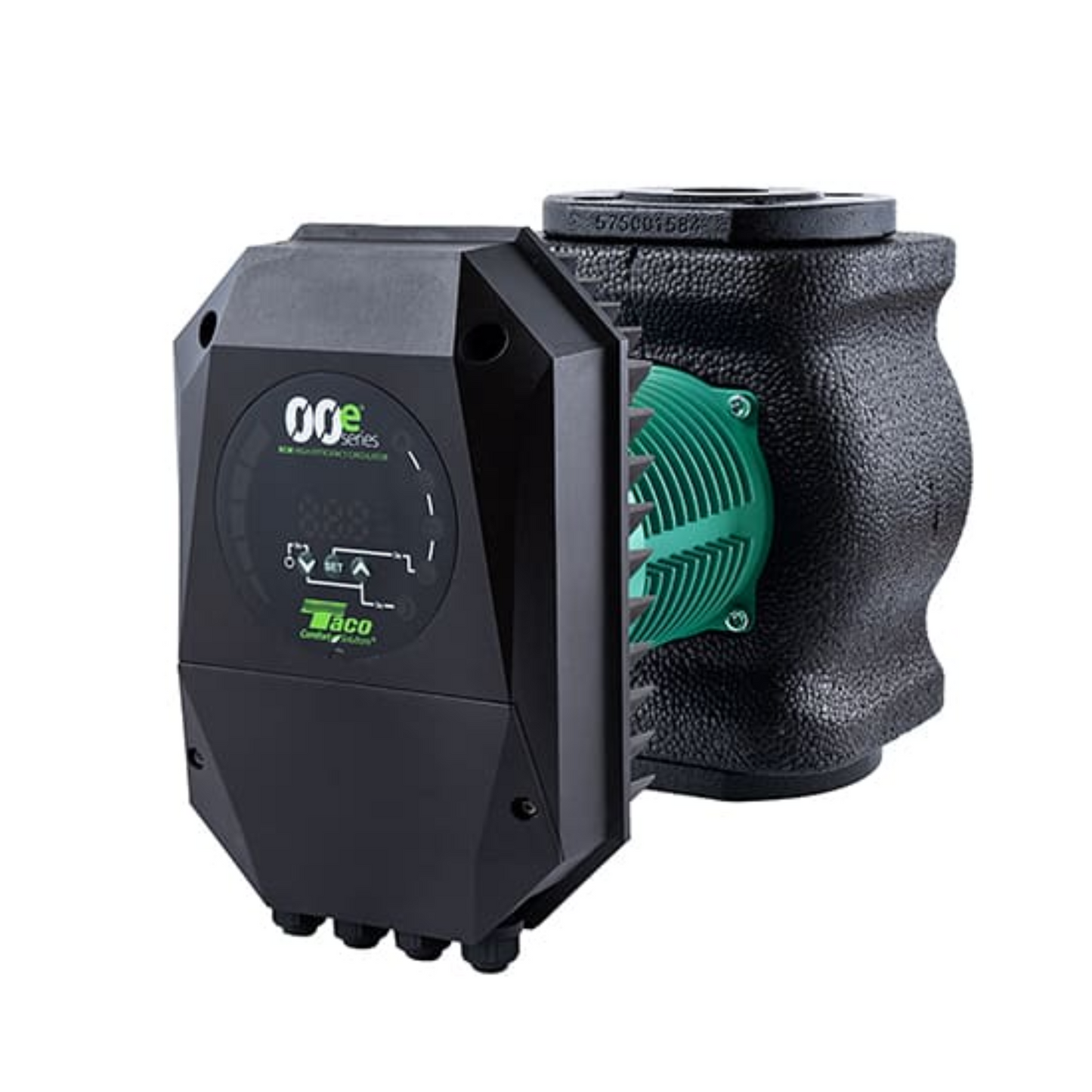

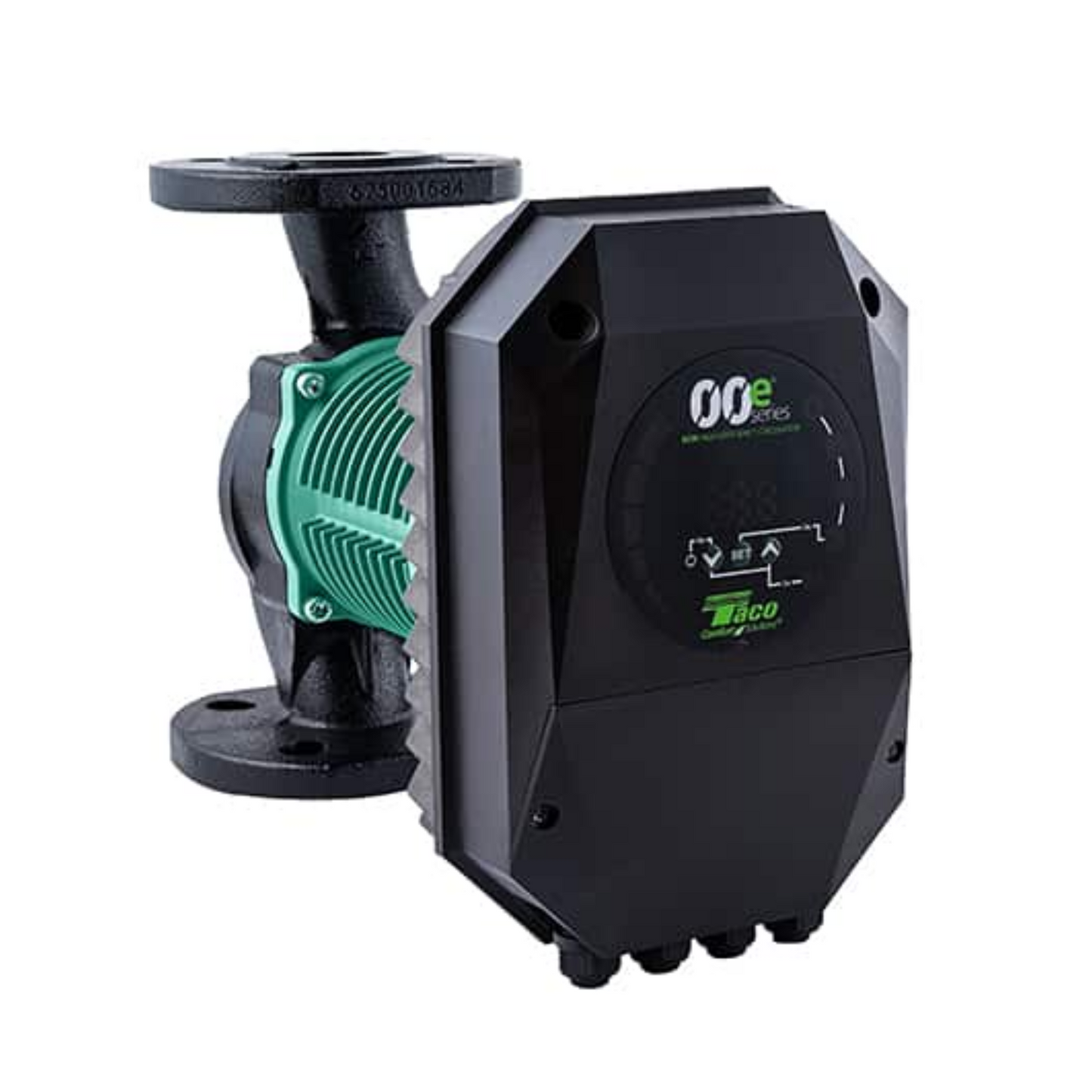

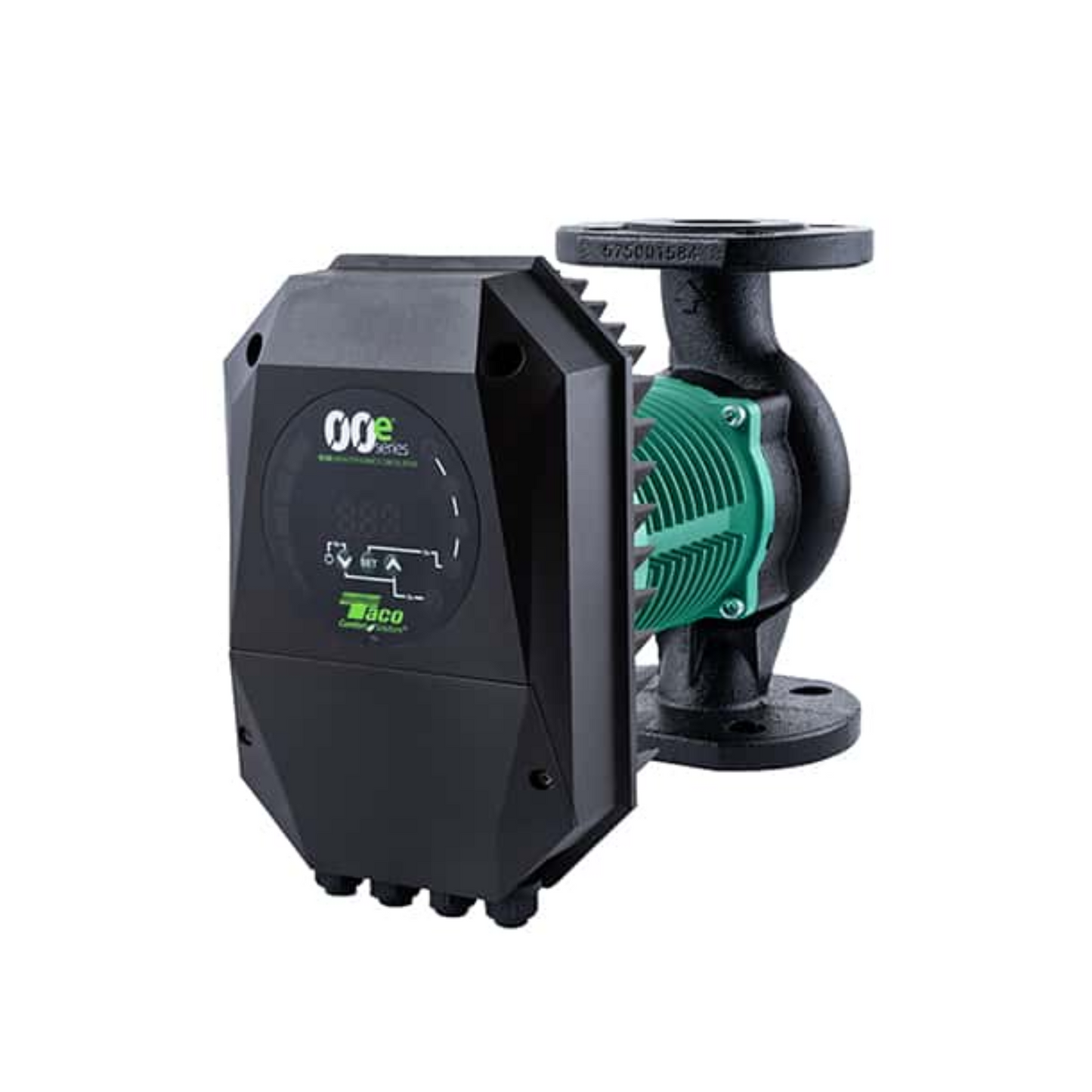

Taco VR15L-F - ECM High-Efficiency Circulator - Low-Head, Cast Iron, 1-1/2" Flanges

The Taco VR15L-F is a high-efficiency, variable-speed commercial circulator pump from the 00e VR series. Designed for low-head applications, it is ideal for closed-loop heating and cooling systems using water or water/glycol solutions. Featuring ECM technology with self-sensing capability, the VR15L-F reduces energy consumption while providing reliable, adaptive performance. Standard BMS connectivity allows seamless integration into building automation systems.

Specifications

• Maximum flow: 86 GPM
• Maximum head: 27 ft
• Maximum operating pressure: 175 psi
• Fluid temperature range: 14°F to 230°F
• Horsepower: 0.4 HP
• Power consumption: 25–270 W
• Voltage: 110–240V, single phase
• Amperage: 2.4A at 110V, 1.2A at 240V
• Motor type: high-efficiency ECM, self-sensing
• Connections: 1-1/2 in #125 ANSI flanges
• Construction: cast iron body with insulation shell

Features

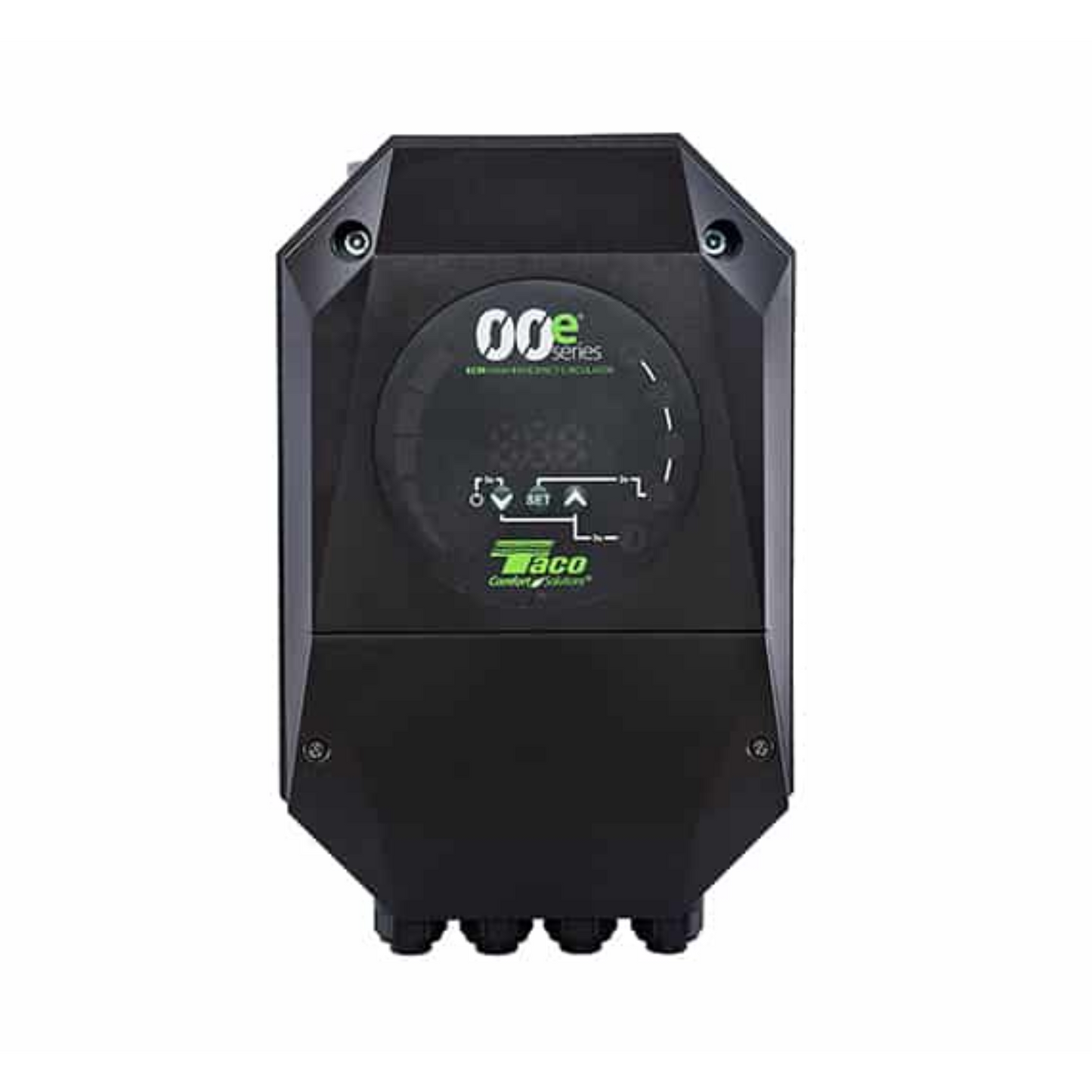

• Variable-speed control with multiple operating modes, including constant pressure, proportional pressure, and manual speed adjustment
• BMS-ready with BACnet, Modbus, 0–10Vdc, and PWM communication protocols
• RJ-45 Ethernet connector for enhanced connectivity
• Parallel pumping support with auto-rotate, standby, and cascading controls
• Built-in protections against dry-run, line surges, and current overload
• High-efficiency ECM motor saves up to 85% in energy compared to standard circulators

Applications

• Commercial hydronic heating and cooling systems
• Low-head circulation in HVAC loops
• Integration into building automation systems for optimized energy management
