UP10-16APMBU/LC, 115V Pump, w/ Auto Adapt & Line Cord, 1-1/4" Union

Only 1 left
SKU: 98420224
Regular price $585.05

Free Shipping on all orders over $89

Most orders ship same day and deliver in 3-4 business days!

Freight deliveries require extra time to arrange pickup & delivery.

Call Us! Have questions or want to order by phone? (800) 468 5997

Customer Reviews

Be the first to write a review

Grundfos PM Auto Brochure

Grundfos UP 10-16 PM Instructions

Grundfos UP Series Data Booklet

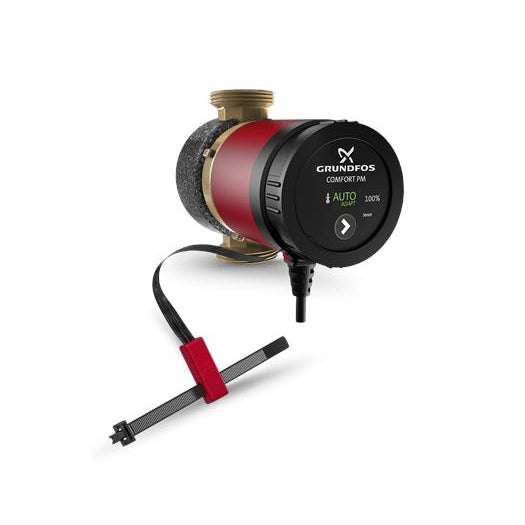

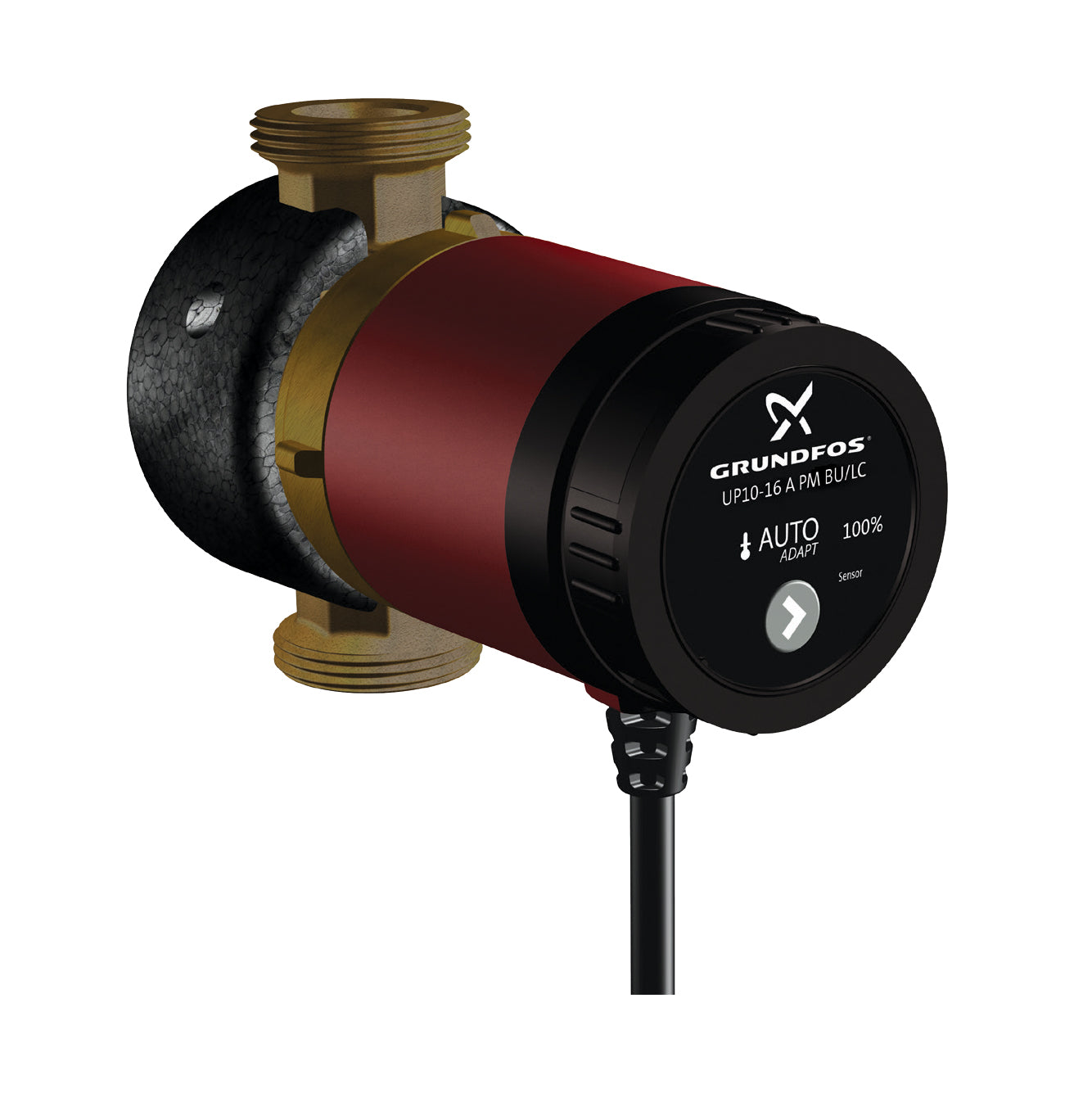

UP10-16APMBU/LC, 115V Pump, w/ Auto Adapt & Line Cord (1-1/4" Union)

The high-efficiency Grundfos Comfort PM range is a product for domestic hotwater re-circulation with lead free drinking water suitable pump housing for single- and two-family houses powered by a high efficiency single-phase, 12-pole, permanent-magnet motor. The AUTOADAPT function has been developed for domestic hot-water systems with hot-water tanks as primary heating source. In domestic hot-water systems with integrated temperature control functionality for raising and lowering the temperature on the recirculation pipe, Grundfos recommends using the COMFORT BX or COMFORT B models. To get the full advantages of the COMFORT AUTO model with the AUTOADAPT feature, Grundfos recommends installing the pump in systems with hot water storage tanks.

  • Unique AUTOADAPT feature saving up to 48% heat energy and 96% motor energy compared with a standard pump in continuous operation
  • Automatic weekend and vacation detection
  • Automatic legionella eliminating operation (if supported from the system)
  • Quick and simple electrical installation due to the highly reliable ALPHA plug
  • Easy maintenance and cleaning through the easy-to-separate pump head fitting almost all competitor pump housings
  • Connection: 1-1/4" Union
  • Voltage: 115v
  • Amperage: 0.23 amps
  • Power: 5-8.5 Watts
  • Phase: 1
  • Max liquid temp: 185 Degrees F
  • Min liquid temp: 36 Degrees F
  • Max system pressure: 145 PSI
  • Flow Range: 0-2.2 GPM
  • Head Range: 0-3.9 ft
