Tekmar 071 Submittal

Tekmar 071 Data Brochure / Installation

Tekmar 071 - Universal Temperature Sensor, 1 Ft Wire

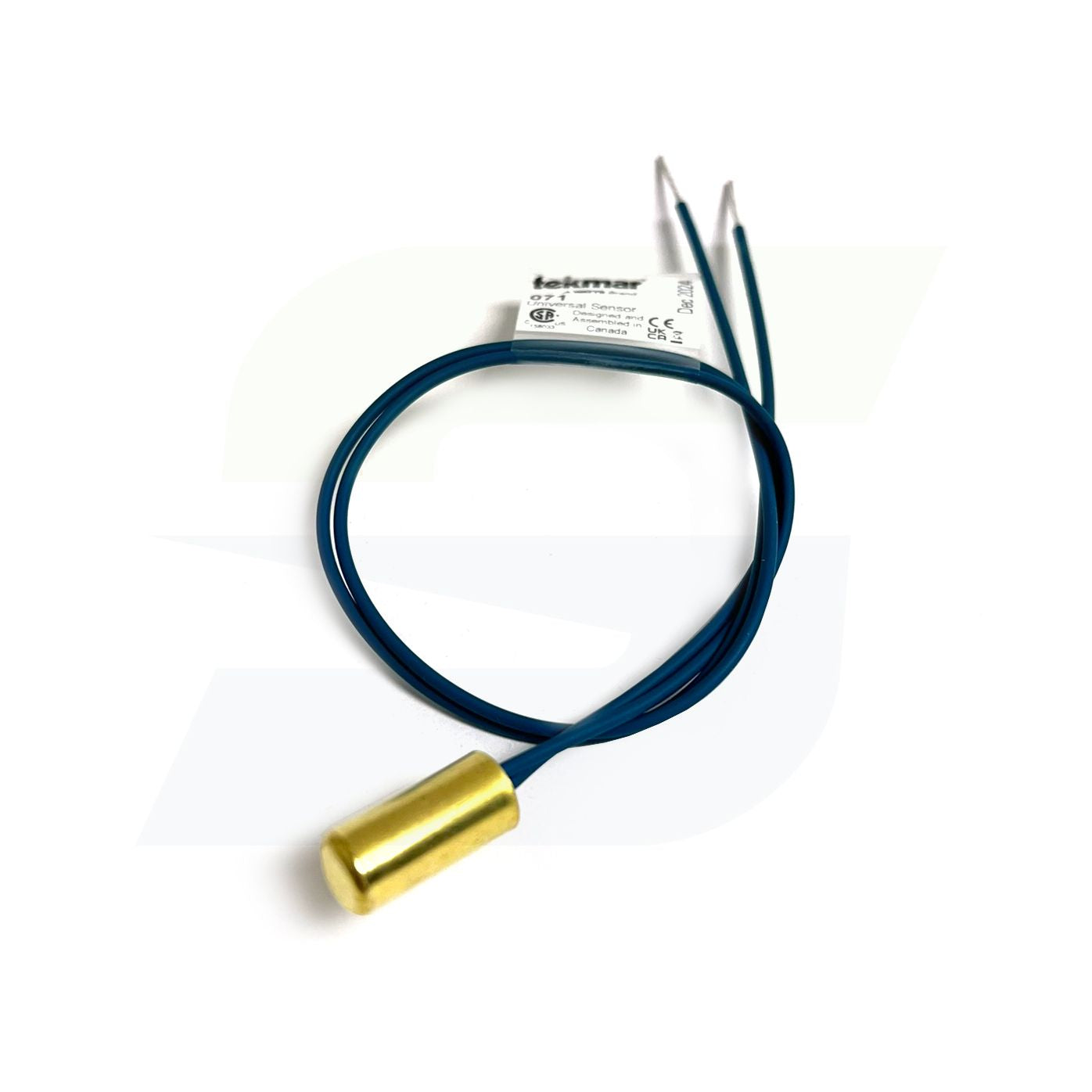

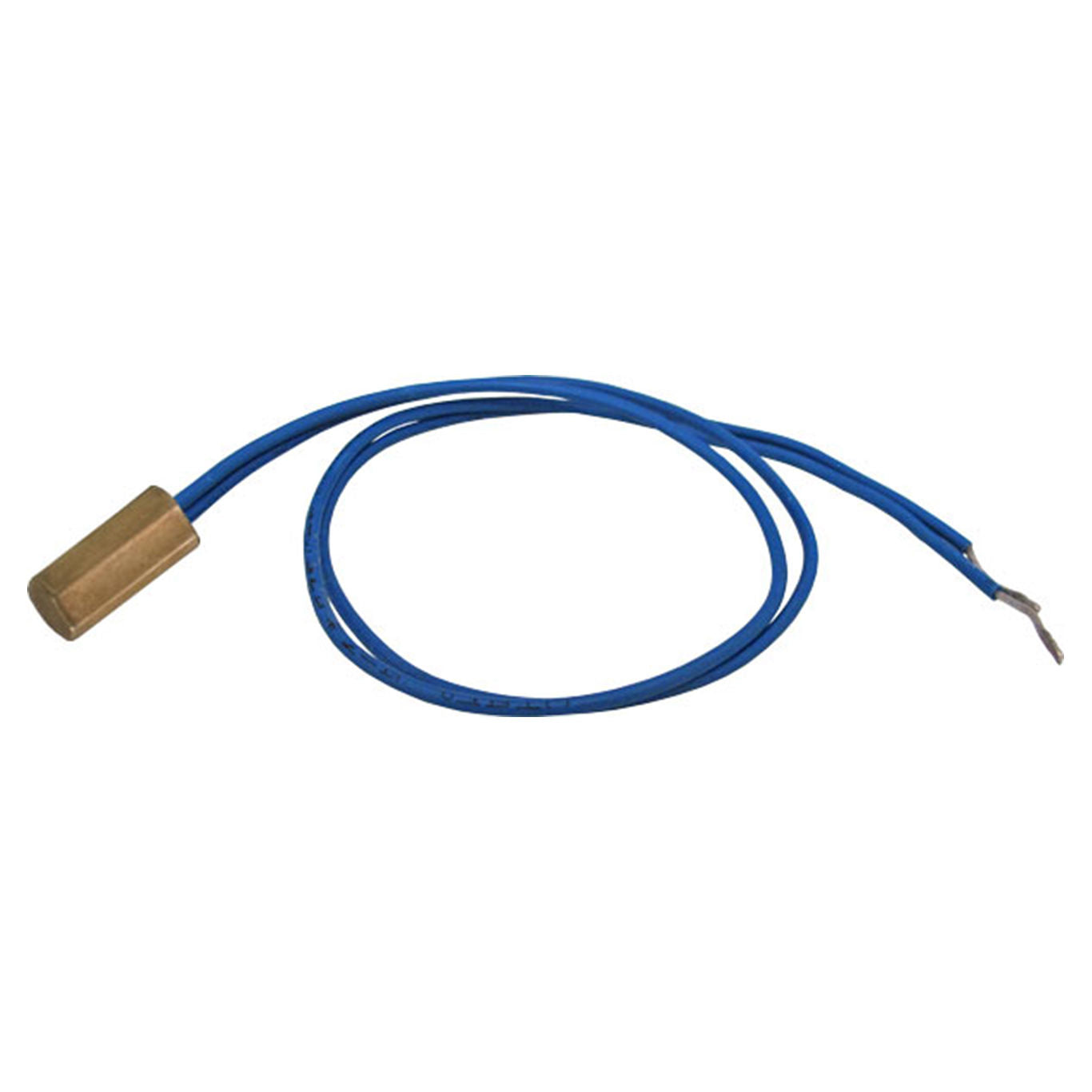

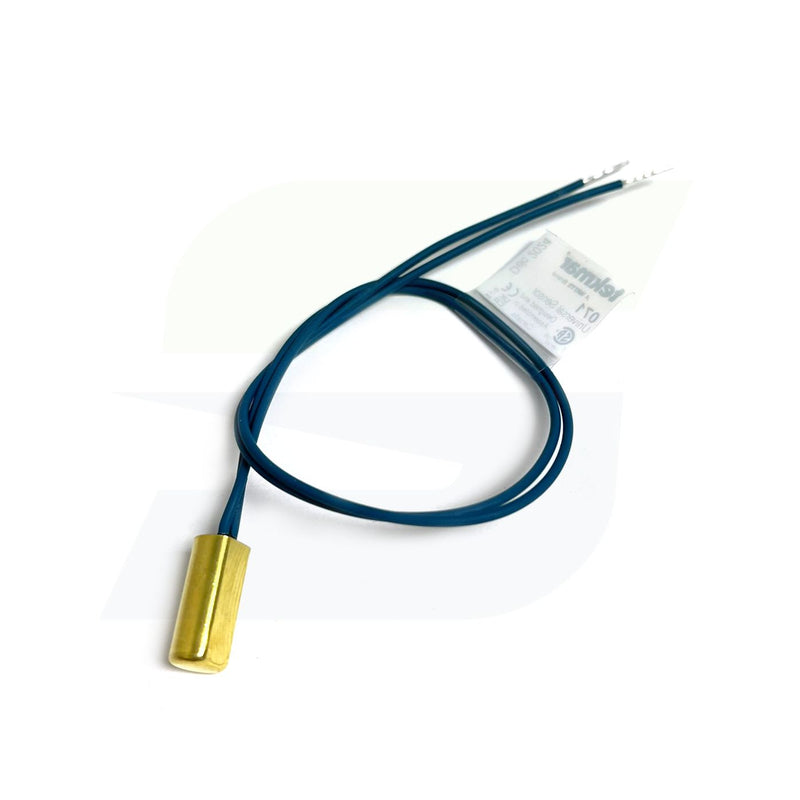

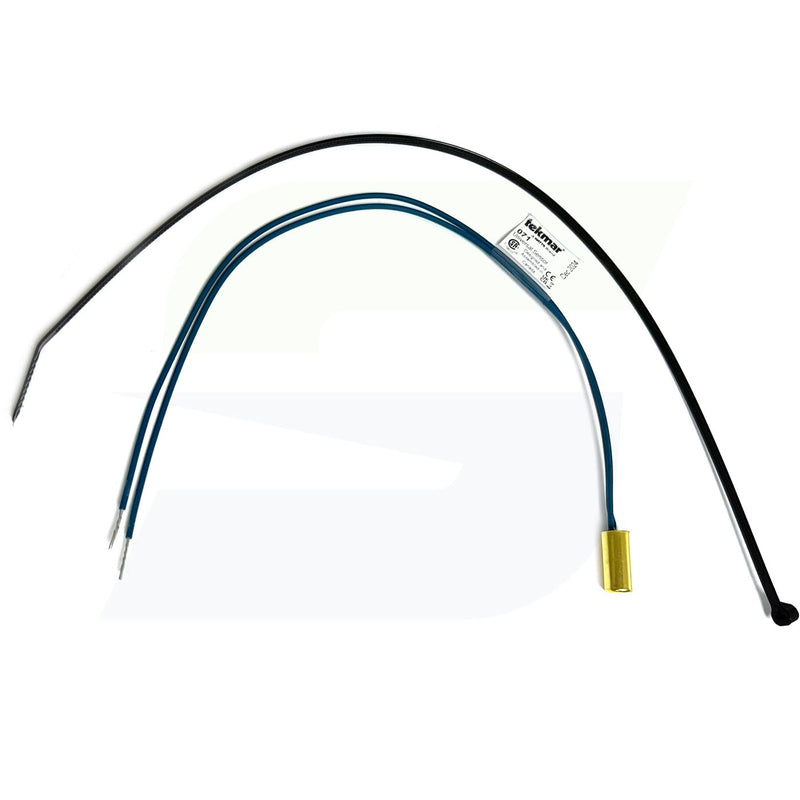

The Universal Sensor 071 is a temperature sensor. It is used for a wide range of applications, from sensing boiler supply temperature to slab temperature. This product is commonly used to monitor supply or return water temperatures by strapping the sensor on to a pipe.

Features

  • CSA and C US Approved for use in USA and Canada
  • Thermistor accuracy of plus / minus 0.2 degrees C
  • Very fast temperature response
  • Corrosion resistant brass sleeve
  • 10K thermistor

Specifications

  • Agency Approvals: CSA C US

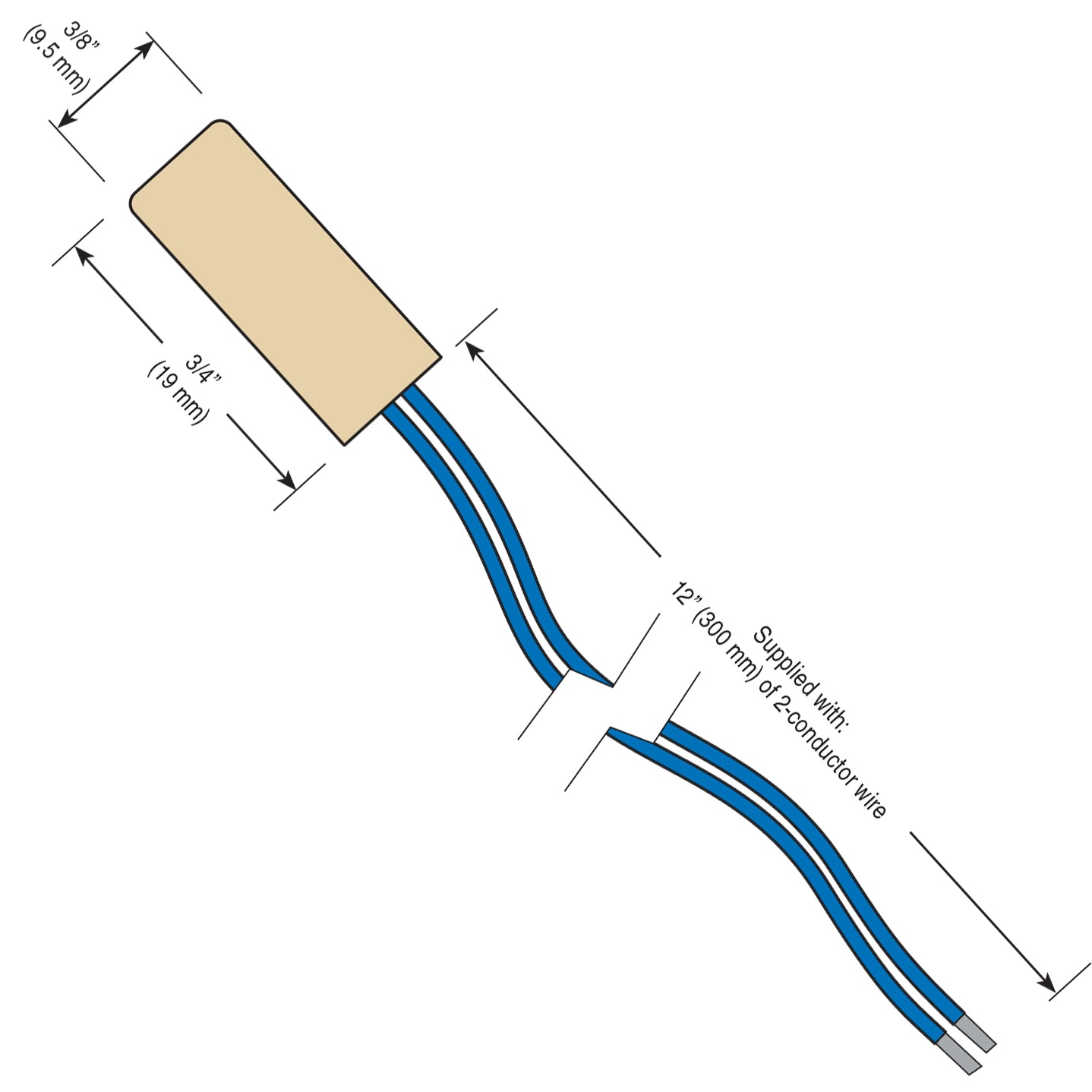

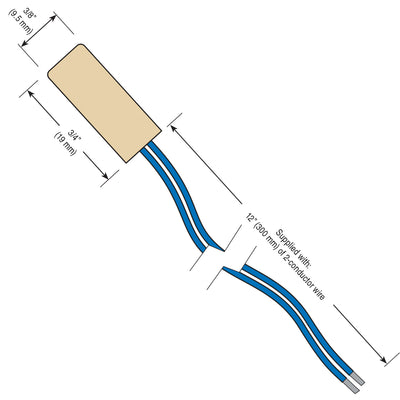

  • Dimensions: 3/8" OD x 3/4" (9.5 OD x 19 mm)
  • Operating Range: -60 to 255 degrees F (-51 to 125 degrees C)
  • Sensor: NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
