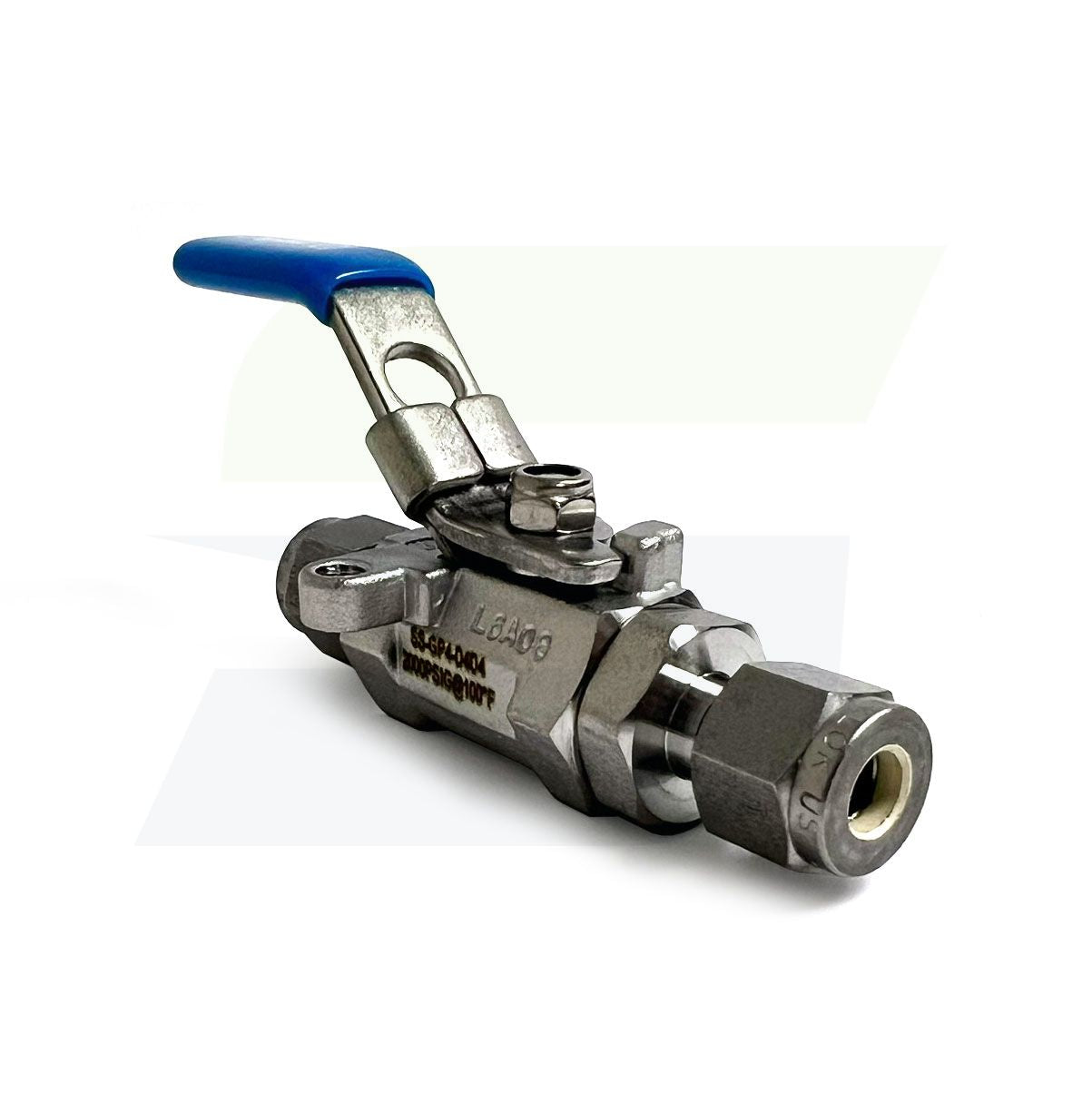

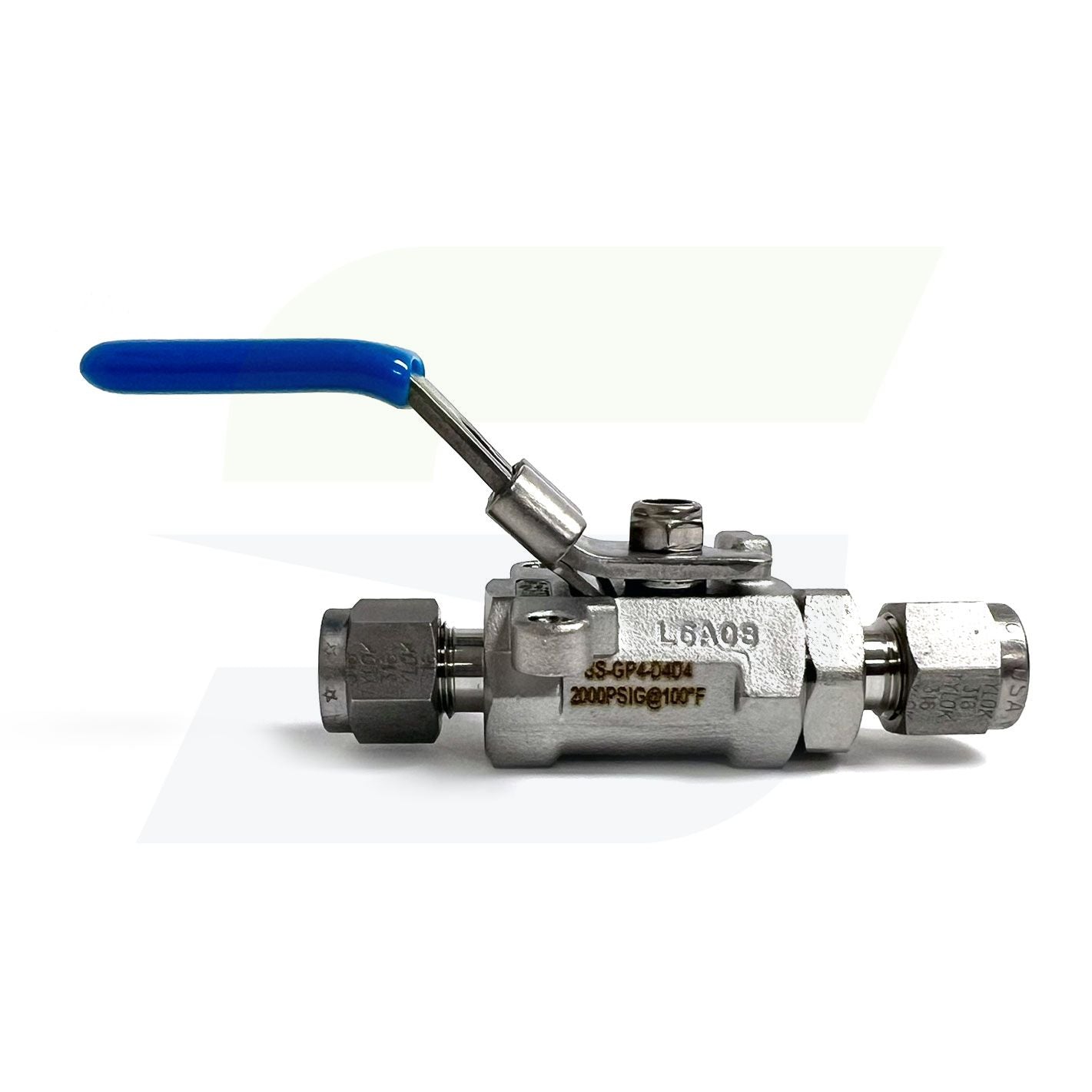

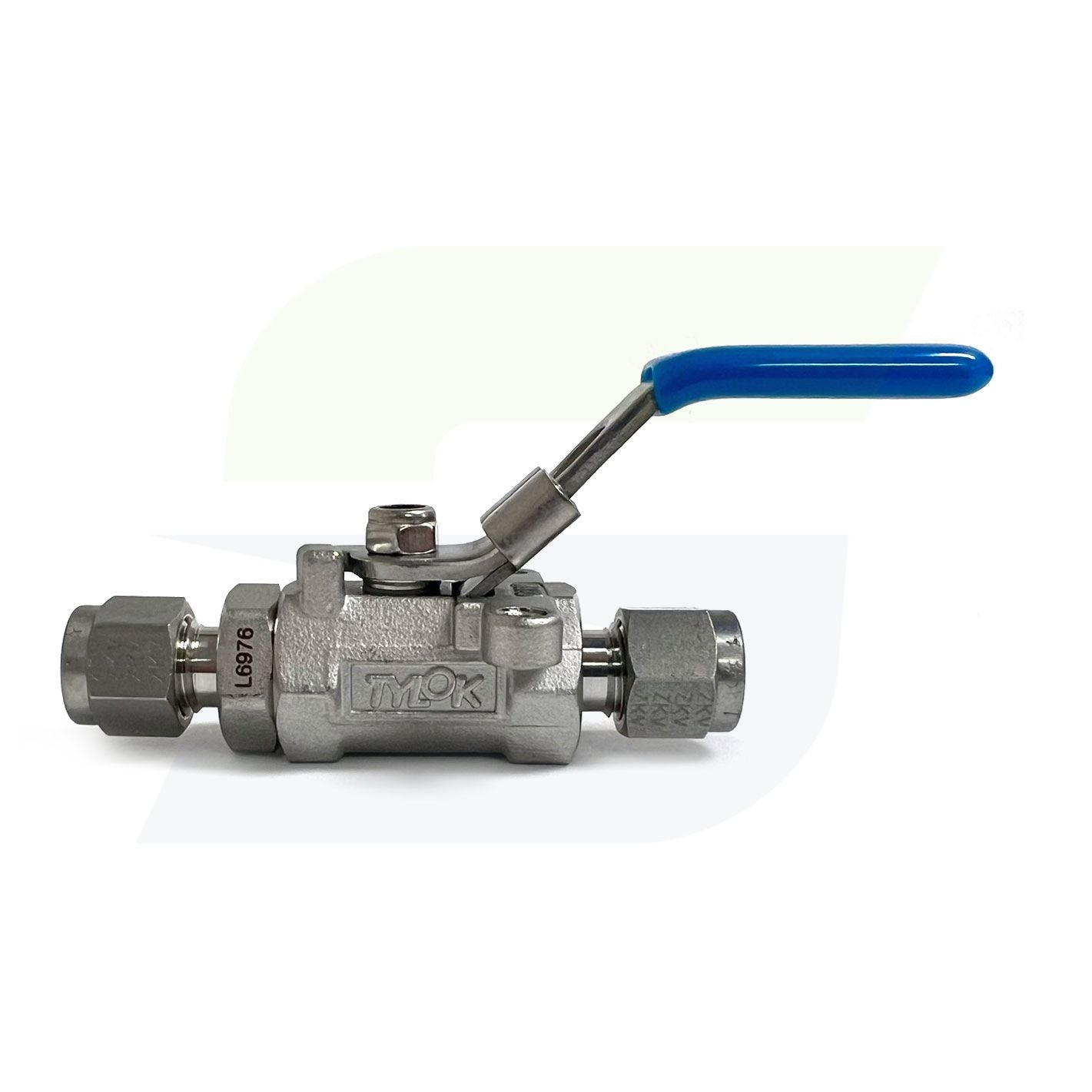

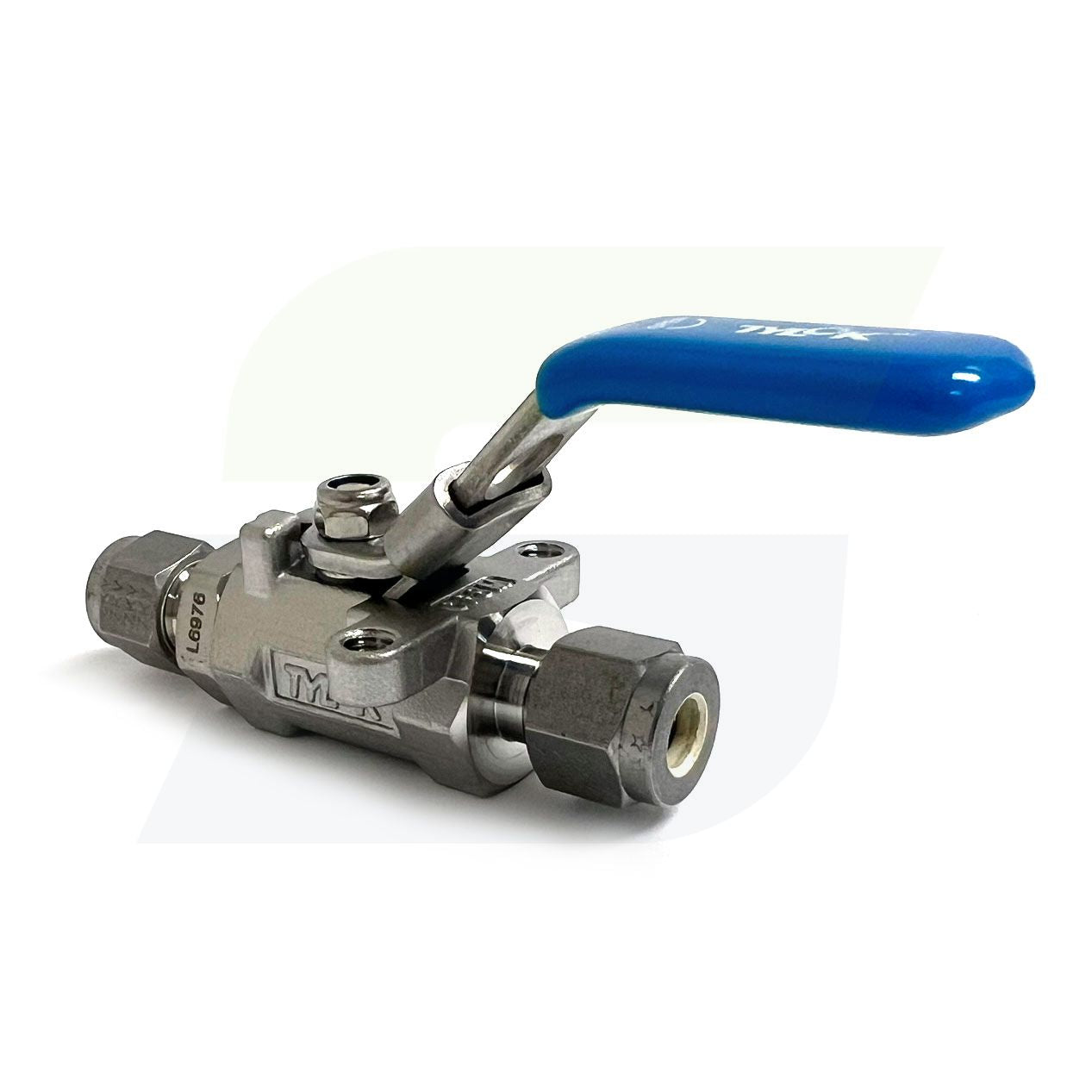

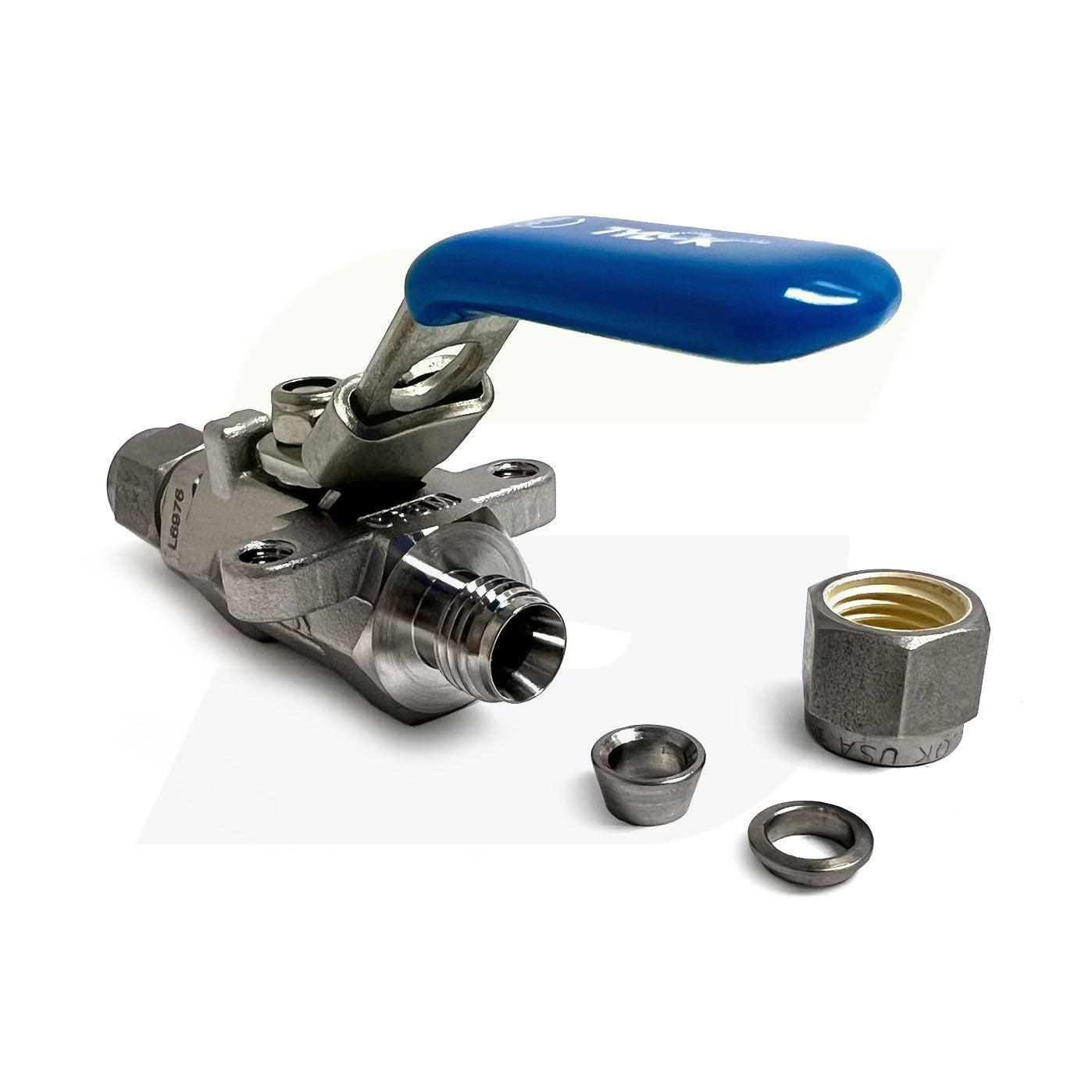

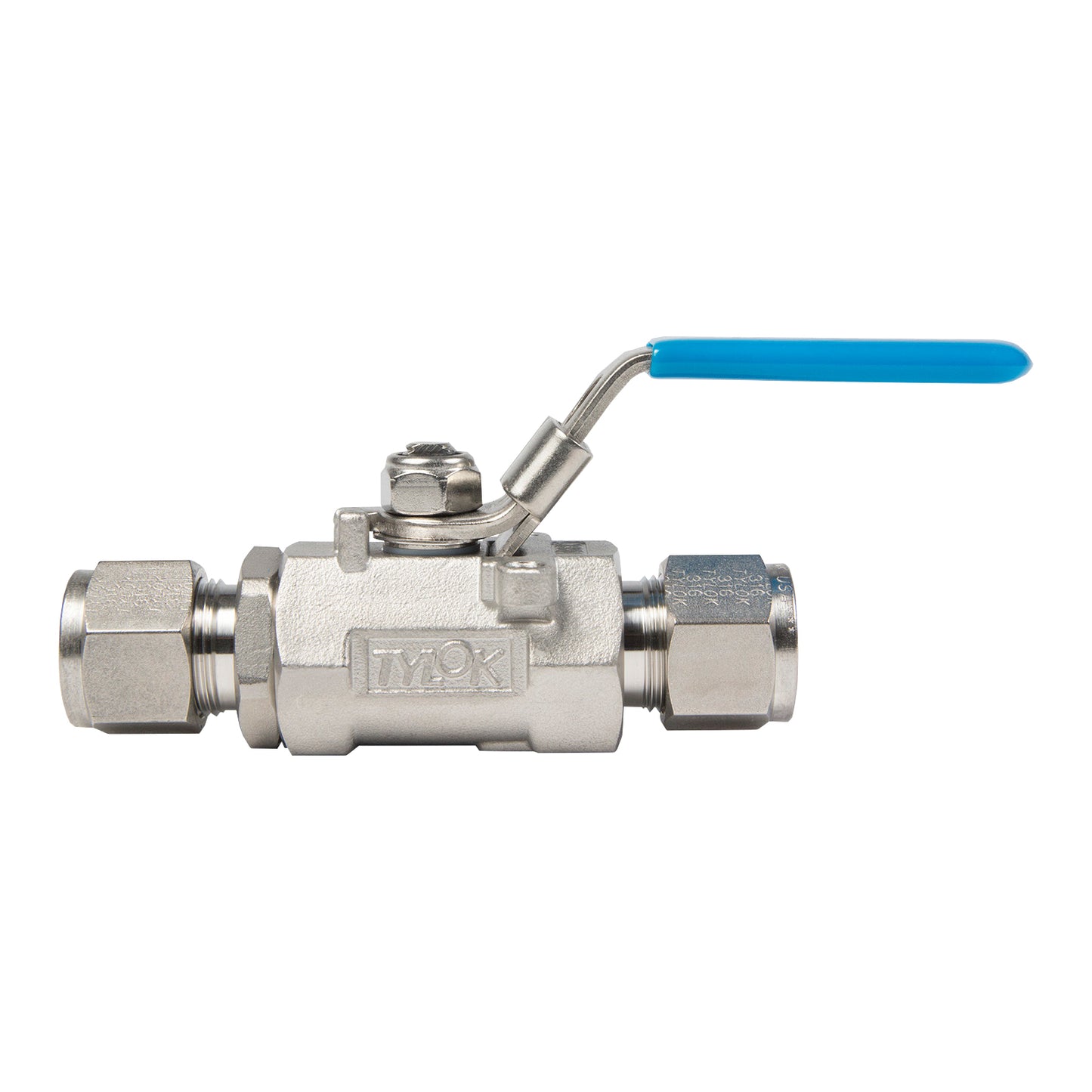

Tylok SS-GP4-D4D4 - Stainless GP Ball Valve 1/4" CBC Tube x 1/4" CBC Tube

The Tylok SS-GP4-D4D4 is a 1/4" stainless steel general-purpose ball valve from the GP Series, featuring CBC-Lok® tube fittings on both ends. Engineered for moderate-pressure applications, this valve offers reliable shut-off, low operating torque, and a compact design suitable for instrumentation, pneumatic, and hydraulic systems. Its 316 stainless steel construction and PTFE soft goods ensure durability and chemical resistance.

Features

• Manufacturer: Tylok International
• Part Number: SS-GP4-D4D4
• Material: 316 Stainless Steel Body and Ball
• Connection Type: 1/4" CBC-Lok® Tube x 1/4" CBC-Lok® Tube
• Orifice Size: 0.2"
• Pressure Rating: Up to 2000 psi at 100°F
• Temperature Rating: Up to 400°F (204°C)
• Seat Material: TFM 1600 PTFE
• Soft Goods Material: PTFE
• Dimensions: 2.95" Inlet to Outlet Length; 1.38" Top to Inlet Center
• Design: Compact with bi-directional flow capability; locking handle in both On and Off positions
• Compliance: ABS Type Approved; ASTM A351 Gr.CF8M; WBENC Certified
