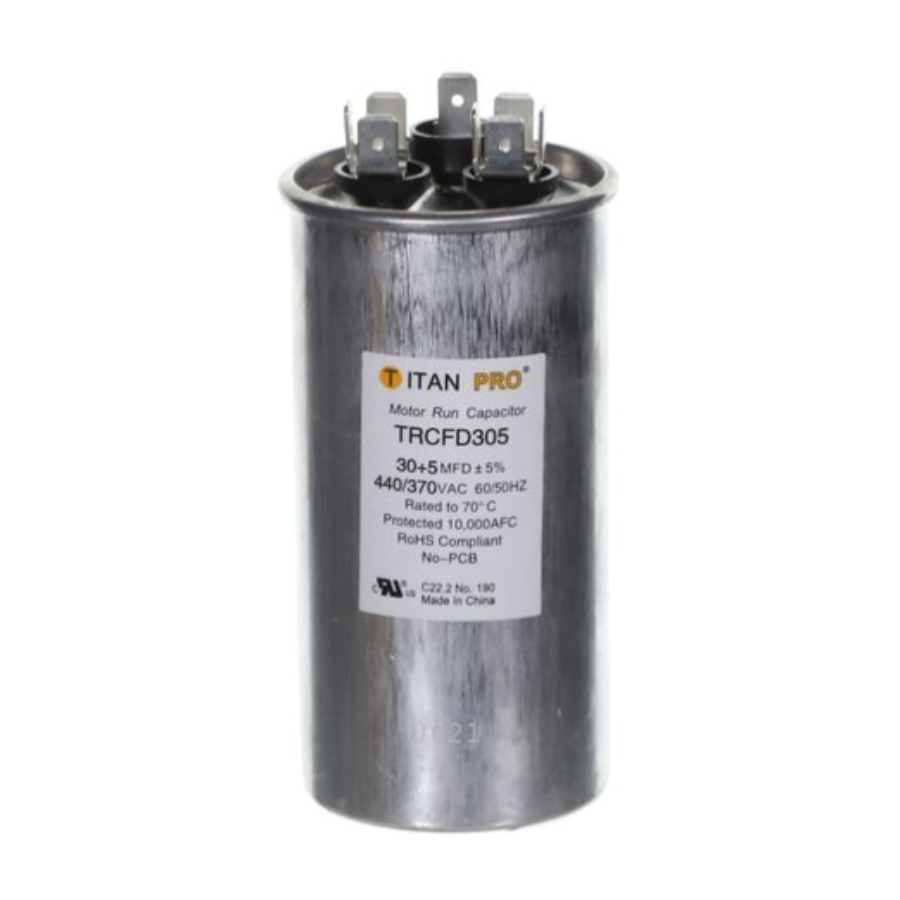

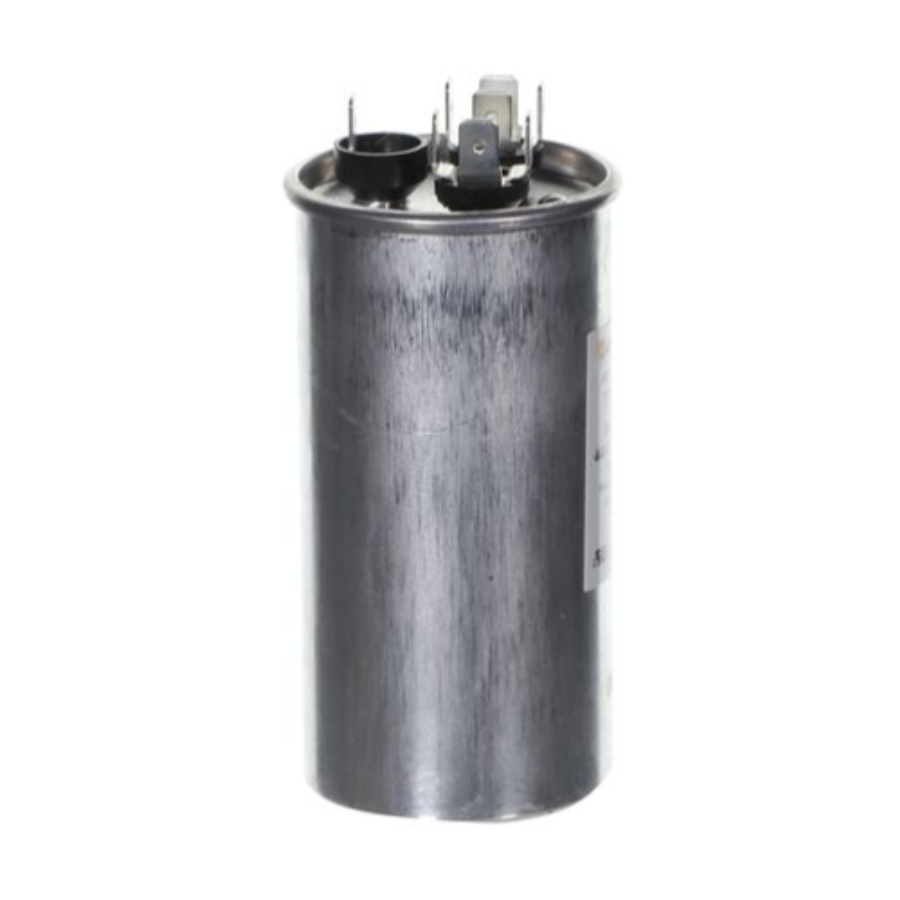

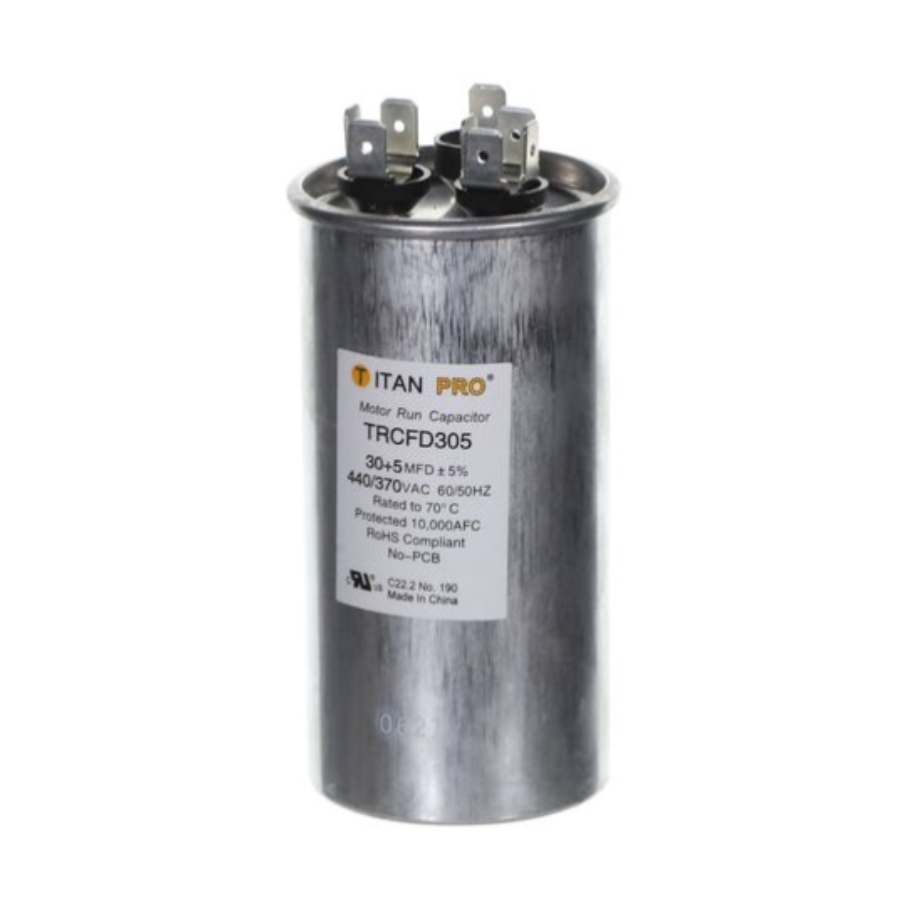

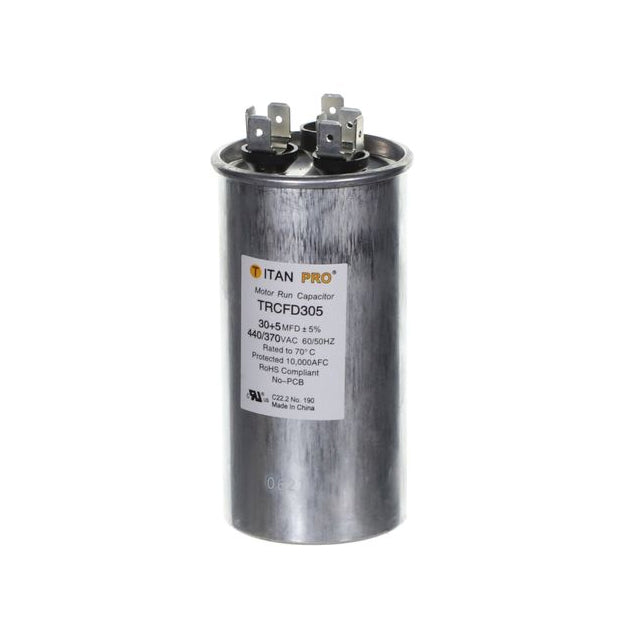

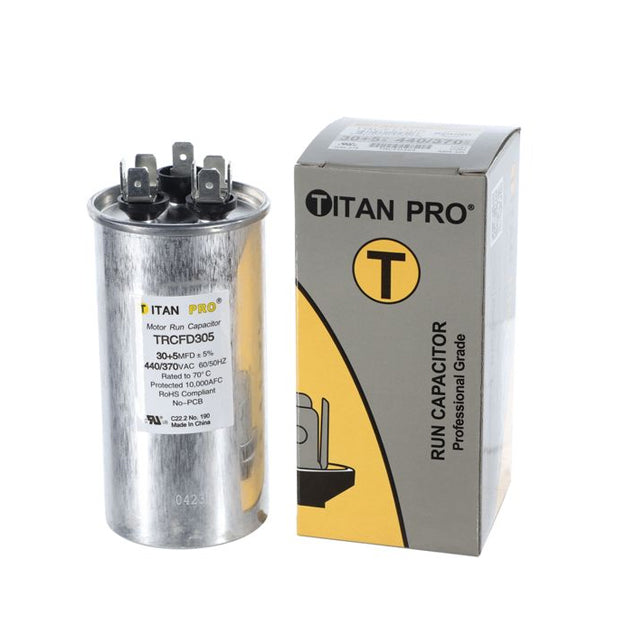

DiversiTech TRCFD305 - Titan Pro 30/5 MFD Round Dual Run Capacitor - 440/370V

The Titan Pro TRCFD305 is a professional-grade dual run capacitor designed for HVAC condenser and heat pump systems. Rated at 30 + 5 MFD and 440/370 VAC, it provides reliable starting and running power for both the compressor and condenser fan motor. Constructed with a durable aluminum case, reinforced metallized polypropylene film, and proprietary biodegradable oil, this capacitor is built to deliver dependable performance and long service life. Its dual-voltage rating allows it to replace both 370V and 440V capacitors, making it an excellent choice for HVAC repairs, maintenance, and new installations.

Features

• Manufacturer: Titan Pro
• Part Number: TRCFD305
• Professional-grade round dual run capacitor
• 30 + 5 MFD capacitance
• 440/370 VAC dual voltage rating
• Designed for air conditioners and heat pump condenser units
• Powers both the compressor and condenser fan motor
• Heavy-duty aluminum can with steel cover
• Reinforced metallized polypropylene film construction
• Proprietary biodegradable oil-filled design
• Second-generation anti-explosion safety switch
• Up to 60,000-hour operational life under normal conditions
• 100% electrically tested for quality and reliability
• Meets UL and industry performance standards

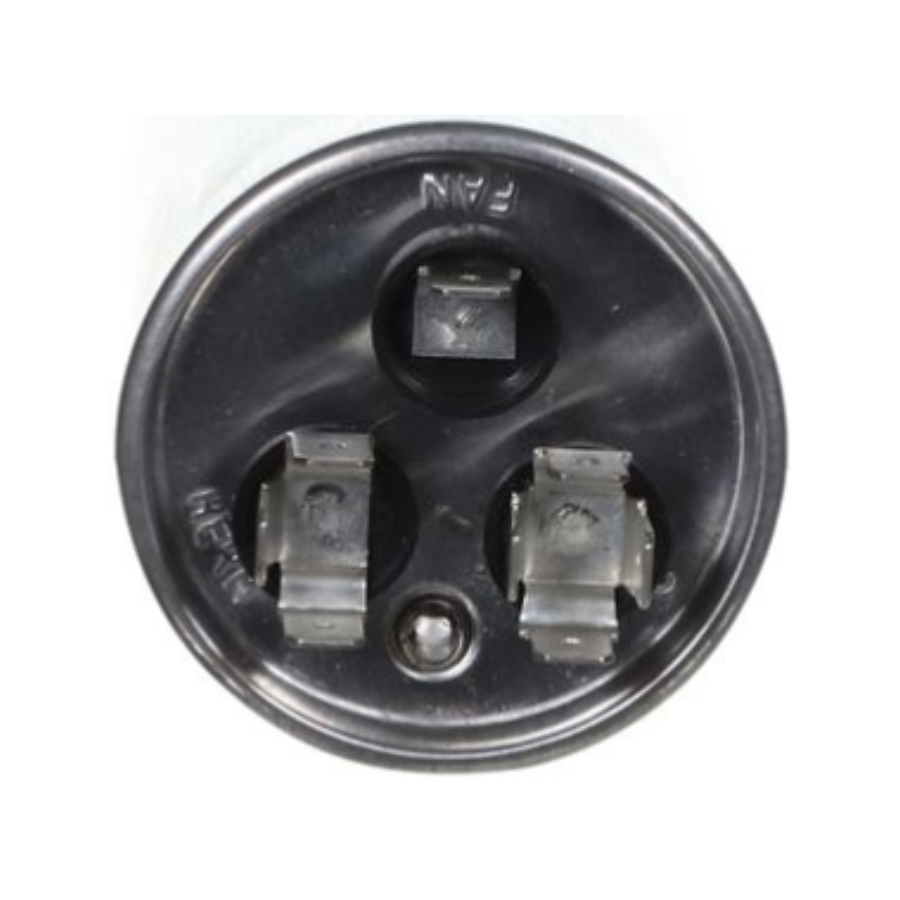

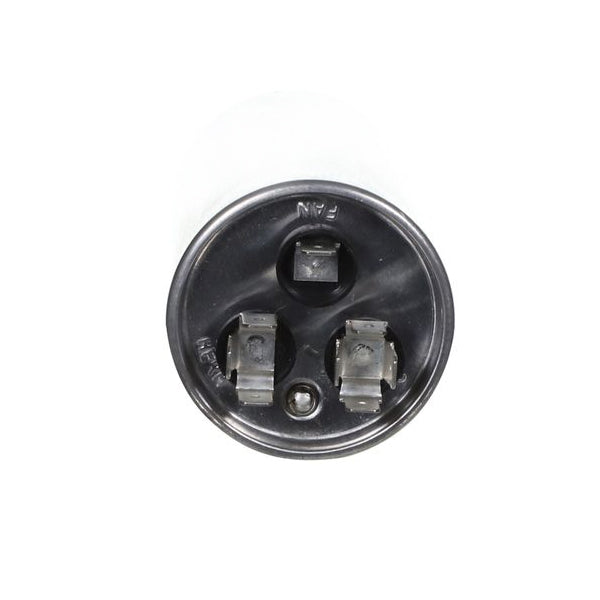

• 1/4" quick-connect terminals for fast installation
• Operating temperature range: -40°F to 158°F (-40°C to 70°C)
