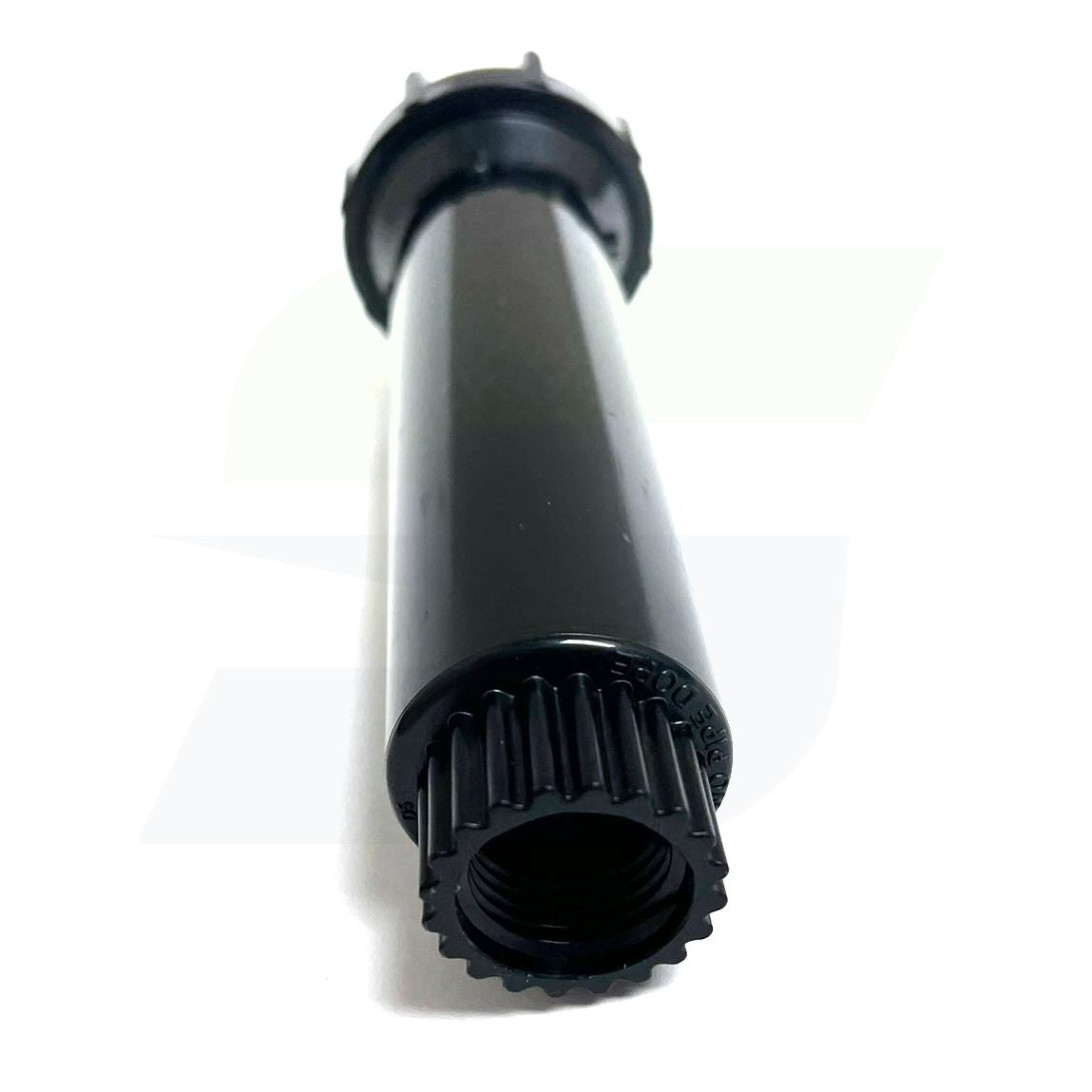

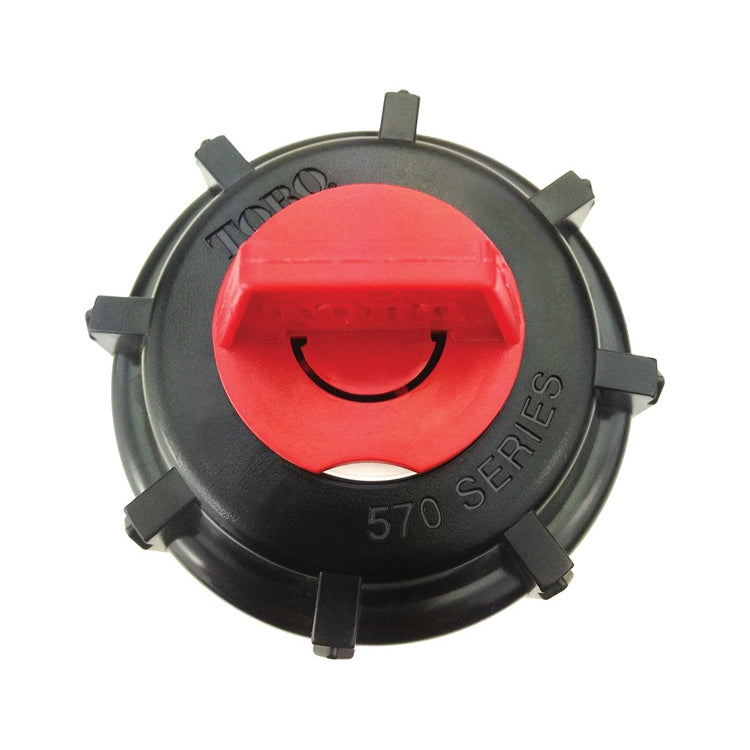

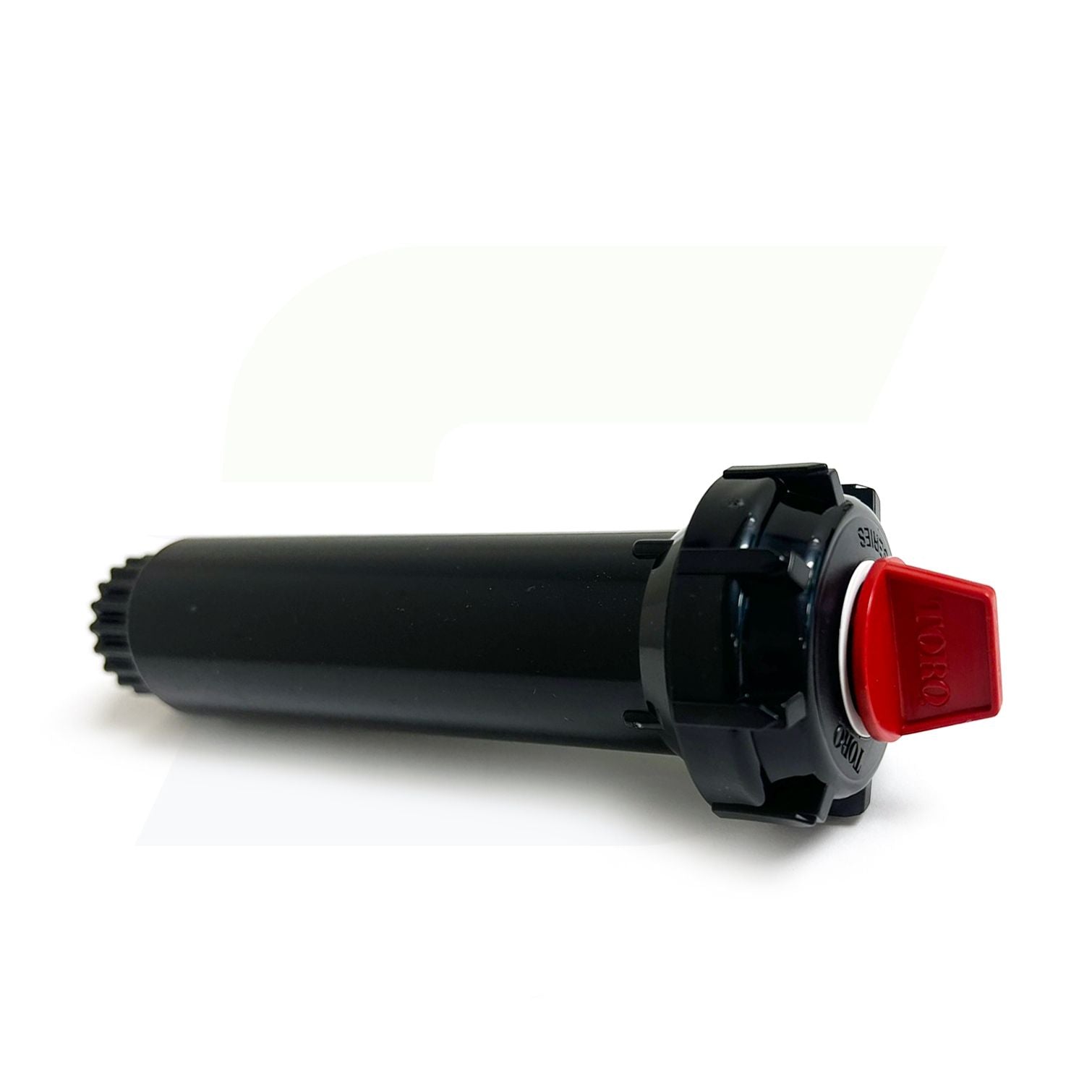

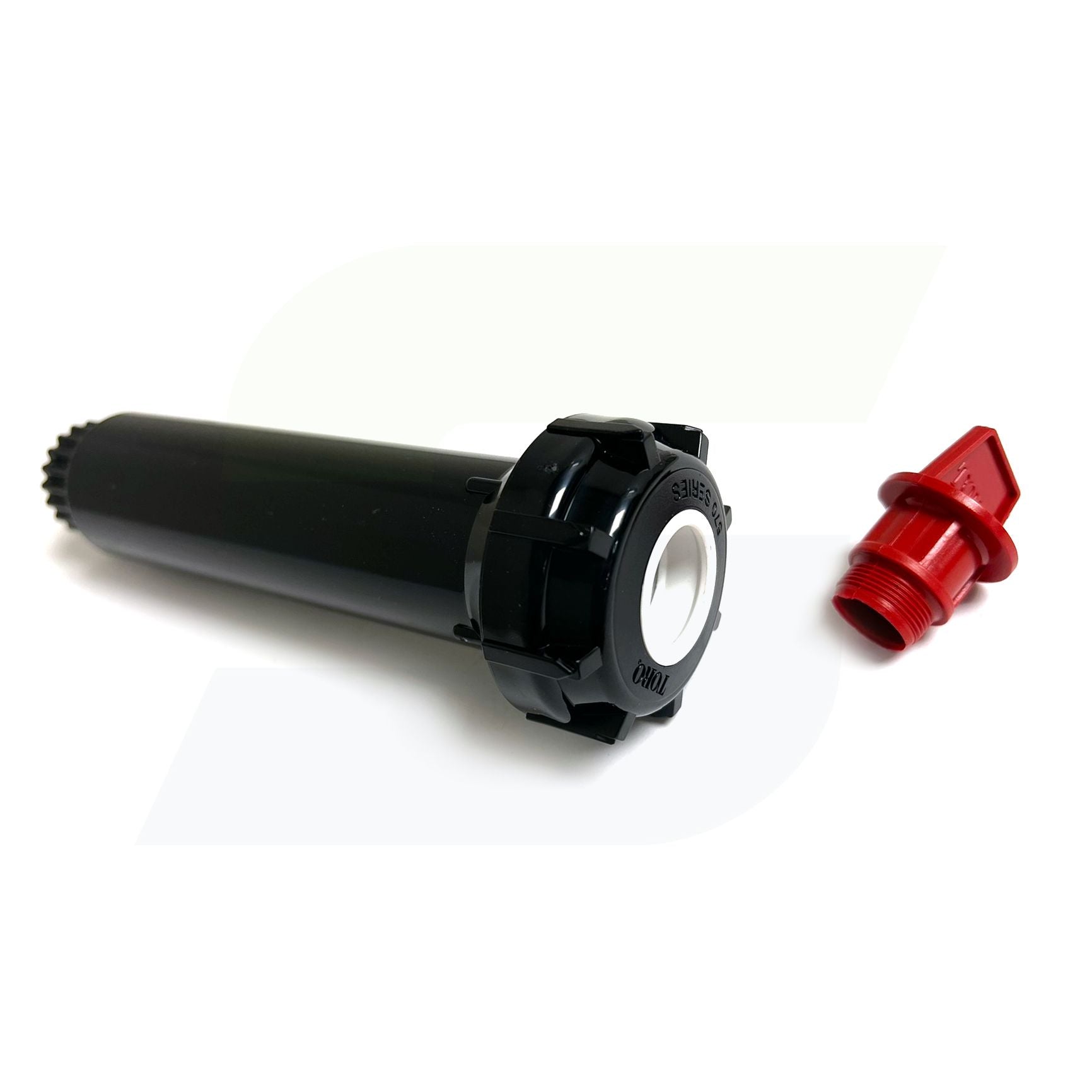

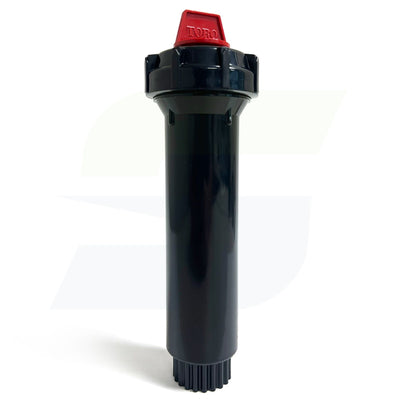

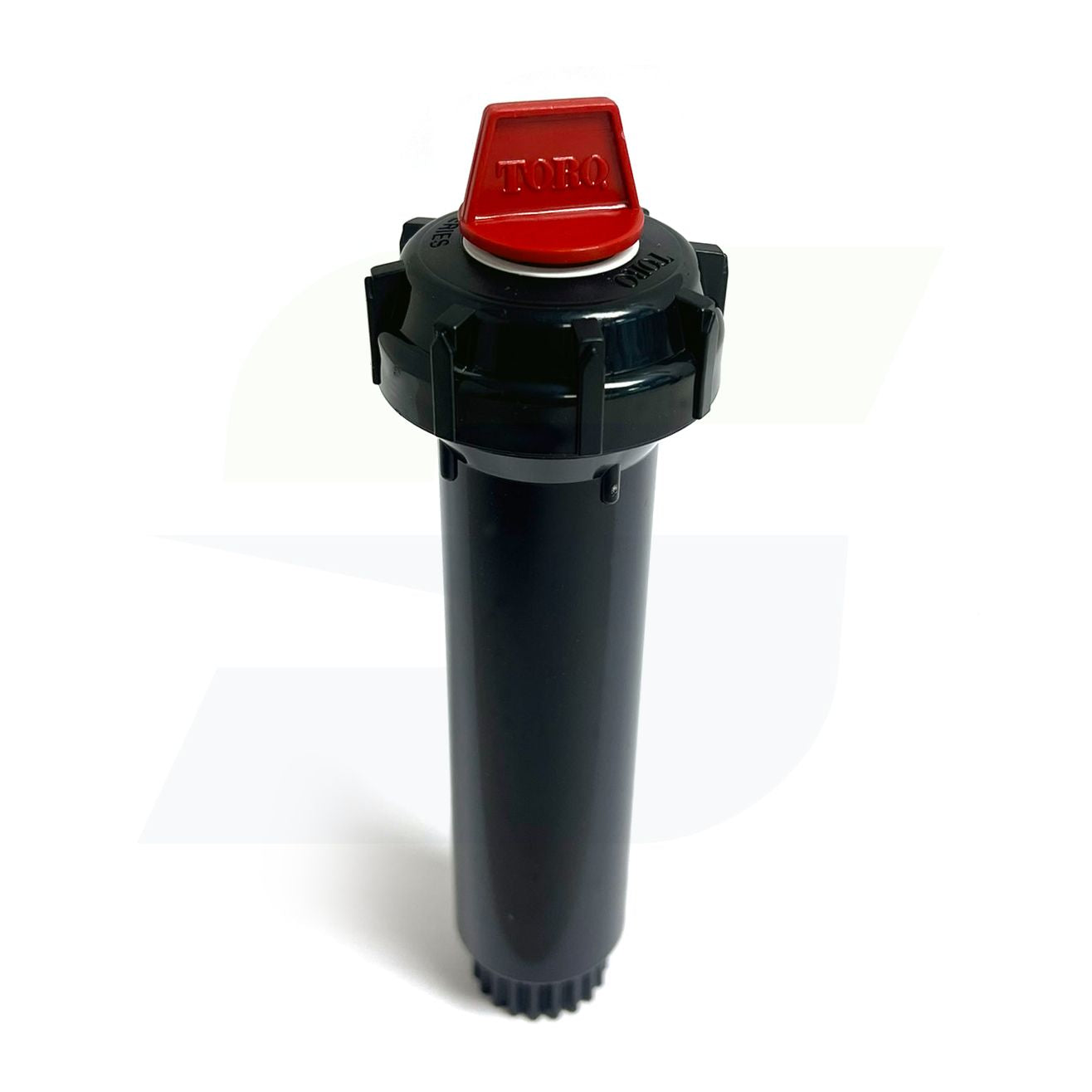

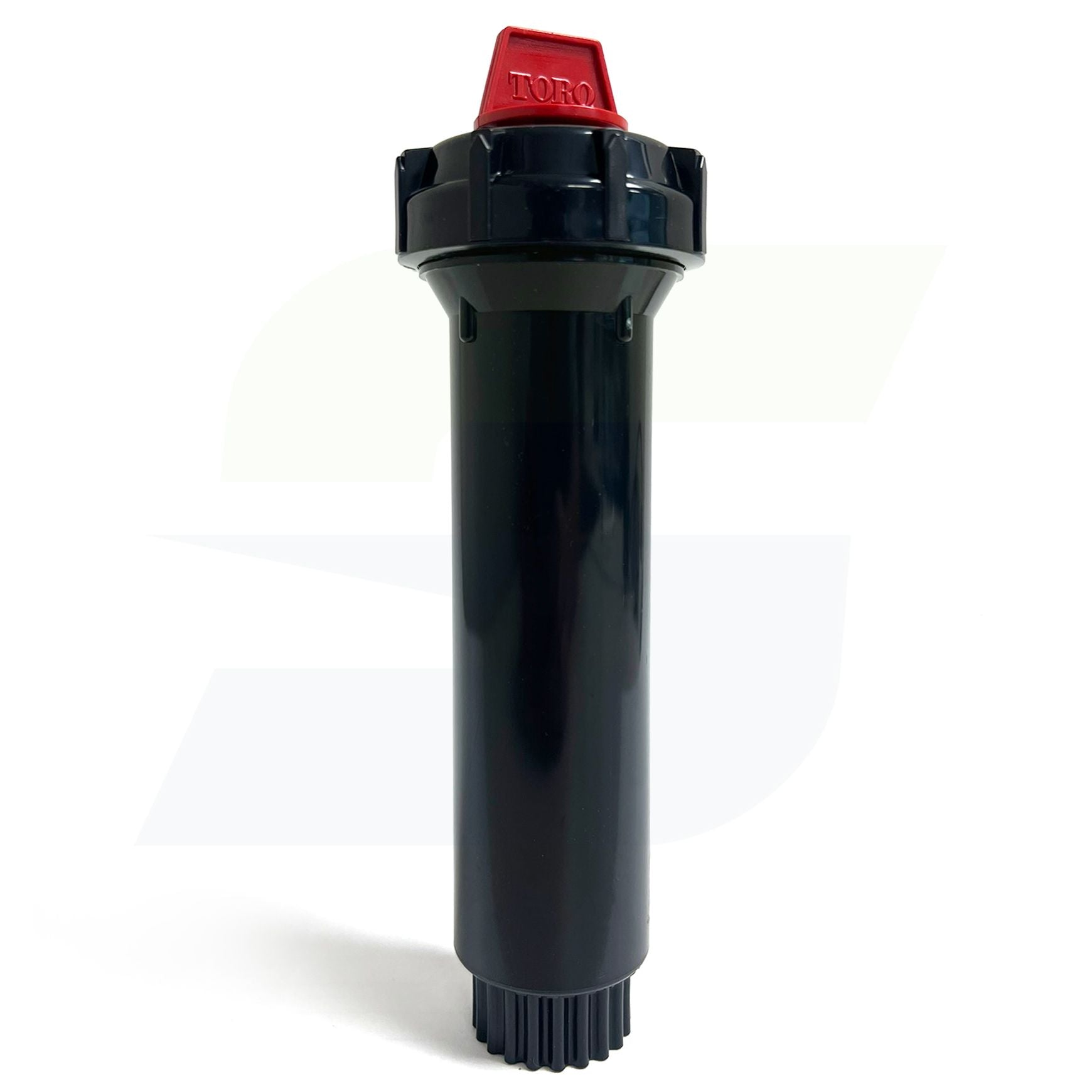

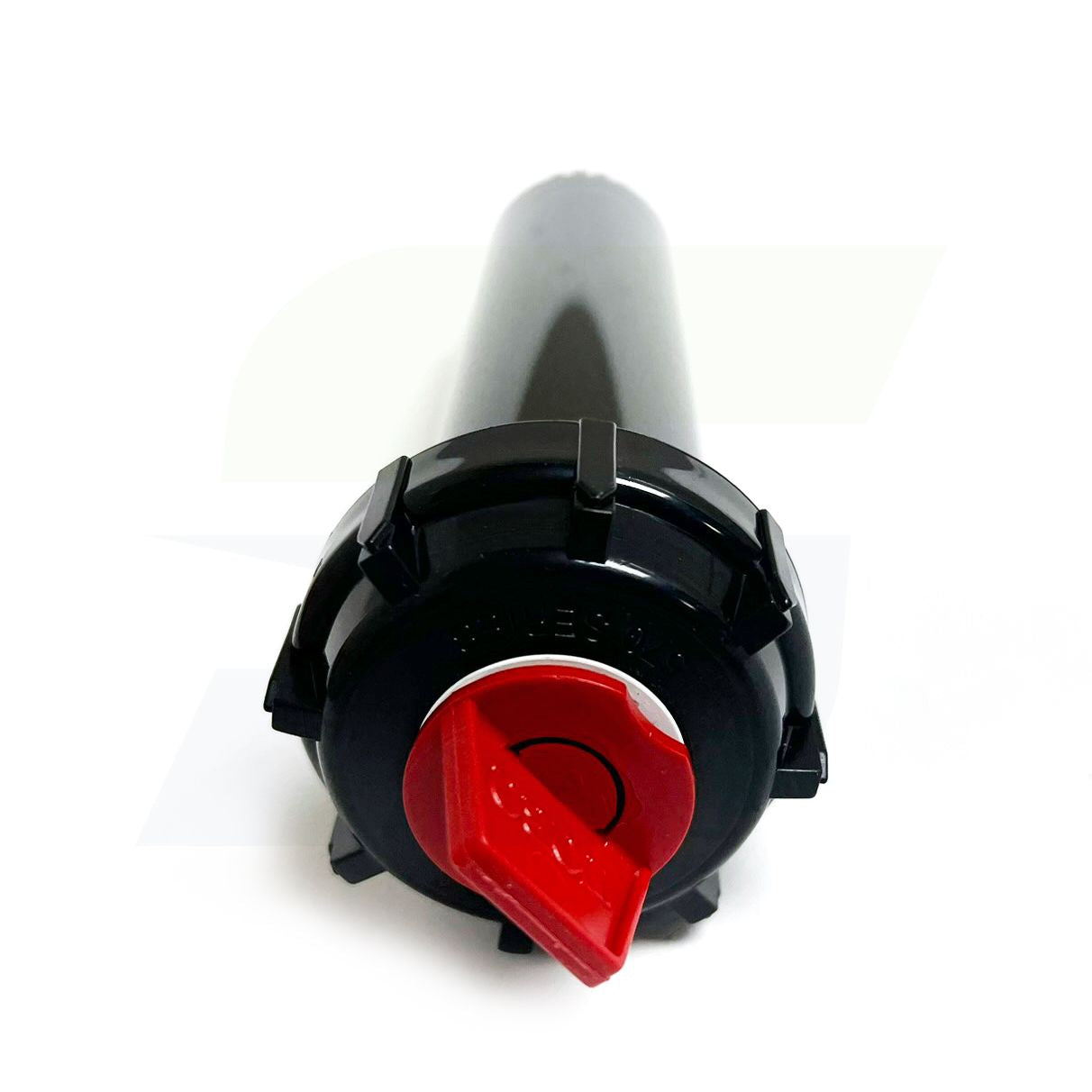

TORO 570Z-4P - 570 Series 4" Pop Up Spray Body Only

The 570Z is ideal for small to medium size landscape areas and intricate designs. The PR and PRX models are ideal for applications with high or varying operating pressure, including long lines and slopes. The X-Flow feature restricts water loss by 99% if damaged.

RUGGED – FLEXIBLE – VERSITILE – RELIABLE: Toro 570Z Series pop-up spray bodies and 570S Series shrub adapters and shrub risers provide a durable, professional-grade solution for residential and commercial contractors to satisfy all new installation and retrofit requirements. In combination with Toro fixed spray and rotating nozzles, 570Z and 570S Series spray and shrub models can be configured in hundreds of combinations and present an unparalleled range of flexibility. Available in bottom-inlet shrub versions and pop-up body heights of 2”, 3”, 4”, 6” and 12” models (side inlet thread options on 6” and 12”). 570Z and 570S Series spray and shrub models are further available with water-saving factory-installed X-Flow Technology, and/or integrated Pressure Regulating features. Trusted for over 25 years, 570Z and 570S Series spray and shrub models are the ideal choice.

Zero Flush Wiper Seal & Ratcheting Riser - Wiper Seal helps eliminate flushing on pop-up (allows more sprinklers per zone). Ratcheting Riser for quick and precise arc adjustment on all pop-up models.

X-Flow Technology - X-Flow in-stem flow shut-off technology built into the riser restricts water loss by 99% should the nozzle be removed or damaged. The exclusive X-Flow technology reduces water waste, landscape erosion, and wet hardscape safety concerns. X-Flow also allows for ‘dry’ nozzle and filter replacement or system maintenance while the system is running.

Pressure Regulator - Built in pressure regulation to a consistent 30 PSI is available on 570Z and 570S shrub models. WaterSense certified to prevent water waste due to misting and fogging caused by high-pressure environments.

Enhanced Zero Flush Seal - No Water Wasted at System Start - System start up is a critical time when water waste can occur. The Toro 570Z Series spray head’s wiper seal is pressure-activated and prevents flow-by at start up, meaning no water is wasted and more heads can be installed on the same line.

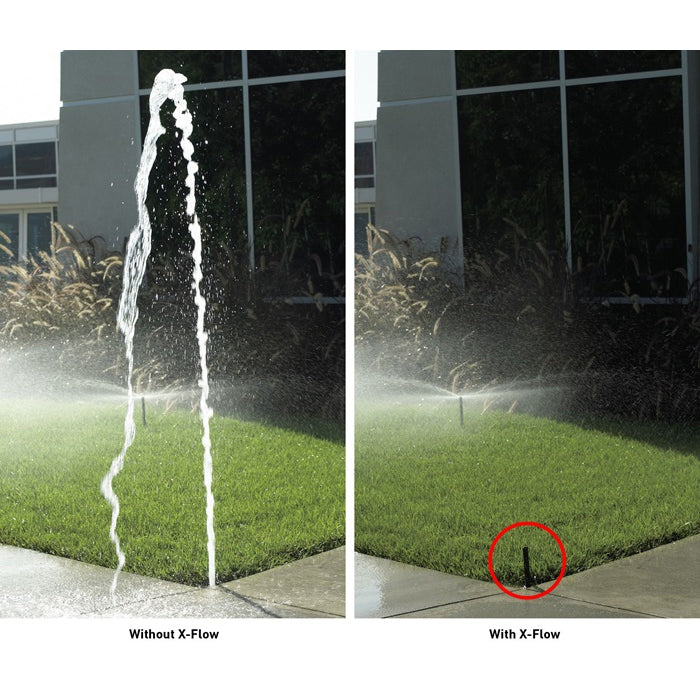

X-Flow Shut-off Technology Cuts Off Water Waste - Up to 40 gallons of water per minute can escape through a spray head that has a missing or damaged nozzle. This wasted water can lead to landscape erosion, property damage, or unsafe conditions due to wet hardscapes. X-Flow is factory installed in the riser and holds back over 99% of the water that would otherwise be wasted in cases where the nozzle has been compromised through unintentional accidents or vandalism.
Furthermore, X-Flow Technology allows for spray head maintenance or component replacement without the need to turn off the system.

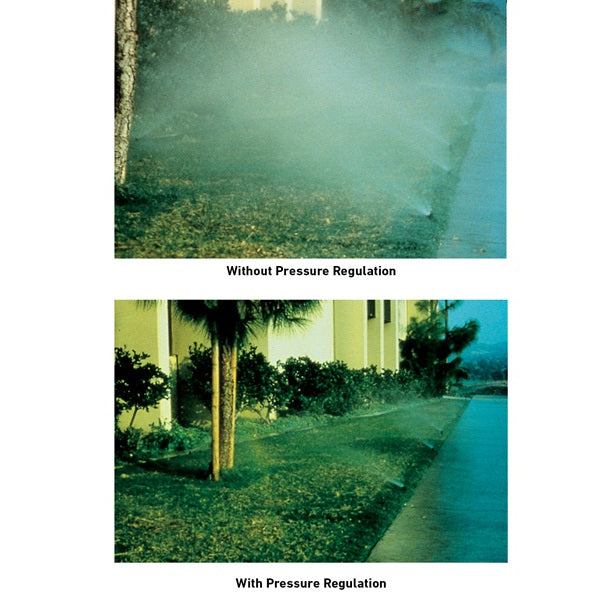

Pressure Regulator - Reliability thanks to Built-in Pressure Regulation. Available for both 570Z (SPRAY) and 570S (SHRUB) models, Toro’s factory-installed pressure regulator eliminates water misting and fogging at the nozzle that can lead to rapid evaporation or water being blown away from the intended irrigation area. From the first to the last head, the in-stem pressure regulator provides a steady outlet pressure of 30 PSI and consistent spray head performance across the zone.

Specifications

  • Radius: 2 feet to 26 feet
  • Operating pressure range: 20-75 psi (15-75 psi for Low Pressure models)
  • Recommended operating pressure for spray nozzles: 30 psi
  • Recommended operating pressure for rotating nozzles: 45 psi
  • Flow rate: 0.5 – 4.5 gpm
  • Dimensions
  • Body diameter: 1-3/8"
  • Cap diameter: 2”
  • Inlet thread: 1/2” Female
  • Side inlet location: 4-3/4” (measured from the top of spray head to center of the side inlet port)
  • Warranty: Five years on all models
