Specification Sheet

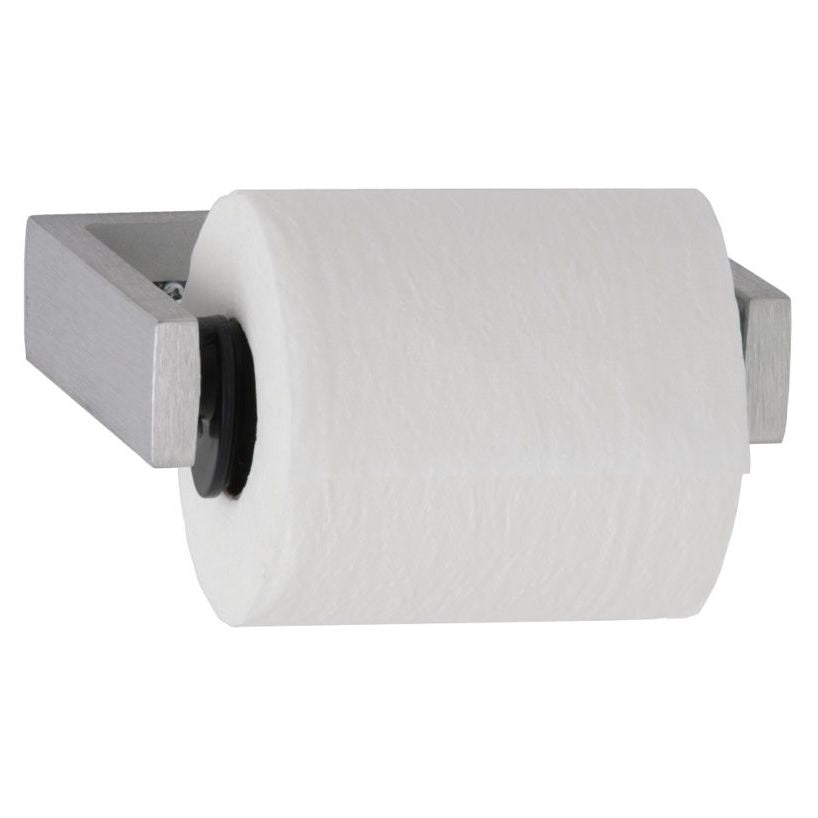

Toilet Tissue Dispenser For Single Roll

Features:

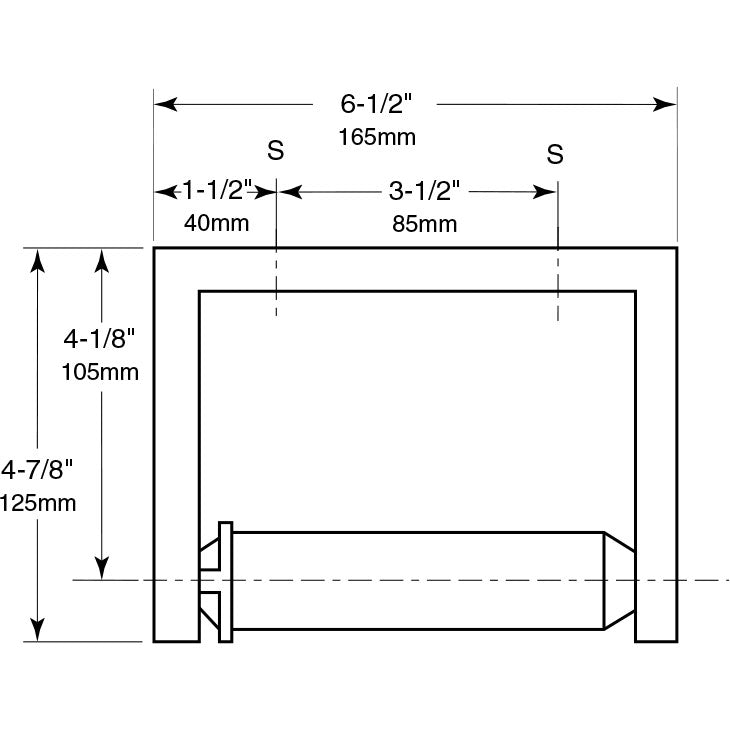

• Unit 6 1/2″ (165mm) wide, proj. 4 7/8″ (125mm) from wall
• Capacity: One standard-core toilet tissue roll up to 6" (152mm) diameter (2000 sheets).
• Heavy-duty cast aluminum with satin finish.
• Equipped with retractable pin and concealed locking mechanism
• Choice Builders Solutions derived from service in the United States Army by building a passion in helping others and serving the community. We are a certified disabled veteran owned business.

Materials:

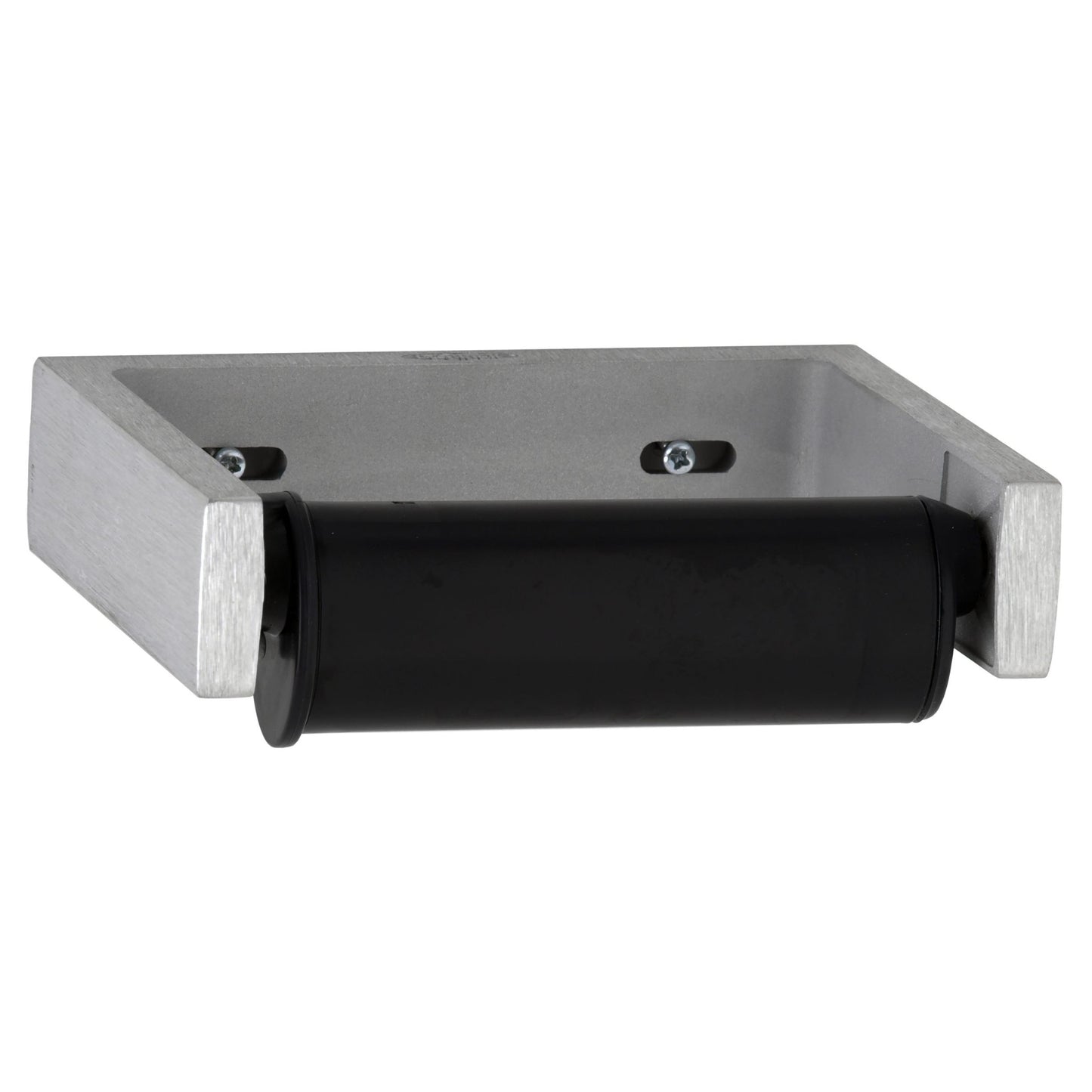

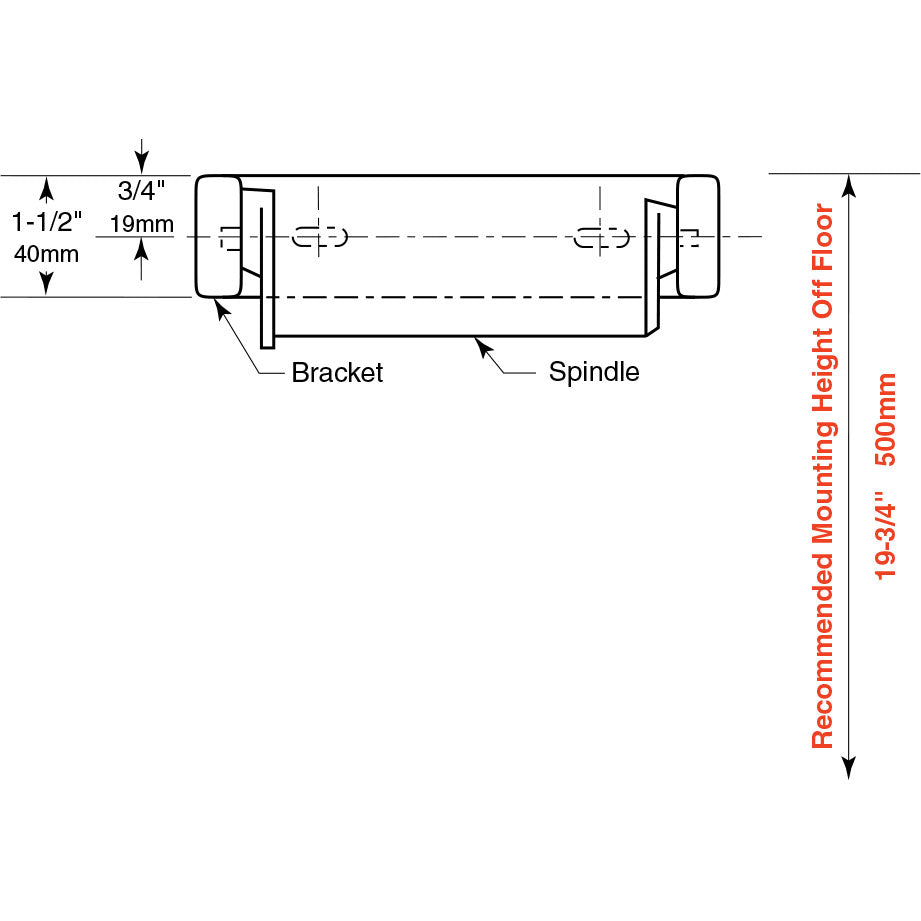

• Bracket — Heavy-duty cast aluminum with satin finish. Small extrusion limits rotation of spindle to 3/4 revolution.
• Spindle — Molded high-impact ABS. Equipped with retractable pin and concealed locking mechanism.

Operation:

• Controlled delivery of toilet tissue roll; 3/4 revolution of spindle on each dispensing operation. Counterbalanced spindle automatically returns to original position. Eliminates waste. Accommodates one standard-core toilet tissue roll up to 6" (152mm) diameter (2000 sheets). Spindle can only be removed with special key furnished. Theft-resistant.

Installation:

• For partitions with particle-board or other solid core, provide sheet-metal screws or through-bolts, nuts, and washers.
• For hollow-core metal partitions, provide solid backing into which sheet-metal screws can be secured. If two units are installed back-to-back, then provide threaded sleeves and machine screws for the full thickness of partition.
• For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws.
• For other wall surfaces, provide sheet-metal screws and fiber plugs or expansion shields, or provide 1/8" (3mm) toggle bolts or expansion bolts.
