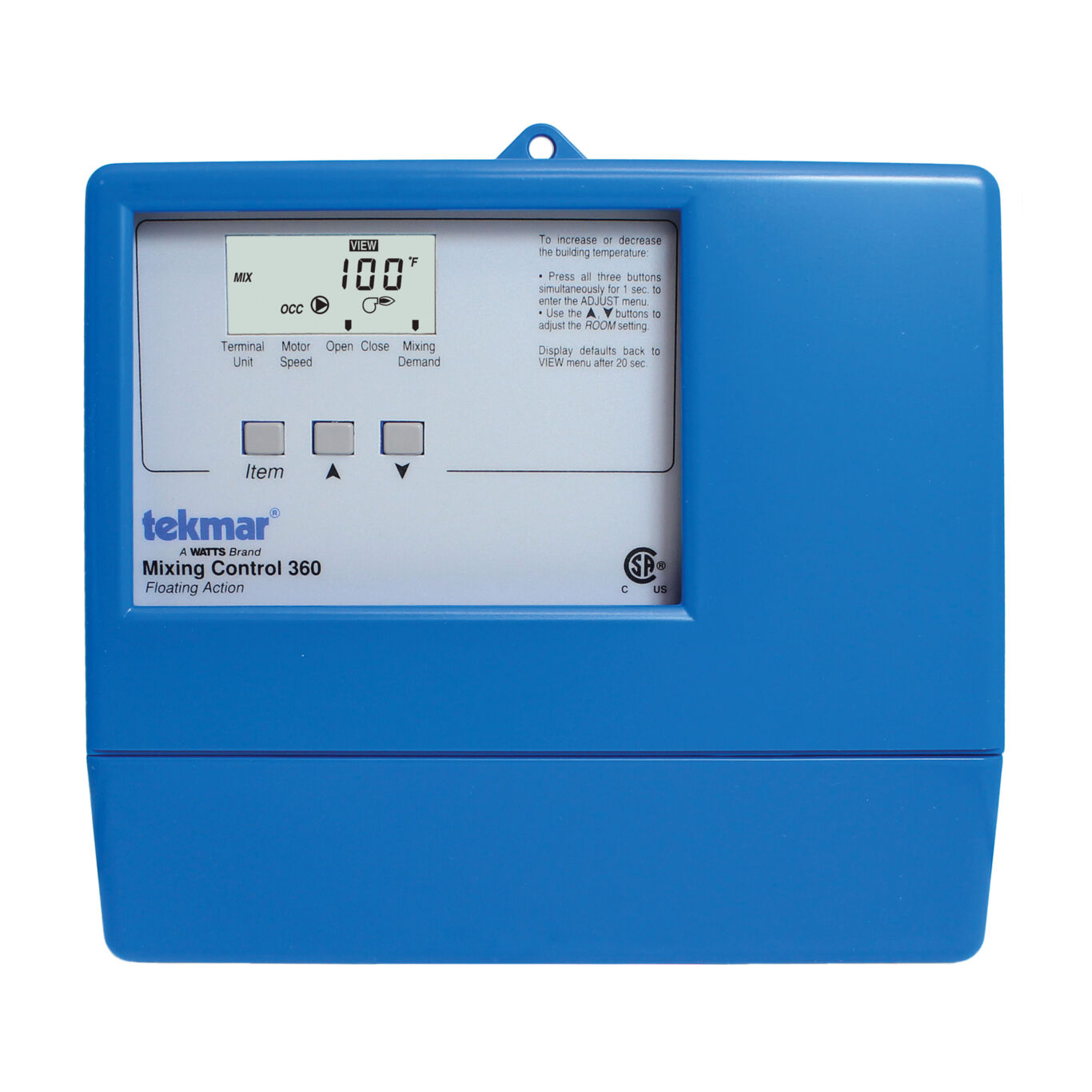

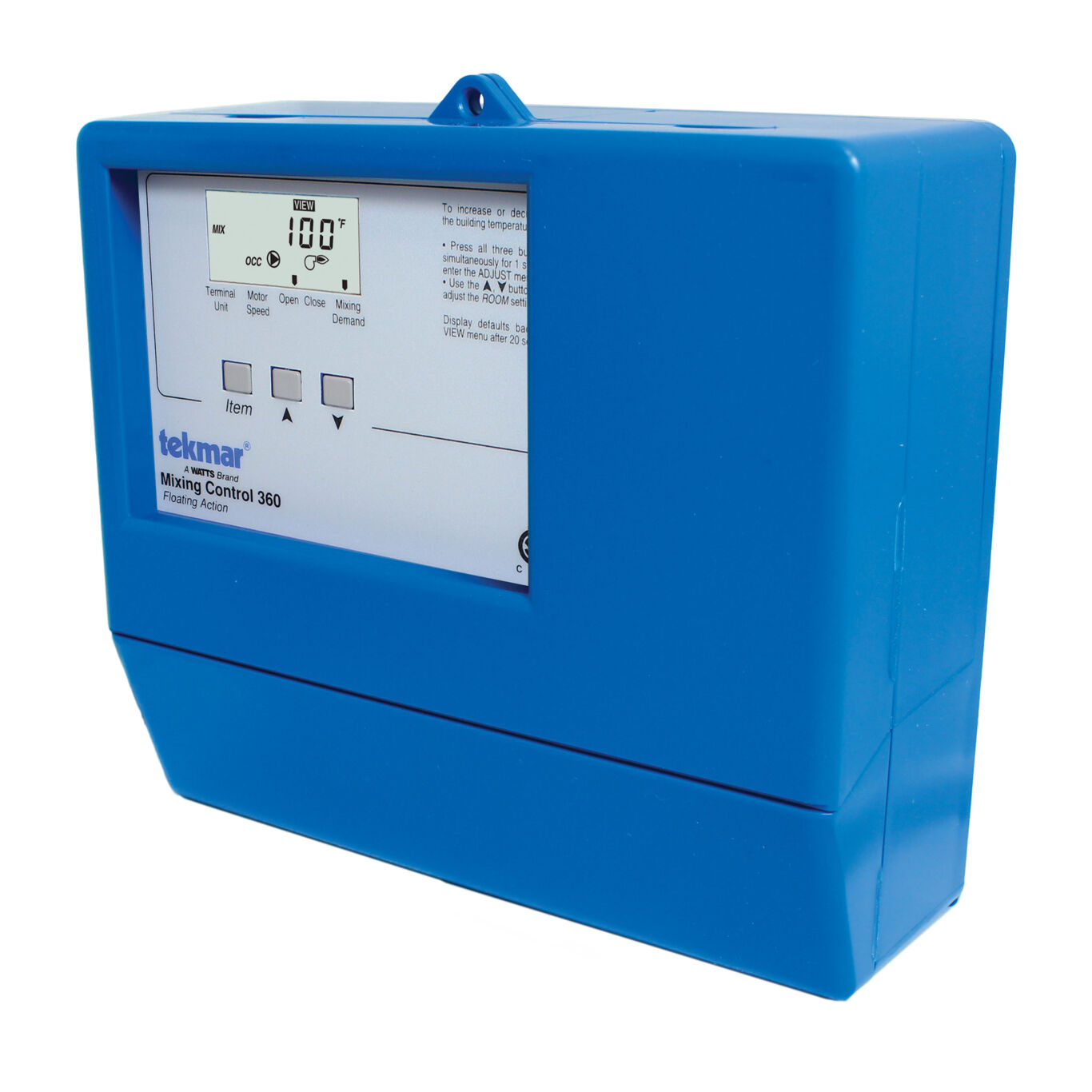

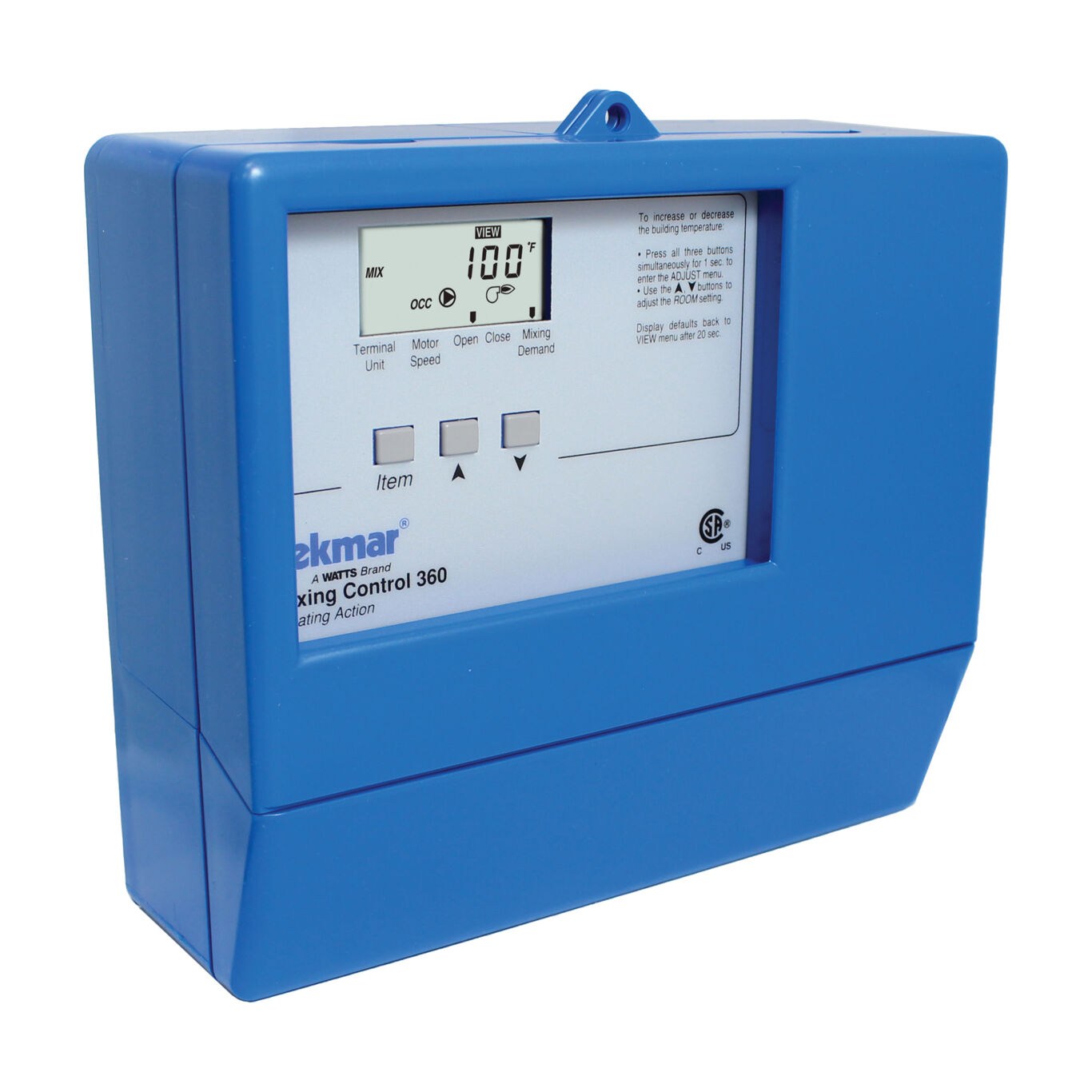

Tekmar 360 - Floating Action Mixing Control

The Mixing Control 360 is designed to operate a mixing valve using Outdoor Temperature Reset. It can be used in applications ranging from in-floor radiant to commercial baseboard systems for Boiler Return Protection with full reset. This control regulates a single heating water temperature through Mixing Outdoor Reset. It controls the mixing by opening or closing a floating action type mixing valve actuator (3 or 4 way valves), and also provides control of the mix system pump.

Features:

• CSA C US certified (approved to applicable UL standards)
• Test sequence to ensure proper component operation
• Floating action mixing control, powered mixing system pump output
• Setback input for energy savings
• Quick setup for easy installation and programming of control
• Outdoor temperature reset, indoor temperature feedback (with optional indoor sensor)
• Warm weather shut down, automatic boiler differential
• User comfort adjustment to increase or decrease building space temperature
• Advanced settings to fine-tune building requirements

Specifications:

• Agency Approvals: CSA C US, meets class B: ICES & FCC Part 15
• Ambient Conditions: Indoor use only, 32 to 104 degrees F (0 to 40 degrees C), RH less than or equal to 90 percent Non-condensing
• Control Type: Microprocessor control, this is not a safety (limit) control
• Demand: 20 to 260 V (ac) 2 VA
• Dimensions: 6-5/8" H x 7-9/16" W x 2-13/16" D (170 x 193 x 72 mm)
• Enclosure Material: Blue PVC plastic
• Enclosure NEMA Rating: NEMA 1
• Floating Output: 24 V (ac) 0.34 A 8 VA
• Hydronic - HVAC Control Type: Mixing Control
• Power Supply: 120 V (ac) plus / minus 10 percent, 50/60 Hz, 1300 VA
• Relay: 240 V (ac) 10 A 1/3 hp
• Sensor: NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta=3892
