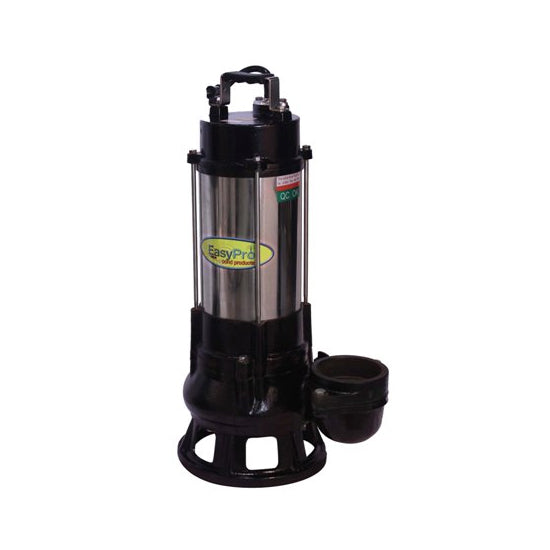

EasyPro TB14500 - TB Series High Volume Submersible Pump - High Head 14,500 GPH 230V

The EasyPro TB14500 is a heavy-duty, high-head submersible pump designed for demanding water feature applications where both high flow and elevated discharge pressures are required. Delivering up to 14,500 GPH, this 230V pump is ideal for large waterfalls, streams, pond filtration systems, and commercial water features. Its rugged cast iron construction, stainless steel motor housing, and oil-free motor design provide dependable, long-lasting performance in continuous-duty applications.

Built with a semi-vortex impeller to handle solids and debris commonly found in ponds, the TB14500 helps reduce clogging while maintaining reliable water movement. A 20-foot power cord with stripped wire leads (no plug) allows for hardwired installations, making it well-suited for permanent commercial and residential applications. A durable mechanical seal, thermal overload protection, and corrosion-resistant materials ensure years of dependable operation.

Features

• Delivers up to 14,500 GPH for large pond and waterfall applications
• High-head design provides strong performance where significant elevation is required
• 230V motor for commercial and large residential installations

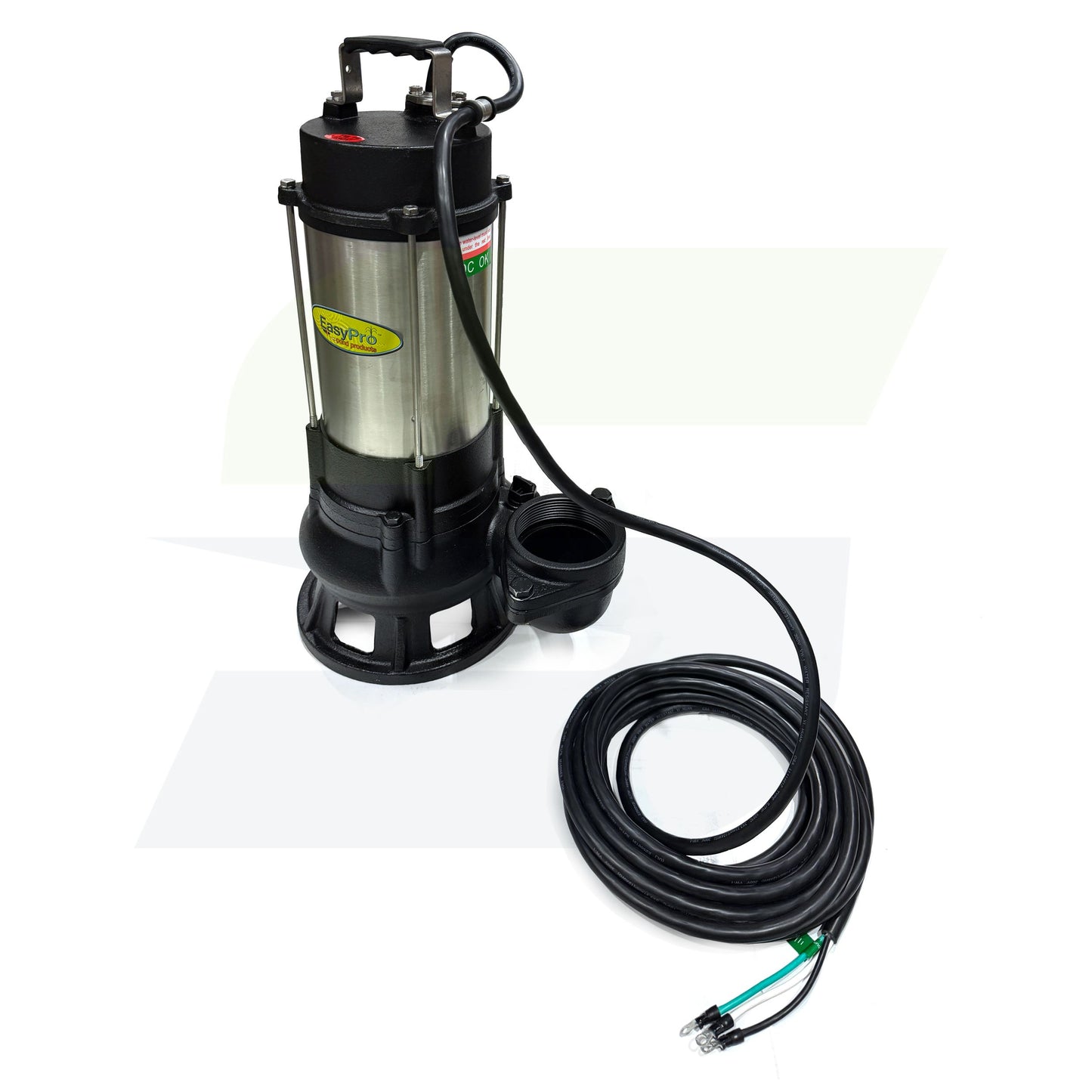

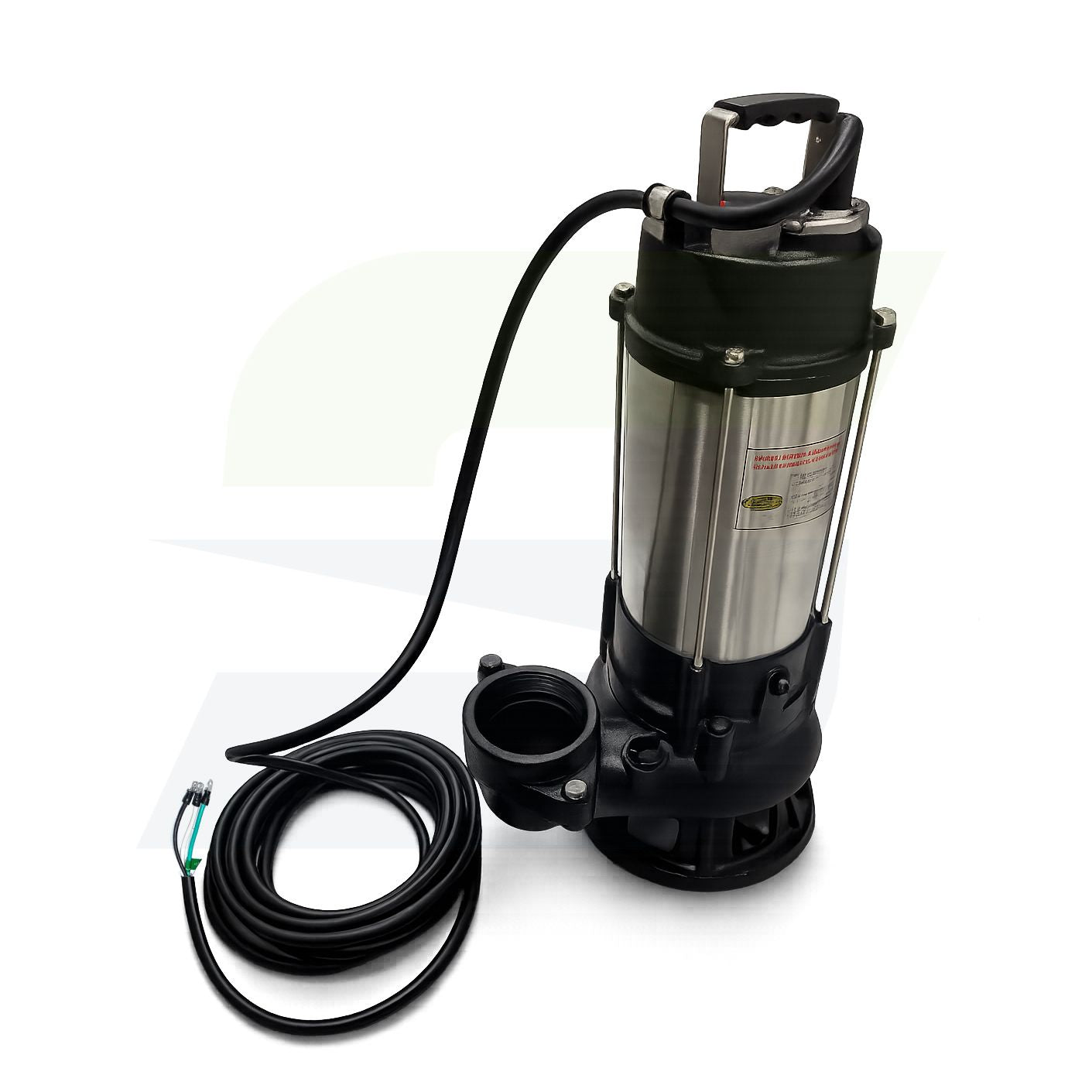

• Includes a 20-foot power cord with stripped wire leads (no factory-installed plug) for hardwired connections
• Heavy-duty cast iron construction with corrosion-resistant stainless steel motor housing
• Semi-vortex impeller passes solids to help minimize clogging
• Oil-free motor design is safe for fish, plants, and aquatic life
• Continuous-duty rated for reliable around-the-clock operation
• Built-in thermal overload protection helps prevent motor damage
• Double mechanical seals enhance durability and extend service life
• Ideal for waterfalls, streams, filtration systems, and large decorative water features

Specifications

• Manufacturer: EasyPro
• Series: TB Series
• Part Number: TB14500
• Maximum Flow Rate: 14,500 GPH
• Voltage: 230V
• Power Cord: 20 ft., stripped wire leads (no plug)
• Pump Type: High Head Submersible Pump
• Construction: Cast Iron with Stainless Steel Motor Housing
• Motor Type: Oil-Free, Continuous Duty
• Impeller Style: Semi-Vortex
• Power Cord: 20 ft. with factory-installed ring terminal connectors (hardwire connection; no plug)
• Application: Ponds, Waterfalls, Streams, Filtration Systems, Commercial Water Features
