Axiom SF100 Hydronic System Feeder - 55 Gallon

Only 1 left
SKU: SF100
Regular price $1,449.00

Free Shipping on all orders over $79.99!

Most orders ship same day. Delivery in 2-3 business days!

Call Us! Have questions or want to order by phone? (800) 468 5997

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

SF100 Brochure

Installation, Operation & Maintenance

Specification Sheet

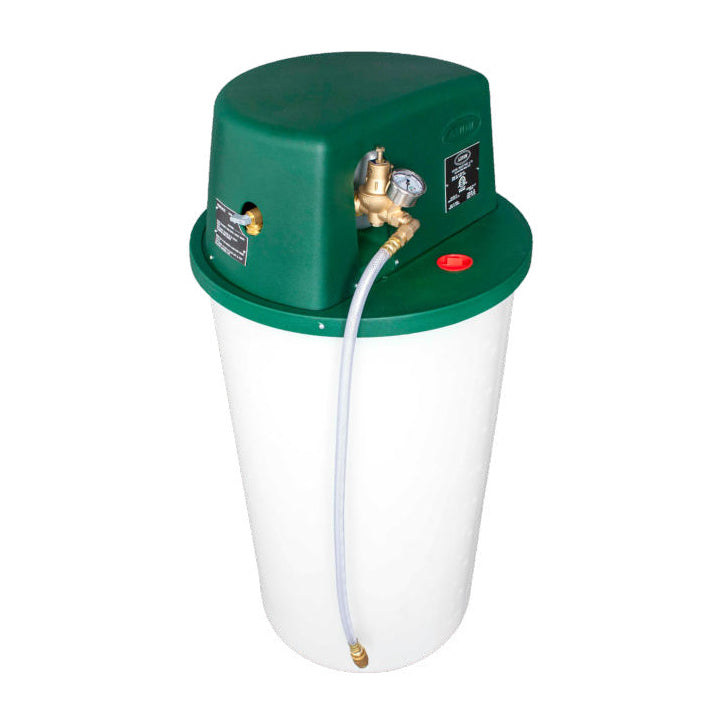

Axiom SF100 Hydronic System Feeder - 55 Gallon

The SF100 contains everything required to feed and pressurize closed hydronic heating or cooling systems in a neat, simple package that is easy to install and operate. It is compatible with both water and water/glycol solutions

Axiom System Feeders are designed to simplify the process of maintaining the cold static fluid pressure in closed-loop heating and cooling systems. Having a reservoir of suitable make-up fluid eliminates the need for backflow prevention and helps solve many of the associated problems when using domestic water as a make-up fluid.

Features

  • 55 Gallon tank for storage and mixing (208 Liter)
  • Plugs into any standard 115 VAC outlet
  • Fluid level switch shuts the pump off if the storage tank level gets low
  • Accumulator tank prevents excessive pump cycling
  • No direct connection to potable water supply eliminates need for backflow prevention
  • Make-up fluid stored in the feeder tank can be pre-treated
  • Diverter valve for purging of air on initial start-up and manual agitation of solution
  • Prevents major floods – in the event of system rupture, only the contents of the tank can be pumped into the system
  • Provides leak detection – dropping fluid level provides immediate notice that the system has developed a leak
  • Fluid drained for service can easily be put back into the system
  • Flexible connection hose with system check valve makes installation easy

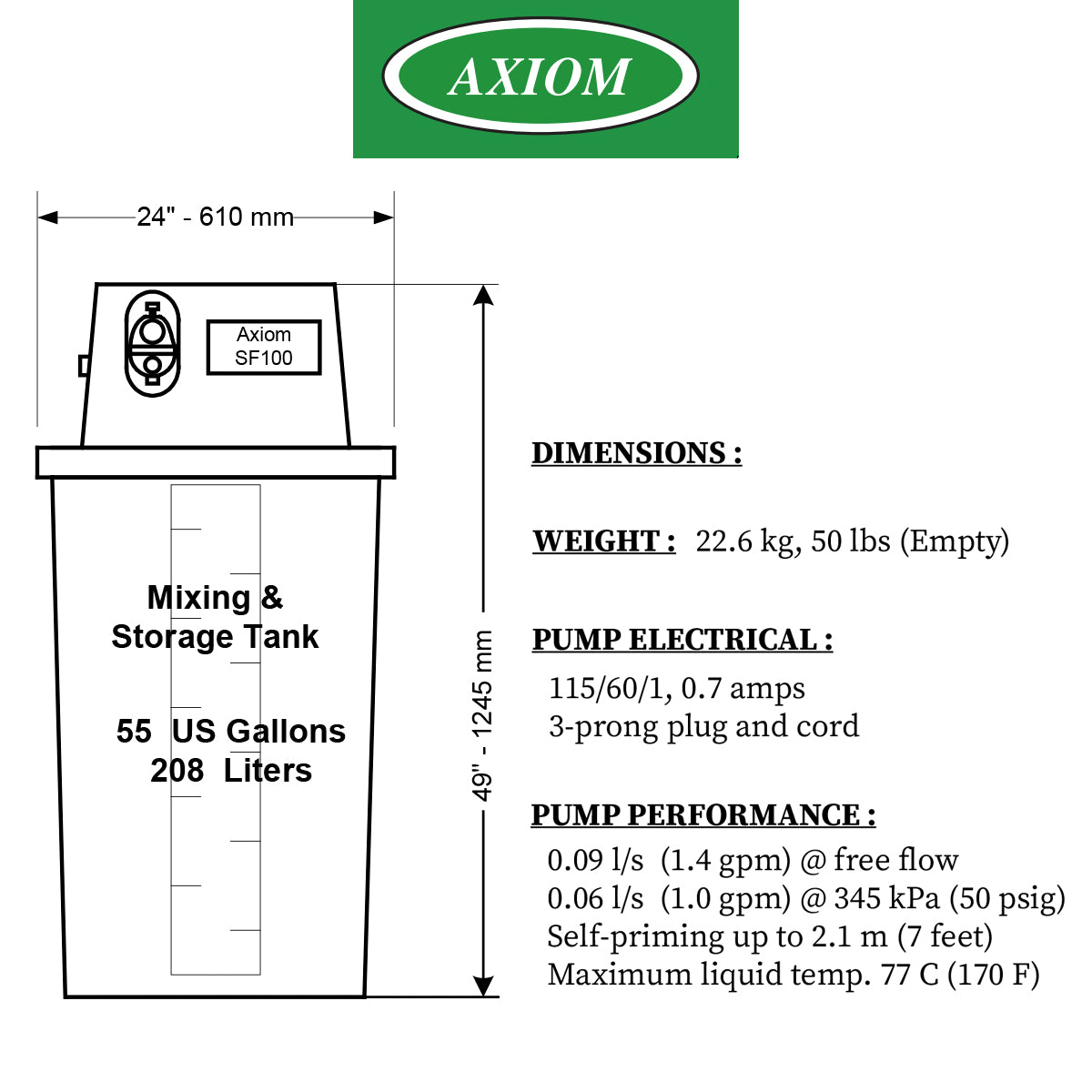

Specifications

  • Weight: 50 lbs (empty)
  • Height: 49"
  • Width: 24"
  • Pump Performance
  • 1.4 GPM at free flow
  • 1.0 GPM at 50 psig
  • Pump Electrical: 115V, 0.7 amps, 3-prong plug and cord




RAXM123006
