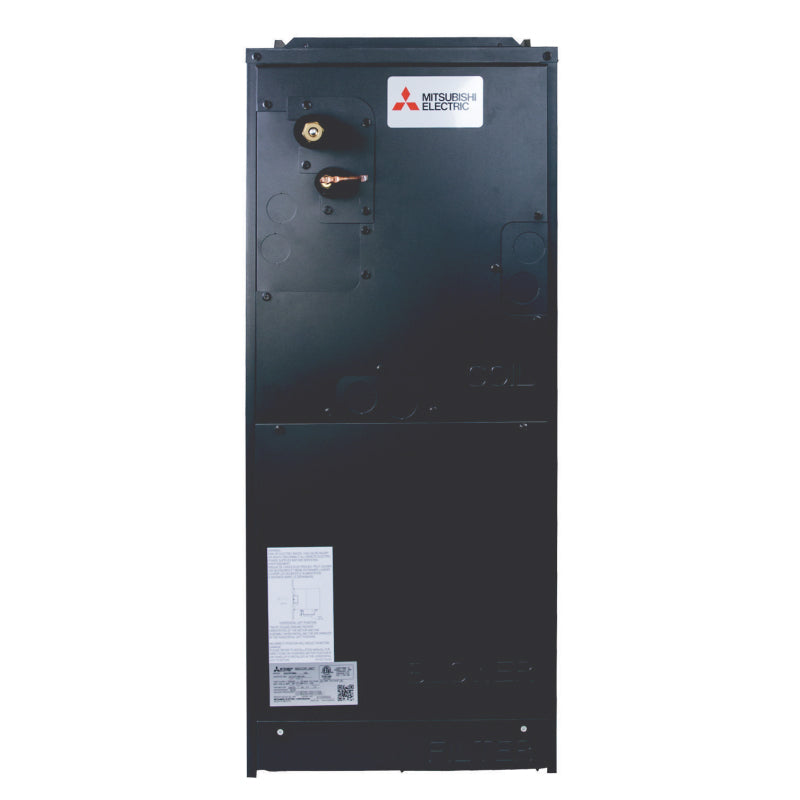

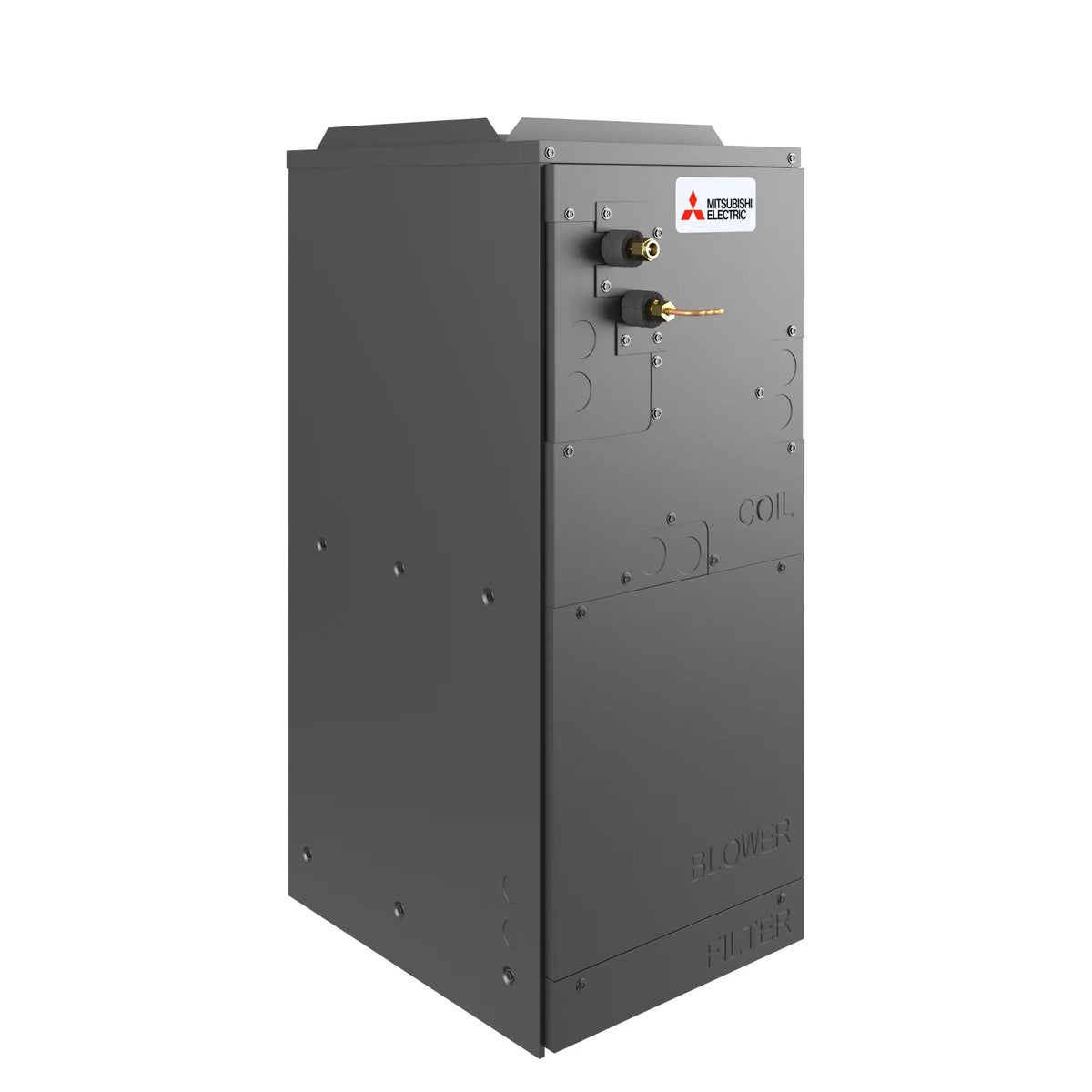

Mitsubishi SVZ-KP12NA - 12,000 BTU 1 Ton Multi-Position Air Handler - R-410A

The Mitsubishi SVZ-KP12NA is a 12,000 BTU, 1-ton multi-position ducted air handler designed for use with compatible Mitsubishi Electric M-Series heat pump systems. Its compact cabinet and flexible configuration support horizontal left, horizontal right, and vertical upflow installations, with downflow installation available using an optional kit. A high-efficiency EC motor, selectable external static pressure, and multiple fan speeds provide flexible airflow for ducted residential heating and cooling applications.

Features

• 12,000 BTU/H nominal cooling capacity
• 1 Ton multi-position ducted indoor air handler
• Designed for use with compatible Mitsubishi Electric M-Series heat pump outdoor units
• Compatible with SUZ-KA12NA2 and SUZ-KA12NAHZ outdoor units

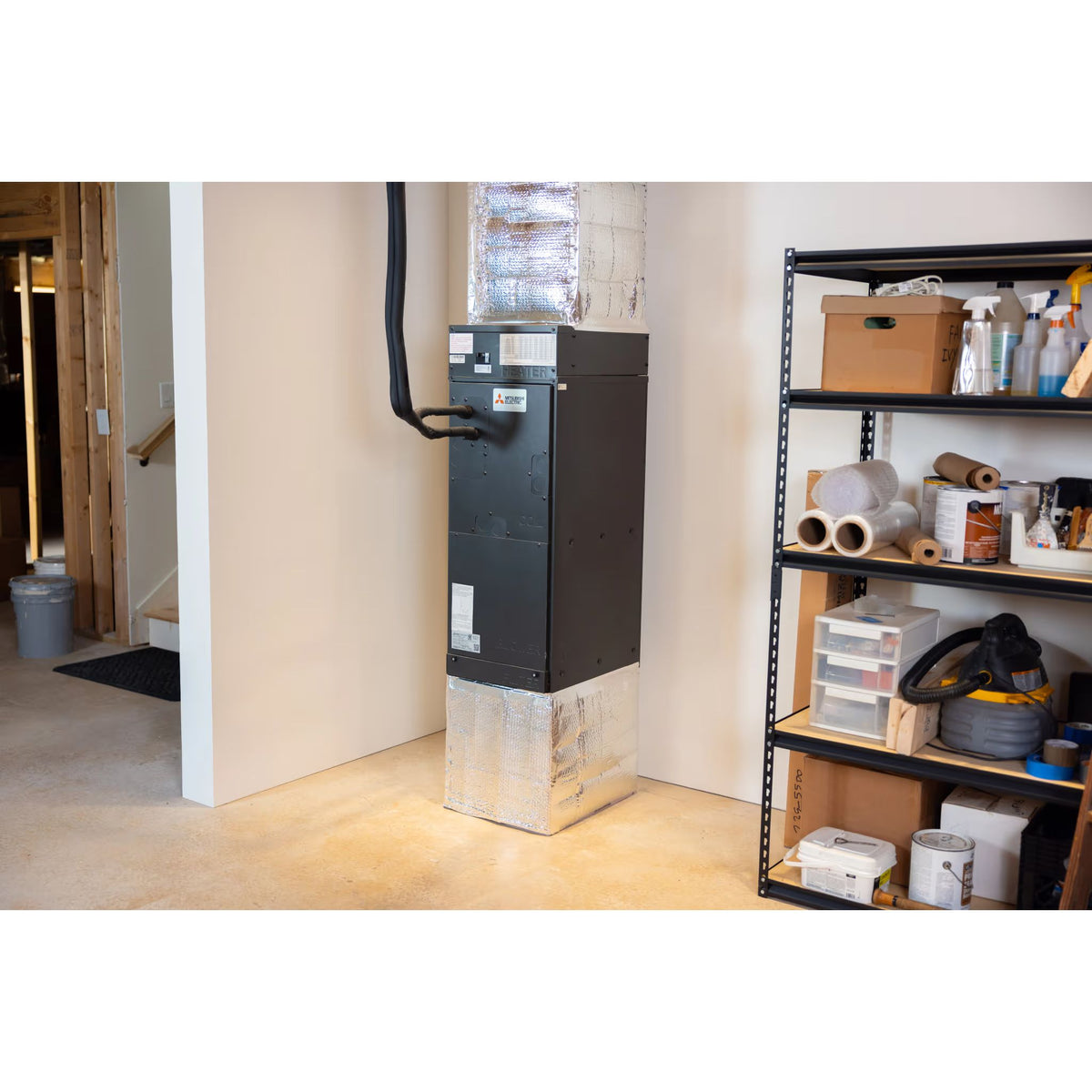

• Multi-position installation supports horizontal left, horizontal right, and vertical upflow configurations
• Optional downflow kit allows vertical downflow installation
• High-efficiency, completely enclosed EC blower motor
• Three fan speeds with selectable external static pressure settings of 0.30", 0.50", and 0.80" W.G.
• Airflow: 278 / 381 / 448 CFM
• Quiet operation with sound levels as low as 29 dB(A)
• Positive-pressure cabinet designed for less than 2% air leakage at 1.0" W.G.
• 1" R-4.2 fiberglass-free insulation helps reduce condensation and improve efficiency

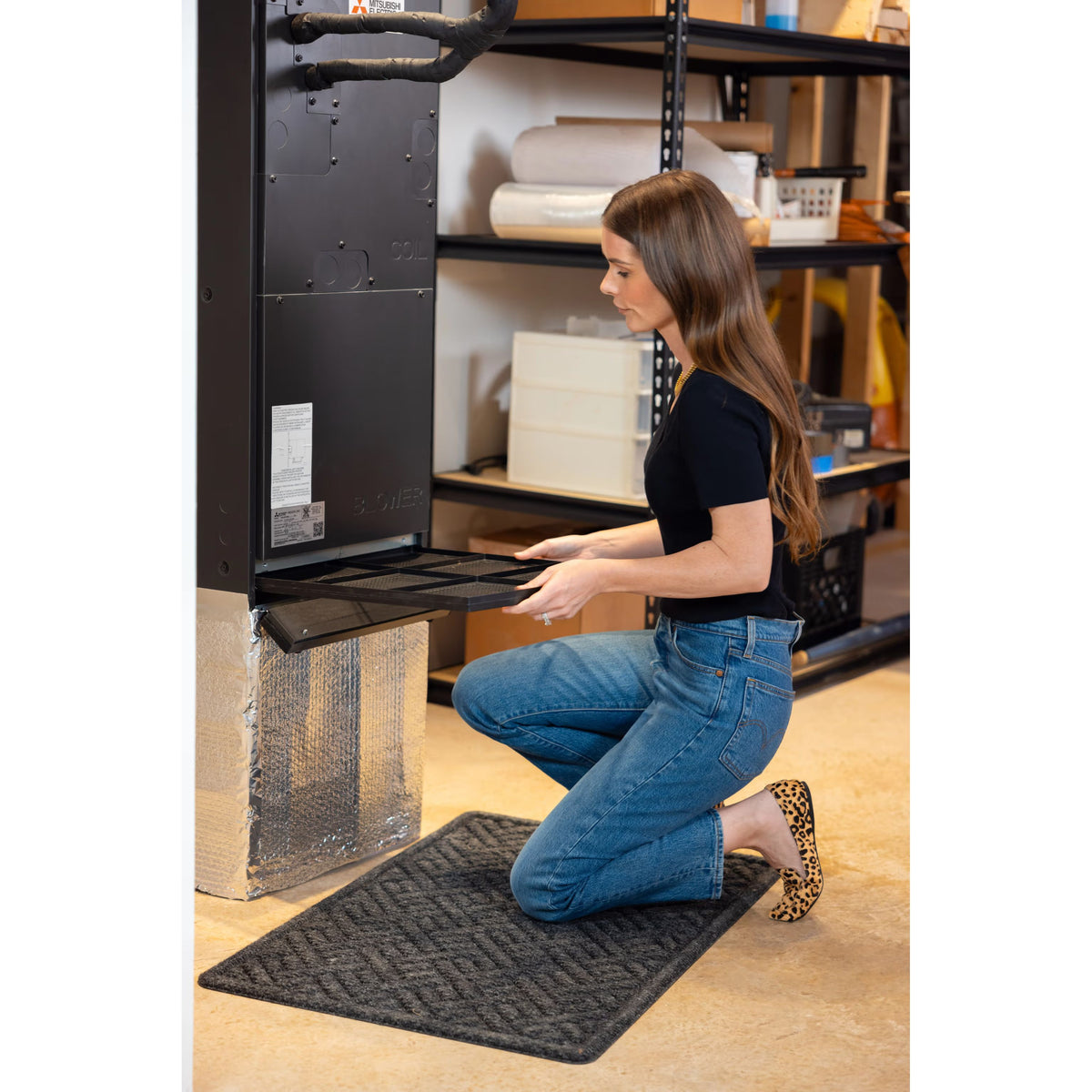

• Blow-through design provides easier access to the coil for cleaning and service
• Built-in humidifier, ERV, and auxiliary heat controls
• Optional electric heat kits available for supplemental heating
• Power Supply: 208/230V, 1 Phase, 60 Hz
• Minimum Circuit Ampacity: 3A
• Refrigerant: R-410A
• Liquid Line Connection: 1/4" OD Flare
• Gas Line Connection: 3/8" OD Flare
• Drain Connection: 3/4" FPT
• Dimensions: 17" W x 21-5/8" D x 39-13/16" H
• Unit Weight: 93 lb
• Manufacturer: Mitsubishi Electric
• Part Number: SVZ-KP12NA
