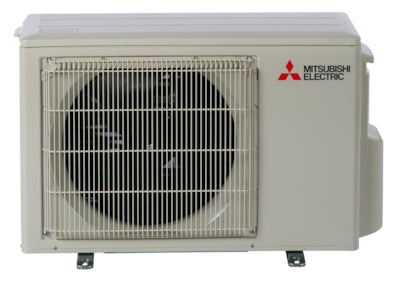

Mitsubishi SUZ-KA15NAR1.TH - 15,000 BTU Inverter Heat Pump Outdoor Unit - R-410A

The Mitsubishi SUZ-KA15NAR1.TH is a 15,000 BTU M-Series inverter-driven heat pump outdoor unit designed for single-zone heating and cooling with compatible Mitsubishi Electric indoor units. Its variable-speed INVERTER-driven twin rotary compressor adjusts output to match changing comfort demands, helping provide efficient operation and consistent indoor temperatures. The compact outdoor cabinet is designed for residential and light commercial applications and can be paired with compatible ducted and other M-Series indoor units.

Features

• 15,000 BTU/H nominal cooling capacity
• Designed for single-zone heating and cooling applications
• Compatible with select Mitsubishi Electric M-Series indoor units
• Variable-speed DC INVERTER-driven twin rotary compressor
• Pulse Amplitude Modulation technology helps optimize compressor efficiency
• Linear Expansion Valve (LEV) provides precise refrigerant control
• Reverse-cycle defrost for reliable heat pump operation
• Plate-fin outdoor heat exchanger
• Cooling Operating Range: 14°F to 115°F
• Heating Operating Range: 12°F to 75°F
• Cooling Sound Pressure Level: 49 dB(A)
• Heating Sound Pressure Level: 51 dB(A)
• Outdoor Airflow: 1,243 CFM cooling / 1,229 CFM heating
• Power Supply: 208/230V, 1 Phase, 60 Hz
• Minimum Circuit Ampacity: 12A
• Maximum Overcurrent Protection: 15A
• Refrigerant: R-410A
• Factory Refrigerant Charge: 2 lb 9 oz
• Liquid Line Connection: 1/4" OD Flare
• Gas Line Connection: 1/2" OD Flare
• Maximum Refrigerant Piping Length: 65 ft
• Maximum Height Difference: 40 ft
• Base Pan Heater: Optional MAC-640BH-U
• Dimensions: 31-1/2" W x 11-1/4" D x 21-5/8" H
• Unit Weight: 80 lb
• Manufacturer: Mitsubishi Electric
• Part Number: SUZ-KA15NAR1.TH
