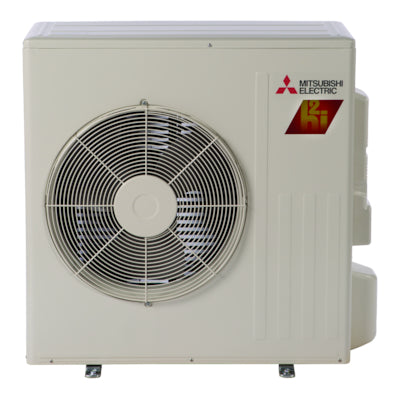

Mitsubishi SUZ-KA15NAHZ - 15,000 BTU Hyper-Heating Inverter Heat Pump Outdoor Unit - R-410A

The Mitsubishi SUZ-KA15NAHZ is a 15,000 BTU M-Series Hyper-Heating inverter-driven heat pump outdoor unit designed for single-zone heating and cooling applications with compatible Mitsubishi Electric indoor units. H2i Hyper-Heating technology maintains strong heating performance in low outdoor temperatures, while the INVERTER-driven compressor continuously adjusts output to match demand for efficient, consistent comfort. A factory-installed base pan heater and Blue Fin anti-corrosion coating help support reliable cold-weather operation and long-term outdoor durability.

Features

• 15,000 BTU/H nominal cooling capacity
• Hyper-Heating H2i technology provides enhanced low-temperature heating performance
• Provides 100% heating capacity at 5°F when used in qualifying matched systems
• Designed for single-zone applications with compatible Mitsubishi Electric M-Series indoor units
• Compatible with multiple indoor-unit styles, including SEZ low-static ducted, PEAD horizontal ducted, and SLZ ceiling cassette units
• INVERTER-driven twin rotary compressor adjusts output to match heating and cooling demand
• Linear Expansion Valve (LEV) provides precise refrigerant control
• Hot-Start technology helps prevent a rush of cold air during heating startup and following defrost cycles
• Built-in base pan heater supports operation in cold-weather conditions
• Blue Fin anti-corrosion coating provides additional protection for the outdoor heat exchanger
• Reverse-cycle defrost
• Automatic restart after a power interruption
• Cooling Operating Range: Down to 14°F outdoor temperature
• Heating Operating Range: Down to -13°F outdoor temperature
• Outdoor Airflow: 2,020 CFM cooling / 1,930 CFM heating
• Sound Pressure Level: 55 dB(A) cooling / 55 dB(A) heating
• Power Supply: 208/230V, 1 Phase, 60 Hz
• Minimum Circuit Ampacity: 17A
• Maximum Overcurrent Protection: 31A
• Refrigerant: R-410A
• Liquid Line Connection: 1/4" OD Flare
• Gas Line Connection: 1/2" OD Flare
• Dimensions: 33-1/16" W x 13" D x 34-5/8" H
• Manufacturer: Mitsubishi Electric
• Part Number: SUZ-KA15NAHZ
• UPC: 00622632190289
