Specification Sheet

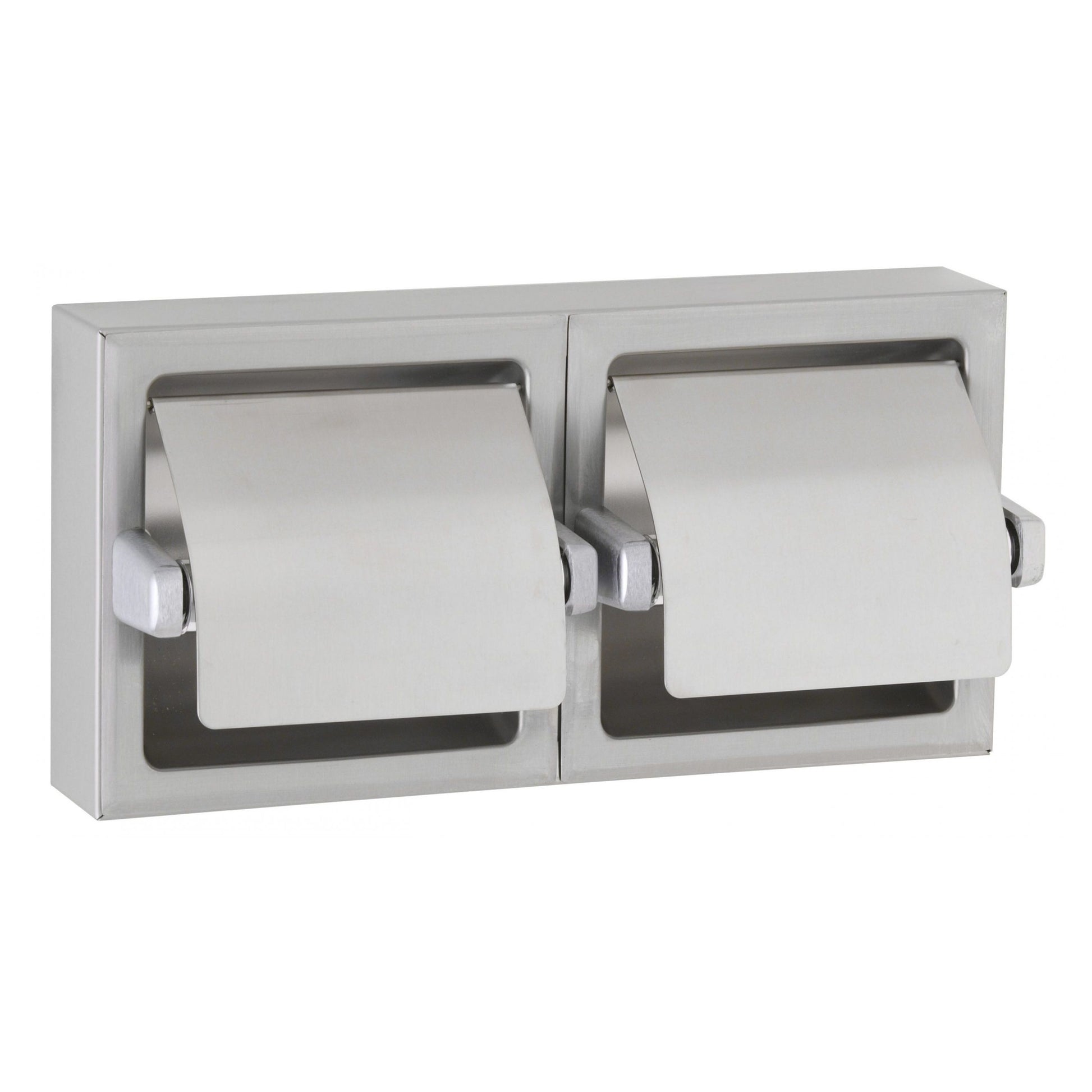

Surface-Mounted Toilet Tissue Dispenser with Hoods

Features:

• Satin stainless steel. Hood protects paper.
• Chrome-plated plastic spindle holds rolls up to 5 1/8" (130mm) diameter (1500 sheets).

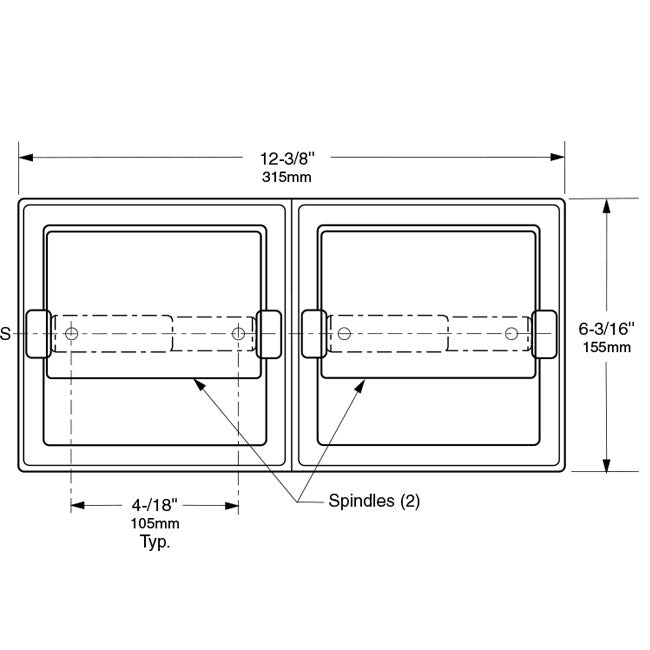

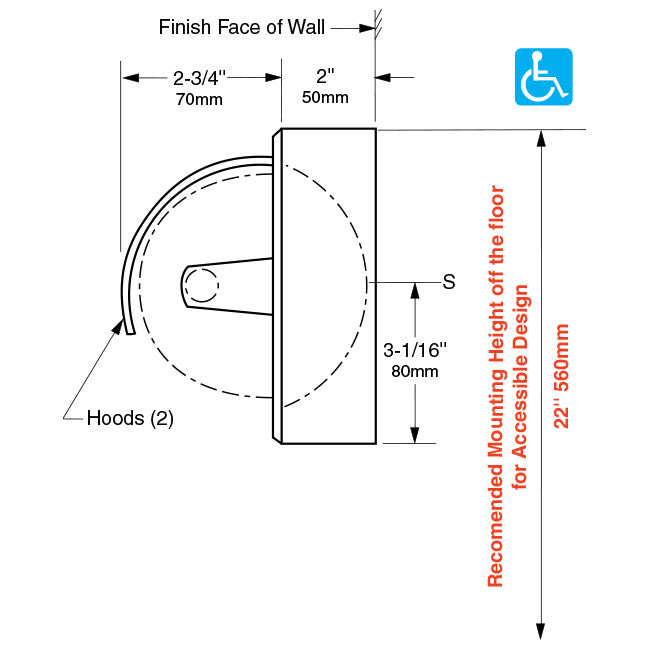

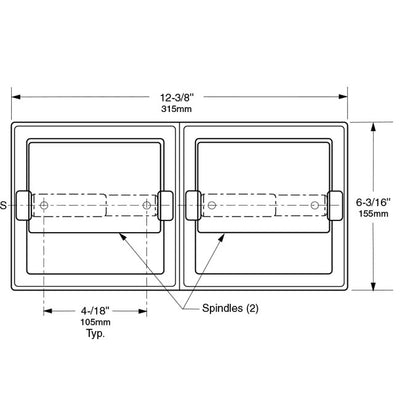

• Unit 12 3/8" W, 6 3/16" H (315 x 155mm); hoods project 4 3/4" (120mm) from wall with full roll in place.

Materials:

• Shell and Flange — 18-8, Type-304, 22-gauge (0.8mm) stainless steel. Drawn, one-piece, seamless construction with four countersunk mounting holes.
• Support Posts (4) — Heavy-duty cast zamak with chrome-plated finish.
• Hoods (2) — 18-8, Type-304, 18-gauge (1.2mm) stainless steel. Hoods hinged to shell.
• Spindles (2) — Chrome-plated plastic equipped with heavy-duty internal springs.
• Designer's Note: Theft-resistant toilet tissue spindles, which are removable only with special key provided, are available as an optional accessory - part no. 283-604.

Installation:

• Mount unit on wall or partition with four sheet-metal screws, furnished by manufacturer, at points indicated by an S.
• For partitions with particle-board or other solid core, secure with sheet-metal screws furnished, or provide through-bolts, nuts, and washers.
• For hollow-core metal partitions, provide solid backing into which the furnished sheet-metal screws can be secured.
• For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws furnished.
• For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws furnished, or provide 1/8" (3mm) toggle bolts or expansion bolts.
