Specification Sheet

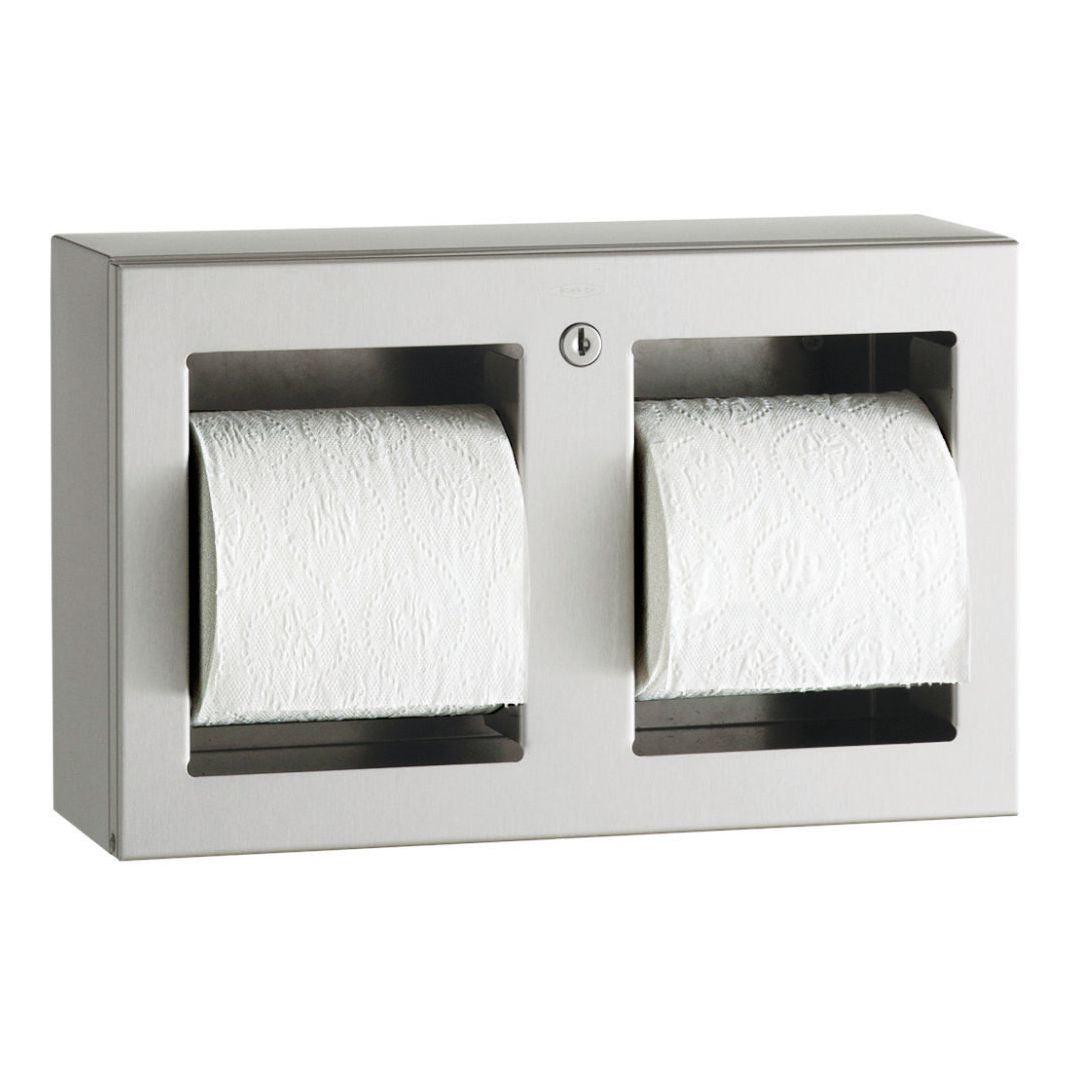

Surface-Mounted Multi-Roll Toilet Tissue Dispenser

Features:

• Satin-finish stainless steel unit with all-welded construction.
• Unit is theft resistant and equipped with a tumbler lock keyed like other Bobrick washroom accessories.
• Dispenser holds two standard-core toilet tissue rolls up to 5-1/8" (130mm) diameter (1500 sheets).
• Skirt is removable in the field for optional recessed mounting.

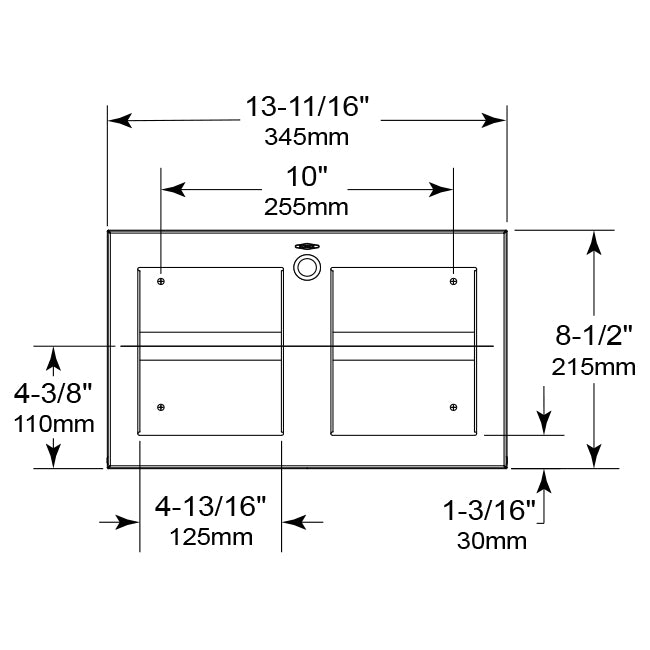

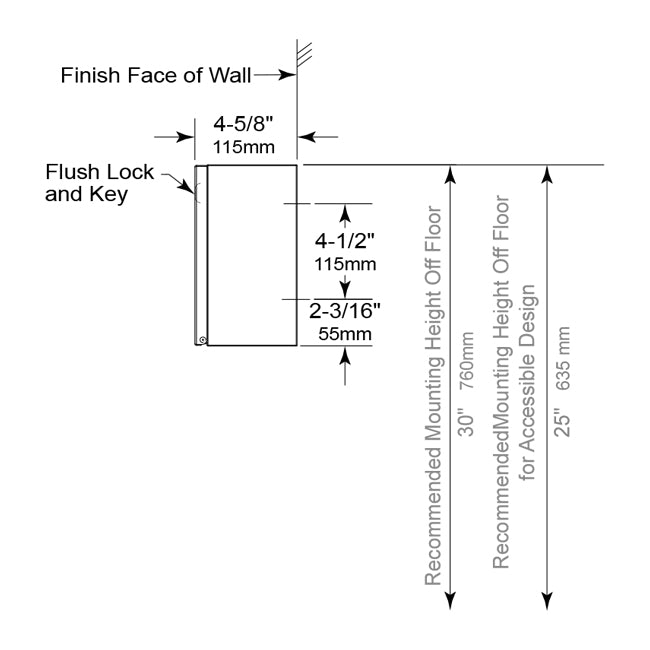

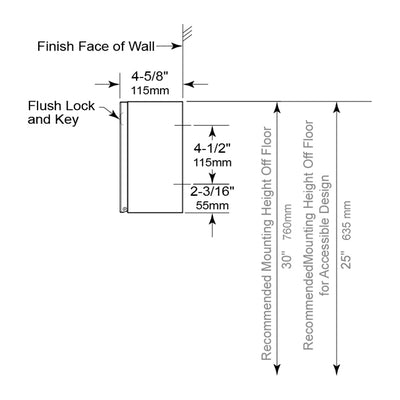

• Unit Size: 13-11/16" W x 8-1/2" H x 4-5/8" D (345 x 215 x 115mm).

Materials:

• Cabinet — 18-8, Type-304, heavy-gauge stainless steel. All-welded construction.
• Exposed surfaces have satin-finish.
• Skirt — 18-8, Type-304, stainless steel with satin-finish.
• Door — 18-8, Type-304, 20-gauge (0.9mm) stainless steel with satin-finish.
• Secured to cabinet with two rivets. Equipped with a tumbler lock keyed like other Bobrick washroom accessories.
• Tumbler lock flush with the door - no protrusion.
• Spindle — 18-8, Type-304, 18-gauge (1.2mm), 1" diameter (25mm) stainless steel tubing with plastic end caps.
• Theft resistant. Removable with key provided.

Operation:

• Unit holds two standard-core toilet tissue rolls up to 5-1/8" (130mm) diameter (1500 sheets).

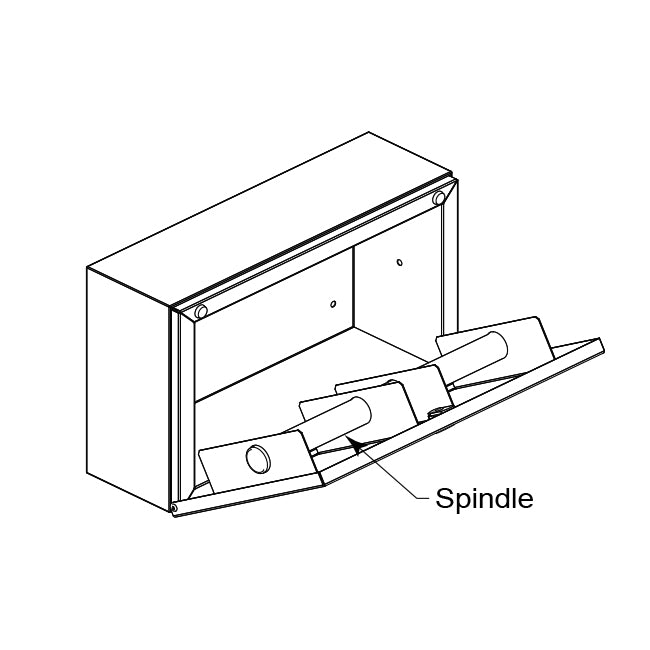

• To service toilet tissue dispenser, unlock door with key provided and slide spindle out on any direction.
