Winters STP003 - 1/4" FNPT Brass Pressure Gauge Adapter - 2-3/4"

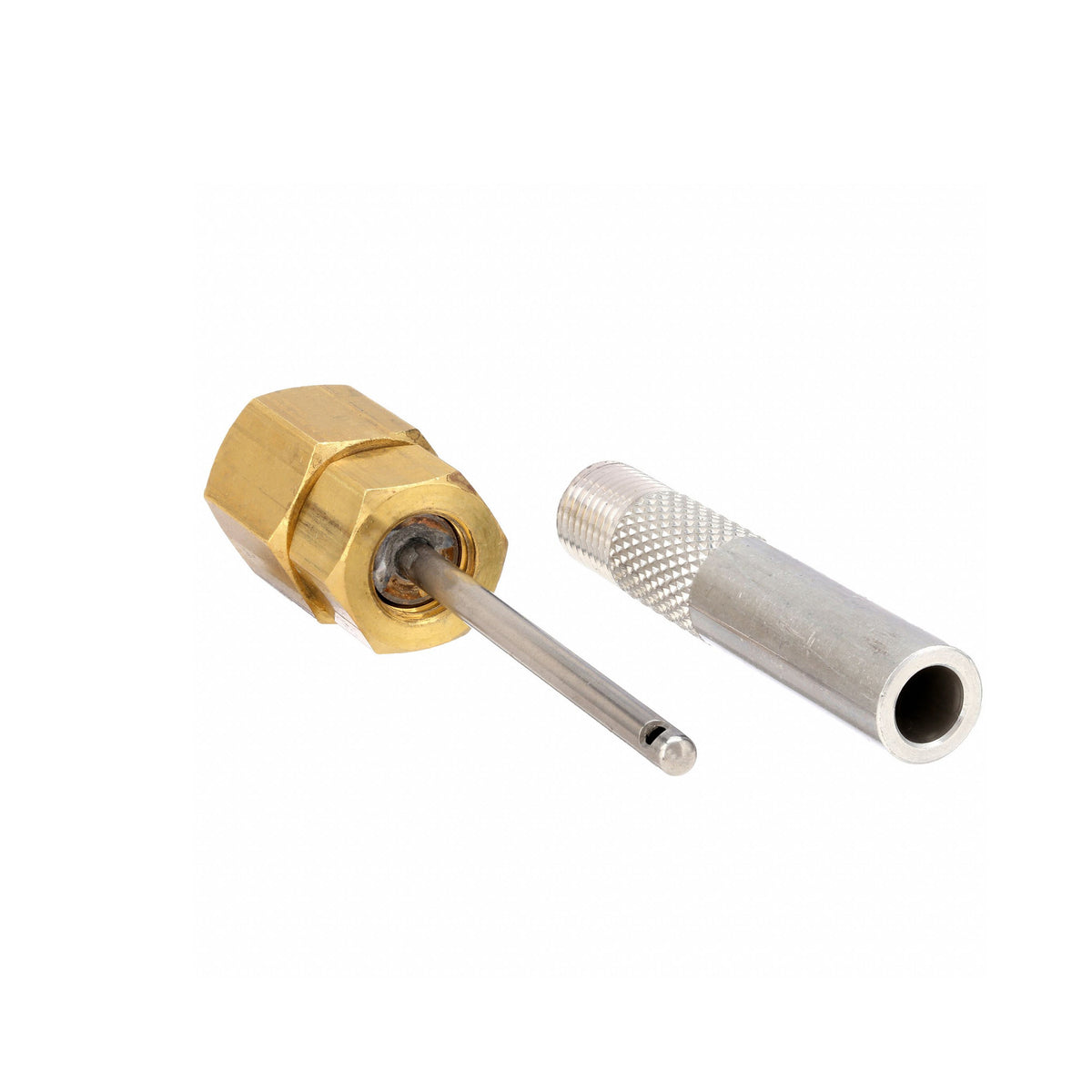

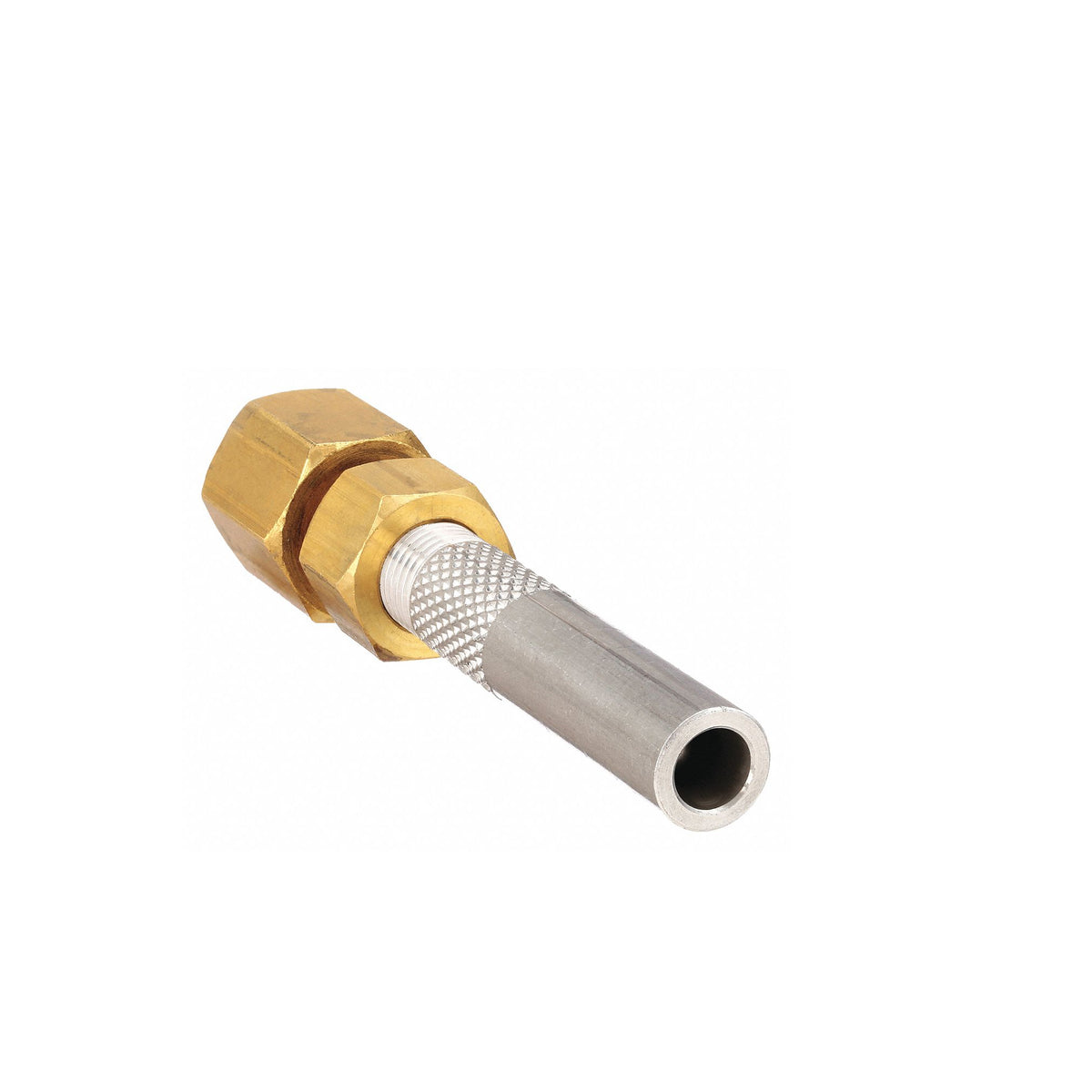

The Winters STP003 Pressure Gauge Adapter is designed for quick and convenient pressure measurements at designated test points in plumbing, heating, and HVAC systems. Featuring a durable brass construction and 1/4" female NPT connection, this adapter allows a pressure gauge to be connected to compatible test plugs for temporary system pressure readings without permanent gauge installation. Its 1-3/4" probe is designed for insertion into test ports, while the included protective aluminum sleeve helps prevent damage during storage and transport. Rated for pressures up to 1,000 PSI, the STP003 provides a reliable solution for system testing, maintenance, and troubleshooting.

Features

• 1/4" Female NPT connection for pressure gauge attachment
• Durable brass construction
• 2-3/4" overall length
• 1-3/4" probe length
• 1/8" probe diameter
• Maximum operating pressure of 1,000 PSI (6,895 kPa)
• Operating temperature range of -40°F to 302°F (-40°C to 150°C)
• Designed for use with compatible pressure and temperature test plugs
• Allows quick pressure readings without permanent gauge installation
• Ideal for plumbing, heating, ventilation, and air conditioning applications
• Includes protective aluminum sleeve for probe protection
• ASME B1.20.1 compliant threaded connection
• CRN registered
• 5-year manufacturer warranty
