Specification Sheet

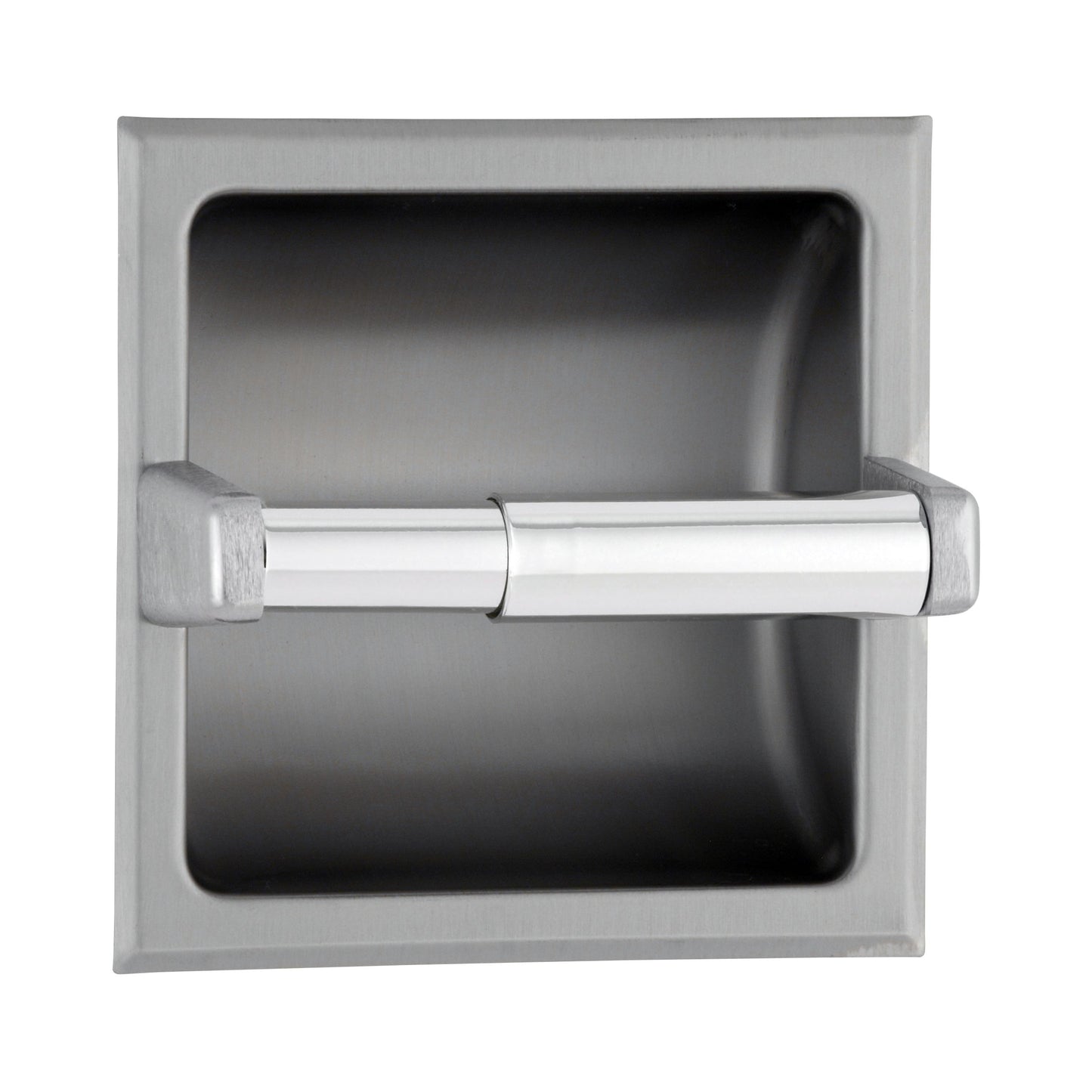

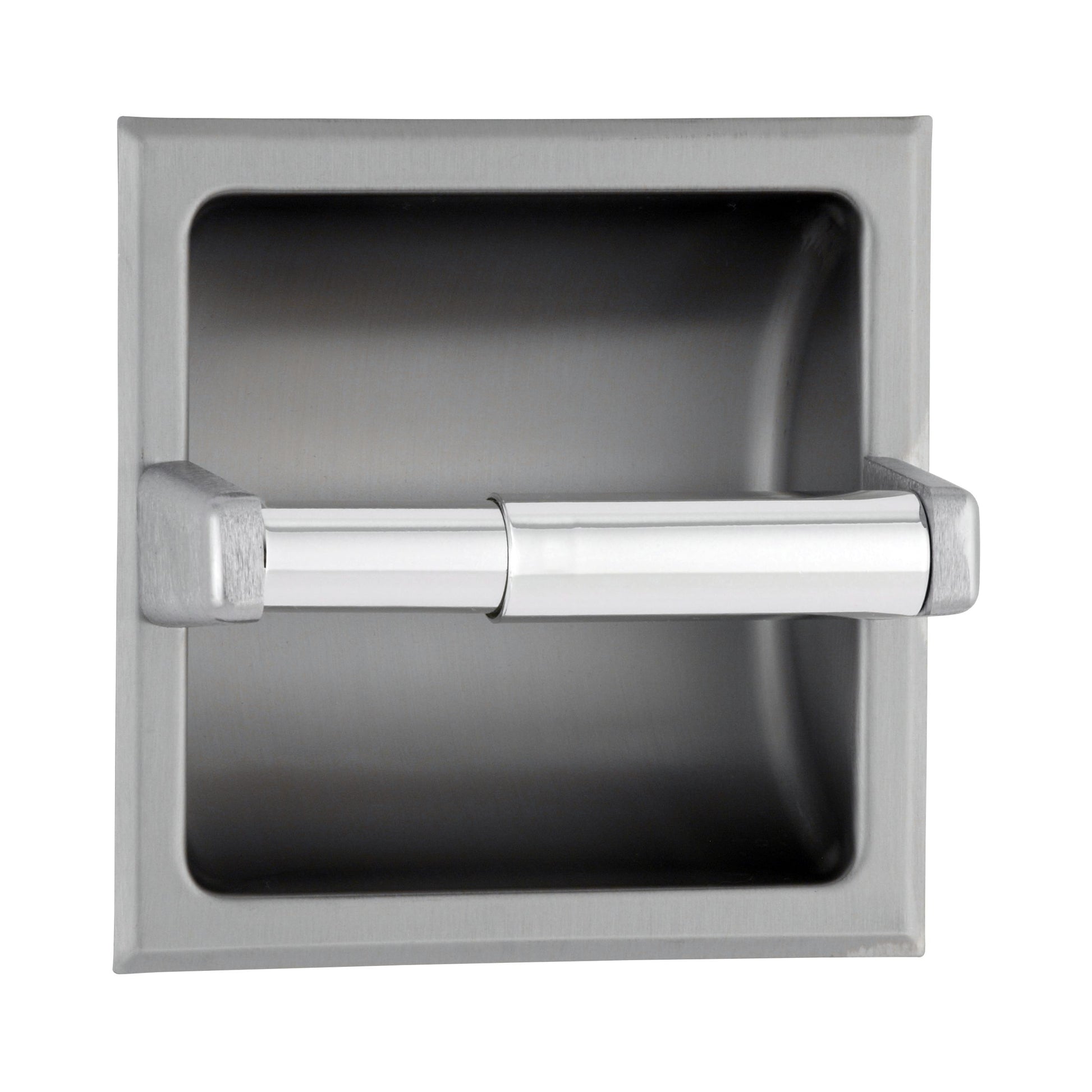

 Stainless Steel Recessed Toilet Tissue Dispenser with Mounting Clamp, Satin Finish

Features:

• Type 304 stainless steel with one-piece seamless construction
• Chrome-plated plastic spindle equipped with heavy-duty internal spring
• Spindle holds rolls up to 5-1/8" diameter
• Mounting clamps for securing to stud walls or countertop aprons
• Measures 6-1/8" width by 6-1/8" height

Materials:

• Shell and Flange — 18-8, Type-304, 22-gauge (0.8mm) stainless steel. Drawn, one-piece, seamless construction with two countersunk mounting holes.
• Support Posts (2) — Heavy-duty cast zamak with chrome-plated finish.
• Mounting Bracket — Plated steel mounting clamp attaches to back of unit with two sheet-metal screws for installation in stud wall construction and countertop aprons.
• Spindle — Chrome-plated plastic equipped with heavy-duty internal spring.
• Designer's Note: Theft-resistant toilet tissue spindle, which is removable only with special key provided, are available as an optional accessory - part no. 283-604.

Installation:

• Provide framed rough opening 5-1/2" wide x 5-1/4" high (140 x 135mm). Minimum recessed depth required from finish face of wall or apron is 3-3/8" (85mm).
• For installation in stud wall construction and countertop aprons without backing: Loosely attach mounting clamp to back of unit with sheet-metal mounting screws. Insert into rough opening. Adjust mounting clamp so it grips surface inside rough opening. Secure in place by tightening two sheet-metal mounting screws.
• For installation in stud wall construction and countertop aprons with backing: Discard mounting clamp furnished with unit. Insert unit only into rough opening and secure with sheet-metal screws furnished. Backing must comply with local building codes.
