SS-16-DU - Stainless 1" CBC Tube x 1" CBC Tube Straight Union

In stock
SKU: SS-16-DU
Regular price $76.35
Regular price Sale $84.83 Sale price $76.35

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

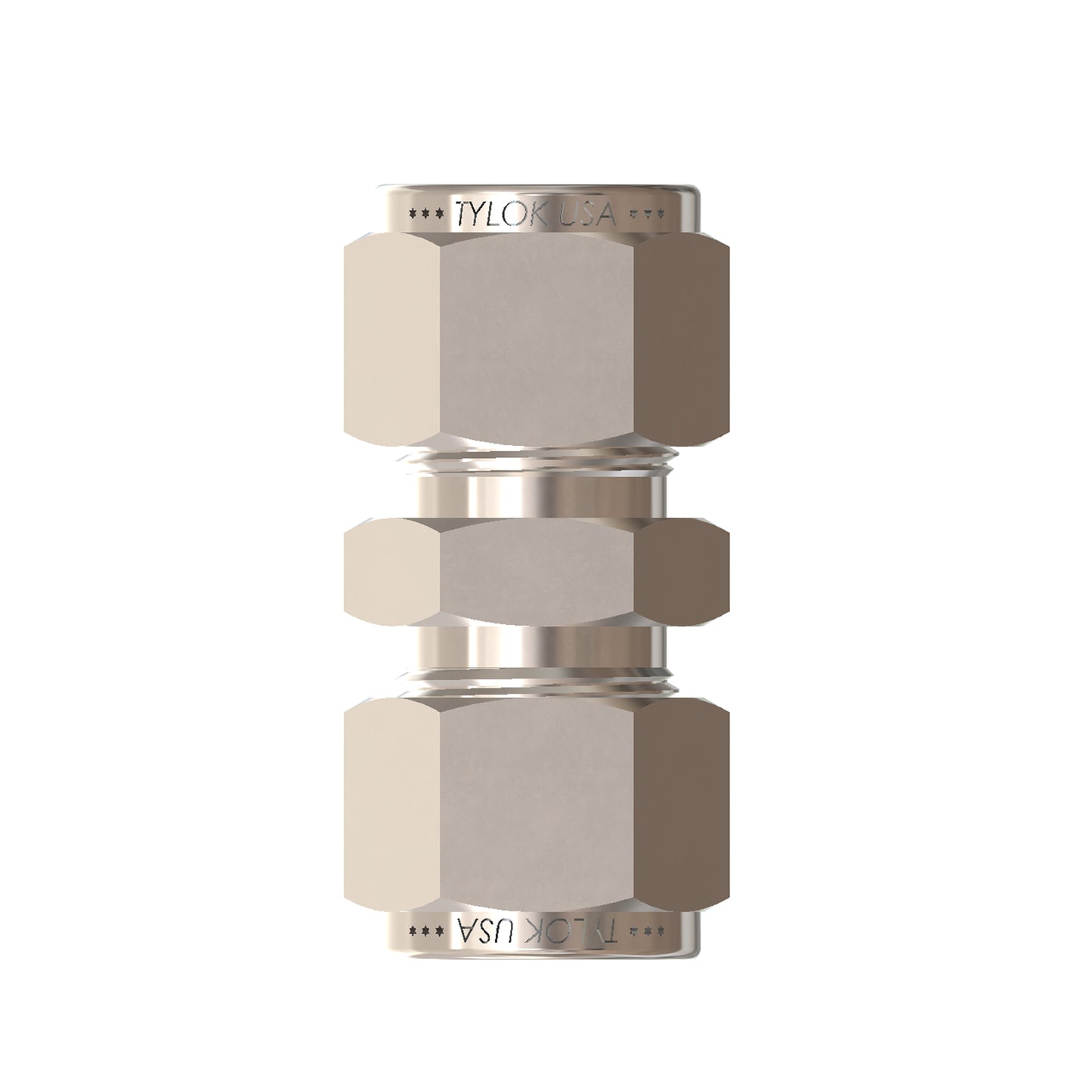

Tylok SS-16-DU - Stainless 1" CBC Tube x 1" CBC Tube Straight Union

CBC-Lok Tube Fittings are comprised of four components: Body, Front Ferrule, Rear Ferrule & Nut. A leak-proof seal is obtained through proper ferrule action as the ferrules are tightened onto the tubing via axial thrust provided by the nut. The front ferrule provides the leak-proof seal, when the nut & ferrules are properly drawn up the specified number of turns. The rear ferrule grips the tubing preventing pull-off. The stainless steel nuts are silver plated and dry film lubricant is applied, reducing torque and ensuring proper sealing

Features

  • Double ferrule swaging action
  • Total component interchangeability
  • Heat Code traceable
  • ASTM material construction

About Tylok CBC-Lock Fittings

CBC-Lok Tube Fittings are fully interchangeable with Swagelok & Parker A-Lok and CS-Lok Tube Fittings are fully interchangeable with Parker CPI. Although it is always recommended to use all Tylok components intermixing Tylok bodies and/or components parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok Tube Fittings are made to strict quality control standards. Tylok Fittings are proudly made in the U.S.A.
