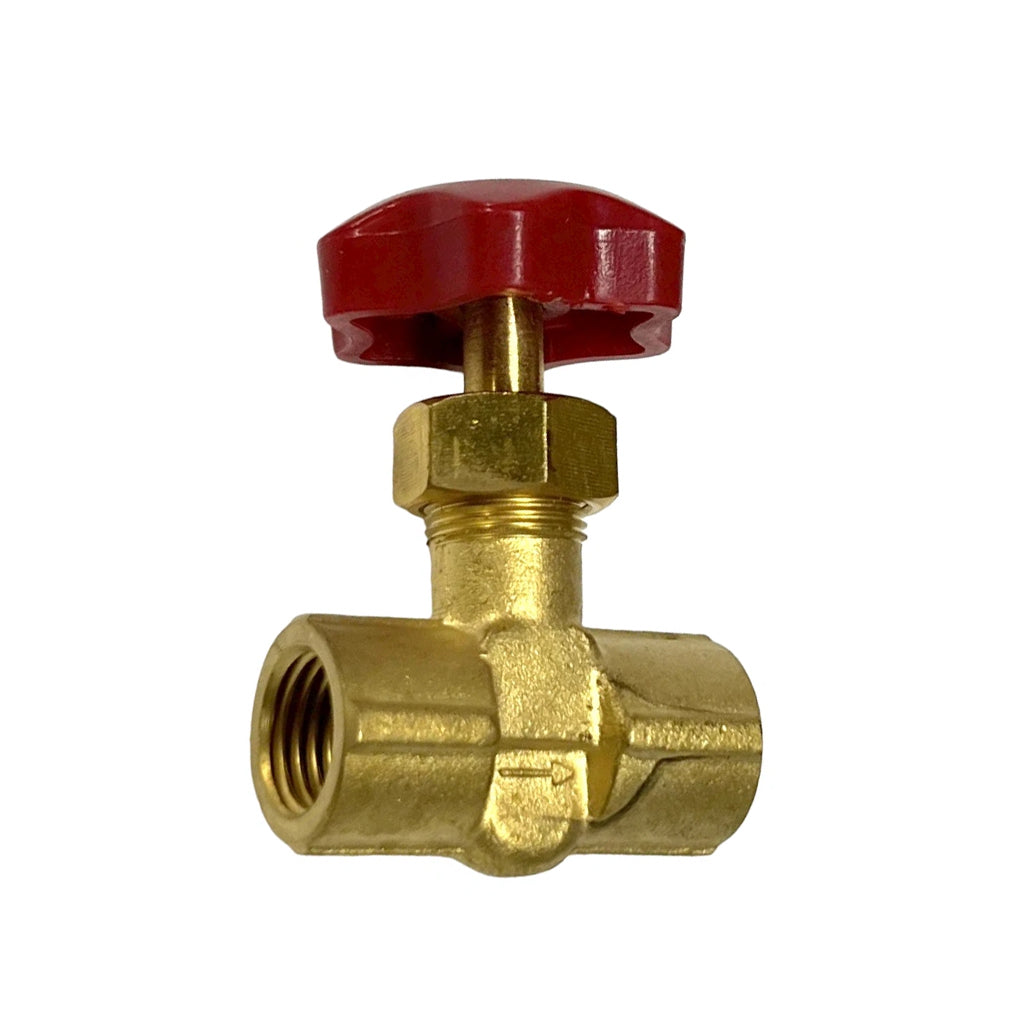

Winters SNV510 - 1/4" NPT Brass Needle Valve

The Winters SNV510 Brass Needle Valve is designed for precise flow control and isolation of pressure gauges, transmitters, and other instrumentation in non-corrosive applications. Constructed with a durable forged brass body and brass internal components, this valve provides reliable performance in systems operating at pressures up to 400 PSI. Its adjustable needle design allows controlled flow regulation and can help reduce pressure pulsations in mild applications. The valve features 1/4" female NPT connections, a red ABS plastic handle, and a compact design for easy installation in industrial and commercial systems.

Features

• 1/4" Female NPT inlet and outlet connections
• Forged brass body for durability and corrosion resistance
• Brass shaft and nut with rubber O-ring seal
• Maximum operating pressure of 400 PSI (2,758 kPa)
• Operating temperature range of -9°F to 212°F (-23°C to 100°C)
• Provides precise flow control for non-corrosive applications
• Ideal for isolating pressure gauges and pressure transmitters
• Can help throttle pressure pulsations in mild applications
• Red ABS plastic handle for easy manual adjustment
• Compact design with 1.53" overall body length
• ASME B1.20.1 compliant threaded connections
• CRN registered
• Not intended for potable water applications
• UPC: 628311800197
