Tekmar 654 - Snow Melting Control

In stock
SKU: 654
Regular price $673.17

Free Shipping on all orders over $89

Most orders ship same day and deliver in 3-4 business days!

Freight deliveries require extra time to arrange pickup & delivery.

Call Us! Have questions or want to order by phone? (800) 468 5997

Customer Reviews

No reviews yet

Tekmar Snow Melting Solutions Brochure

Tekmar 654 Specifications

Tekmar 654 Product Guide

Tekmar 654 Installation & Operation Manual

Tekmar 654 Quick Setup Guide

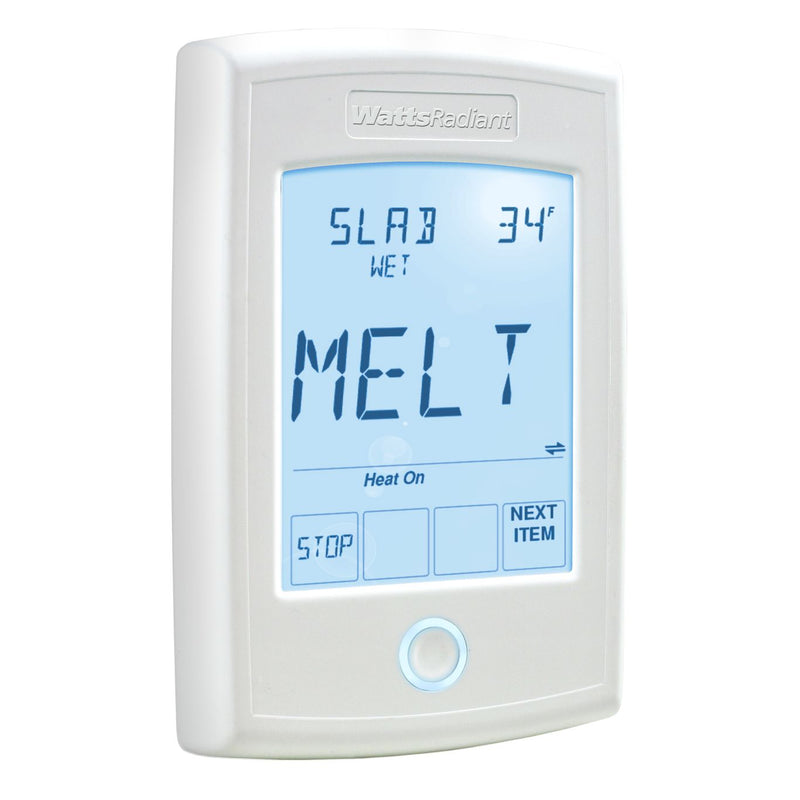

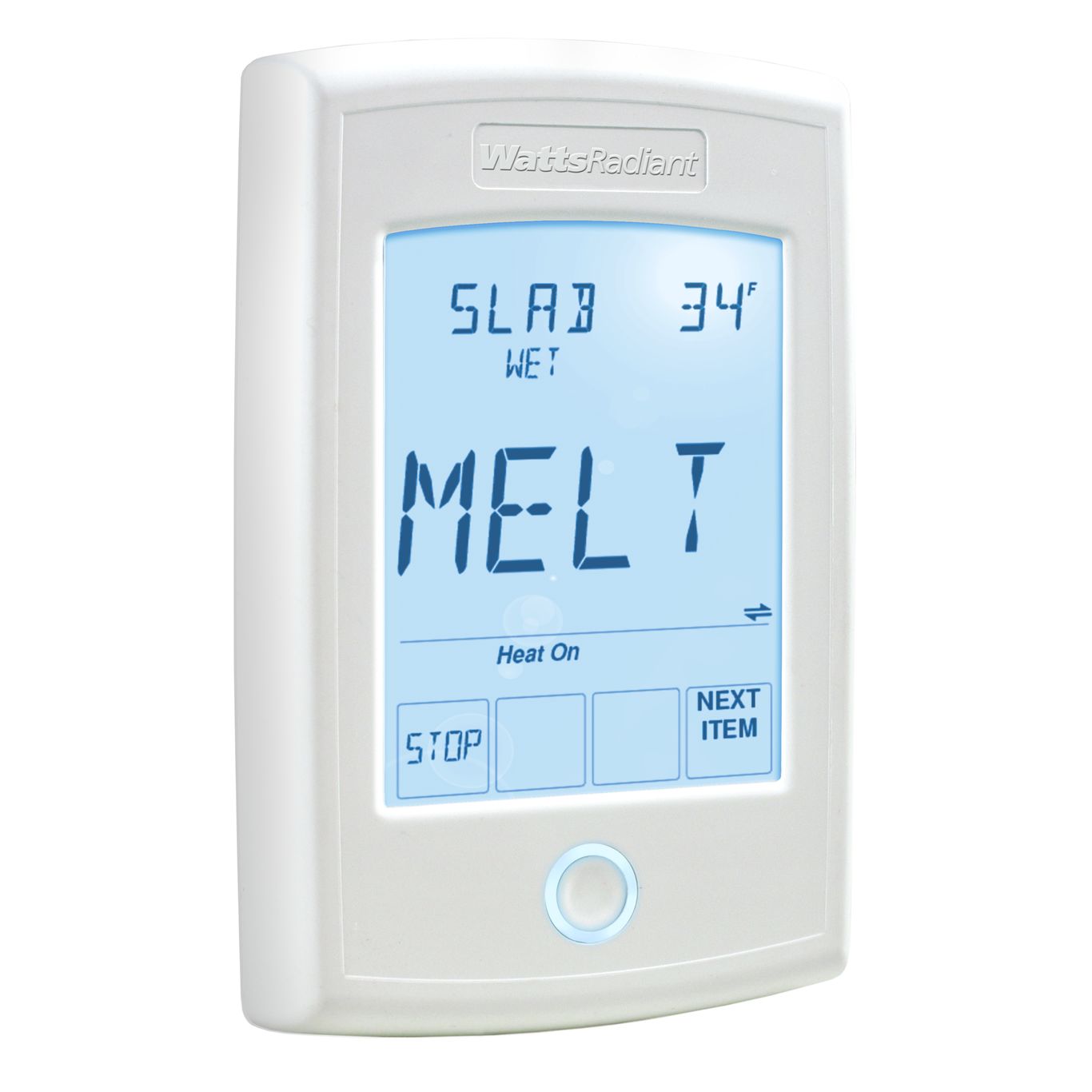

Tekmar 654 - Snow Melting Control

The snow melting control model 654 is designed to operate hydronic or electric snow melting systems and also operate a dedicated hydronic boiler or a mixing valve. The snow melt surface temperature is controlled using slab outdoor temperature reset to reduce operating energy costs. This control unit provides automatic start and stop when used with the snow/ice sensor model 090. It can also provide an automatic start with a timed stop when used with the snow sensor model 095.


  • Includes snow melt zone priority
  • tekmarNet communication capability
  • Tandem snow/ice detection

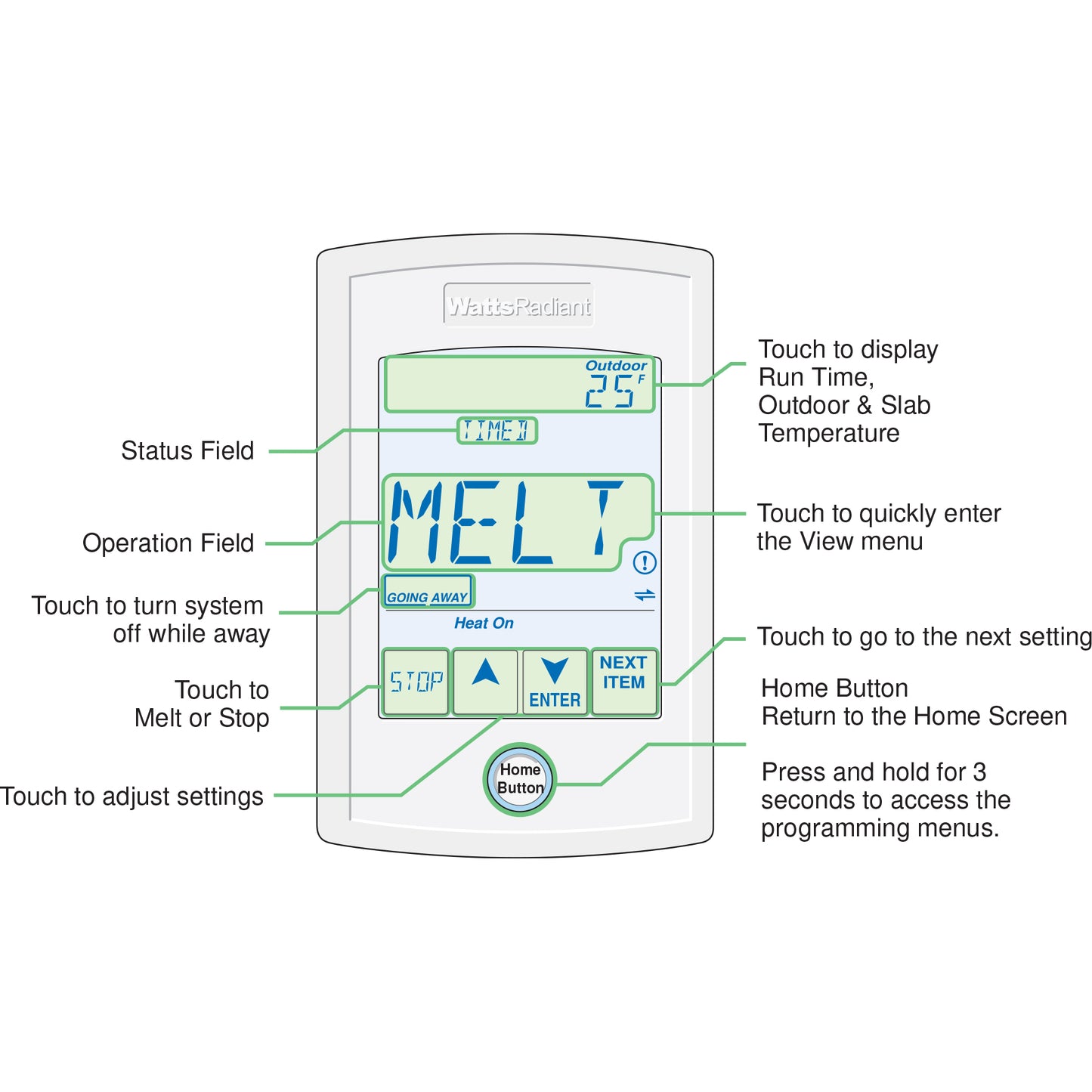

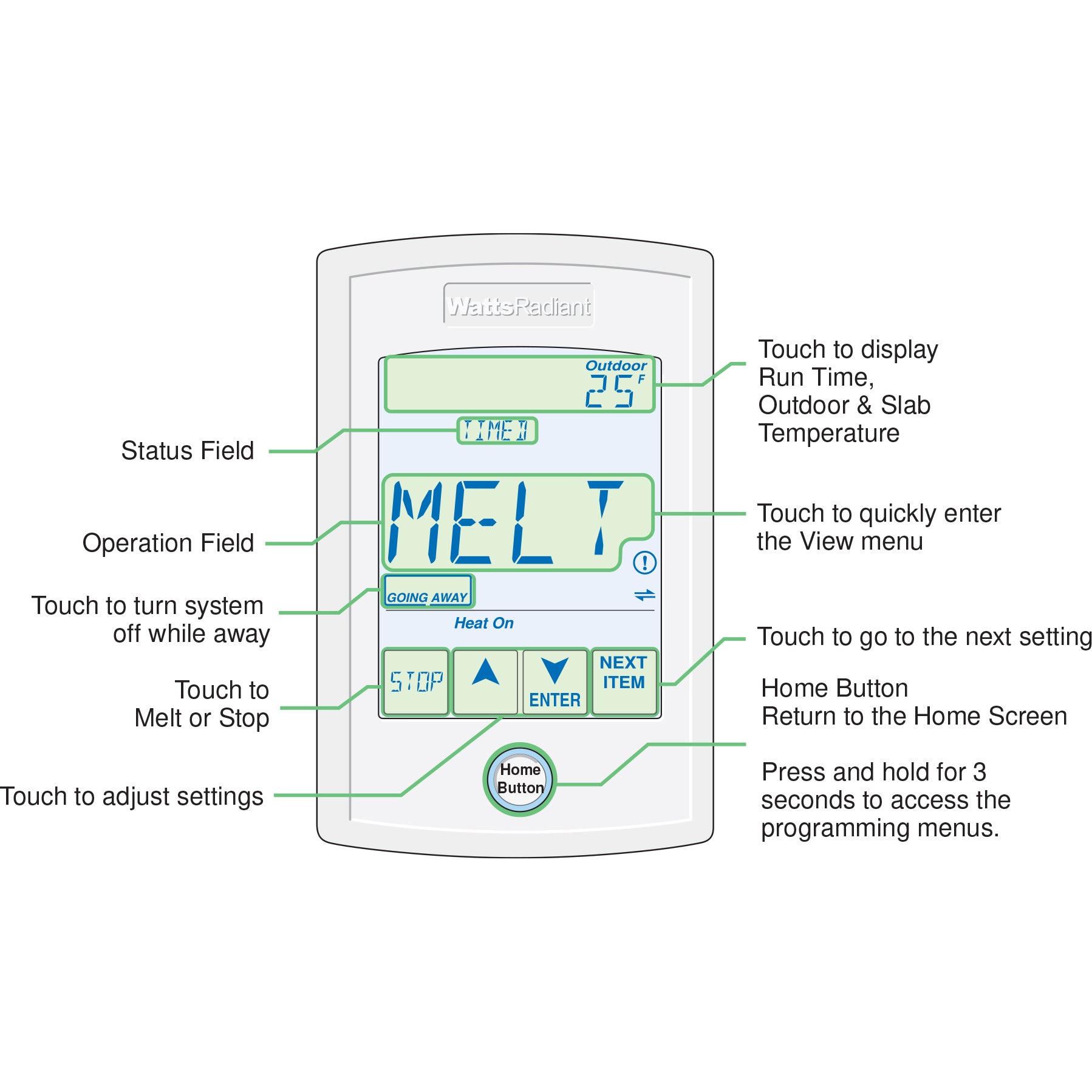

  • Programmable touchscreen control
  • Automatic Snow / Ice Detection
  • Supports Both Inslab & Retrofit Aerial Sensors
  • Manual Start With Timer
  • Warm Weather Shut Down
  • Cold Weather Cut Out
  • Idling
  • Slab Protection
  • Storm
  • EconoMelt
  • Manual Override
  • Snow Melt Zone Tracking
  • Scenes
  • Away Key
  • Exercising
  • Alert Output
