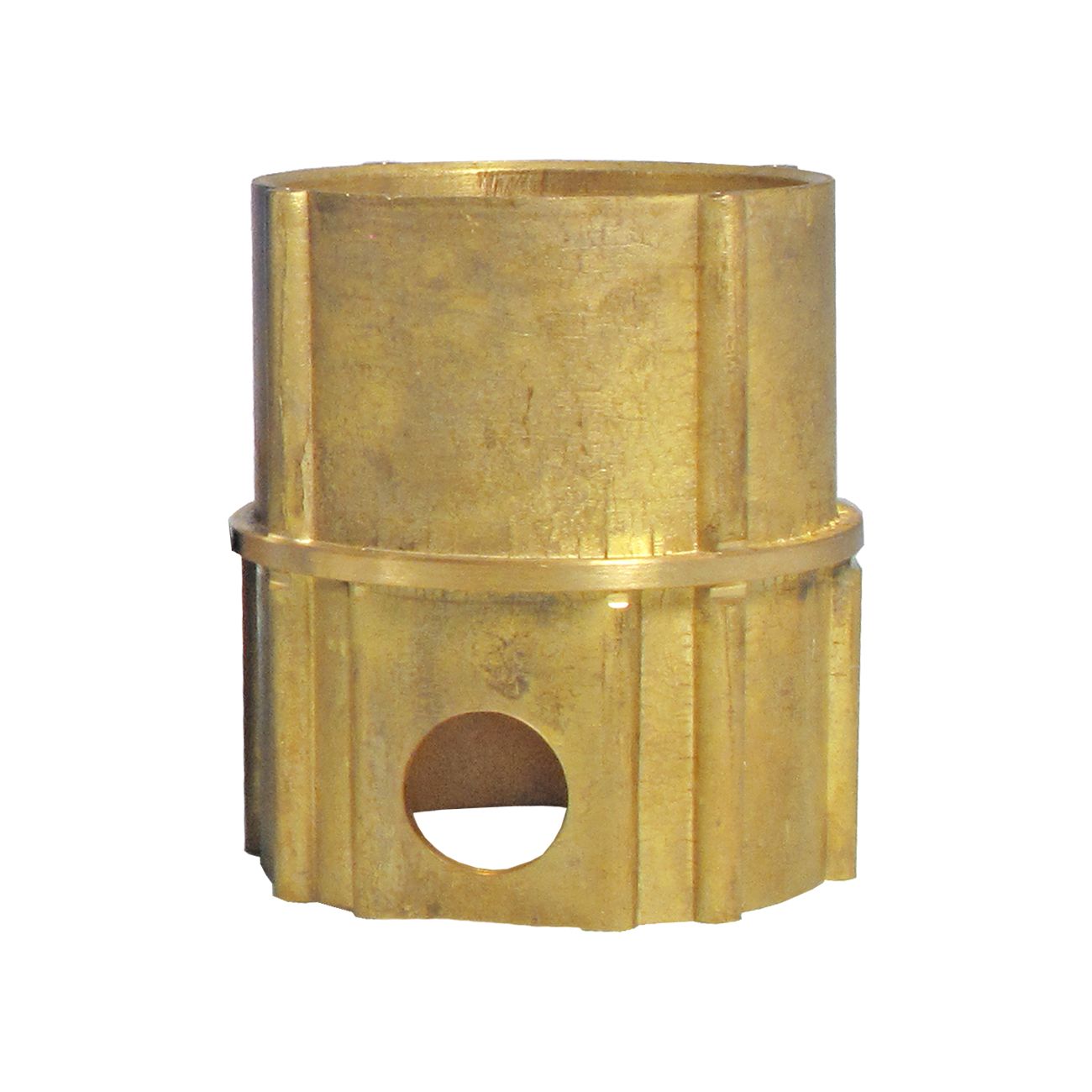

Tekmar 091 - Snow/Ice Sensor Socket
The Snow/Ice Sensor Socket 091 is designed to provide a mounting solution for the Snow/Ice Sensor 090 or 094. It is intended to be installed directly into a concrete slab when the slab is poured, so that the 090 or 094 can be installed into it once dry.
Features:
- Intended to be installed directly into a concrete slab when the slab is poured
- Constructed with silicon brass
- Includes mounting plate
- Provides mounting solution for Snow/Ice Sensor 090 or 094
Specifications:
- Agency Approvals: CSA C US with tekmar Snow / Ice Sensor 090

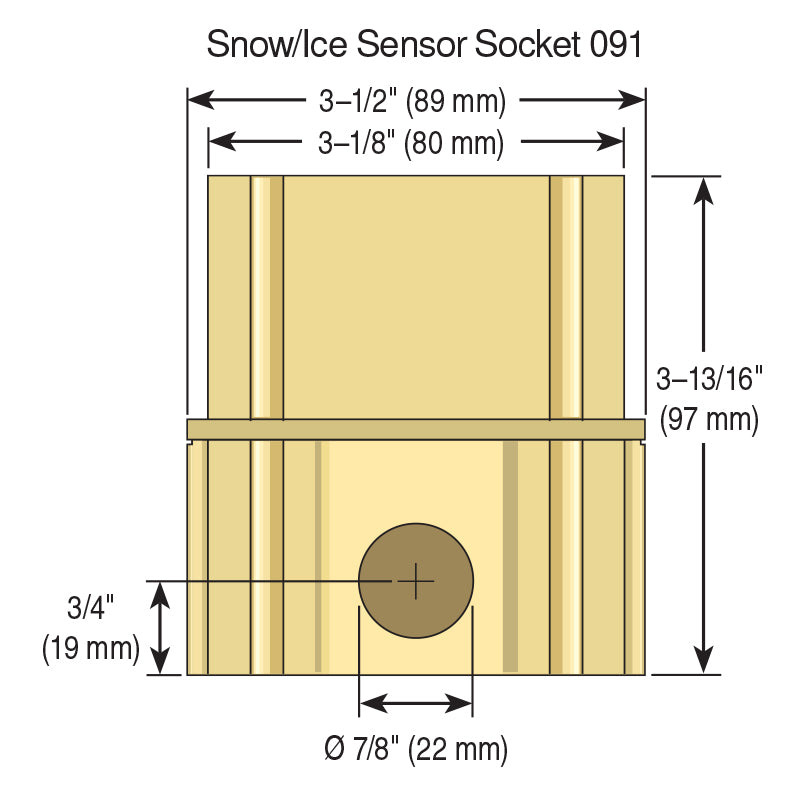

- Dimensions: 3-13/16" H x 3-1/2" OD (97 mm H x 89 OD mm)
- Load Rating: 15,000 lb (66,723 N) distributed load, non-impact, installed in concrete according to the manual
