SLZ-KF12NA.TH - PLA-A12EA8 - 12,000 BTU 1 Ton 3' x 3' Ceiling Cassette, Less Grille - R-410A
Regular price
$1,549.00
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

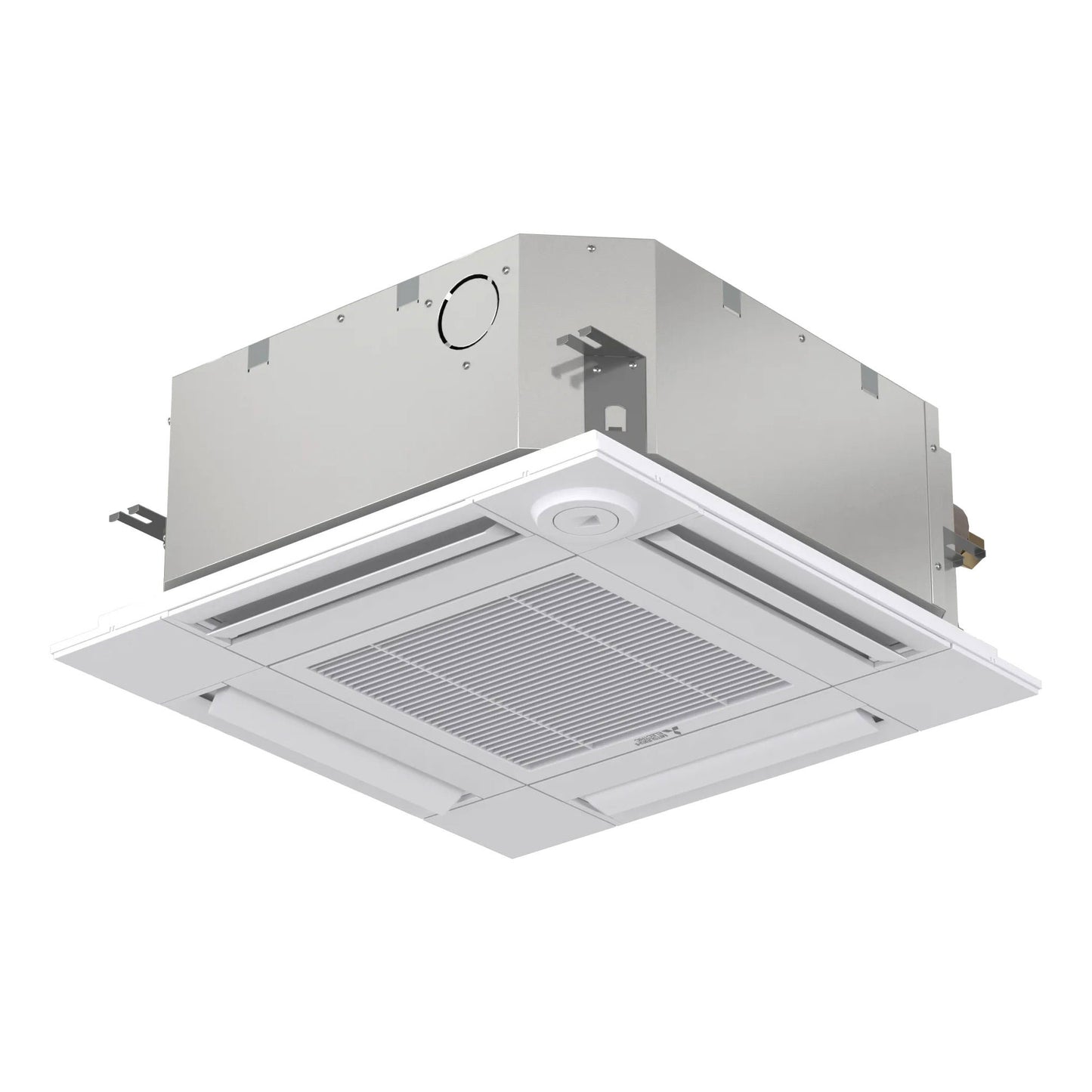

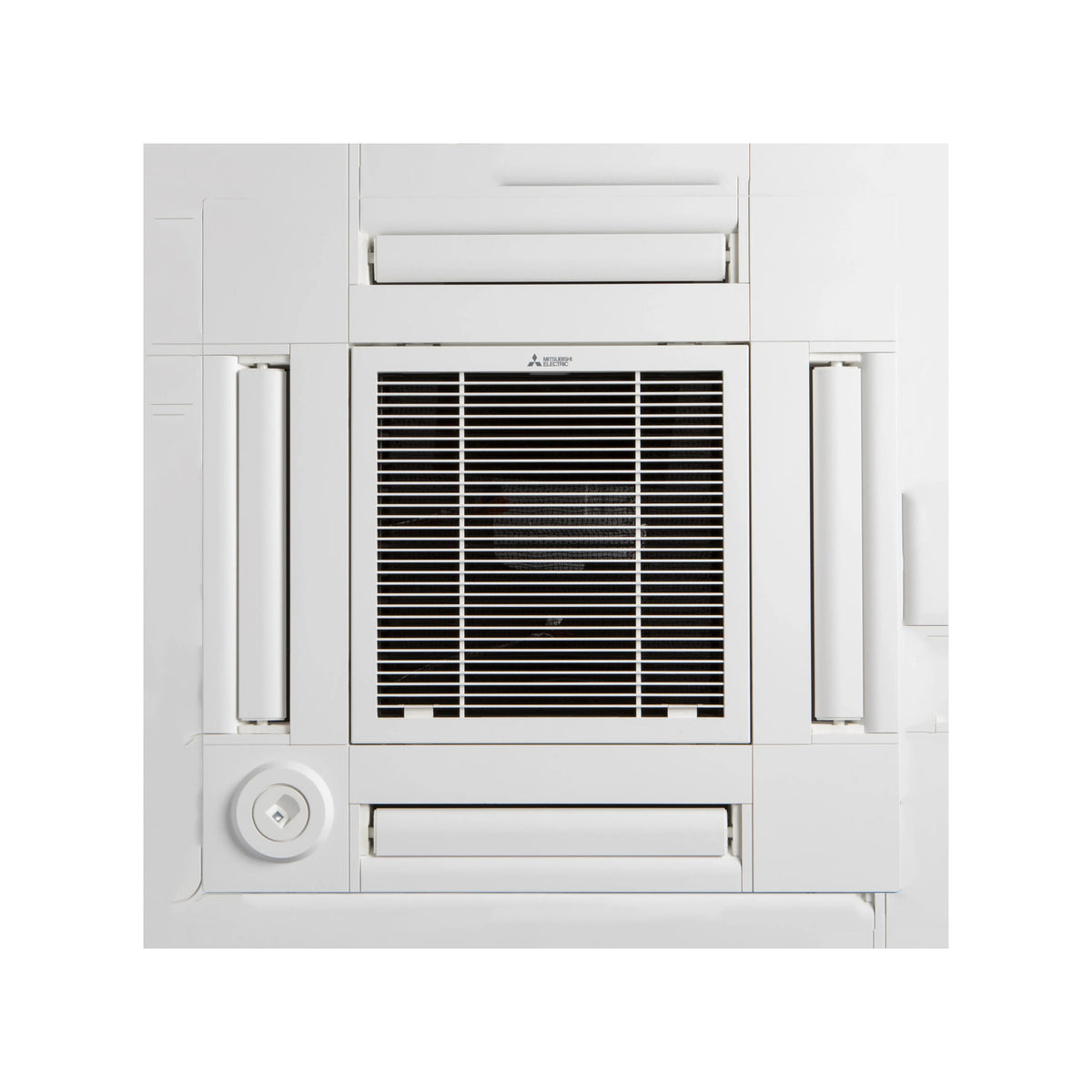

Mitsubishi PLA-A12EA8 - 12,000 BTU 1 Ton 3' x 3' Ceiling Cassette Indoor Unit - R-410A
The Mitsubishi PLA-A12EA8 is a 12,000 BTU, 1-ton ceiling cassette indoor unit designed for discreet, space-efficient heating and cooling with compatible Mitsubishi Electric systems. Its four-way airflow design provides broad room coverage, while individual vane control allows airflow to be directed or adjusted for specific comfort needs. The unit also features provisions for outside-air intake and branch ducting, a built-in condensate lift mechanism, and multiple control options for residential and light commercial applications.
Features
- 12,000 BTU/H nominal cooling capacity
- 14,000 BTU/H nominal heating capacity when used in an applicable heat pump configuration
- 1 Ton ceiling cassette indoor unit
- 3' x 3' ceiling cassette design provides discreet, space-efficient installation
- Four-way airflow provides broad and even air distribution
- Individual vane settings allow direct, indirect, and variable airflow patterns
- Airflow settings accommodate both high- and low-ceiling applications
- Compatible with 3D i-see Sensor technology for enhanced comfort and energy efficiency when equipped with the appropriate grille
- Knockouts provided for outside-air intake and branch duct connections
- Easy-to-clean, washable filter
- Filter indicator helps identify when filter maintenance is needed
- Built-in condensate lift mechanism provides up to 33-7/16" of lift
- Multiple control options available, including kumo cloud, wired and wireless controllers, and third-party interfaces
- Airflow: 370 / 460 / 490 / 530 CFM
- Sound Pressure Level: 26 / 27 / 29 / 30 dB(A)
- Power Supply: 208/230V, 1 Phase, 60 Hz
- Minimum Circuit Ampacity: 1.0A
- Refrigerant: R-410A
- Liquid Line Connection: 1/4" OD Flare
- Gas Line Connection: 1/2" OD Flare
- Drain Connection: 1-1/4"
- Indoor Unit Dimensions: 33-1/16" W x 33-1/16" D x 10-3/16" H
- Indoor Unit Weight: 46 lb
- Grille Sold Separately: PLP-41EAEU
- Manufacturer: Mitsubishi Electric
- Part Number: PLA-A12EA8
