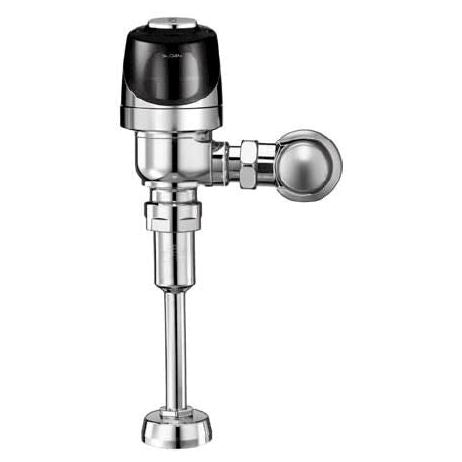

SLOAN 8186 - 1.0 GPF Single Flush, Battery, Exposed Sensor Urinal Flushometer in Polished Chrome

In stock
SKU: 3790013
Regular price $489.03

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

1.0 gpf, Polished Chrome Finish, Single Flush, Battery, Sloan® Exposed Sensor Urinal Flushometer


  • Flush Volume: 1.0 gpf (3.8 Lpf)
  • Finish: Polished Chrome (CP)
  • Power Type: Battery
  • Battery Life: 6 years
  • Valve: Diaphragm
  • Valve Body Material: Semi-red Brass
  • Fixture Type: Urinal
  • Fixture Connection: Top Spud
  • Rough-In Dimension: 11 ½" (292mm)
  • Spud Coupling: ¾" (19mm)
  • Supply Pipe: ¾" (19mm)


  • High Chloramine Resistant PERMEX® Synthetic Rubber Diaphragm
    with Linear Filtered Bypass and Vortex Cleansing ActionTM
  • Sweat Solder Adapter with Cover Tube and Cast Wall Flange
  • 3⁄4” I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant
    Stop Cap
  • Spud Coupling and Spud Flange for 3⁄4” Top Spud
  • “Low Battery” Flashing LED
  • No External Volume Adjustment to Ensure Water Conservation
  • Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
  • Infrared Sensor with Multiple-focused, Lobular Sensing Fields for
    high and low target detection
  • Engineered Plastic Cover with replaceable Lens Window
  • Courtesy Flush® Override Button
  • Four (4) Size AA Batteries included

Specification Sheet
