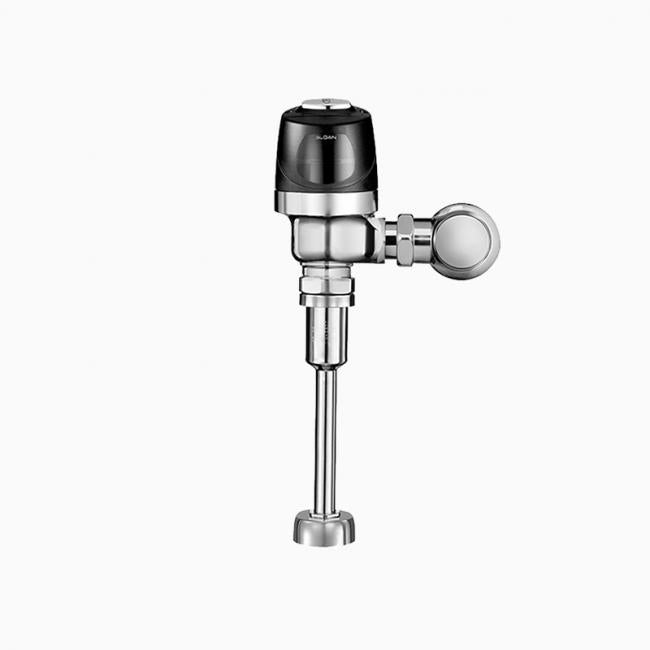

0.5 GPF, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, Single Flush, Battery, Sloan Exposed Sensor Urinal Flushometer

DETAILS

• Flush Volume: 0.5 gpf (1.9 Lpf)
• Finish: Polished Chrome (CP)
• Power Type: Battery
• Valve: Diaphragm
• Bypass: Dual-Filtered Fixed Bypass Diaphragm (DFB)
• Valve Body Material: Semi-red Brass
• Fixture Type: Urinal
• Fixture Connection: Top Spud
• Rough-In Dimension: 11 ½" (292mm)
• Spud Coupling: ¾" (19mm)
• Supply Pipe: ¾" (19mm)

FEATURES

• Sweat Solder Adapter with Cover Tube and Cast Wall Flange
• 3⁄4” I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant
  Stop Cap
• Spud Coupling and Spud Flange for 3⁄4” Top Spud
• “Low Battery” Flashing LED
• No External Volume Adjustment to Ensure Water Conservation
  Economical
• Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber
• Compound for Chloramine resistance
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for
  high and low target detection
• Engineered Plastic Cover with replaceable Lens Window
• Courtesy Flush® Override Button
• Four (4) Size AA Batteries included

High Chloramine Resistant PERMEX® Synthetic Rubber Diaphragm
with Linear Filtered Bypass and Vortex Cleansing ActionTM

PTB1L00626
