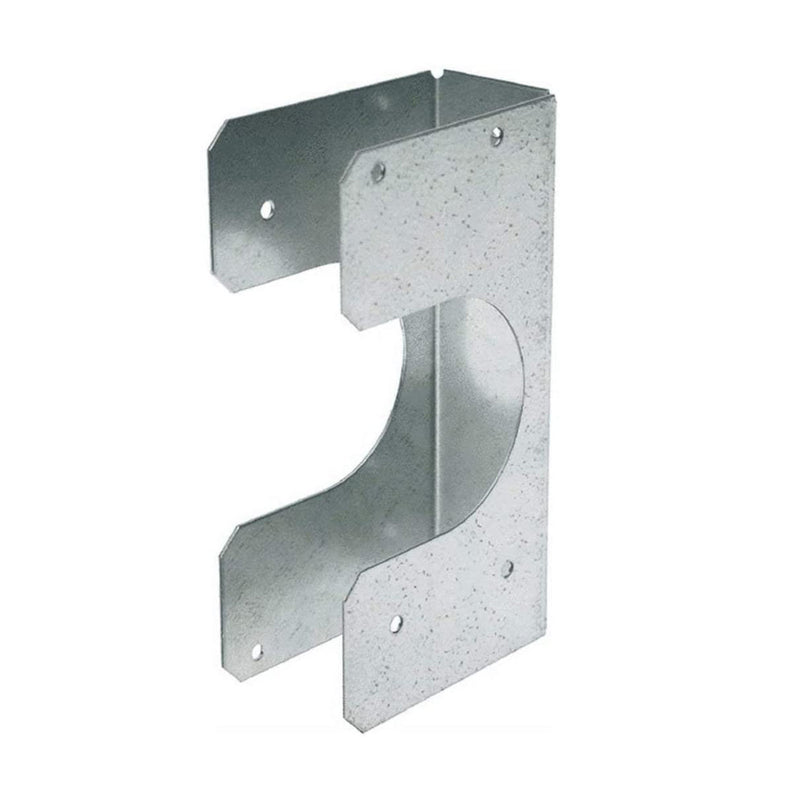

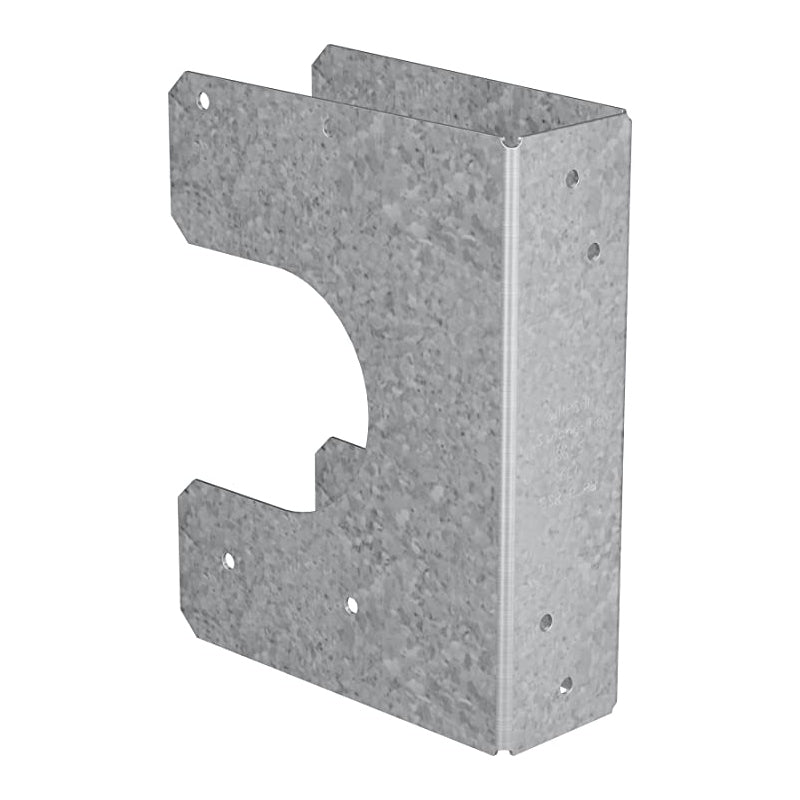

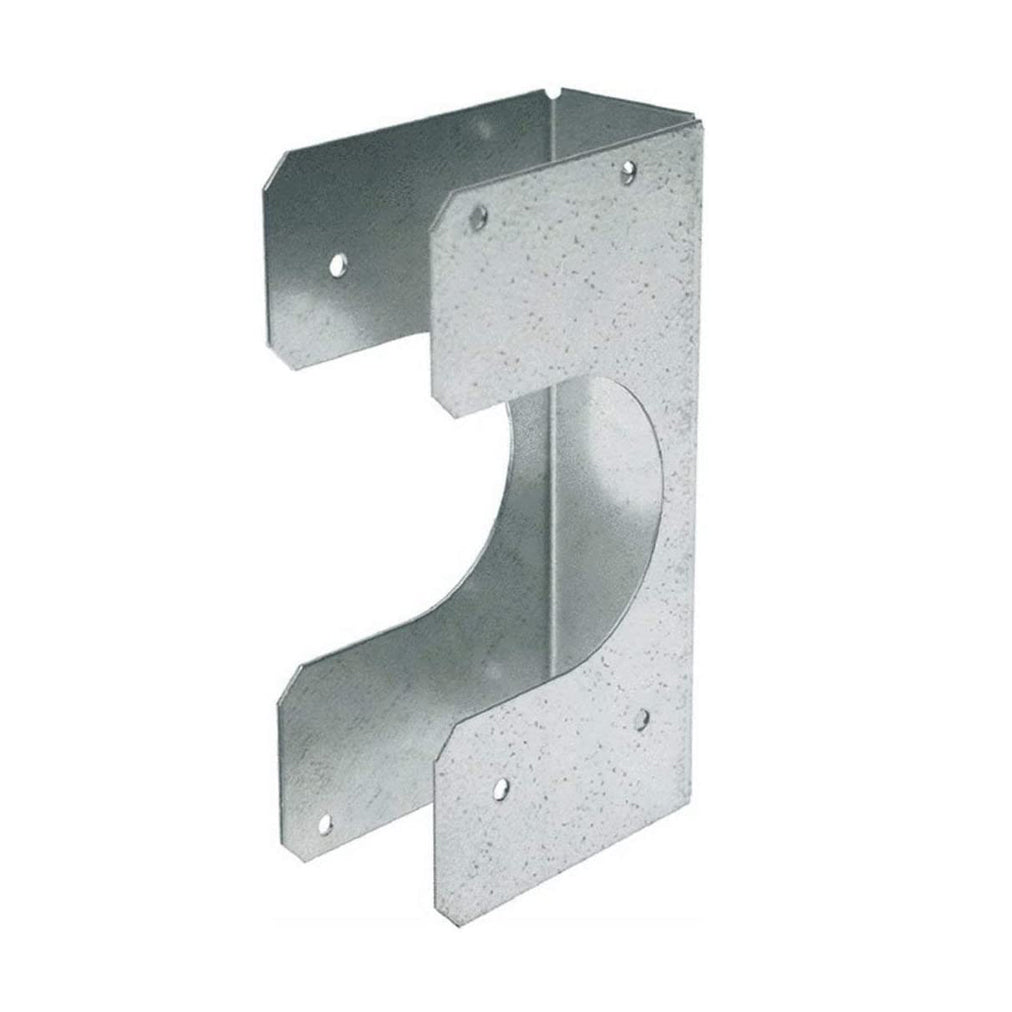

Stud Shoes BrochureSimpson Strong-Tie SS1.5 - 16 Gauge Galvanized Aluminum Stud Shoe, 2x Stud Size

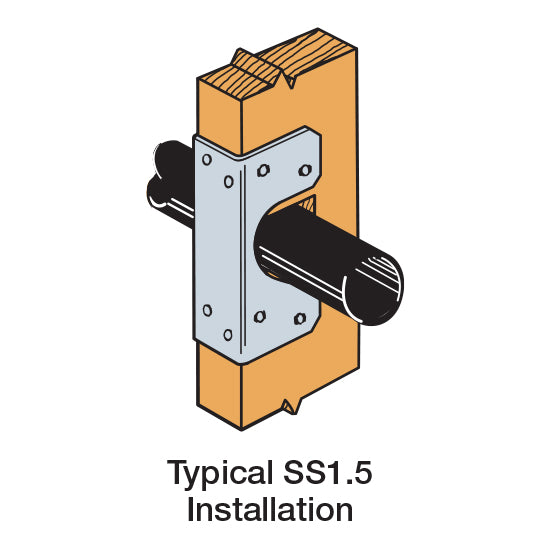

The SS is designed to reinforce notched, vertical studs in construction. This stud shoe is used to strengthen a wall stud that has a large hole drilled through it, typically to accommodate a plumbing waste line. The SS installs over the outside diameter of the pipe and is used as part of a total member replacement in structural applications.
Stud shoes reinforce studs notched in construction. They are not a total replacement of removed material. Installs over pipe up to 2 3⁄8" outside diameter.
Features
- Installs over pipe up to 2 3/8" outside diameter
- Code listed for both building and plumbing codes
- Made from durable galvanized steel to resist corrosion for lasting use
- Reinforces studs which have been drilled or notched during construction
- Designed to resist tension loads only

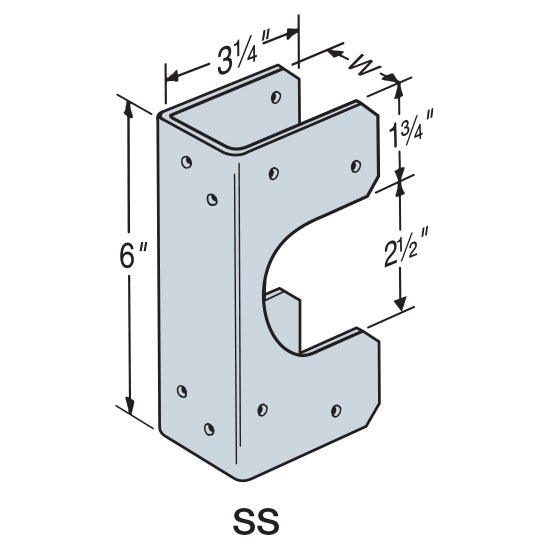

Specifications
- Material: 16 Gauge
- Finish: Galvanized
- Stud Size: 2x
- Width: 1-9/16"
- Fasteners: (12) 0.148" x 1-1/2"
