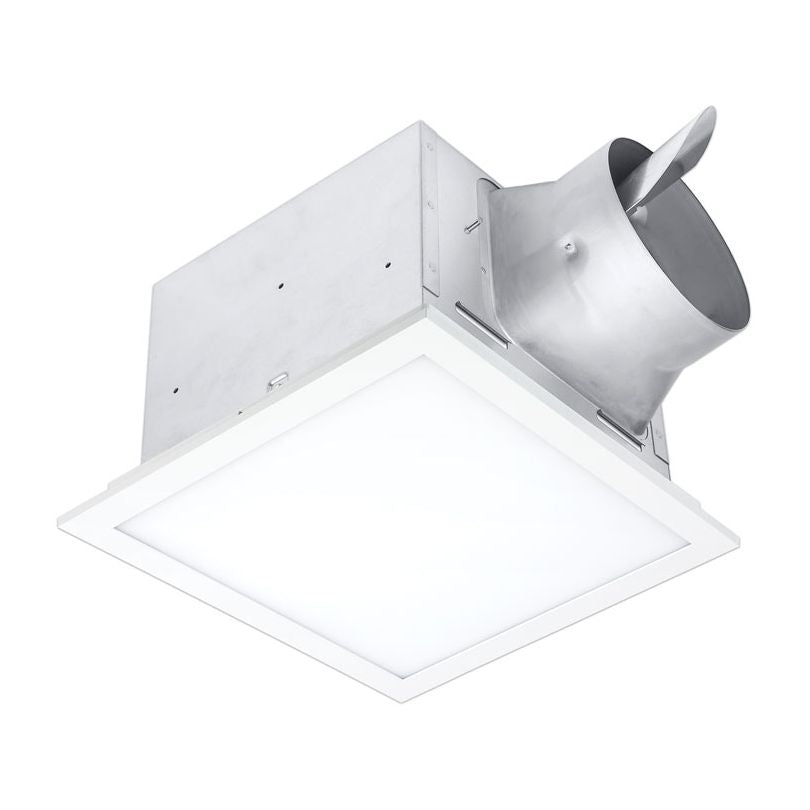

SIG80-110ELED - BreezSignature 80/110 CFM Fan w/Edge-lit Adjustable Color Temp Dimmable LED Light

In stock
SKU: SIG80-110ELED
Regular price $282.19

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specification Sheet

Installation Instructions

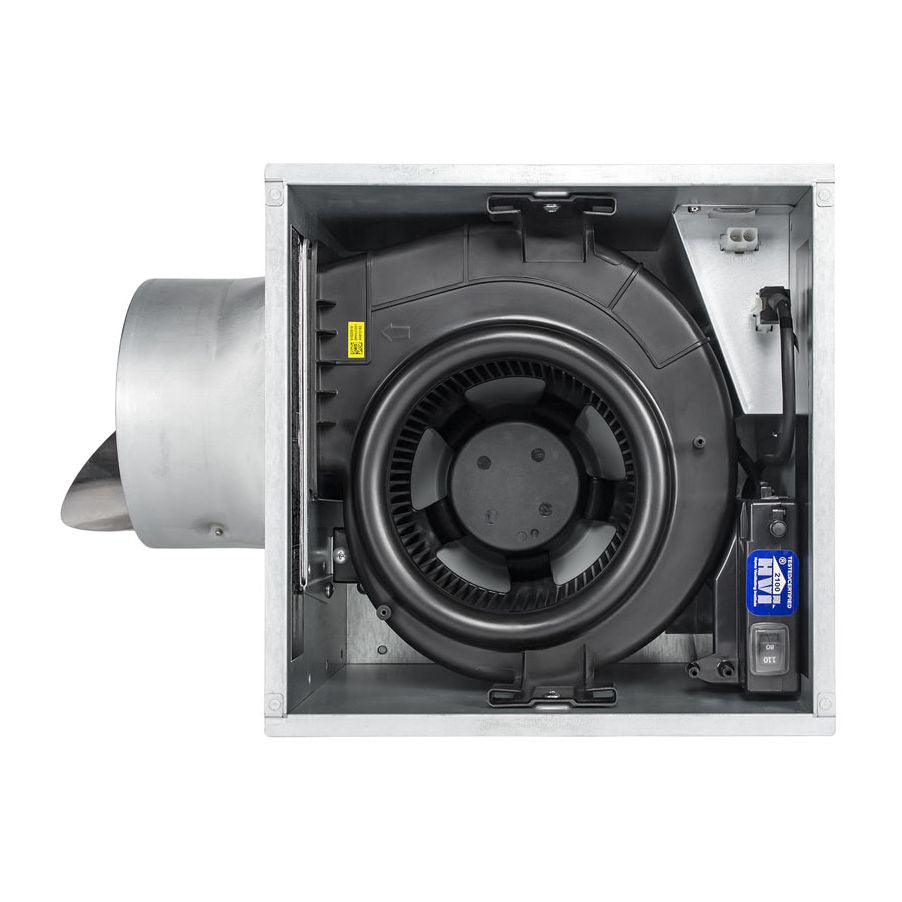

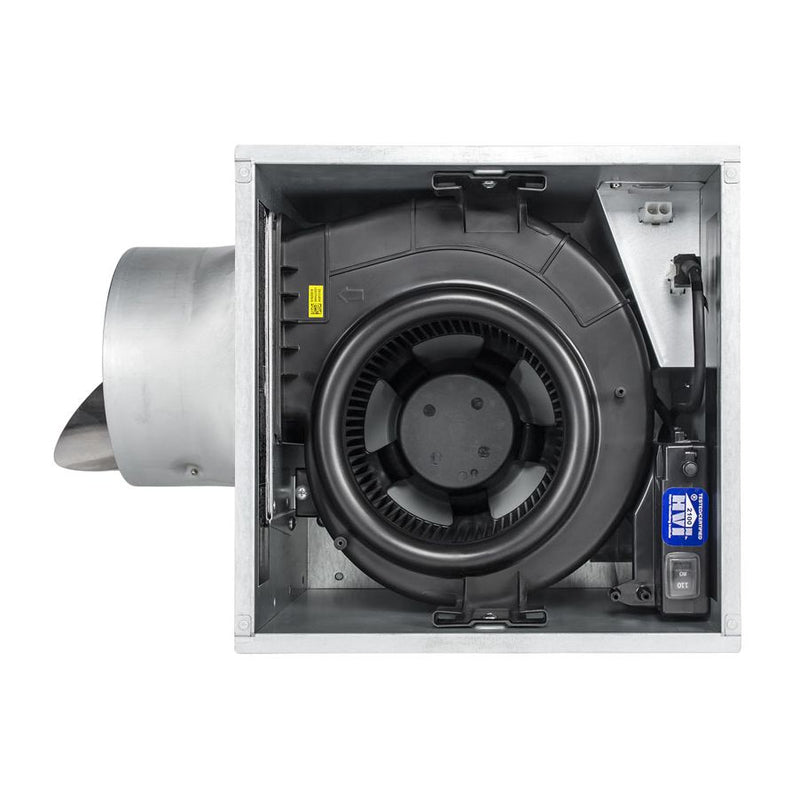

Innovative brushless DC motor design for long life, low noise, and low power consumption.

Delta Breez model SIG80-110ELED has been awarded ENERGY STAR® qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 80 CFM and loudness rating of less than 0.3 Sones or 110 CFM and loudness rating of 0.5 Sones at 0.1” static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 9.9 Watts with efficiency rating of 11.8 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. LED life is 30,000 hours (compare with 10,000 hours CFL life). One 13-Watt LED main light included. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

Features:

  • ENERGY STAR® qualified with innovative brushless DC motor technology
  • Perfectly quiet operation at <0.3 (80 CFM); 0.5 Sones (110 CFM)
  • Adjustable high speed 80 or 110 CFM

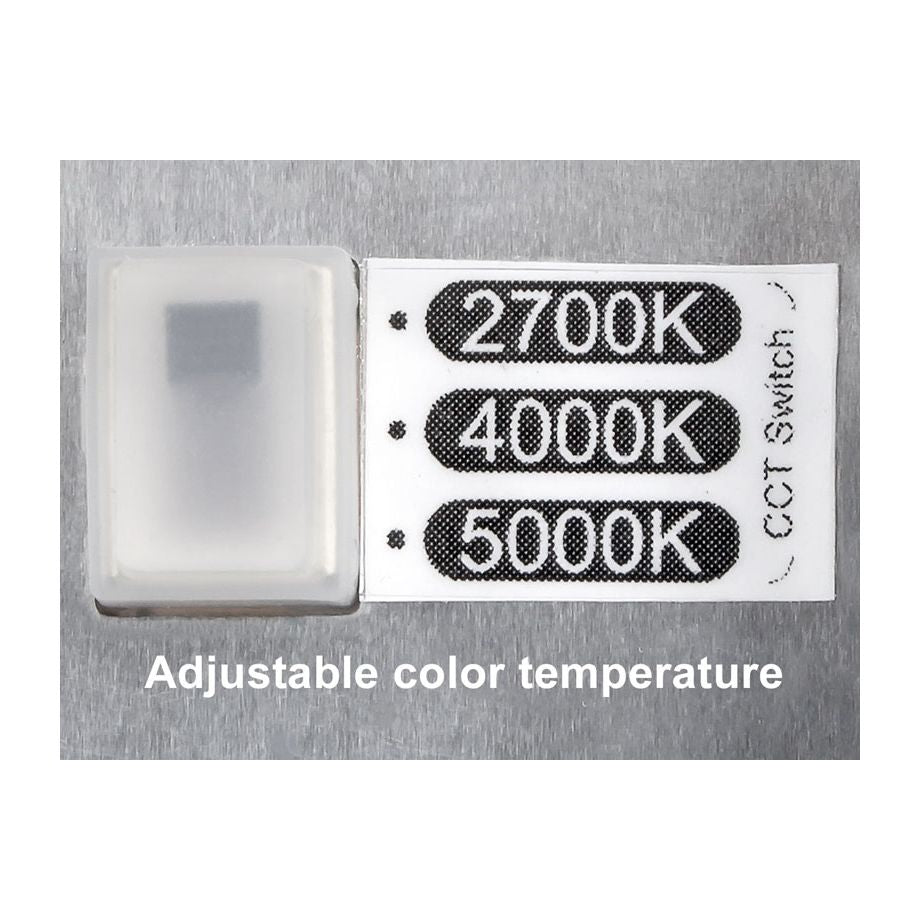

  • Adjustable color temperatures of 2700K, 4000K, and 5000K for the perfect ambiance

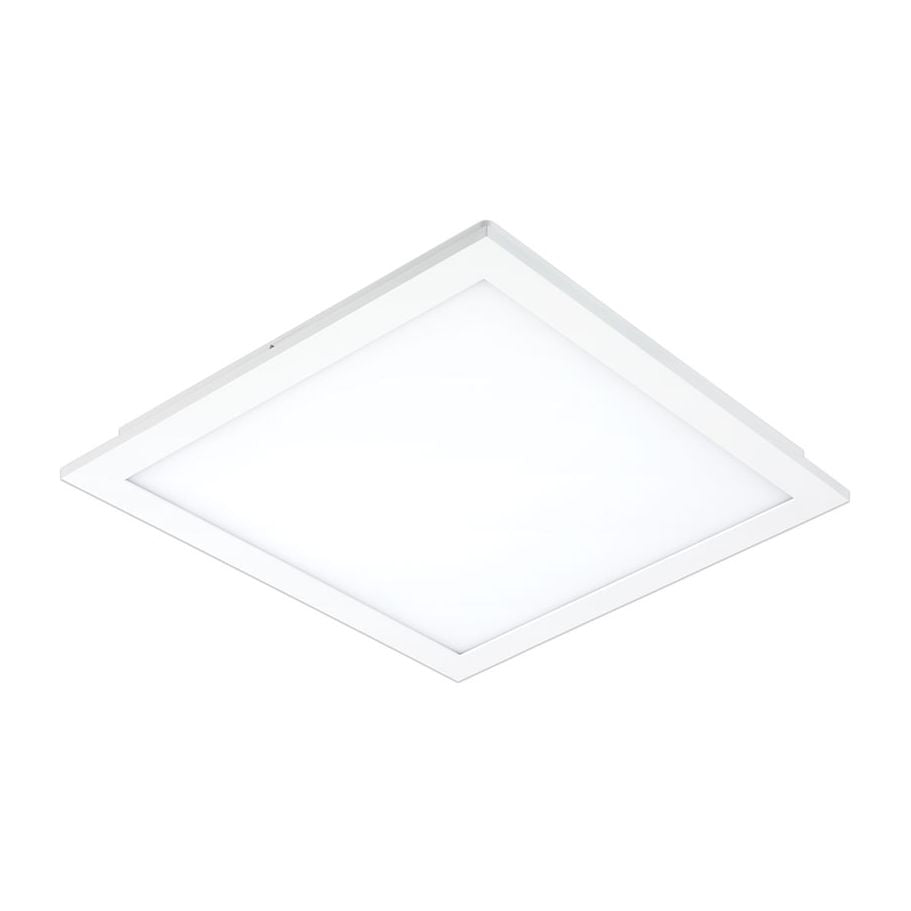

  • Edge-lit LED lighting adds beauty and modern style to the bathroom
  • LED life is 30,000 hours (compare with 10,000 hours CFL life)
  • 13-Watt Dimmable LED light included (equivalent to a 60-Watt incandescent bulb). Dimmer switch not included
  • Main light output: 1000 Lumens; 80 CRI for high color accuracy
  • Includes 6" to 4" duct reducer
  • Energy efficiency at 11.7 CFM/Watt
  • Annual energy cost for 24/7 operation is approximately $7.89*
    • Calculations based upon U.S. average retail electricity and HVI testing labs. Actual results may vary

Specifications:

  • Air Flow (CFM): 80 / 110
  • Sones: <0.3 / 0.5
  • Power Consumption (Watts): 7.5 / 9.9
  • Energy Efficiency (CFM/Watts): 11.7 / 11.8
  • Current (Amps): 0.48 Max
  • Power Rating (V/Hz): 120/60
  • LED Main Light: 13W
