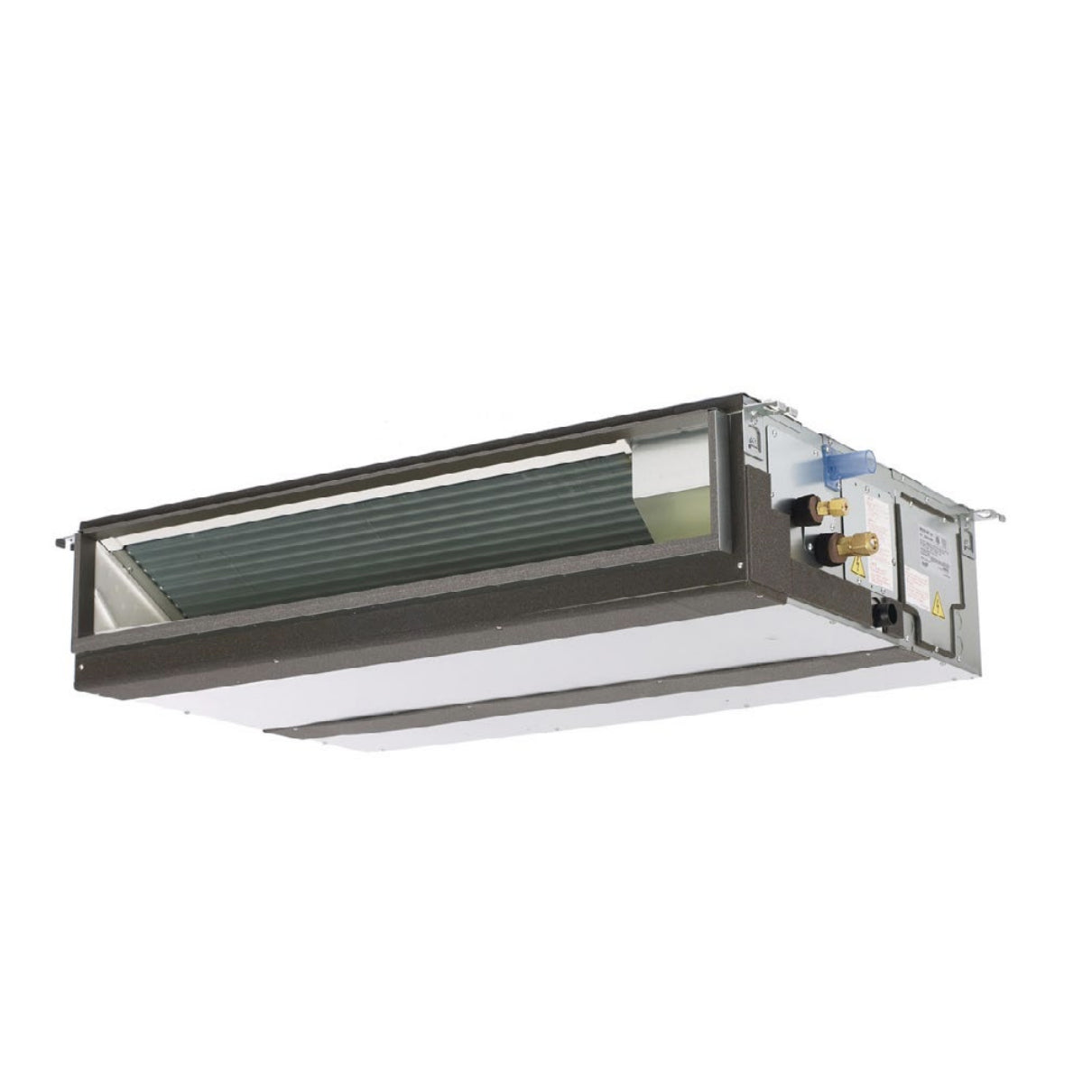

Mitsubishi SEZ-KD09NA4R1.TH - 9,000 BTU Low-Static Horizontal Ducted Indoor Unit - R-410A

The Mitsubishi SEZ-KD09NA4R1.TH is a 9,000 BTU low-static horizontal ducted indoor unit designed for concealed heating and cooling applications with short duct runs. Its ultra-thin 7-7/8" cabinet makes it well suited for installation above ceilings and in other space-constrained areas. The unit features quiet operation, adjustable static pressure, a built-in condensate lift mechanism, fresh-air intake capability, and multiple control options for flexible residential and light commercial installations.

Features

• 9,000 BTU/H nominal capacity
• Low-static horizontal ducted indoor unit for concealed applications
• Designed for use with compatible Mitsubishi Electric M-Series systems
• Ultra-thin 7-7/8" high cabinet is ideal for installations with limited ceiling space
• Designed for applications with short duct runs
• Fresh-air intake connection provided in the main body
• Built-in condensate lift mechanism provides up to approximately 21-11/16" of lift
• Static pressure capability up to 0.20" W.G.
• Quiet operation with sound levels as low as 23 dB(A)
• Auto fan speed control for improved comfort
• Air filter included with indoor unit
• Automatic restart following a power outage
• Multiple control options available, including kumo cloud, wired and wireless controllers, and third-party interfaces
• Compatible with optional FBL1-1 filter box with MERV 8 filters
• Compatible with optional BRP-1 bottom return plate
• Cooling Capacity: 8,100 BTU/H*
• Heating Capacity at 47°F: 10,900 BTU/H*
• Refrigerant: R-410A
• Power Supply: 208/230V, 1 Phase, 60 Hz
• Liquid Line Connection: 1/4" OD Flare
• Gas Line Connection: 3/8" OD Flare
• Dimensions: 31-1/8" W x 27-9/16" D x 7-7/8" H
• Unit Weight: 42 lb
• Manufacturer: Mitsubishi Electric
• Part Number: SEZ-KD09NA4R1.TH
• *Actual capacity varies depending on the matched outdoor unit and system configuration.
