Home » SETR0301U - Controller for Solar Water Heaters

SETR0301U - Controller for Solar Water Heaters

Out of stock
SKU: SETR0301U
$219.00

Free Shipping on all orders over $89

Most orders ship same day and deliver in 3-4 business days!

Freight deliveries require extra time to arrange pickup & delivery.

Call Us! Have questions or want to order by phone? (800) 468 5997

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
W
William S. (Albuquerque, US)

Good product that arrived on time

S
SKH (Watkins, US)
Replaced a more complicated controller

This controller is great and simple. Would be nice if temps weren't preset but I can live with it. Was half the price of the one that quit but the old one also had several modes and outputs which I no longer needed. Supply Stop support is great!

SETR0301U Brochure

Operating Instructions

Specification Sheet

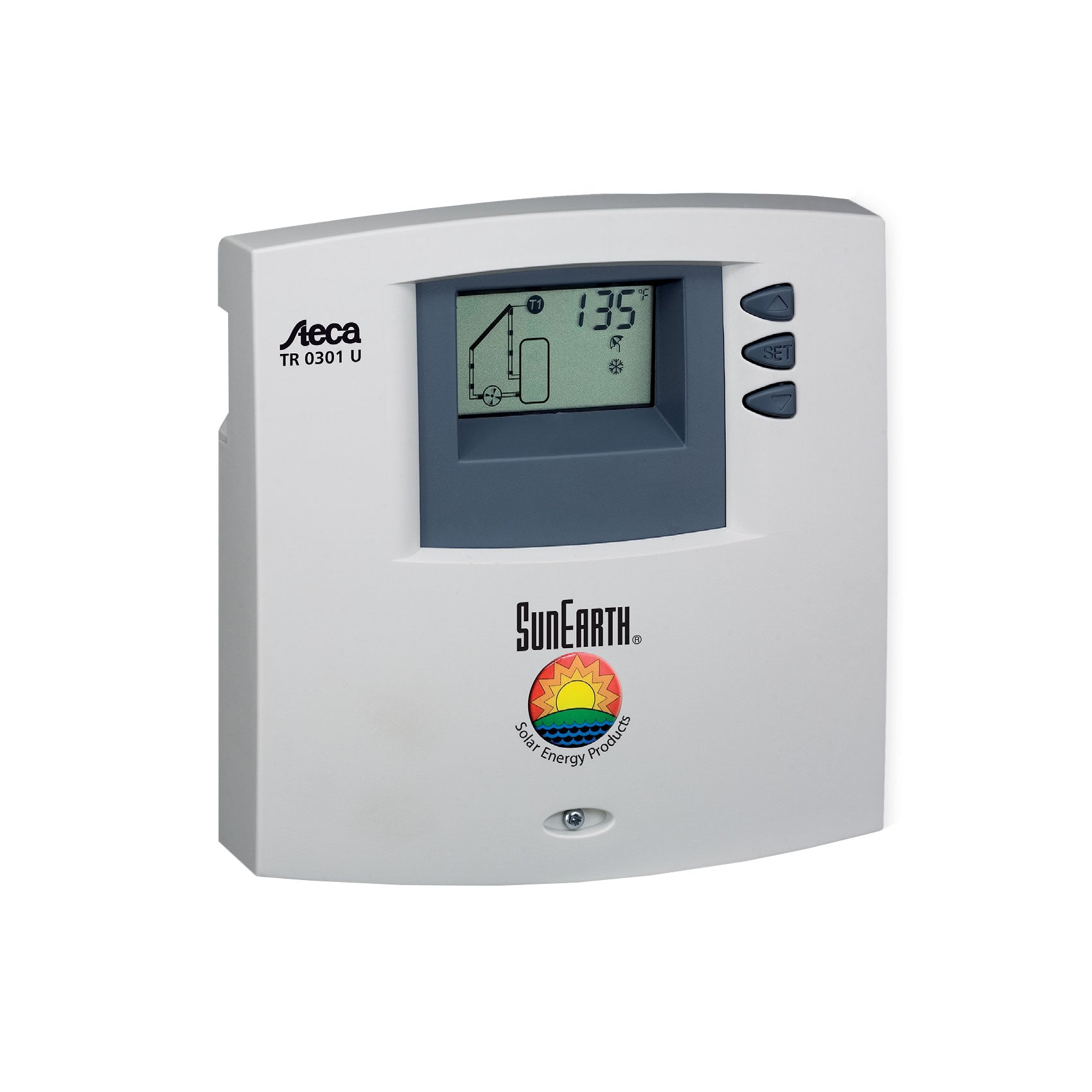

SunEarth SETR0301U - Controller for Solar Water Heaters

With its special certification (ETL label) from a Nationally Recognized Testing Laboratory (NRTL) in the US, SunEarth’s SETR0301U controller meets the safety standards and requirements of the North American market. The SETR0301U series of controllers features an animated graphic display, which offers a complete visualization of the solar energy system's operating status and solar circuit.

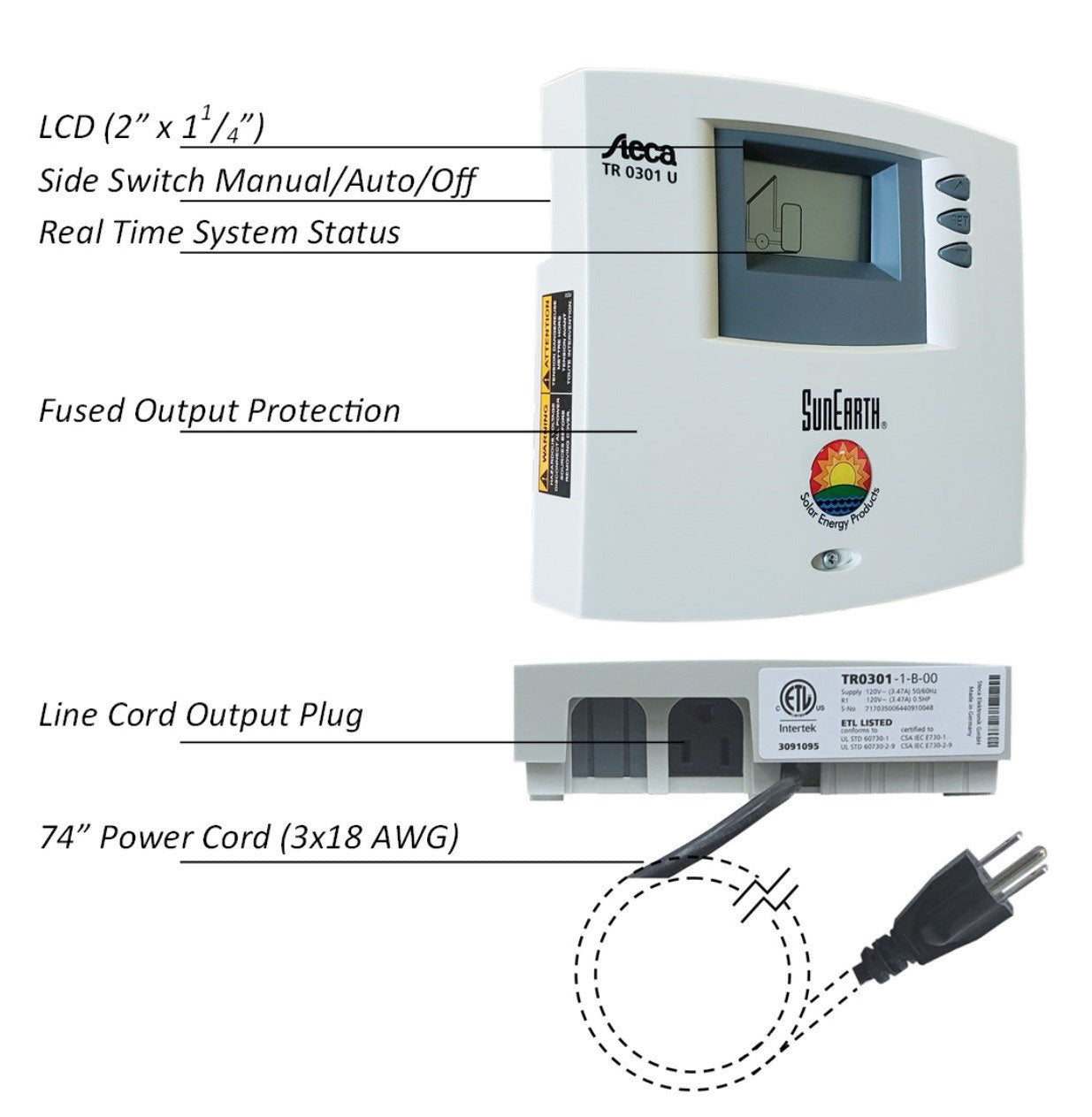

Features

  • The SETR0301U Controllers are designed for SunEarth’s solar water heating systems
  • The LCD display includes temp values, tube collector function, max storage tank temp, warning indicator, and more
  • Featuring a 2x1.25" LCD, fused output protection, line cord outlet plub, and a 74" power cord
  • Adjustable On/Off Differential and High Limit
  • Vacation Over-Heat Protection
  • Freeze Recirculation Option
  • Temperature Display in Fahrenheit or Celsius

Related Video: Programming the 0301 U Controller
