SCC11ARPM - Solar Charge Controller Waterproof 11 Amps with Cables
Regular price
$54.99
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

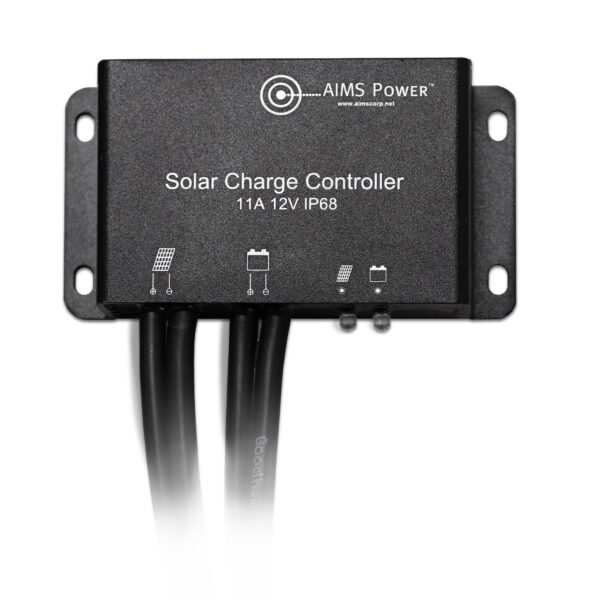

AIMS Power SCC11ARPM - Solar Charge Controller Waterproof 11 Amps with Cables

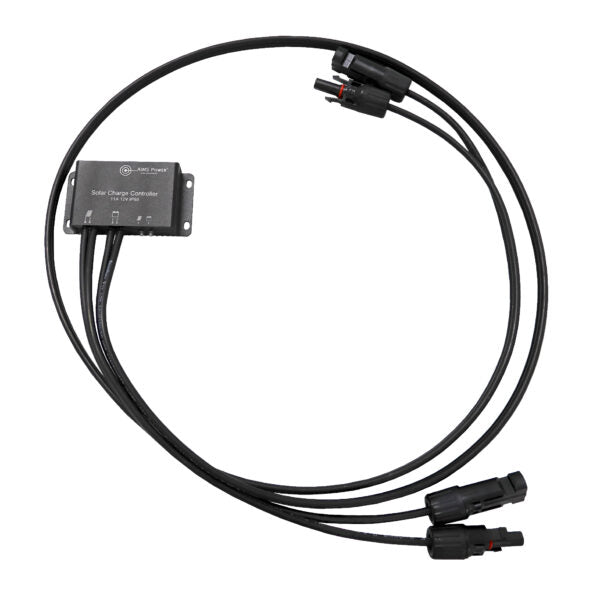

Super easy to install, waterproof solar charge controller. The controller includes the solar panel and battery cables for quick set up. Compact, but powerful measuring at only 4 inches. The built in MC4 cables allows for quick installation.

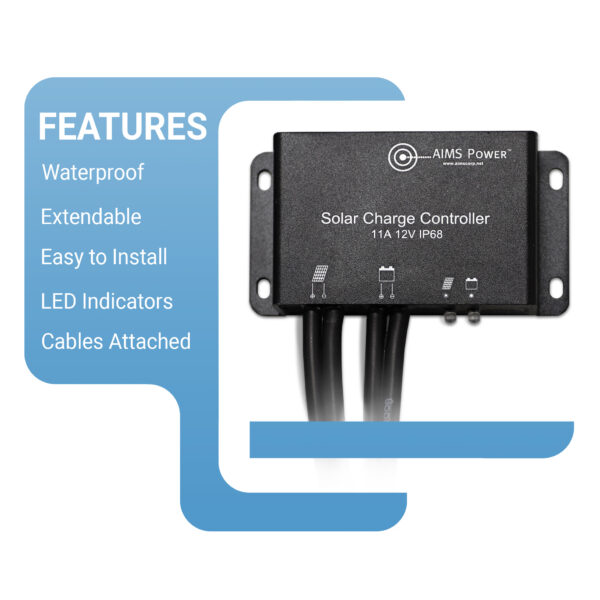

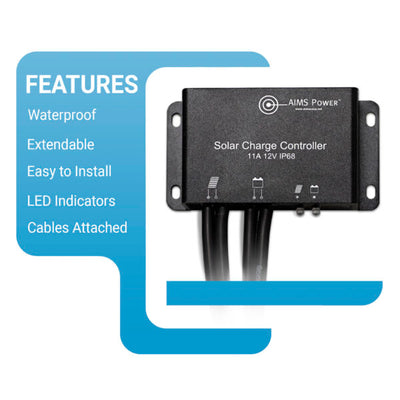

Features
- Easy to install
- Waterproof – IP68
- Built in cables for easy extension using the MC4 connectors
- LED indicators
- 2 stage charger
Specifications
- 12V battery systems
- Max charge current – 11A
- Max PV input voltage – <30Voc
- Max PV Input Power – 190W (depending on sunlight)
- Boost charge – 14.2V
- Float charge – 13.8V
- Boost charge recovery voltage – 13.2V
- Over discharge recovery voltage – 11.1V
- PV input cable length – 13 inches
- Battery output cable length – 5 FT
- Boost charge duration – 2 hours
- Operating temp -32F to 140F / -35C to 60C
- IP68
- Weight – .5 lb unit, 1 lb shipped
- Dimensions – 3.25" X 1.75" x .625"
