8008957 - GST 20 2" Sammys Vertical Threaded Rod Anchor for Wood - 3/8" Rod
Regular price
$2.00
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

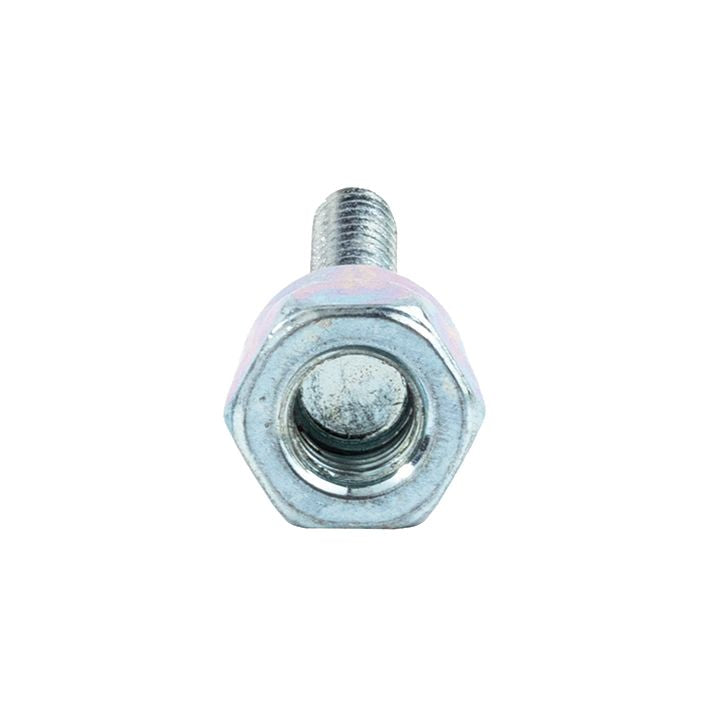

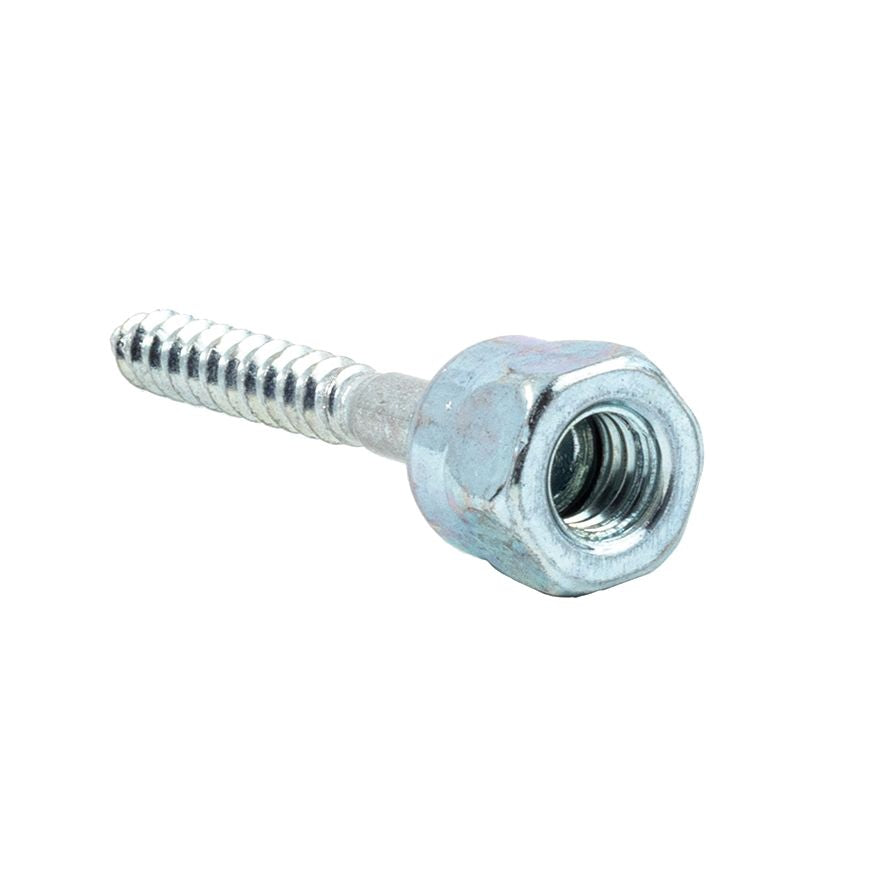

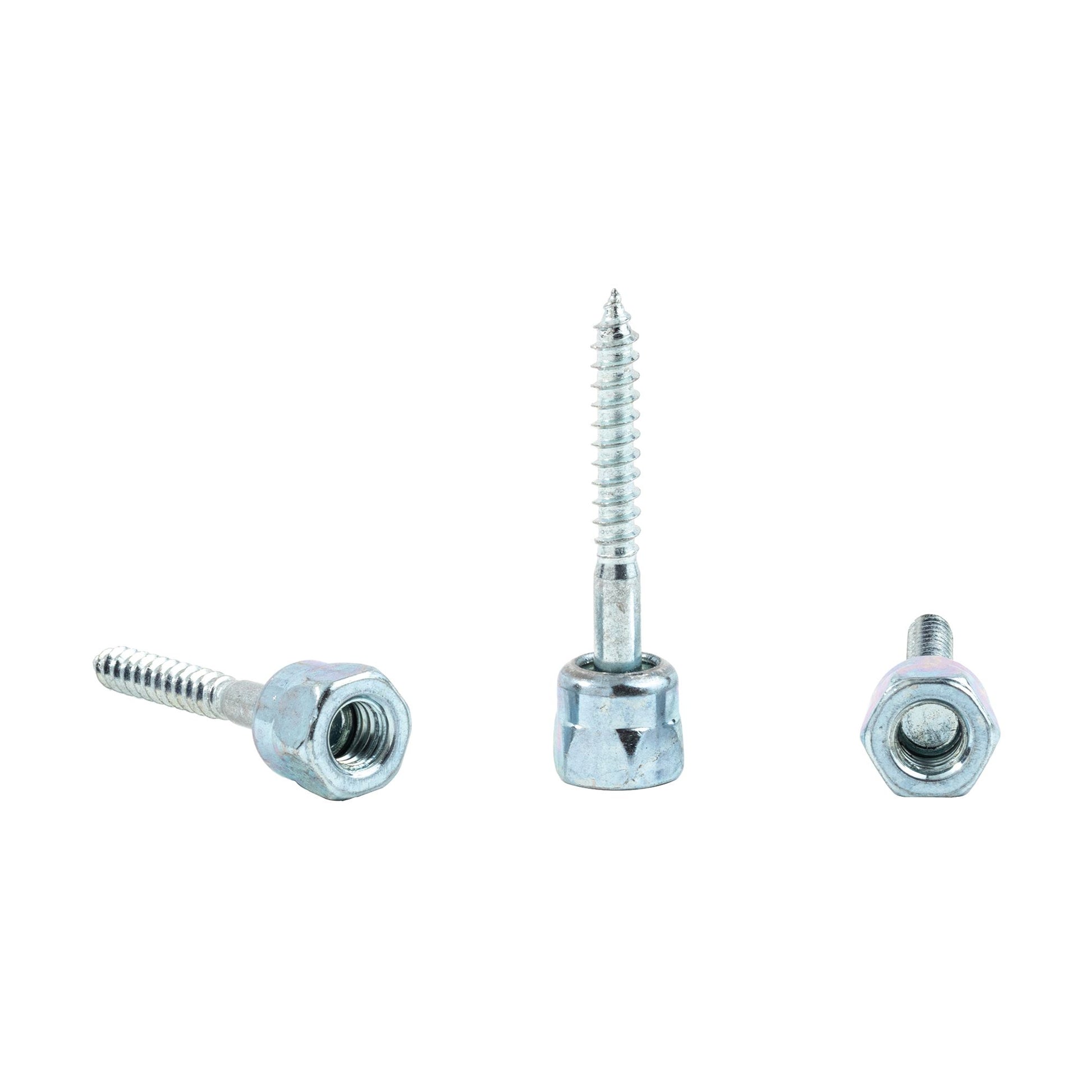

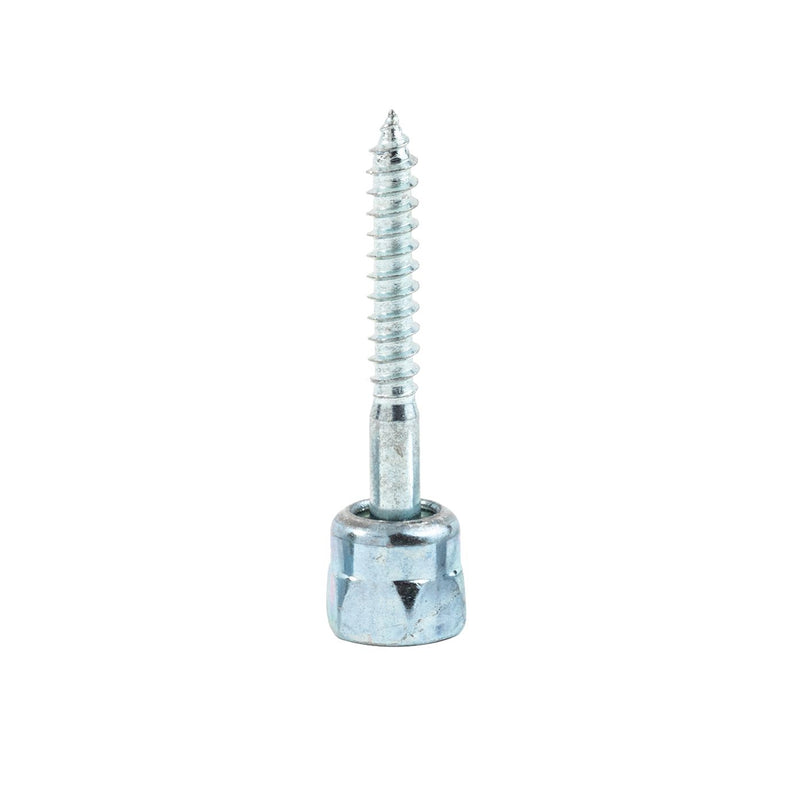

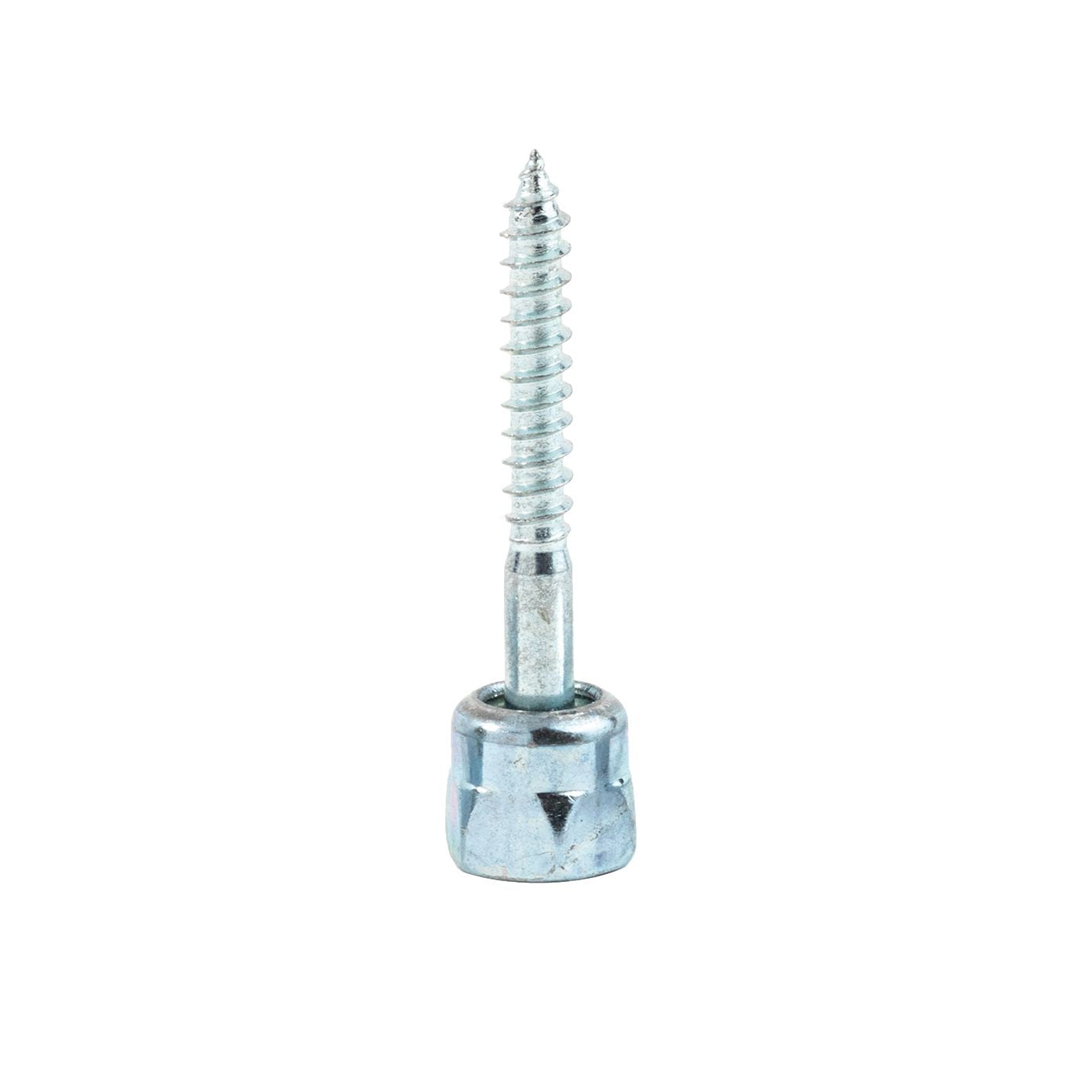

Sammys 8008957 - GST 20 2" Sammys Vertical Threaded Rod Anchor for Wood - 3/8" Rod
Sammys threaded rod anchors for wood are uniquely designed to save time and money in the installation process. With no pre-drilling required, you can complete the job on time! There are models to install vertically, horizontally, and at a swivel that accommodates up to 3-1/2 x 12 pitch roofs. All Sammys are assembled in the U.S.A.
Features
- Sold individually
- No pre-drilling required
- Quick to install using the Sammy Nut Driver with an 18V cordless drill
- Saves time from traditional methods
- Reduces installation costs
- Assembled in the U.S.A.
- Part# 8008957
- Model: GST 20
Specifications
- Product Length: 2"
- Product Diameter: 1/4"
- Material: Steel
- Finish: Electro-Zinc
- Material Grade: C1022 screw / C1010 cap
- FM Approved: Yes
- UL Approved: Yes
- Installation Tool: #14 Black Nut Driver - 8113910
- Mount Orientation: Vertical
- Substrate: Wood
- Rod Size: 3/8"
- UL Max Pipe Size: 2-1/2"
- FM Test Load: 1475 lbs
- FM Min Thickness: 1-1/2"
- Screw Description: 1/4 x 2"
- UL Test Load: 850 lbs
- Ultimate Shear: 1760 lbs (Fir)
Applications
- Hanging pipe and fire sprinkler systems
- Hanging electrical fixtures, conduit, lighting systems, and cable trays
- Hanging HVAC ductwork
- Installs vertically into the bottom of steel structures for hanging threaded rod.
