Specification Sheet

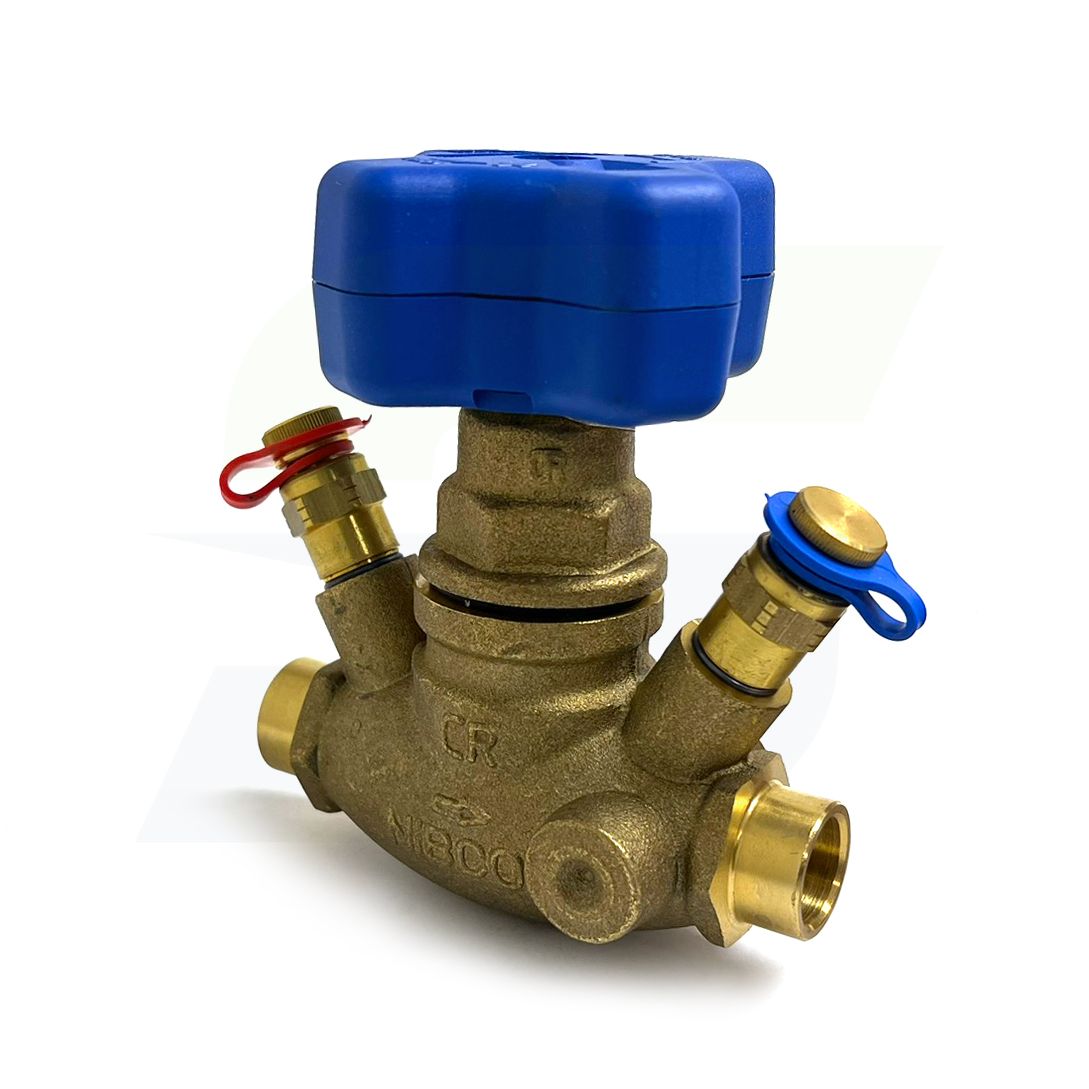

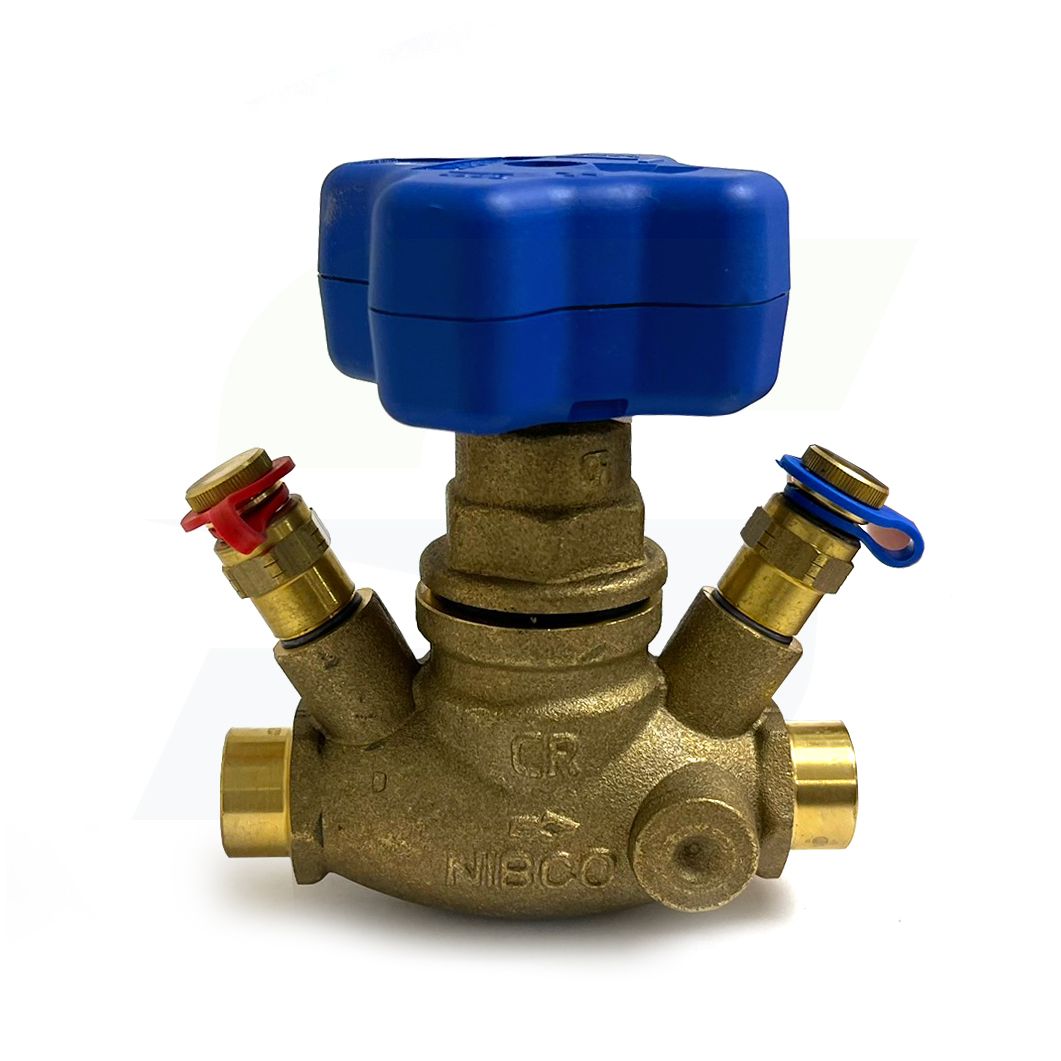

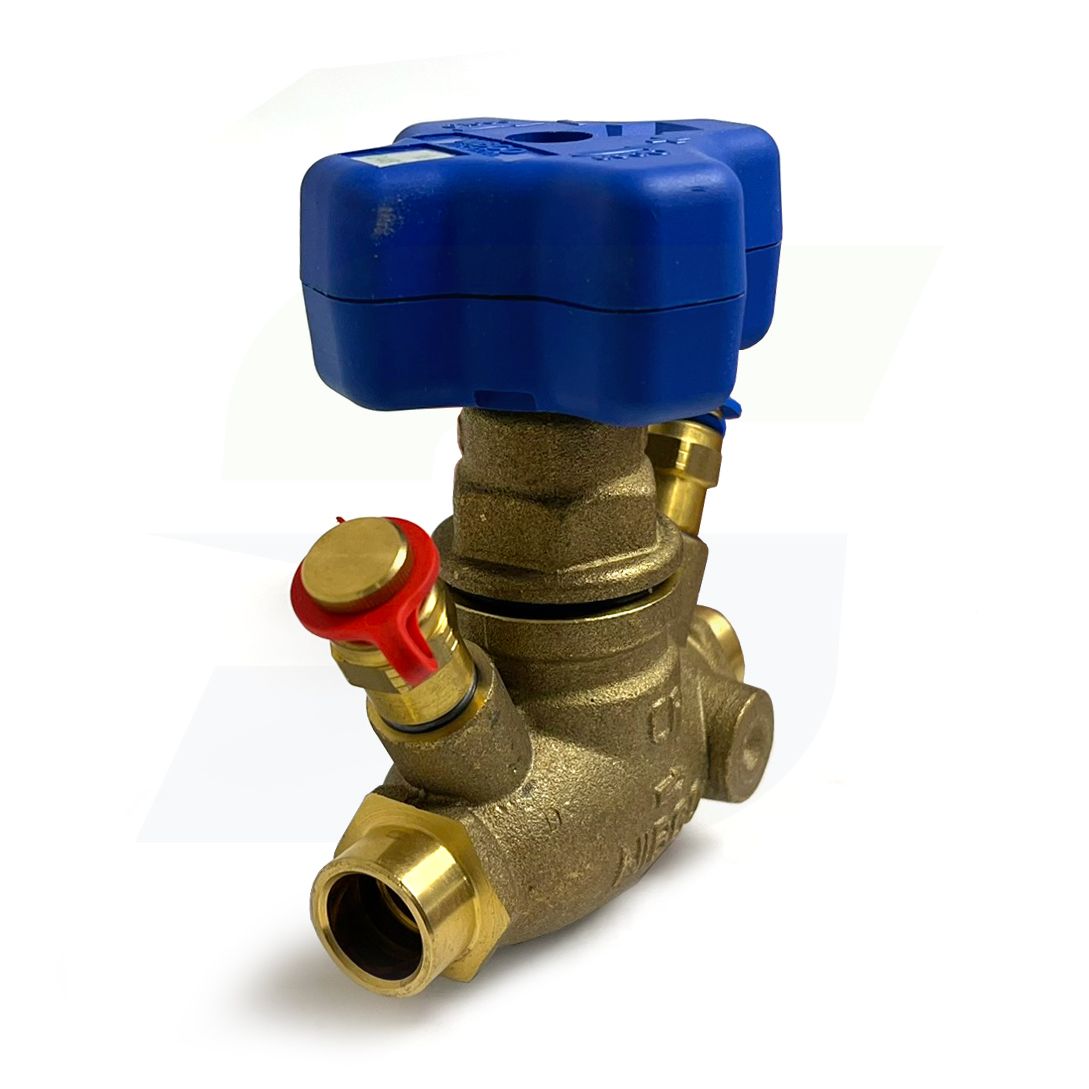

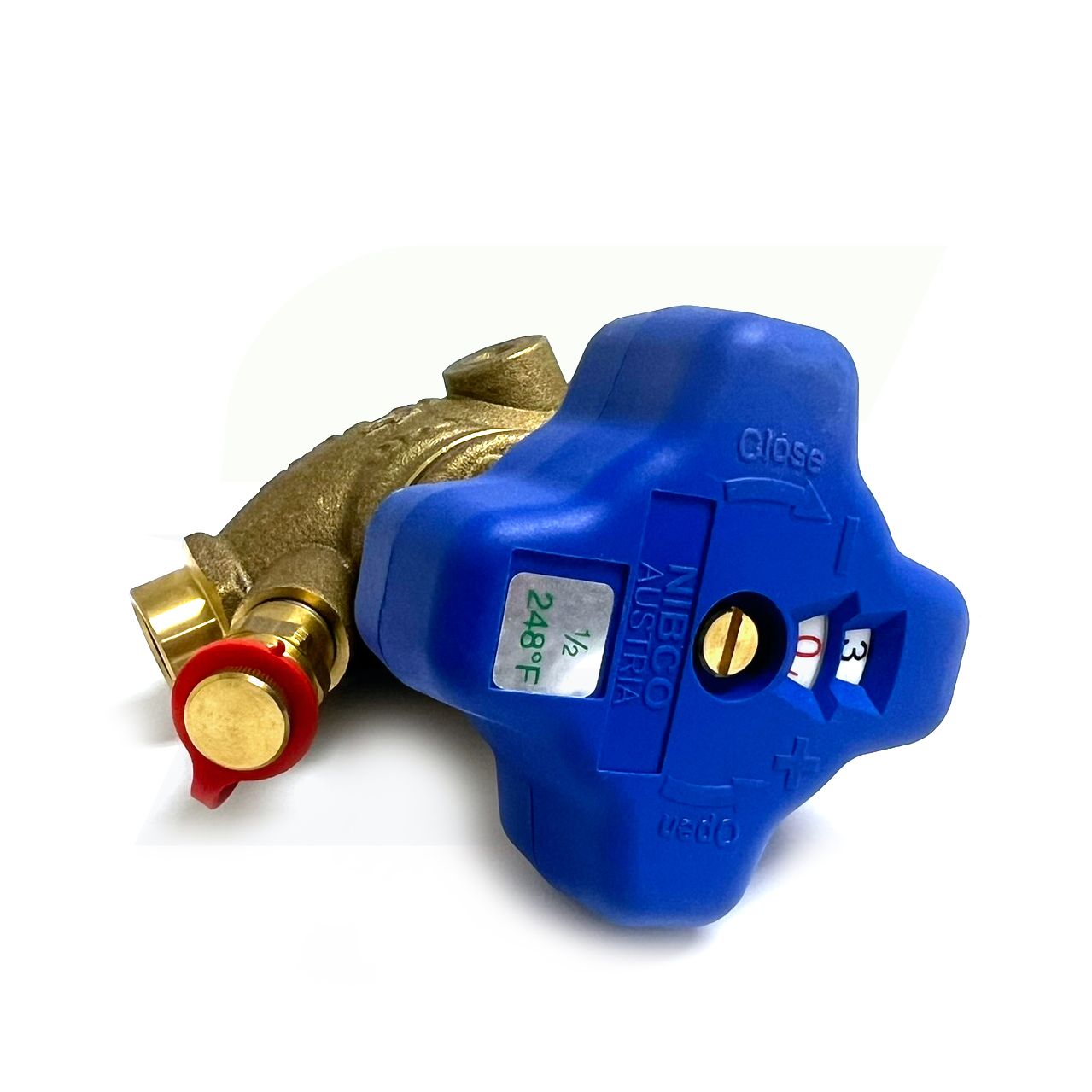

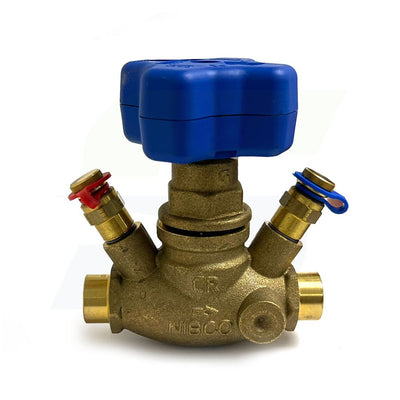

Nibco S-1710 DZR Brass Fixed Orifice Circuit Balancing Valve

The NIBCO circuit balancing valve is a "T" pattern globe style valve offering improved flow measurement accuracy. With unequalled regulation performance and accuracy across all valve positions, the valve offers positive shutoff and isolation. The memory stop feature provides repeatable regulation and control. The valve is recommended for use in HVAC and plumbing systems.

Features

• 240 psi non-shock cold working pressure
• Maximum Temperature 250 degrees F at 240 psi
• EPDM O-ring
• Two integral test ports
• Dezincification resistant
• Female solder end connections
• Use in U.S. drinking water applications is prohibited after January 3, 2014
• FLO-BOSS MV
• ASME B16.18 (solder ends)

Models

• NJ1X006: 1/2"
• NJ1X008: 3/4"
• NJ1X00A: 1"
• NJ1X00B: 1-1/4"
• NJ1X00C: 1-1/2"
• NJ1X00D: 2"

^{PVZ1K03404 PVZ1K03406 PVZ1K03408 PVZ1K03410 PVZ1K03412 PVZ1K03414}
