3012636 - Royal 186 Manual Urinal Flushometer - Top Spud - 1.0 GPF

In stock
SKU: 3012636
Regular price $204.37

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

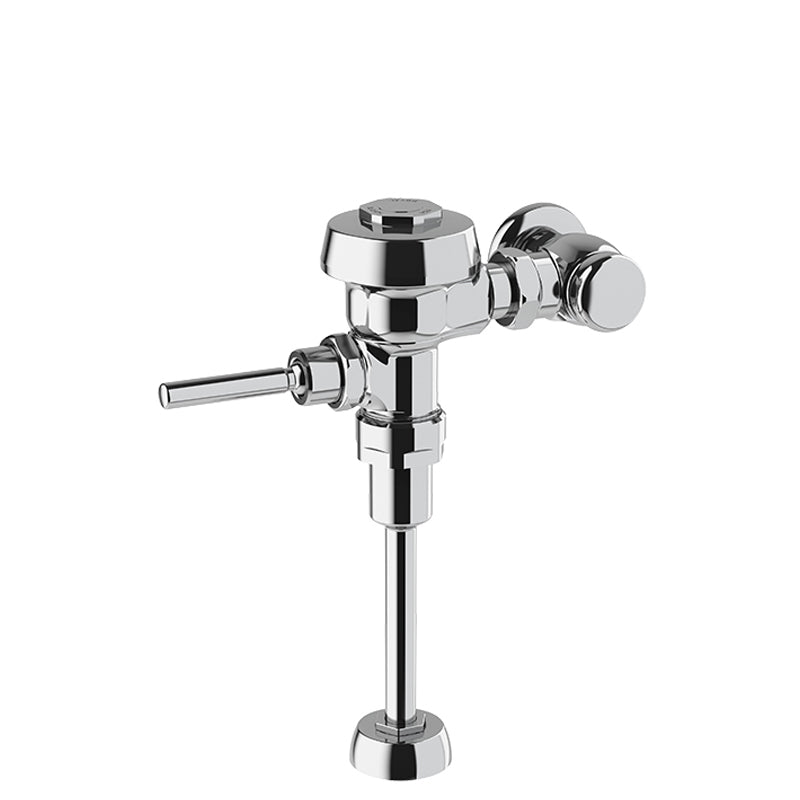

Sloan 3012636 - Royal 186 Manual Flushometer

1.0 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Royal Exposed Manual Urinal Flushometer.

Features

  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set Screw
  • Non-Hold-Open Handle, Fixed Metering Bypass and No External
  • Volume Adjustment to Ensure Water Conservation
  • Diaphragm, Handle Packing and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle
  • 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop w/ Free Spinning Vandal Resistant Stop Cap

Specifications

  • Flush Volume: 1.0 gpf (3.8 Lpf)
  • Finish: Polished Chrome (CP)
  • Valve: Diaphragm
  • Valve Body Material: Semi-red Brass
  • Fixture Type: Urinal
  • Fixture Connection: Top Spud

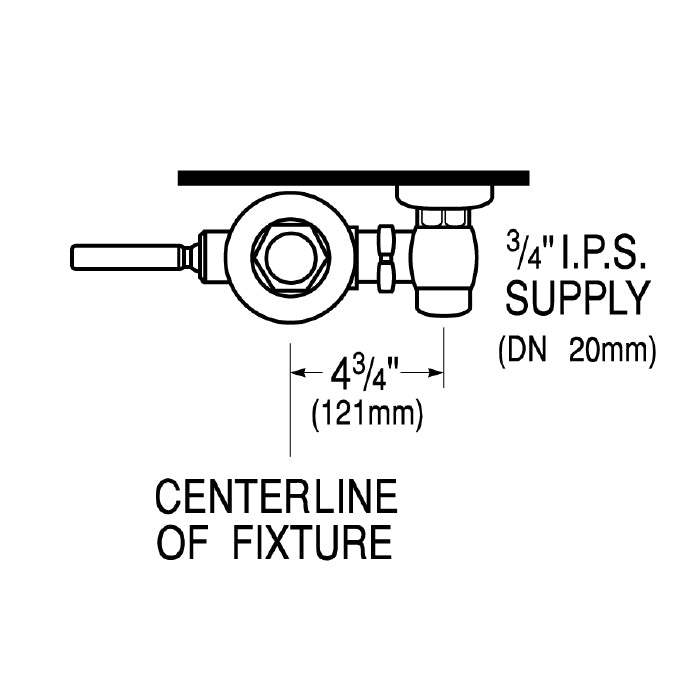

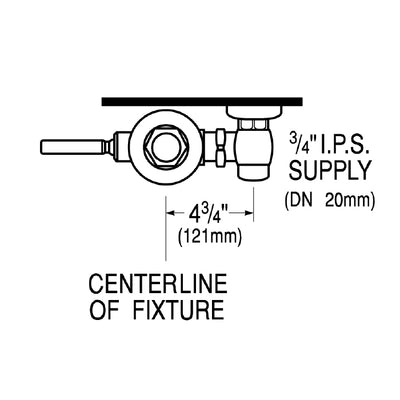

  • Rough-In Dimension: 11-1/2" (292mm)
  • Spud Coupling: 3/4" (19mm)
  • Supply Pipe:3/4" (19mm)




PTB1L00613
