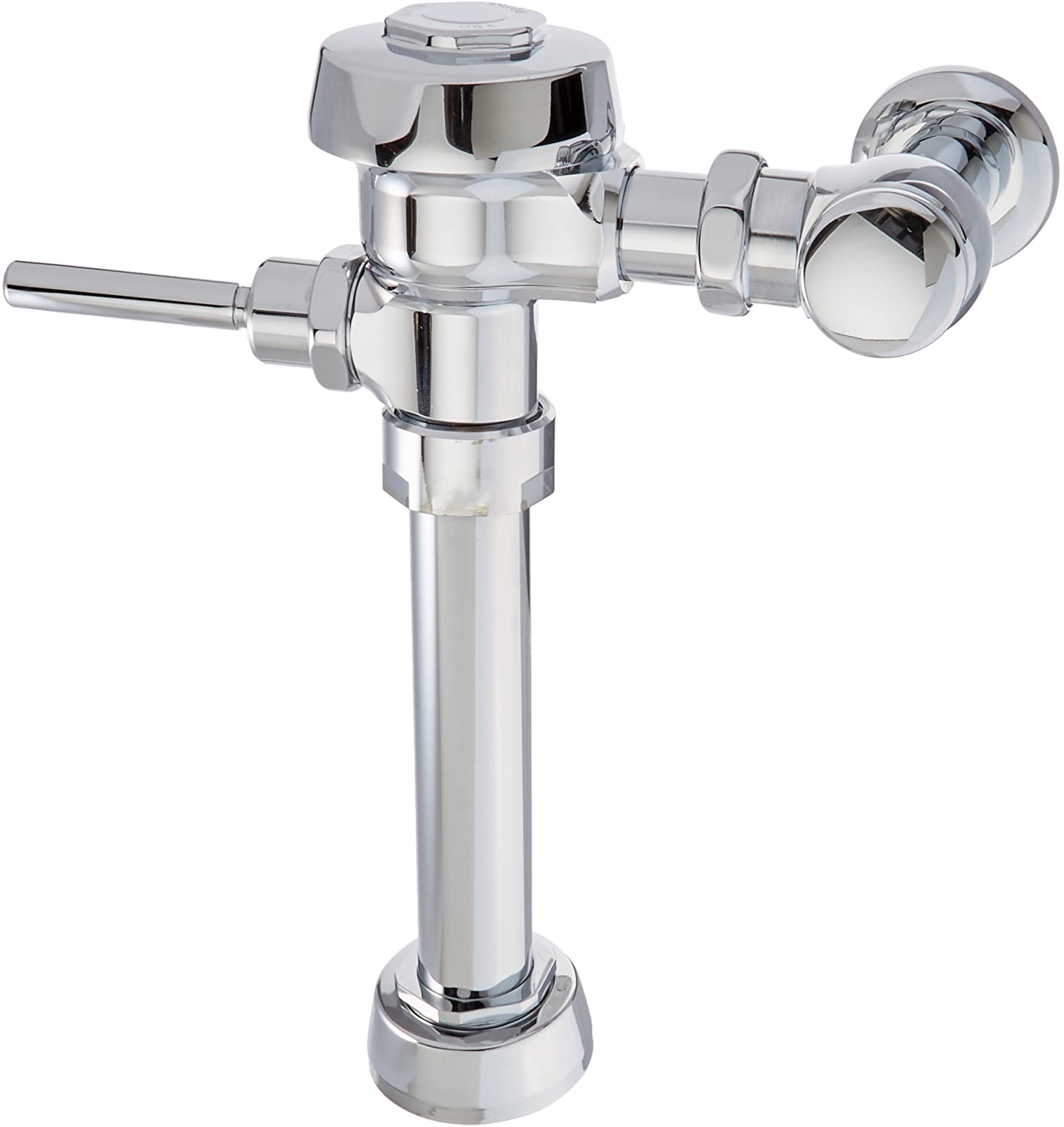

1.6 gpf, Polished Chrome Finish, Single Flush, Royal® Exposed Manual Water Closet Flushometer

DETAILS

• Flush Volume: 1.6 gpf (6.0 Lpf)
• Finish: Polished Chrome (CP)
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Top Spud
• Rough-In Dimension: 11 ½" (292mm)
• Spud Coupling: 1 ½" (38mm)
• Supply Pipe: 1" (25mm)

FEATURES

• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed
  Bypass
• High Back Pressure Vacuum Breaker Flush Connection with Onepiece Bottom Hex Coupling Nut
• Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set
  Screw
• Non-Hold-Open Handle, Fixed Metering Bypass and No External
• Volume Adjustment to Ensure Water Conservation
• Diaphragm, Handle Packing and Vacuum Breaker to be molded
  from PERMEX® Rubber Compound for Chloramine Resistance
• Adjustable Tailpiece
• ADA Compliant Metal Oscillating Non-Hold-Open Handle
• 1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning
• Vandal Resistant Stop Cap

PTB1L00619
