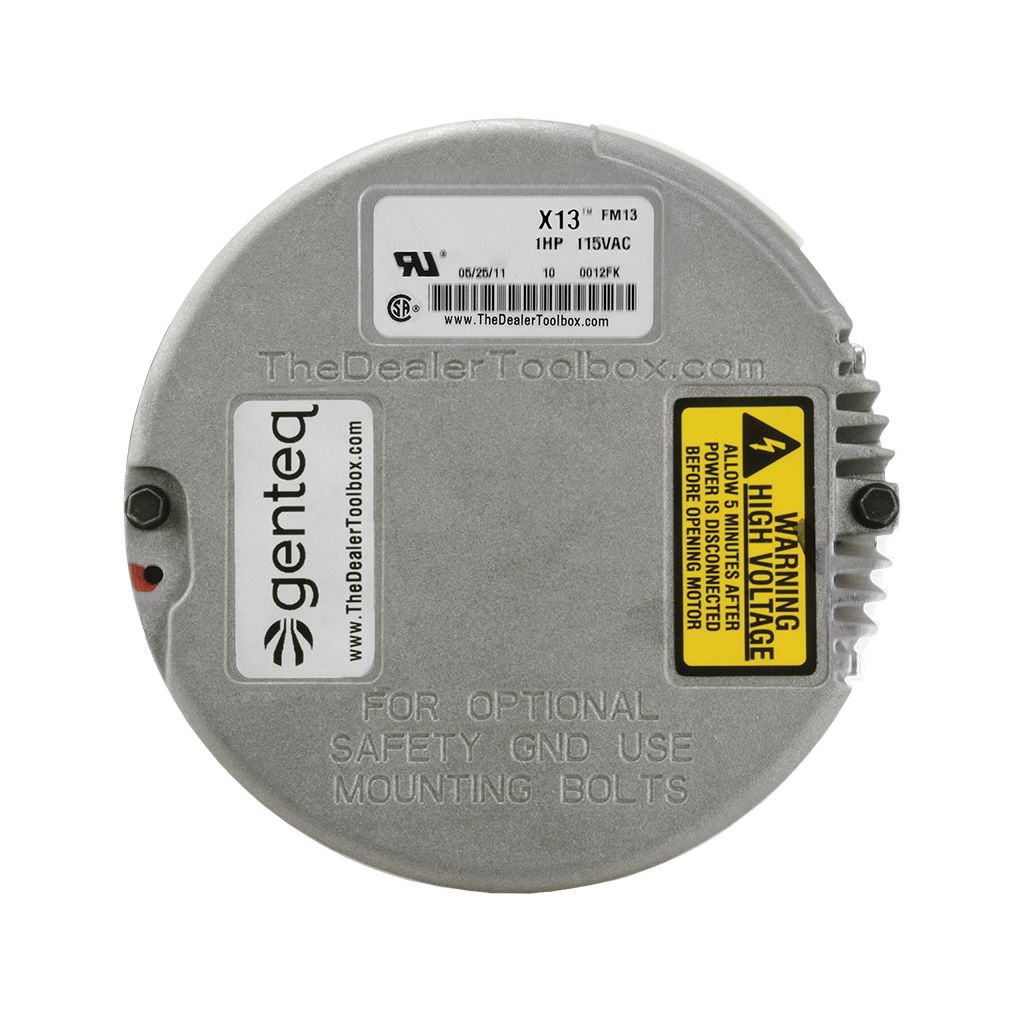

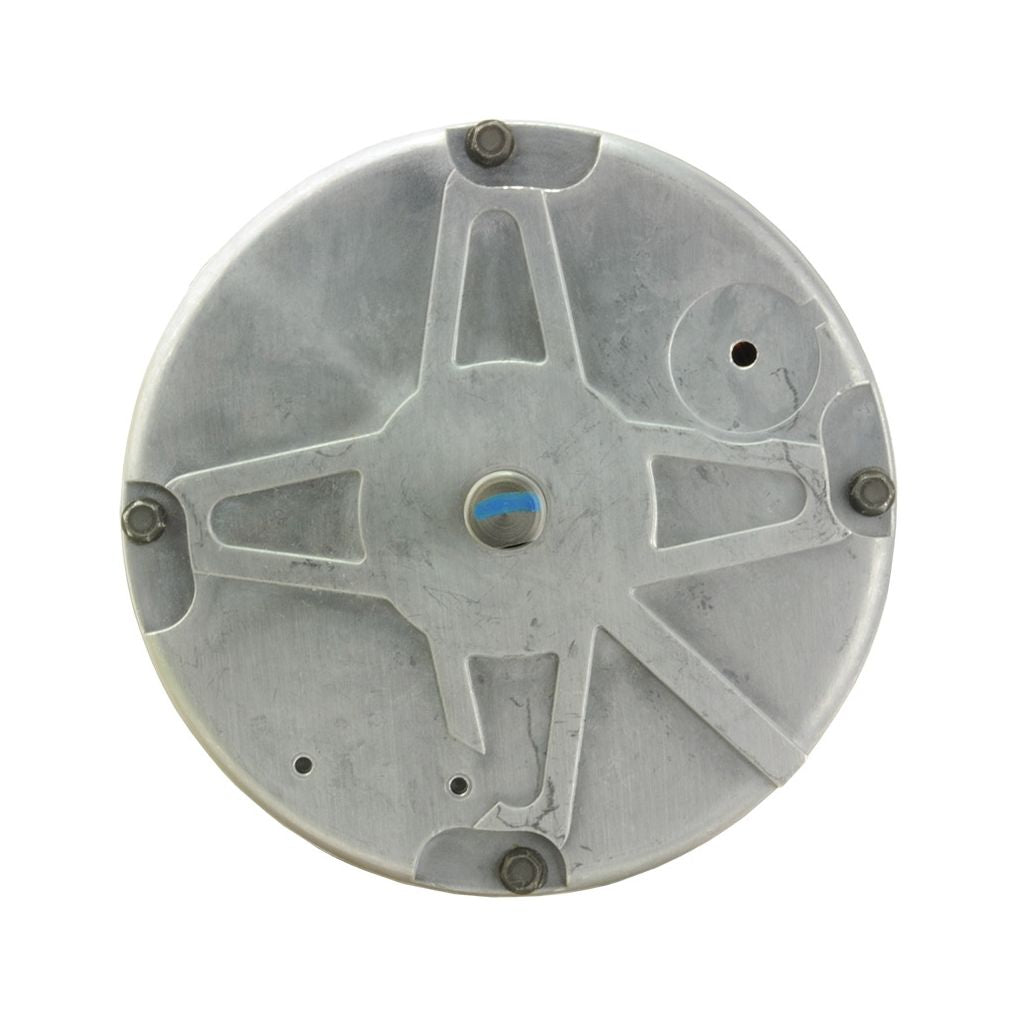

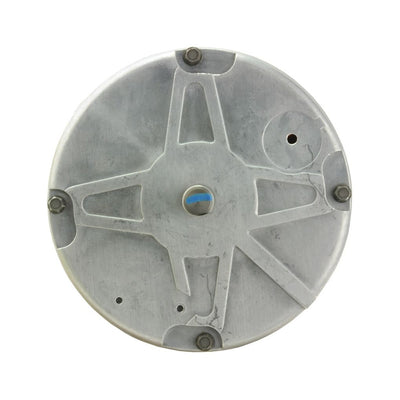

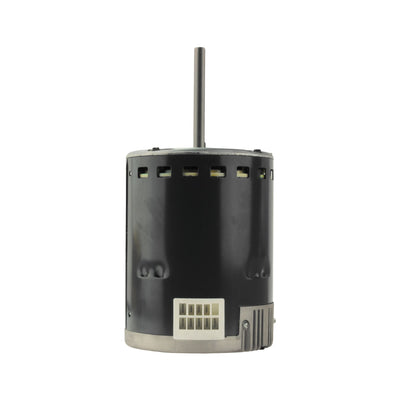

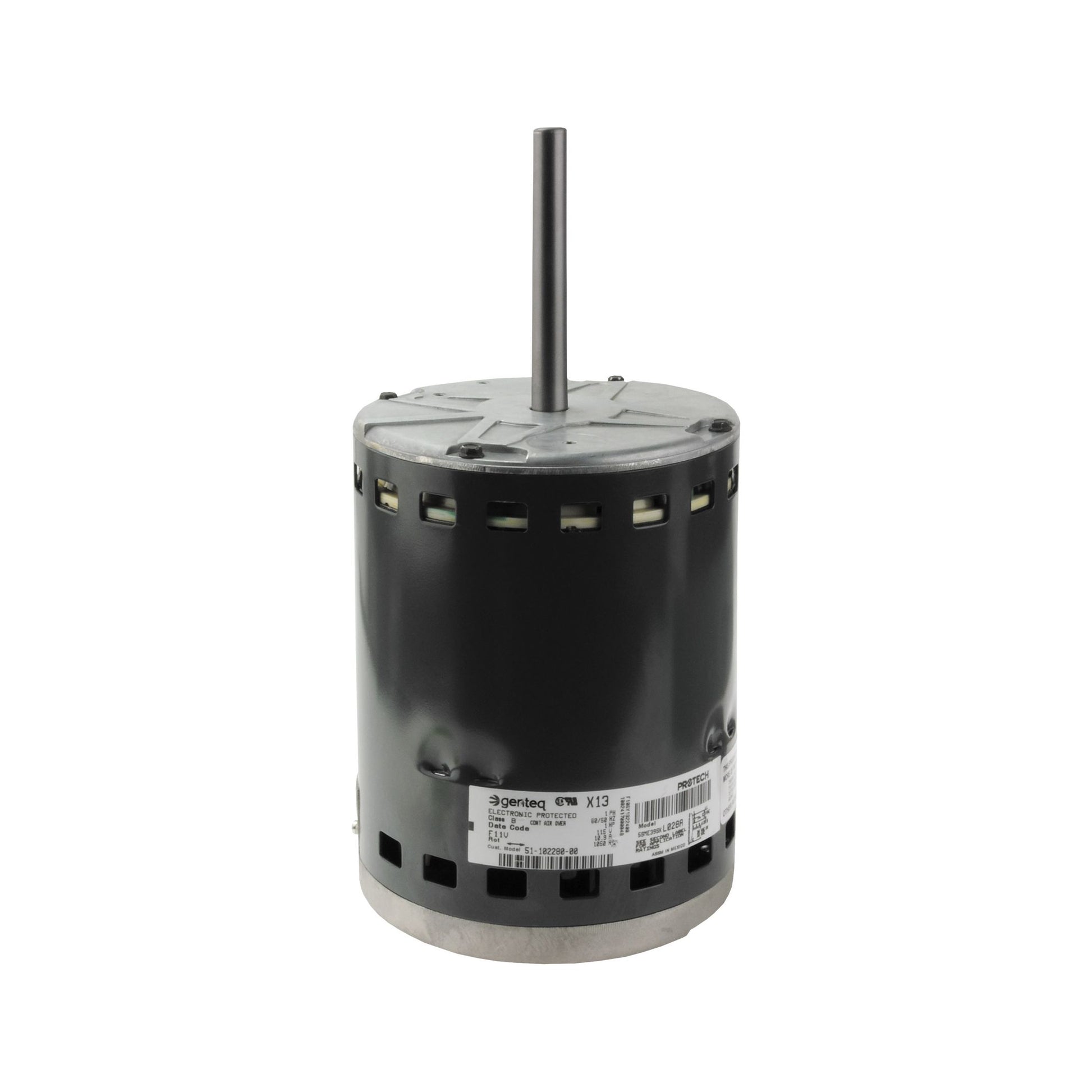

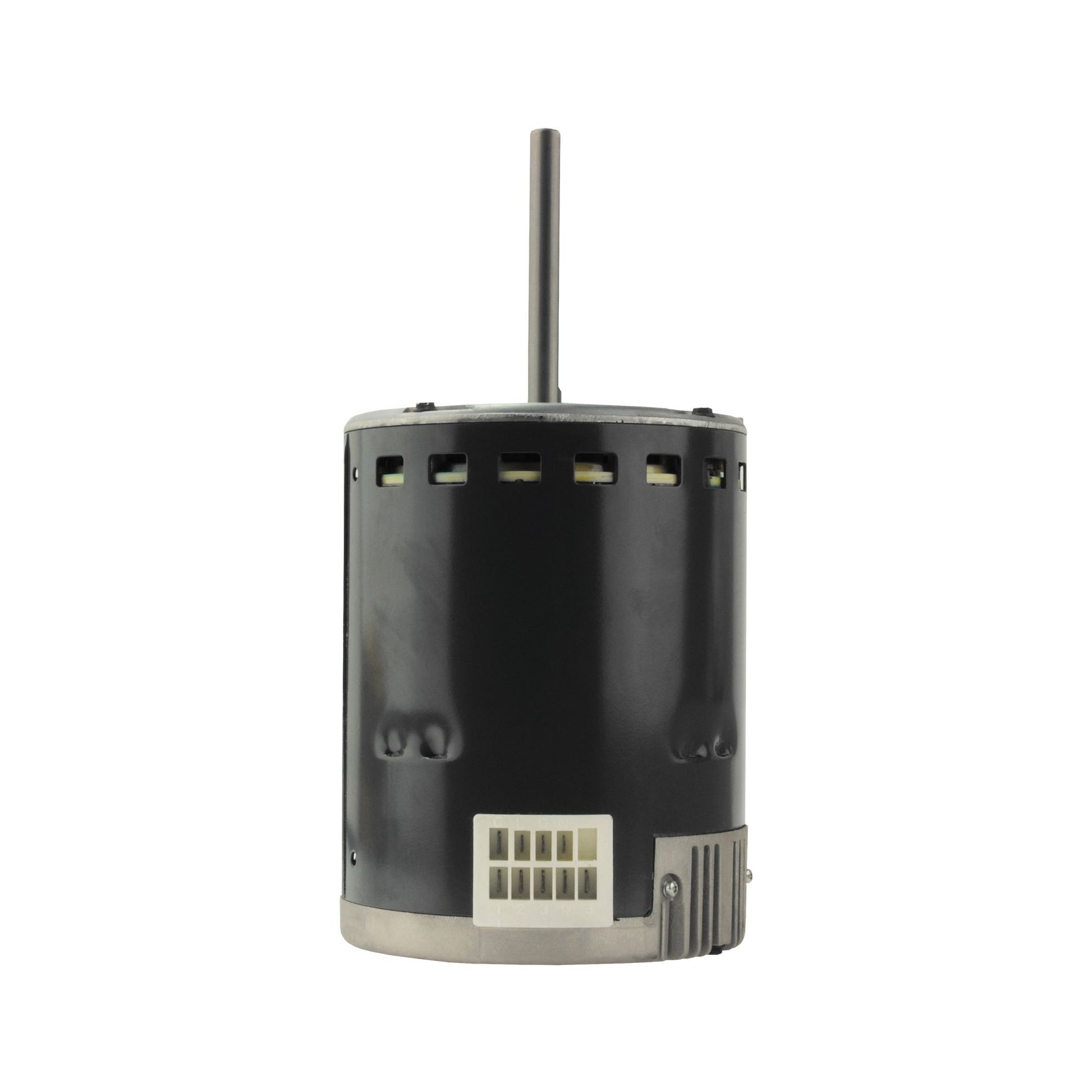

Rheem 51-102280-07 - 1/10 HP X-13 / Endura Pro Condenser Motor - 1 Phase - Variable Speed - 230V

Programming Kit PD510011 and the newest software version is required to program this motor.

Technical Data

  • Motor Type: Endura Pro (X-13)
  • HP: 1
  • No. of Speeds: Variable
  • Input Voltage (V): 120
  • No. of Phases: 1
  • Frequency (Hz): 50
  • Frequency (Hz): 60
  • Shaft Diameter (in.): 1/2
  • Motor Body Diameter (in.): 5-5/8
  • Keyed/Flat Shaft Length (in.): 3-1/2
  • Overall Shaft Length (in.): 3-15/16
  • Motor Body Length (in.): 7-1/4
  • Overall Motor Length (in.): 11-3/16
  • Mounting: Shell-band
  • Frame Size: 48
  • Bearing Type: Ball
  • Application: Blower
  • Drive Type: Direct Drive
  • Blank Replacement Module: Not Available
  • Blank Motor: 51-102280-00
  • Programming Kit: PD510011
  • Shipping Weight: 10.6 lbs

Where Used

  • R801T-W801T-ZSA
  • RGLT
